Model Electrolux 790.77475790 Gas Range (Kenmore 79077475790) – Common Parts & Diagrams

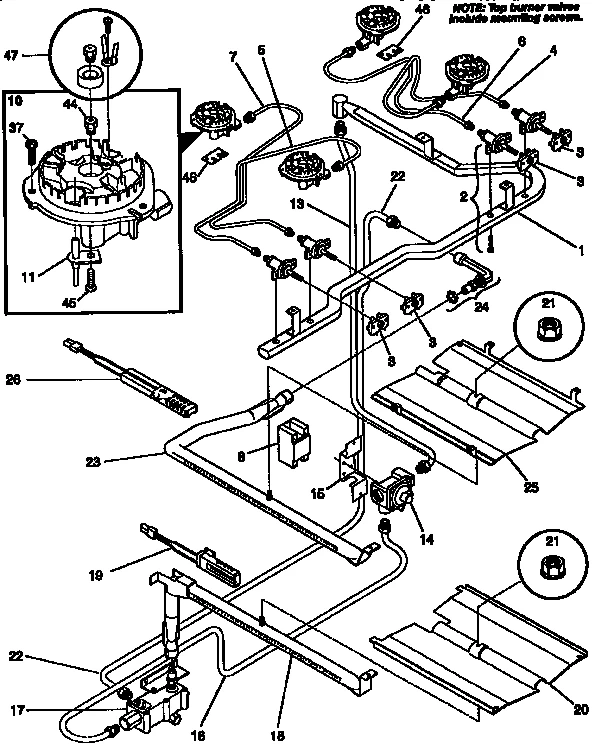

BURNER

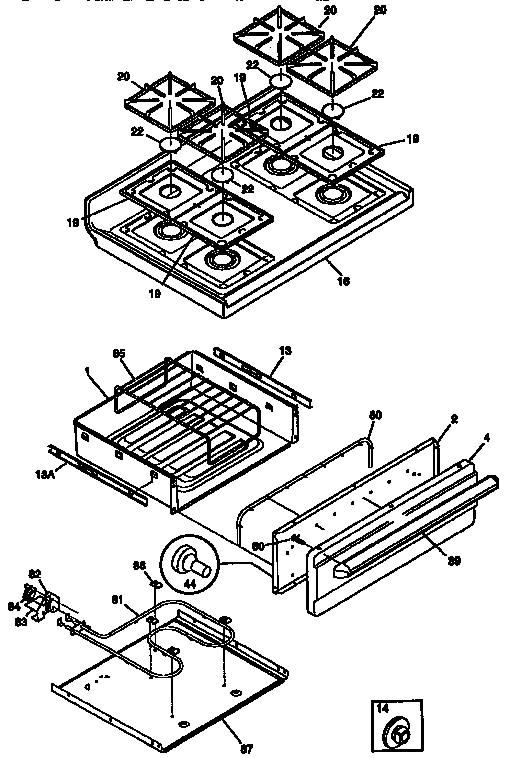

TOP/DRAWER
DOOR
All Parts
BACKGUARD
BODY
BODY
Common parts from model Electrolux 790.77475790 Gas Range (Kenmore 79077475790)
1
Backing Shield WCI 316028701 Contact Us For Availability
1
Main WCI 316029412 Contact Us For Availability
2
Range Surface Burner Valve WCI 5303935130 Contact Us For Availability
2
Backing Shield WCI 316051601 Contact Us For Availability
2
Shield WCI 3131314 Contact Us For Availability
3
Range Surface Burner Igniter Switch WCI 316032000 Contact Us For Availability
3
Body Panel WCI 316081028 Contact Us For Availability
3A
Body Panel WCI 316081029 Contact Us For Availability
3B
Shield WCI 08067992 Contact Us For Availability
4
Range Surface Burner Tube, Right Front (Red) WCI 316059612 Contact Us For Availability
4
Burner Box WCI 316011912 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Surface Burner Tube, Left Front (Green) WCI 316059613 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5A
Nut WCI 5303288460 Contact Us For Availability
5B
Anti-Tip Kit WCI 3934058 Contact Us For Availability
6
Range Surface Burner Tube, Right Rear WCI 316059614 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Range Surface Burner Supply Tube, Left Rear WCI 316059615 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 5303212540 Contact Us For Availability
9
Broiler Pan WCI 316073800 Contact Us For Availability
10
Range Oven Door Handle Screw WCI 5303280308 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
11
Wrapper Trim WCI 316061847 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Tube WCI 316065005 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Aluminum Foil WCI 3131361 Contact Us For Availability
15
Glass Bracket WCI 316081401 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Glass-oven D WCI 316085700 Contact Us For Availability
17
RETAINER-LENS WCI 3106087500 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
19
Control Panel WCI 316082638 Contact Us For Availability
20
Range Oven Control Board WCI 316080102 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
23
Bracket Clock WCI 316079002 Contact Us For Availability
25A
Warmer Shield WCI 316092300 Contact Us For Availability
26
Cover WCI 08067757 Contact Us For Availability
28
Push Button WCI 316015103 Contact Us For Availability
28
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
28A
Range Timer Knob Shaft WCI 316080600 Contact Us For Availability
30
Main Bracket WCI 316059200 Contact Us For Availability
30A
Main Bracket WCI 316059201 Contact Us For Availability
31A
Knob WCI 316025109 Contact Us For Availability
33
Shield WCI 316014401 Contact Us For Availability
36
Knob (White) WCI 316049308 Contact Us For Availability
36
Flue WCI 5303272844 Contact Us For Availability
38
Shield WCI 316051700 Contact Us For Availability
38A
Insulator WCI 316097100 Contact Us For Availability
39A
Washer Handle WCI 316008400 Contact Us For Availability
39A
Holder WCI 08067961 Contact Us For Availability
40
Manifold Panel WCI 316086838 Contact Us For Availability
40
Shield WCI 3200836 Contact Us For Availability
40A
Screw-heat S WCI 5303288570 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
42
Vent Trim WCI 316083300 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
44
Cooktop Burner Orifice WCI 5303210090 Contact Us For Availability
44A
Orifice WCI 316010802 Contact Us For Availability
52
Oven Shield WCI 316081301 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
55
Shield-flue WCI 316052601 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
77
Drawer Rail WCI 316094900 Contact Us For Availability
77A
Drawer Rail WCI 316094901 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
89A
Insulator WCI 316097000 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Owner's Manual WCI 316000923 Contact Us For Availability
NI
Wiring Harness WCI 316001457 Contact Us For Availability
NI
Wiring Diagram WCI 316002143 Contact Us For Availability
NI
Plate WCI 316065303 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Range Screw, #8-32 x 1-in WCI 5303212671 Contact Us For Availability
NI
Screw WCI 5303288574 Contact Us For Availability
NI
Parts Catalg WCI 5995297131 Contact Us For Availability
× ![]()
