Model Electrolux 790.75903992 Gas Range (Kenmore 79075903992) – Common Parts & Diagrams
TOP/DRAWER
DOOR

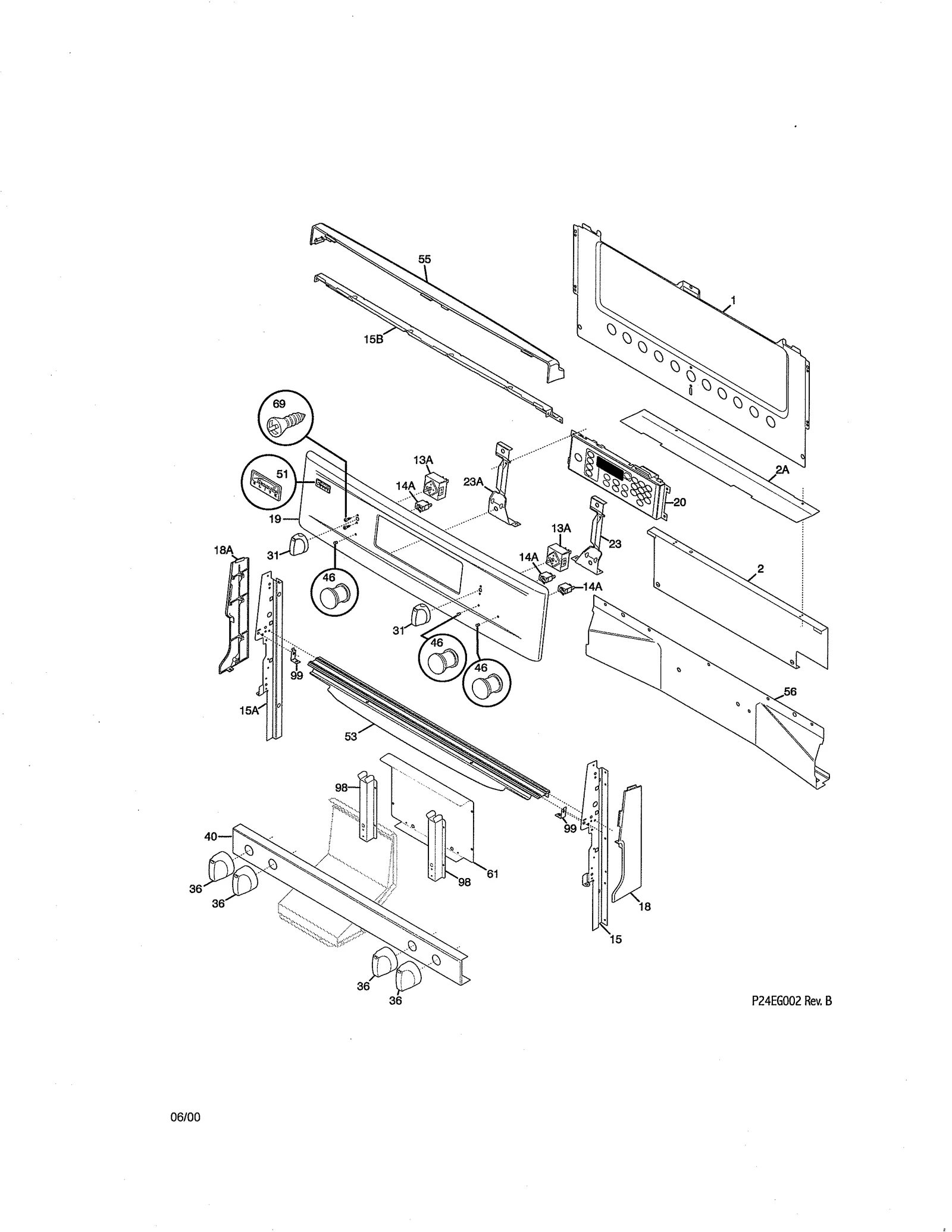

BACKGUARD
All Parts

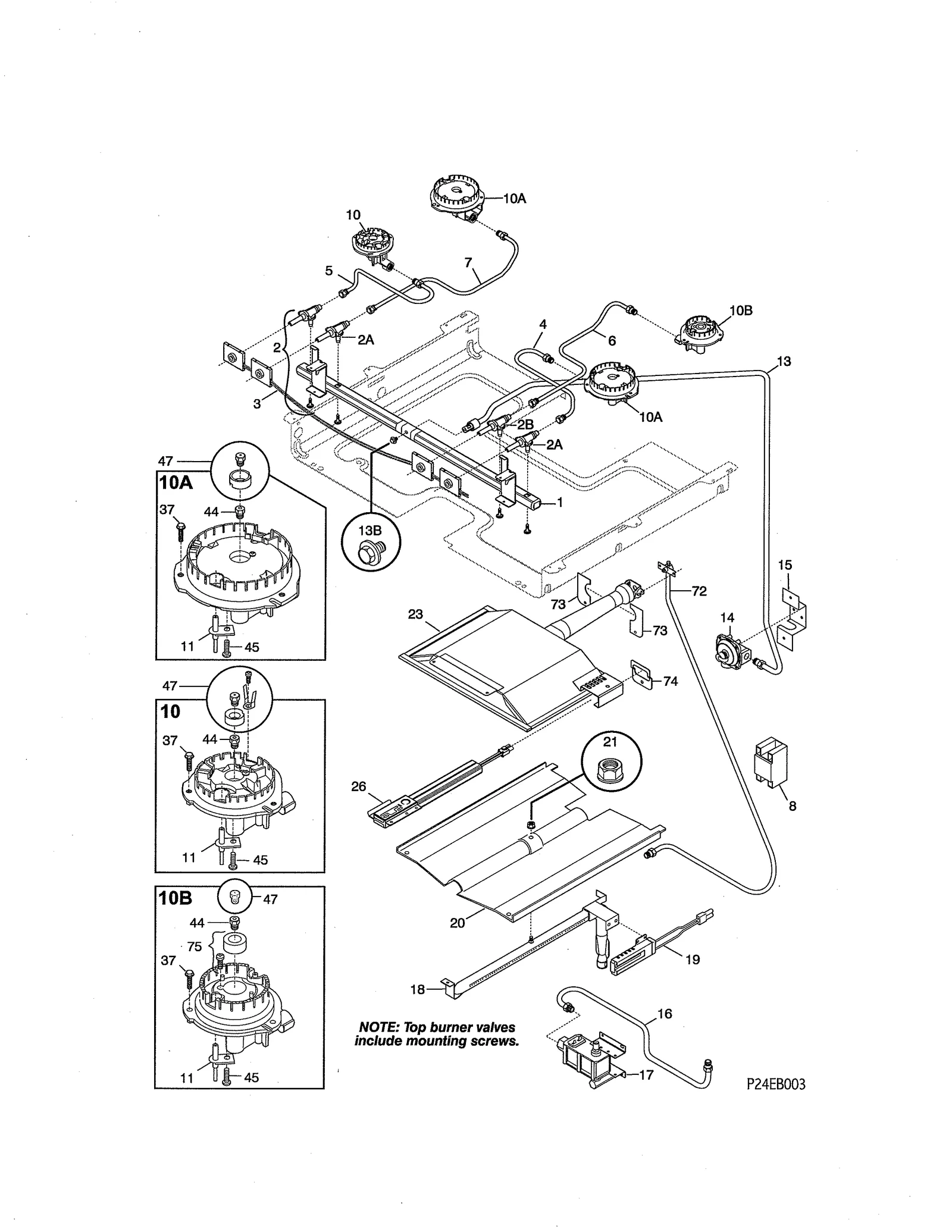

BURNER

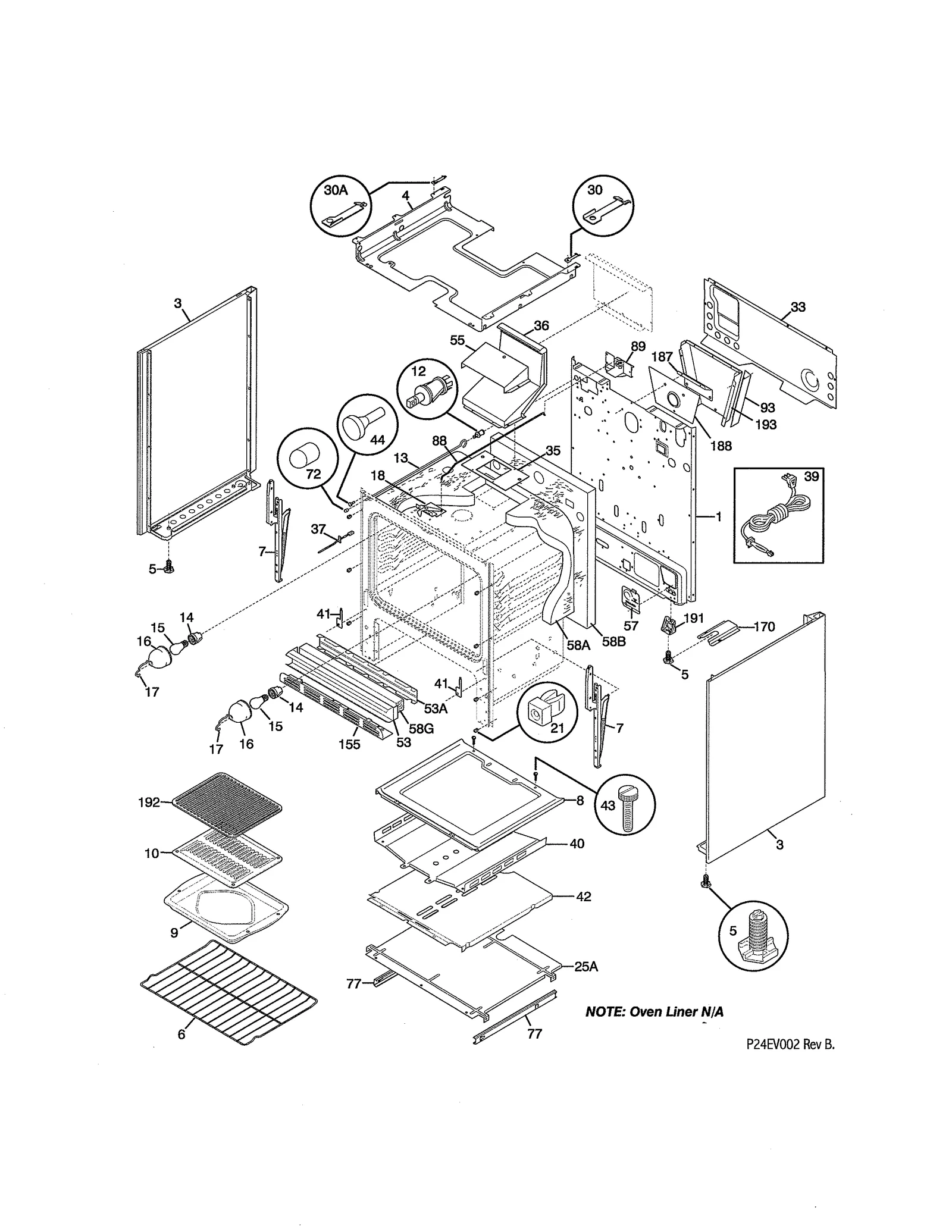

BODY
Common parts from model Electrolux 790.75903992 Gas Range (Kenmore 79075903992)
1
Backing Shield WCI 316028701 Contact Us For Availability
1
Pipe WCI 316118604 Contact Us For Availability
1
Main WCI 316029414 Contact Us For Availability
2
Backing Shield WCI 316051600 Contact Us For Availability
2
Valve Kit WCI 5303935181 Contact Us For Availability
2A
Shield-top I WCI 316123200 Contact Us For Availability
2A
Valve Kit WCI 5303935182 Contact Us For Availability
2B
Valve Kit WCI 5303935183 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316001824 Contact Us For Availability
3
Bodyside-pan WCI 316081042 Contact Us For Availability
3A
Bodyside-pan WCI 316081043 Contact Us For Availability
4
Burner Tube WCI 316059616 Contact Us For Availability
4
Burner Box WCI 316067208 Contact Us For Availability
5
Burner Tube WCI 316059617 Contact Us For Availability
5
Range Level Leg WCI 316107300 Contact Us For Availability
6
Burner Tube WCI 316059618 Contact Us For Availability
7
Burner Tube WCI 316059619 Contact Us For Availability
7
Oven Hinge WCI 316007005 Contact Us For Availability
8
Oven WCI 5303212540 Contact Us For Availability
8A
Range Spark Module Wire Harness WCI 5303289034 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Surface Burner, 9,000-BTU WCI 5303935164 Contact Us For Availability
10A
Sealed Burner WCI 5303935165 Contact Us For Availability
10B
Burner Assembly WCI 5303935166 Contact Us For Availability
12
Oven Switch WCI 316027700 Contact Us For Availability
13
Manifold Tube WCI 316119000 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
13B
Range Surface Burner Valve Mounting Screw WCI 316048200 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Reg Gas WCI 316091710 Contact Us For Availability
15
Channel-bg S WCI 316049110 Contact Us For Availability
15A
Channel-bg S WCI 316049111 Contact Us For Availability
15B
SUPPORT-BACKGUARD, TOP WCI 316121502 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
17
Glass Spacer WCI 316117701 Contact Us For Availability
17
Safety Valve WCI 316123000 Contact Us For Availability
18
End Cap WCI 316120108 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
18A
End Cap WCI 316120109 Contact Us For Availability
19
Control Panel WCI 316128003 Contact Us For Availability
20
Range Oven Control Board and Overlay WCI 316127903 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
Lg Blk Trim WCI 318050505 Contact Us For Availability
22A
Range Surface Burner Cap (Black) WCI 316098505 Contact Us For Availability
22B
Range Surface Burner Cap (Black) WCI 316118800 Contact Us For Availability
23
Electronic Oven Control Bracket WCI 316121700 Contact Us For Availability
23
Broil Burner WCI 316119600 Contact Us For Availability
23A
Electronic Oven Control Bracket WCI 316121701 Contact Us For Availability
25A
Warmer Shield WCI 316092300 Contact Us For Availability
26
Igniter WCI 316126400 Contact Us For Availability
30
Main Bracket WCI 316059200 Contact Us For Availability
30A
Main Bracket WCI 316059201 Contact Us For Availability
31
Range Warming Drawer Knob (Black) WCI 316121604 Contact Us For Availability
33
Wire Shield WCI 316121000 Contact Us For Availability
36
Range Surface Burner Knob WCI 316121820 Contact Us For Availability
36
Flue WCI 5303272844 Contact Us For Availability
39
Door Handle WCI 316118304 Contact Us For Availability
40
Manifold Panel WCI 316086875 Contact Us For Availability
40
Shield WCI 3200836 Contact Us For Availability
40A
Screw-heat S WCI 5303288570 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
44
Rubber Bumper WCI 10600010001 Contact Us For Availability
44
Range Surface Burner Orifice, 9,000-BTU WCI 316010805 Contact Us For Availability
44A
Range Surface Burner Orifice, 11,000-BTU WCI 316010806 Contact Us For Availability
44B
Range Surface Burner Orifice WCI 316010807 Contact Us For Availability
45
Igniter Screw WCI 316011100 Contact Us For Availability
47
Kit-lp Conve WCI 316039610 Contact Us For Availability
47A
INSTRUCTIONS-LP KIT ENGLISH (NOT SHOWN) WCI 316105843 Contact Us For Availability
47B
INSTRUCTIONS-LP KIT FRENCH (NOT SHOWN) WCI 316105846 Contact Us For Availability
51
Nameplate-ke WCI 316126200 Contact Us For Availability
52
Range Surface Element Mounting Spring WCI 316099400 Contact Us For Availability
53
Extrusion WCI 316118400 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
53A
Shield WCI 08067992 Contact Us For Availability
55
Tape-foam 1" WCI 316079900 Contact Us For Availability
55
Top Cap Trim WCI 316118504 Contact Us For Availability
55
Shield-flue WCI 316122501 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
57
Access Cover WCI 316122700 Contact Us For Availability
58A
Insulation WCI 316047705 Contact Us For Availability
58B
Insulation WCI 316054203 Contact Us For Availability
61
Shield-flue WCI 316121201 Contact Us For Availability
72
Infrared Tub WCI 316119100 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
73
Cover Broil WCI 316120700 Contact Us For Availability
74
Igniter Plate WCI 316120900 Contact Us For Availability
75
KIT-CHOKE, BURNER, NAT GAS WCI 5303935167 Contact Us For Availability
88
Latch Rod WCI 316118900 Contact Us For Availability
89
Latch Motor WCI 316028107 Contact Us For Availability
93
Igniter Shield WCI 316125500 Contact Us For Availability
98
Channel-flue WCI 316120801 Contact Us For Availability
99
Clip-l WCI 316121300 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
170
Bracket WCI 316120000 Contact Us For Availability
187
Baffle Broil WCI 316121101 Contact Us For Availability
188
Shield WCI 316125600 Contact Us For Availability
189
Kit-anti Tip WCI 5303935179 Contact Us For Availability
190
Template WCI 316112501 Contact Us For Availability
191
Bracket WCI 316122400 Contact Us For Availability
193
Air Duct WCI 316122201 Contact Us For Availability
NI01
Harness WCI 316001473 Contact Us For Availability
NI02
Range Owner's Manual WCI 316000954 Contact Us For Availability
NI03
Range Owner's Manual in French WCI 316000970 Contact Us For Availability
NI04
Wiring Diagram WCI 316002182 Contact Us For Availability
NI05
Repair Parts List WCI 5995339495 Contact Us For Availability
NI06
Installation WCI 316105839 Contact Us For Availability
NI07
INSTALLATION INSTRUCTIONS-FRENCH WCI 316105844 Contact Us For Availability
NI08
Warm Harness WCI 316001754 Contact Us For Availability
NI10
Harness-chas WCI 316001641 Contact Us For Availability
NI11
Range Warming Drawer Wire Harness WCI 316001917 Contact Us For Availability
NI13
Cleaner-cook WCI 316112100 Contact Us For Availability
NI14
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI15
Range Screw WCI 5303280311 Contact Us For Availability
NI16
Rivet WCI 3203618 Contact Us For Availability
NI17
Warming Plate WCI 316065304 Contact Us For Availability
NI18
Flat Washer WCI 316128700 Contact Us For Availability
× ![]()
