Model Electrolux 790.75722992 Gas Range (Kenmore 79075722992) – Common Parts & Diagrams

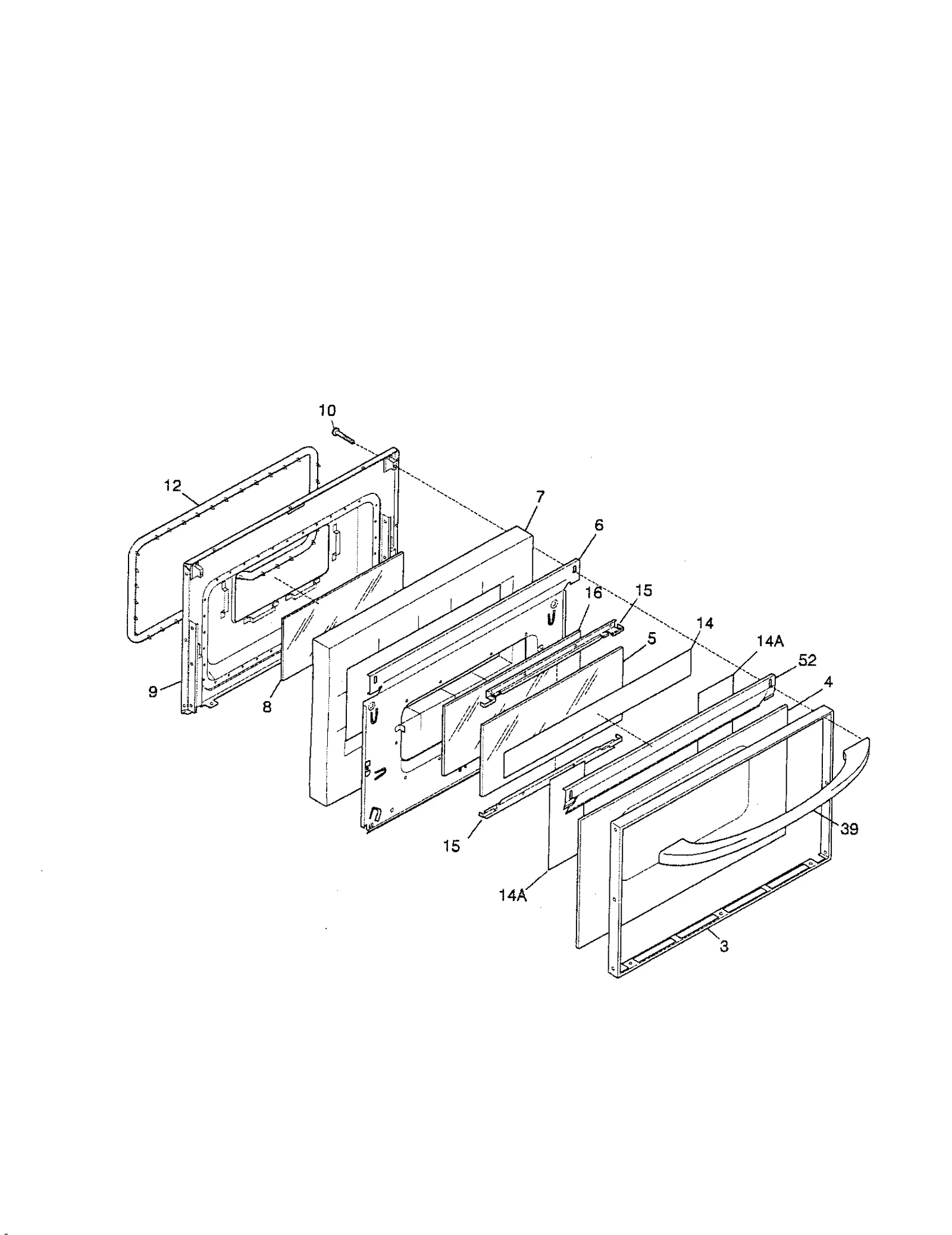

DOOR

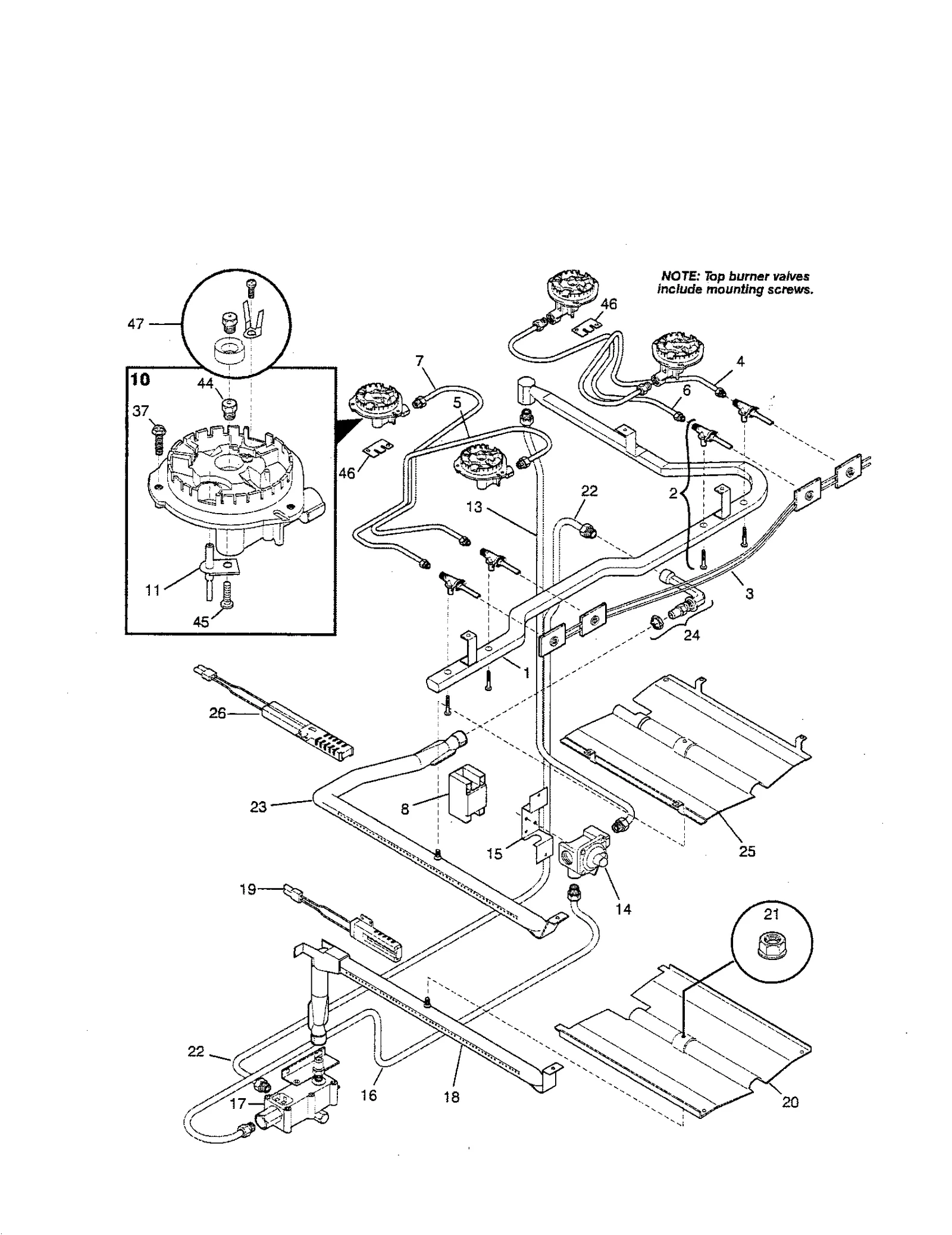

BURNER
BODY
TOP/DRAWER
All Parts
BACKGUARD
Common parts from model Electrolux 790.75722992 Gas Range (Kenmore 79075722992)
1
Warming Drawer WCI 316115901 Contact Us For Availability
1
Backing Shield WCI 316028701 Contact Us For Availability
2
Range Surface Burner Valve, 9,000-BTU WCI 5303935168 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
2
Backing Shield WCI 316051600 Contact Us For Availability
2A
Backing Shield WCI 316053802 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316001824 Contact Us For Availability
4
Range Surface Burner Tube, Right Front (Red) WCI 316059612 Contact Us For Availability
4
Draw WCI 316056203 Contact Us For Availability
4A
Drawer Panel WCI 316056201 Contact Us For Availability
4B
Drawer Panel WCI 316056202 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Surface Burner Tube, Left Front (Green) WCI 316059613 Contact Us For Availability
6
Range Surface Burner Tube, Right Rear WCI 316059614 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Range Surface Burner Supply Tube, Left Rear WCI 316059615 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability
11
Blk Wrapper WCI 316083718 Contact Us For Availability
11A
Wrapper Trim WCI 316083722 Contact Us For Availability
11B
Trim WCI 316083723 Contact Us For Availability
13
Tube WCI 316065005 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Main Top-whi WCI 5303301546 Contact Us For Availability
16A
Main Top-alm WCI 5303301547 Contact Us For Availability
19
Range Drip Pan WCI 316011401 Contact Us For Availability
19
Bl Pnl Cntrl WCI 316100513 Contact Us For Availability
19A
Range Drip Pan WCI 316011409 Contact Us For Availability
19A
Control Panel WCI 316100515 Contact Us For Availability
19B
Pan-almond S WCI 316011410 Contact Us For Availability
19B
Control Panel WCI 316100516 Contact Us For Availability
20
Range Burner Grate WCI 316085201 Contact Us For Availability
20
Range Main Control Board with Digital Clock WCI 316101000 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
20A
Grate (Gray) WCI 316085205 Contact Us For Availability
20B
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20B
Range Surface Burner Grate WCI 316085206 Contact Us For Availability
20C
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22A
Range Surface Burner Cap (Gray) WCI 316010905 Contact Us For Availability
22B
Cooktop Burner Cap WCI 316010904 Contact Us For Availability
23
Bracket Clock WCI 316100300 Contact Us For Availability
24B
Oven Light Switch WCI 316118102 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
31AA
Oven Knob WCI 316109100 Contact Us For Availability
31AB
Range Warming Drawer Knob WCI 316109101 Contact Us For Availability
36
Range Surface Burner Knob WCI 316109002 Contact Us For Availability
36A
Knob WCI 316109000 Contact Us For Availability
36B
Knob WCI 316109001 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
39A
Warmer Handle WCI 316026106 Contact Us For Availability
39B
Range Oven Door Handle WCI 316108801 Contact Us For Availability
39B
Drawer Handle WCI 316026107 Contact Us For Availability
40
Manifold Panel WCI 316086854 Contact Us For Availability
40A
Wh Man Panel WCI 316086855 Contact Us For Availability
40B
Almond Panel WCI 316086856 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
42
Vent Trim WCI 316055200 Contact Us For Availability
44
Cooktop Burner Orifice WCI 5303210090 Contact Us For Availability
47
Range LP Conversion Kit WCI 5303286386 Contact Us For Availability
52A
Oven Shield WCI 316081301 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
53A
Shield WCI 08067992 Contact Us For Availability
55
Shield-flue WCI 316107800 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Warmer Base WCI 316091902 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI02
Wiring Diagram WCI 316002169 Contact Us For Availability
NI03
Repair Parts List WCI 5995328910 Contact Us For Availability
NI04
Range Installation WCI 316105823 Contact Us For Availability
NI05
Range LP Conversion Kit Installation Instruct WCI 316105828 Contact Us For Availability
NI06
Range Screw WCI 316021108 Contact Us For Availability
NI08
Edge Gasket WCI 316071902 Contact Us For Availability
NI10
Range Surface Burner Valve Mounting Screw WCI 316048200 Contact Us For Availability
NI14
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI15
Range Screw WCI 5303280311 Contact Us For Availability
NI16
Rivet WCI 3203618 Contact Us For Availability
NI17
Warming Plate WCI 316065304 Contact Us For Availability
× ![]()
