Model Electrolux 790.75715891 Gas Range (Kenmore 79075715891) – Common Parts & Diagrams
BURNER
BACKGUARD
All Parts

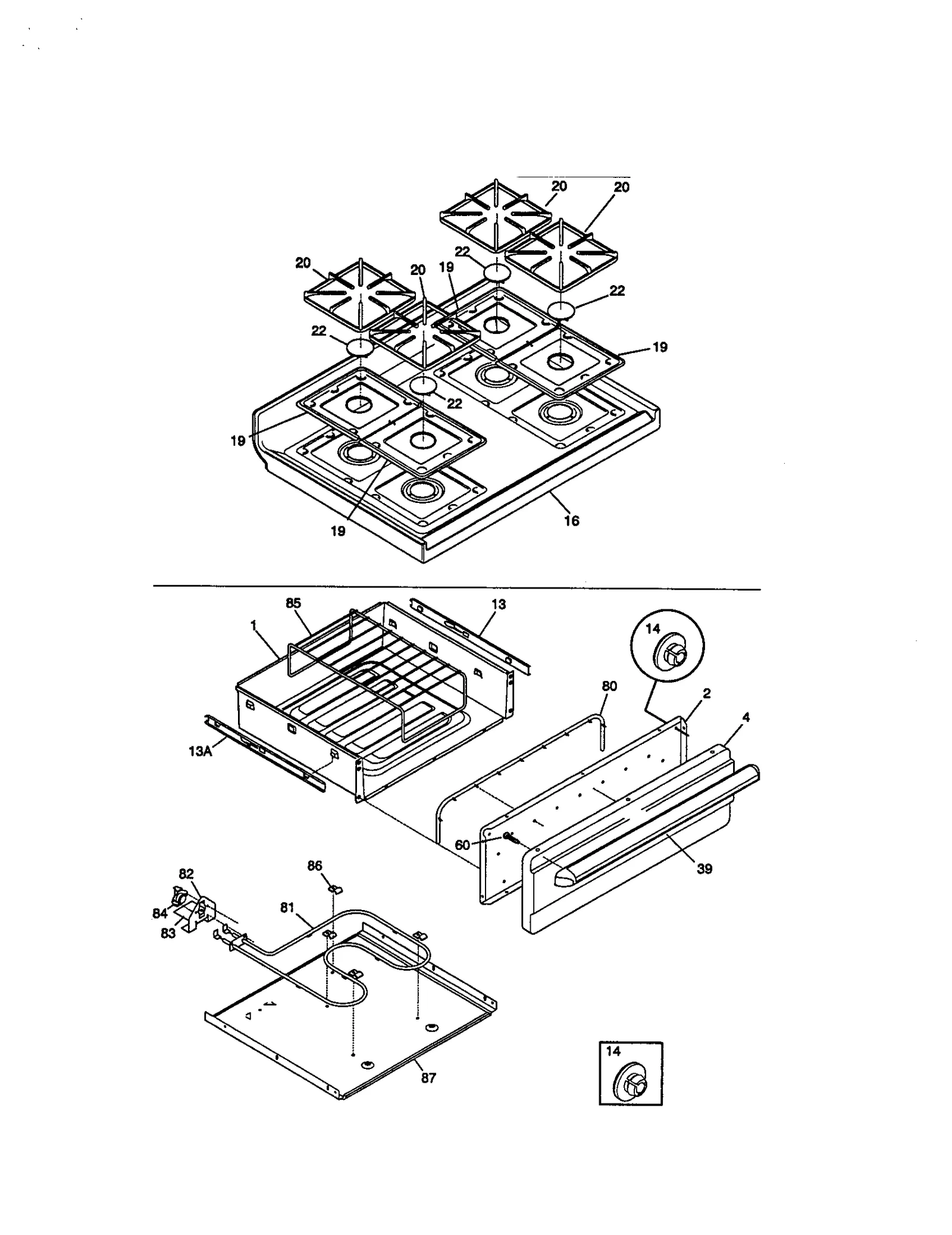

TOP/DRAWER

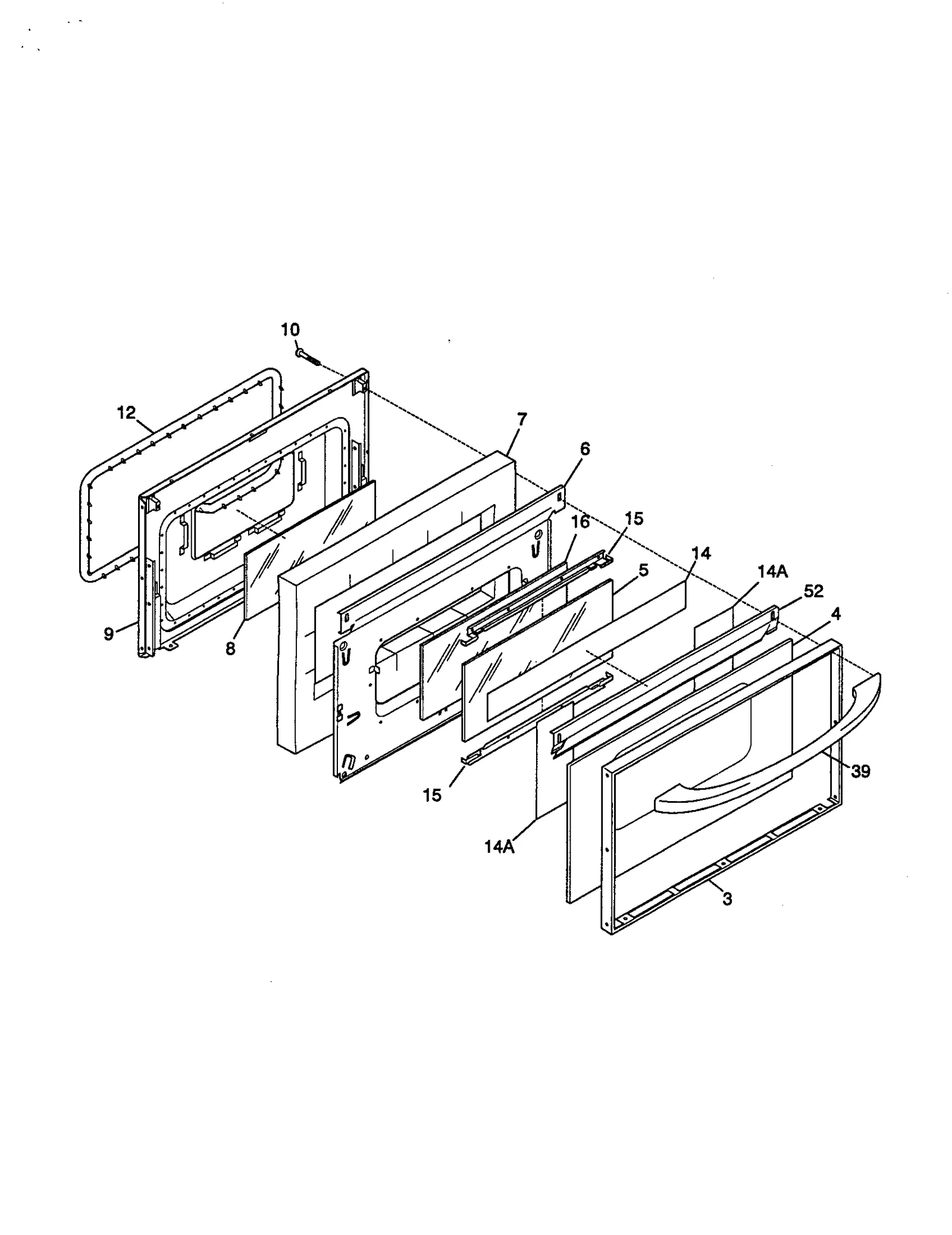

DOOR

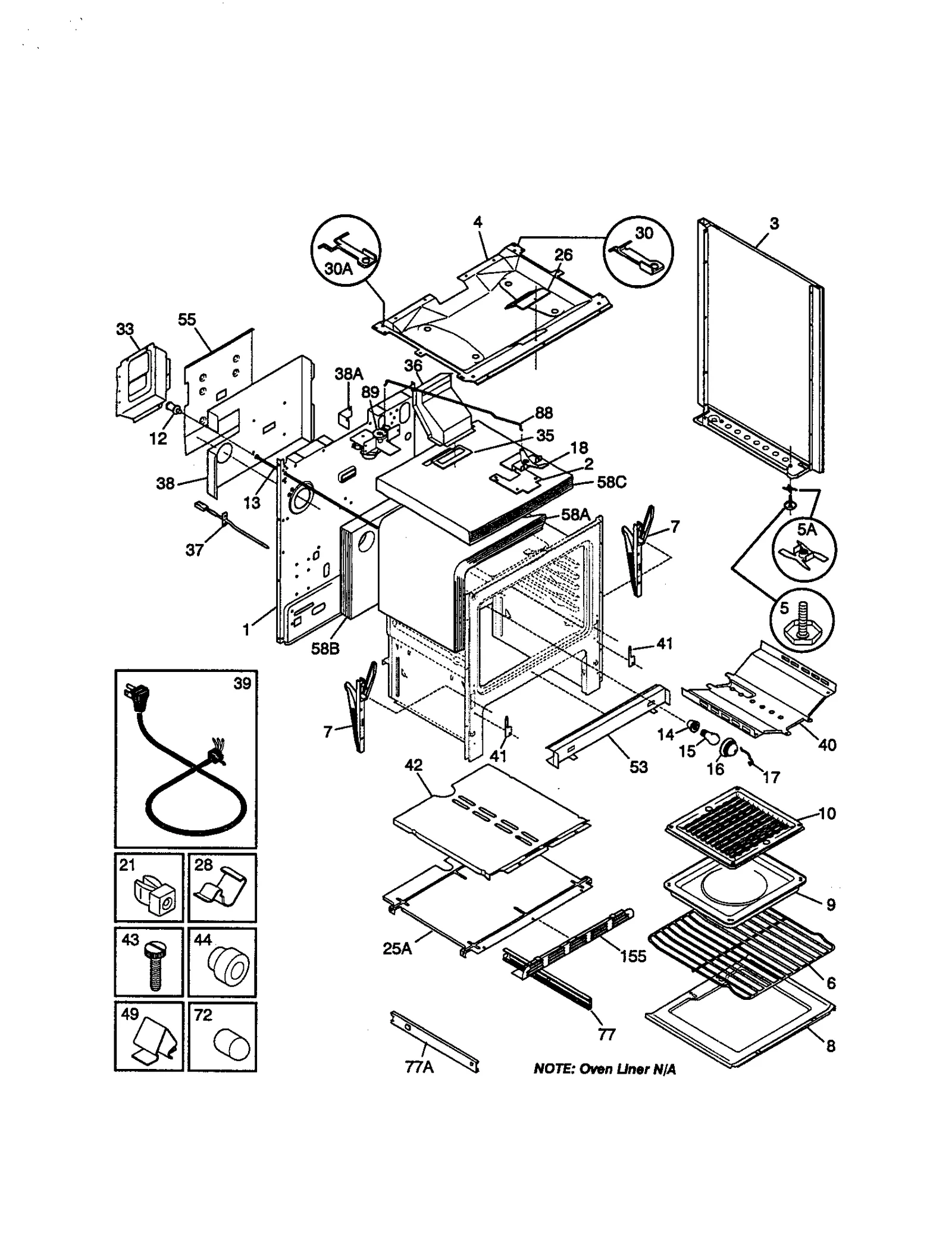

BODY
Common parts from model Electrolux 790.75715891 Gas Range (Kenmore 79075715891)
1
Main WCI 316029412 Contact Us For Availability
2
Range Surface Burner Valve WCI 5303935130 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
2
Shield WCI 3131314 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
3
Body Panel WCI 316081028 Contact Us For Availability
3A
Oven Door Trim WCI 316067803 Contact Us For Availability
3A
Body Panel WCI 316081030 Contact Us For Availability
3B
Drive Trim WCI 316067804 Contact Us For Availability
3B
Shield WCI 08067992 Contact Us For Availability
3C
Body Panel WCI 316081029 Contact Us For Availability
3D
Body Panel WCI 316081031 Contact Us For Availability
4
Range Surface Burner Tube, Right Front (Red) WCI 316059612 Contact Us For Availability
4
Drawer Panel WCI 316056201 Contact Us For Availability
4
Glass-oven D WCI 316089000 Contact Us For Availability
4
Burner Box WCI 316011912 Contact Us For Availability
4A
Drawer Panel WCI 316056202 Contact Us For Availability
4A
Oven Door Glass WCI 316089004 Contact Us For Availability
4B
Draw WCI 316056203 Contact Us For Availability
4B
Glass-oven D WCI 316089005 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Surface Burner Tube, Left Front (Green) WCI 316059613 Contact Us For Availability
5
Range Leveling Leg WCI 5303203397 Contact Us For Availability
5A
Anti-Tip Kit WCI 3934058 Contact Us For Availability
5C
Nut WCI 5303288460 Contact Us For Availability
6
Range Surface Burner Tube, Right Rear WCI 316059614 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Range Surface Burner Supply Tube, Left Rear WCI 316059615 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8
Oven WCI 5303212540 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
9
Broiler Pan WCI 316073800 Contact Us For Availability
10
Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability
10
Insert Broil WCI 3205234 Contact Us For Availability
12
Oven Switch WCI 316027701 Contact Us For Availability
13
Tube WCI 316065005 Contact Us For Availability
13
Light Switch Rod WCI 316026800 Contact Us For Availability
13A
Drawer Channel WCI 316096500 Contact Us For Availability
13B
Drawer Channel WCI 316096501 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Aluminum Foil WCI 3131361 Contact Us For Availability
14B
Glass WCI 5303208656 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Main Top-whi WCI 5303301546 Contact Us For Availability
16A
Main Top-alm WCI 5303301547 Contact Us For Availability
18
Door Latch WCI 316036300 Contact Us For Availability
19
Range Drip Pan WCI 316011401 Contact Us For Availability
19A
Range Drip Pan WCI 316011409 Contact Us For Availability
19B
Pan-almond S WCI 316011410 Contact Us For Availability
20
Grate WCI 316040860 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
20A
Range Burner Grate WCI 316085201 Contact Us For Availability
20B
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20B
Grate (Gray) WCI 316085205 Contact Us For Availability
20C
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22A
Cooktop Burner Cap WCI 316010904 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316010905 Contact Us For Availability
25A
Warmer Shield WCI 316092300 Contact Us For Availability
26
Cover WCI 08067757 Contact Us For Availability
28
Range Wire Harness Retainer WCI 3011813 Contact Us For Availability
30
Main Bracket WCI 316059200 Contact Us For Availability
30A
Main Bracket WCI 316059201 Contact Us For Availability
31AB
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
33
Shield WCI 316014401 Contact Us For Availability
36
Flue WCI 5303272844 Contact Us For Availability
36B
Range Surface Burner Knob WCI 316109002 Contact Us For Availability
38
Shield WCI 316051700 Contact Us For Availability
38A
Insulator WCI 316097100 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
39
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
39A
Range Oven Door Handle WCI 316108801 Contact Us For Availability
39A
Warmer Handle WCI 316026106 Contact Us For Availability
39A
Holder WCI 08067961 Contact Us For Availability
39B
Drawer Handle WCI 316026107 Contact Us For Availability
39B
Blk Dr Handl WCI 316108802 Contact Us For Availability
40
Shield WCI 3200836 Contact Us For Availability
40A
Screw-heat S WCI 5303288570 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
42
Bake Shield WCI 5303288578 Contact Us For Availability
44
Cooktop Burner Orifice WCI 5303210090 Contact Us For Availability
52
Oven Shield WCI 316081301 Contact Us For Availability
52A
Oven Shield WCI 316081302 Contact Us For Availability
52B
Oven Shield WCI 316081303 Contact Us For Availability
53
Shield WCI 5303288579 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
58B
Insulation WCI 316054200 Contact Us For Availability
58C
Insul T Wrap WCI 3131304 Contact Us For Availability
72
Light Cover WCI 5303285692 Contact Us For Availability
77
Drawer Rail WCI 316094900 Contact Us For Availability
77A
Drawer Rail WCI 316094901 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Warmer Base WCI 316091902 Contact Us For Availability
88
Latch Rod WCI 316026400 Contact Us For Availability
89
Latch Motor WCI 316028103 Contact Us For Availability
155
Drawer Shield WCI 316095201 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
× ![]()
