Model Electrolux 790.75711893 Gas Range (Kenmore 79075711893) – Common Parts & Diagrams

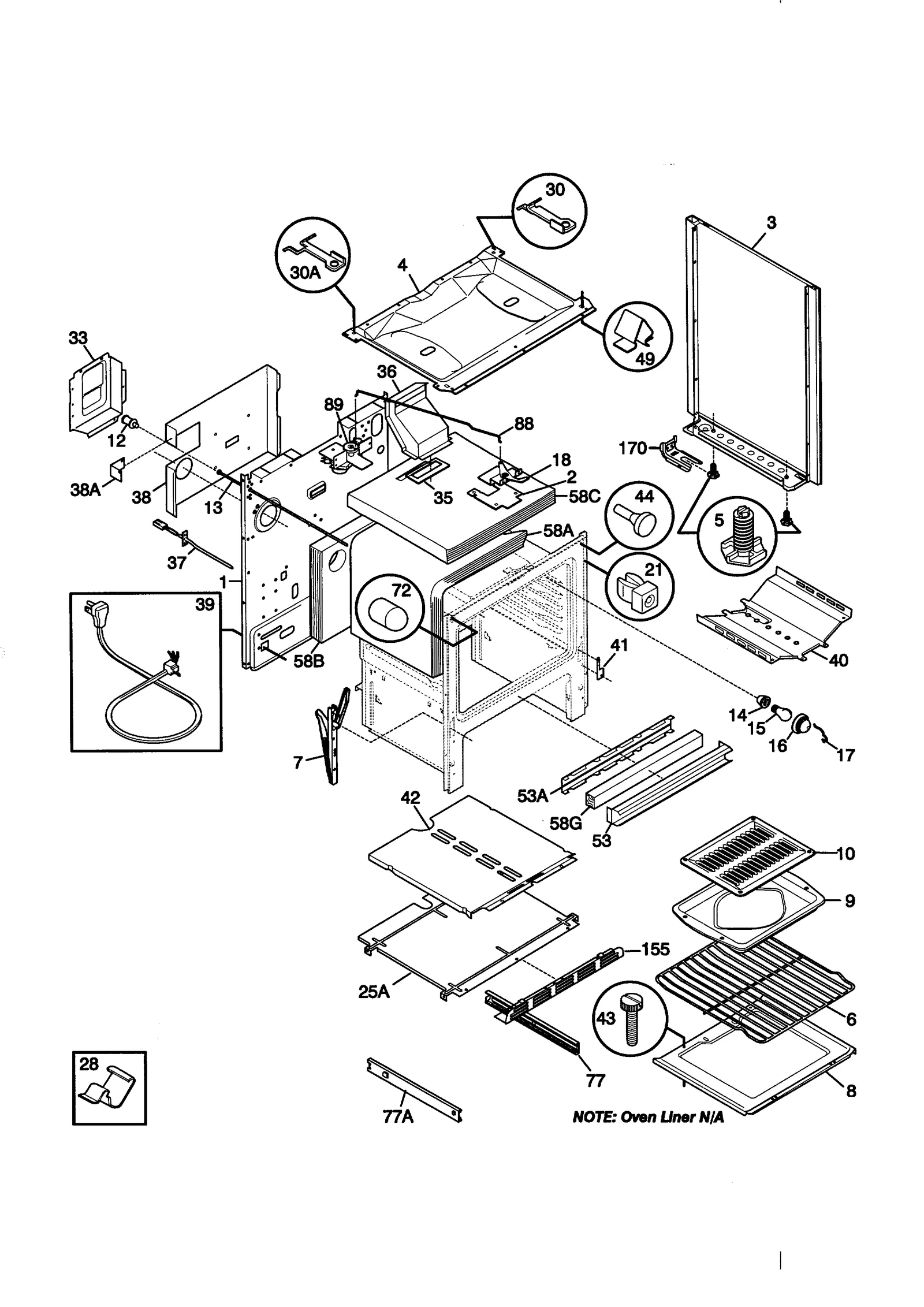

BODY

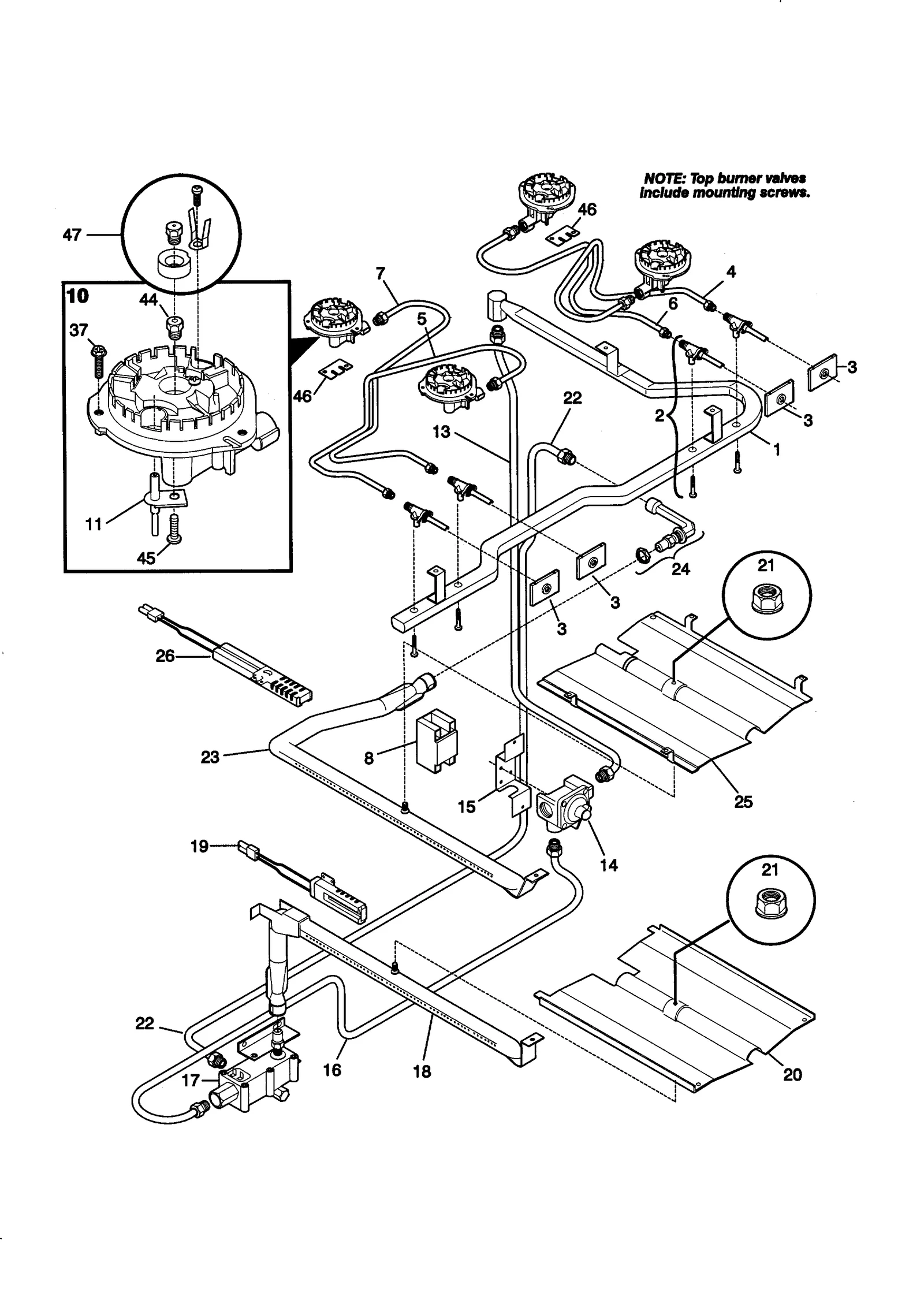

BURNER
TOP/DRAWER
BACKGUARD
DOOR
All Parts
Common parts from model Electrolux 790.75711893 Gas Range (Kenmore 79075711893)
1
Warming Drawer WCI 316094601 Contact Us For Availability
1
Backing Shield WCI 316028701 Contact Us For Availability
2
Range Surface Burner Valve WCI 5303935130 Contact Us For Availability
2
Liner WCI 316092901 Contact Us For Availability
2
Backing Shield WCI 316051600 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
3A
Drive Trim WCI 316067804 Contact Us For Availability
3B
Oven Door Trim WCI 316067803 Contact Us For Availability
4
Range Surface Burner Tube, Right Front (Red) WCI 316059612 Contact Us For Availability
4
Drawer Panel WCI 316056201 Contact Us For Availability
4
Glass-oven D WCI 316089000 Contact Us For Availability
4A
Drawer Panel WCI 316056202 Contact Us For Availability
4A
Glass-oven D WCI 316089005 Contact Us For Availability
4B
Draw WCI 316056203 Contact Us For Availability
4B
Oven Door Glass WCI 316089004 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Surface Burner Tube, Left Front (Green) WCI 316059613 Contact Us For Availability
6
Range Surface Burner Tube, Right Rear WCI 316059614 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Range Surface Burner Supply Tube, Left Rear WCI 316059615 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
11
Trim WCI 316061856 Contact Us For Availability
11A
Wrapper Trim WCI 316061857 Contact Us For Availability
11B
Wrapper Trim WCI 316061858 Contact Us For Availability
13
Tube WCI 316065005 Contact Us For Availability
13
Drawer Channel WCI 316096500 Contact Us For Availability
13A
Drawer Channel WCI 316096501 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Aluminum Foil WCI 3131361 Contact Us For Availability
14A
REFLECTOR, ALUMINUM FOIL WCI 5303288656 Contact Us For Availability
15
Support WCI 316023108 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
15A
Support WCI 316023109 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
16
Main Top-whi WCI 5303301546 Contact Us For Availability
16A
Main Top-alm WCI 5303301547 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
19
Range Drip Pan WCI 316011401 Contact Us For Availability
19
Range Control Panel WCI 316082646 Contact Us For Availability
19A
Range Drip Pan WCI 316011409 Contact Us For Availability
19A
Pnl Cntl Wh WCI 316082647 Contact Us For Availability
19B
Pan-almond S WCI 316011410 Contact Us For Availability
19B
Control Panel WCI 316082648 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20
Range Burner Grate WCI 316085201 Contact Us For Availability
20
Range Main Control Board with Digital Clock WCI 316101000 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
20A
Grate (Gray) WCI 316085205 Contact Us For Availability
20B
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20B
Grate WCI 316040860 Contact Us For Availability
20C
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
21
NUT, HEX HEAD SEMS WCI 530313272 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22A
Range Surface Burner Cap (Gray) WCI 316010905 Contact Us For Availability
22B
Cooktop Burner Cap WCI 316010904 Contact Us For Availability
23
Broil Burner WCI 316087900 Contact Us For Availability
23
Bracket Clock WCI 316100400 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
24B
Rocker Switch WCI 316005608 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
31AA
Oven Knob WCI 316109100 Contact Us For Availability
31AB
Range Warming Drawer Knob WCI 316109101 Contact Us For Availability
36
Range Surface Burner Knob WCI 316109002 Contact Us For Availability
36A
Knob WCI 316109000 Contact Us For Availability
36B
Knob WCI 316109001 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
39
Blk Dr Handl WCI 316108802 Contact Us For Availability
39A
Warmer Handle WCI 316026106 Contact Us For Availability
39A
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
39B
Range Oven Door Handle WCI 316108801 Contact Us For Availability
39B
Drawer Handle WCI 316026107 Contact Us For Availability
40
Manifold Panel WCI 316086854 Contact Us For Availability
40A
Wh Man Panel WCI 316086855 Contact Us For Availability
40B
Almond Panel WCI 316086856 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
42
TRIM-VENT WCI 3106083300 Contact Us For Availability
44
Cooktop Burner Orifice WCI 5303210090 Contact Us For Availability
45
Igniter Screw WCI 316011100 Contact Us For Availability
46
Range Surface Burner Head Bracket WCI 316074700 Contact Us For Availability
47
Range LP Conversion Kit WCI 5303286386 Contact Us For Availability
52
Oven Shield WCI 316081303 Contact Us For Availability
52A
Oven Shield WCI 316081301 Contact Us For Availability
52B
SHIELD-OVEN DOOR, ALMOND, TOP WCI 31681302 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
69
SCREW, 8-32 X 3/16, TR. SQ. DR WCI 6360430028 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
SHIELD-TERMINAL, WARMER WCI 31609330 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Range Warming Drawer Base Panel WCI 316091900 Contact Us For Availability
NI
Range Screw WCI 316021108 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Holder WCI 08067961 Contact Us For Availability
NI
Range Owner's Manual WCI 316000930 Contact Us For Availability
NI
Wiring Diagram WCI 316002169 Contact Us For Availability
NI
TEMPLATE, INSTALLATION ANTI-TIP WCI 316002500 Contact Us For Availability
NI
Installation Manual WCI 316002996 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
× ![]()
