Model Electrolux 790.75657002 Gas Range (Kenmore 79075657002) – Common Parts & Diagrams
BODY
BACKGUARD
All Parts

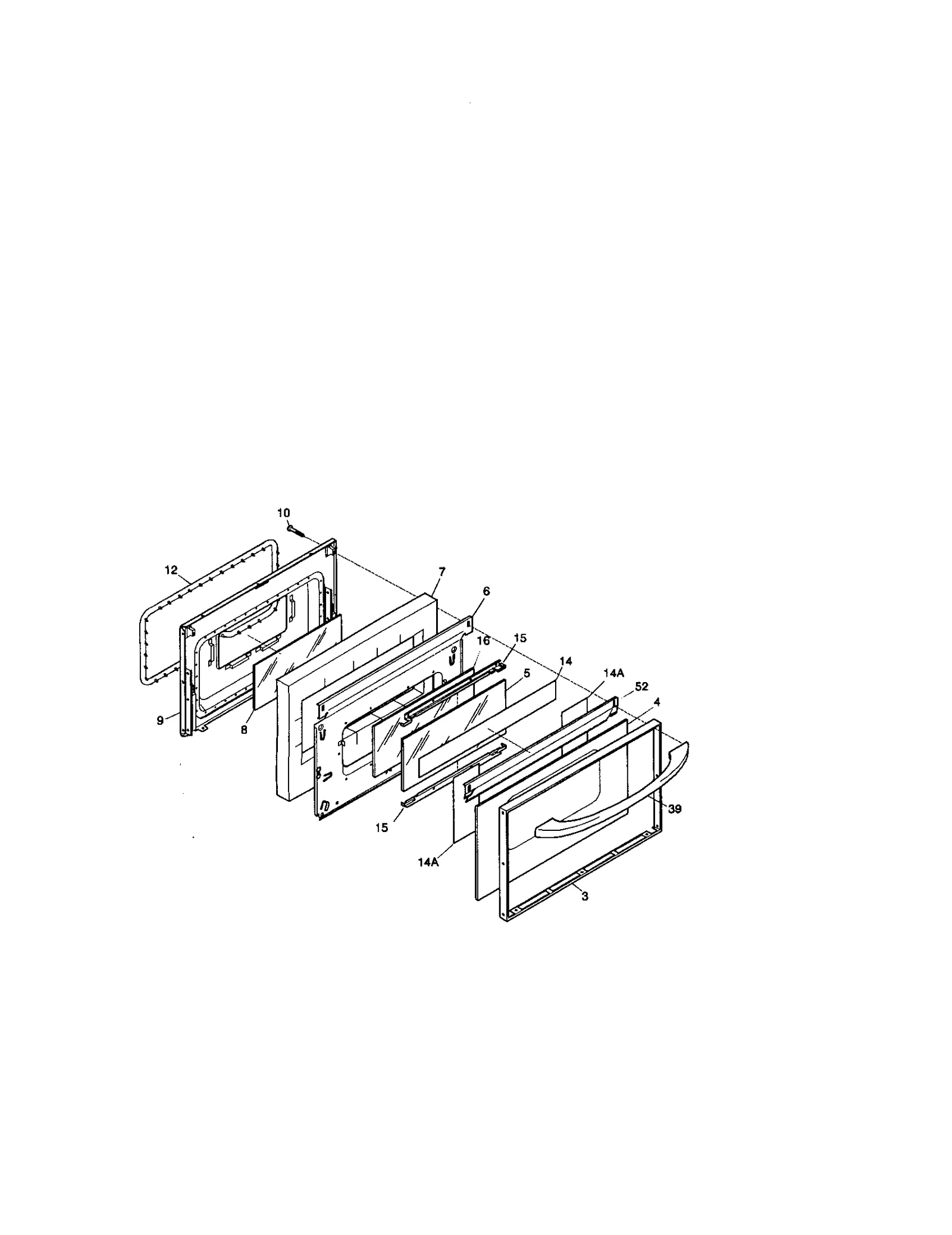

DOOR

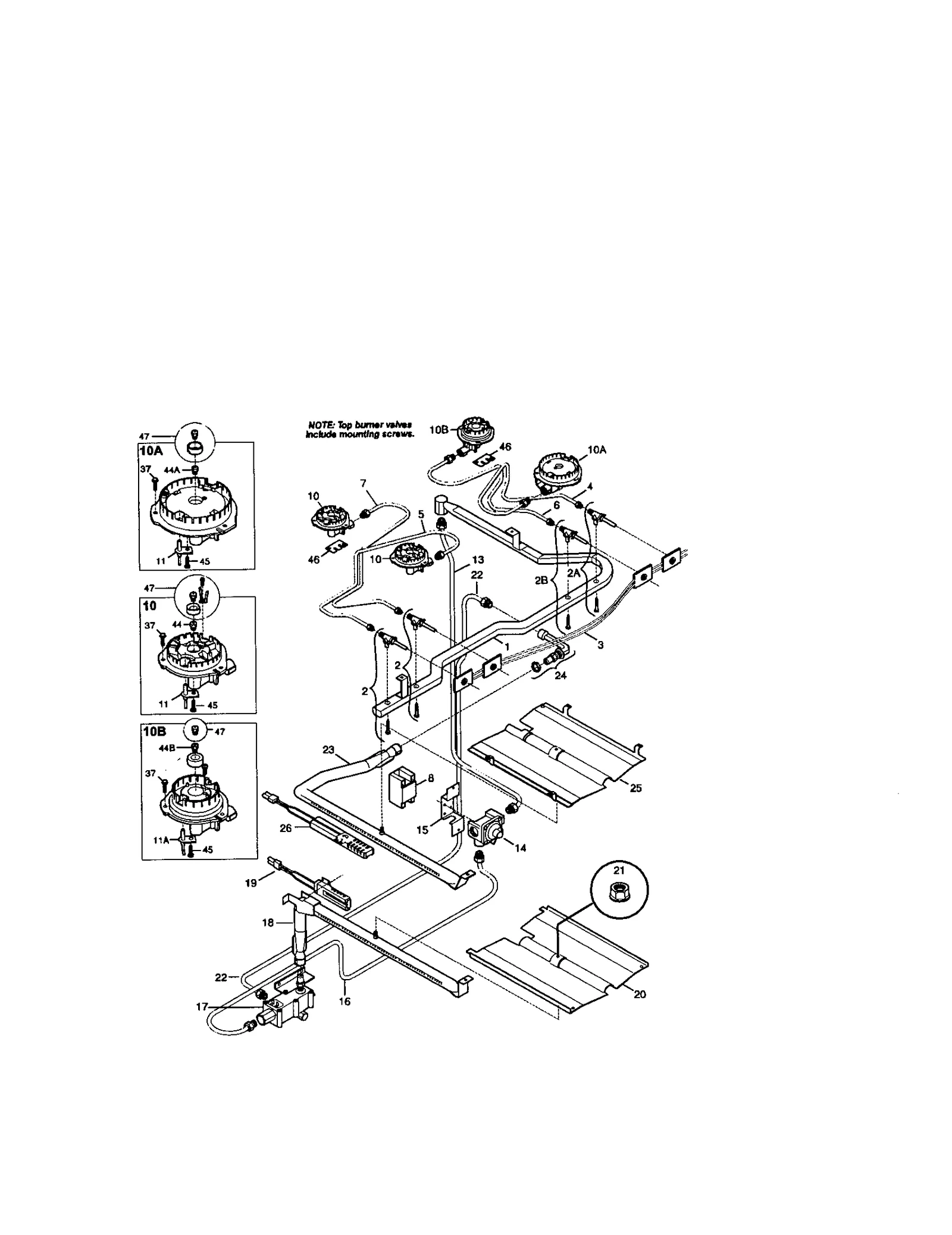

BURNER

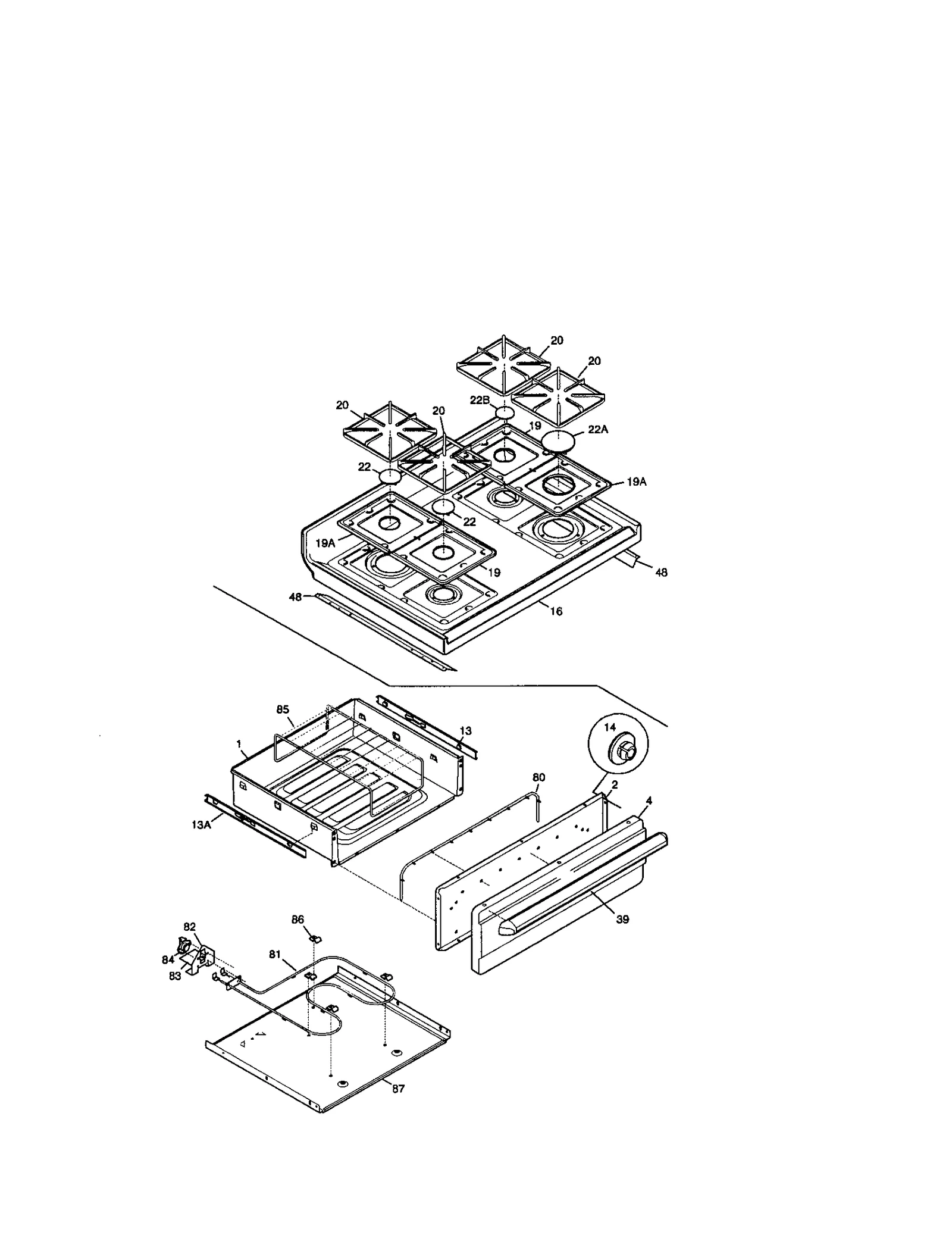

TOP/DRAWER
Common parts from model Electrolux 790.75657002 Gas Range (Kenmore 79075657002)
1
Manifold Pipe WCI 316134501 Contact Us For Availability
1
Warming Drawer WCI 316115901 Contact Us For Availability
2
Gibson Range Surface Burner Valve WCI 5303935184 Contact Us For Availability
2
Drawer Liner WCI 316092902 Contact Us For Availability
2A
Range Surface Burner Valve WCI 5303935185 Contact Us For Availability
2B
Burner Valve WCI 5303935186 Contact Us For Availability
3
Range Igniter Switch and Harness Assembly WCI 316001824 Contact Us For Availability
3
Trim WCI 316067802 Contact Us For Availability
3A
Drive Trim WCI 316067804 Contact Us For Availability
3B
Oven Door Trim WCI 316067803 Contact Us For Availability
4
Range Surface Burner Tube, Right Front (Red) WCI 316059612 Contact Us For Availability
4
Glass-oven D WCI 316089000 Contact Us For Availability
4
Draw WCI 316056203 Contact Us For Availability
4A
Glass-oven D WCI 316089005 Contact Us For Availability
4A
Drawer Panel WCI 316056201 Contact Us For Availability
4B
Oven Door Glass WCI 316089004 Contact Us For Availability
4B
Drawer Panel WCI 316056202 Contact Us For Availability
5
Range Leveling Leg WCI 316129200 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 316088700 Contact Us For Availability
5
Range Surface Burner Tube, Left Front (Green) WCI 316059613 Contact Us For Availability
6
Range Surface Burner Tube, Right Rear WCI 316059614 Contact Us For Availability
6
Shield WCI 316088401 Contact Us For Availability
7
Range Oven Door Hinge WCI 316007002 Contact Us For Availability
7
Range Surface Burner Supply Tube, Left Rear WCI 316059615 Contact Us For Availability
7
Insulation WCI 316076403 Contact Us For Availability
8
Range Oven Door Inner Glass WCI 316088600 Contact Us For Availability
8A
Range Spark Module Wire Harness WCI 5303289034 Contact Us For Availability
9
Range Broil Pan WCI 316081900 Contact Us For Availability
9
Oven Door Inner Liner WCI 316066610 Contact Us For Availability
10
Range Broil Pan Insert WCI 316082000 Contact Us For Availability
10
Range Wafer Head Screw, #10-24 x 1-4/5-in WCI 316001002 Contact Us For Availability
10
Range Sealed Surface Burner WCI 5303935025 Contact Us For Availability
10A
Large Burner WCI 5303935075 Contact Us For Availability
10B
Burner WCI 5303935176 Contact Us For Availability
11A
Range Surface Burner Igniter WCI 316011201 Contact Us For Availability
13
Tube WCI 316065005 Contact Us For Availability
14
Glide Button WCI 3206216 Contact Us For Availability
14
Glass WCI 5303208656 Contact Us For Availability
14B
Aluminum Foil WCI 3131361 Contact Us For Availability
15
Glass Bracket WCI 316081403 Contact Us For Availability
16
Range Oven Door Middle Glass WCI 316085701 Contact Us For Availability
16
Range Oven Burner Tube WCI 316065003 Contact Us For Availability
16
Main Top (White) WCI 316114801 Contact Us For Availability
16A
Main Top WCI 316114802 Contact Us For Availability
18
Oven Burner WCI 3131290 Contact Us For Availability
19
Range Drip Pan WCI 316011401 Contact Us For Availability
19A
Range Drip Pan (Black) WCI 316011419 Contact Us For Availability
19AA
Range Drip Pan WCI 316011417 Contact Us For Availability
19AB
Pan-alm (lg WCI 316011418 Contact Us For Availability
19B
Range Drip Pan WCI 316011409 Contact Us For Availability
19C
Pan-almond S WCI 316011410 Contact Us For Availability
20
Oven Baffle WCI 3131284 Contact Us For Availability
20
Range Burner Grate WCI 316085201 Contact Us For Availability
20A
Range Oven Control Overlay WCI 316101514 Contact Us For Availability
20A
Range Surface Burner Grate WCI 316085206 Contact Us For Availability
20AA
Range Oven Control Overlay WCI 316101515 Contact Us For Availability
20AB
Range Selection Button Overlay WCI 316101516 Contact Us For Availability
20B
Grate (Gray) WCI 316085205 Contact Us For Availability
21
Range Screw Anchor WCI 3014099 Contact Us For Availability
22
Range Oven Burner Tube WCI 316065002 Contact Us For Availability
22A
Range Surface Burner Cap (Black) WCI 316111703 Contact Us For Availability
22AA
Range Surface Burner Cap (Gray) WCI 316111701 Contact Us For Availability
22AB
Lg Burnr Cap WCI 316111702 Contact Us For Availability
22B
Range Surface Burner Cap (Black) WCI 316118800 Contact Us For Availability
22BA
Simmer Burner Cap WCI 316118801 Contact Us For Availability
22BB
Burner Cap WCI 316118802 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316010905 Contact Us For Availability
22D
Cooktop Burner Cap WCI 316010904 Contact Us For Availability
23
Broil Burner WCI 316087900 Contact Us For Availability
24
Range Mixer Elbow WCI 316070400 Contact Us For Availability
24B
Oven Light Switch WCI 316118102 Contact Us For Availability
25
Range Broil Burner Baffle WCI 5303210379 Contact Us For Availability
31A
Range Warming Drawer Knob WCI 316109102 Contact Us For Availability
36
Range Surface Burner Knob WCI 316109002 Contact Us For Availability
36A
Knob WCI 316109000 Contact Us For Availability
36B
Knob WCI 316109001 Contact Us For Availability
39
Range Warming Drawer Handle (Black) WCI 316026105 Contact Us For Availability
39
Blk Dr Handl WCI 316108802 Contact Us For Availability
39A
Oven Door Handle (White) WCI 316108800 Contact Us For Availability
39A
Warmer Handle WCI 316026106 Contact Us For Availability
39B
Range Oven Door Handle WCI 316108801 Contact Us For Availability
39B
Drawer Handle WCI 316026107 Contact Us For Availability
40
Manifold Panel WCI 316086854 Contact Us For Availability
40A
Wh Man Panel WCI 316086855 Contact Us For Availability
40B
Almond Panel WCI 316086856 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Cover WCI 3131570 Contact Us For Availability
42
Metal Bottom WCI 316055202 Contact Us For Availability
42A
Trim-extrusi WCI 316055203 Contact Us For Availability
44
Cooktop Burner Orifice WCI 5303210090 Contact Us For Availability
44A
Range Surface Burner Orifice, 11,000-BTU WCI 316010804 Contact Us For Availability
44B
Top Burner Orifice WCI 316010809 Contact Us For Availability
45
Igniter Screw WCI 316011100 Contact Us For Availability
46
Range Surface Burner Head Bracket WCI 316074700 Contact Us For Availability
47
Kit-lp Conve WCI 316039610 Contact Us For Availability
48
Shield WCI 316077400 Contact Us For Availability
52
Oven Shield WCI 316081303 Contact Us For Availability
52A
Oven Shield WCI 316081301 Contact Us For Availability
52B
Oven Shield WCI 316081302 Contact Us For Availability
56
Deflector WCI 316074907 Contact Us For Availability
58A
Range Oven Insulation WCI 316047708 Contact Us For Availability
69
Screw WCI 5303292005 Contact Us For Availability
80
Oven Door Seal WCI 316109700 Contact Us For Availability
81
Range Warming Drawer Element WCI 316093100 Contact Us For Availability
82
Range Warming Drawer Element Mounting Bracket WCI 316093200 Contact Us For Availability
83
Terminal Shield WCI 316093300 Contact Us For Availability
84
Thermostat Disc WCI 316093500 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Warmer Base WCI 316091902 Contact Us For Availability
NI
Range Screw WCI 5303280311 Contact Us For Availability
NI
Range Owner's Manual WCI 316000966 Contact Us For Availability
NI
Wiring Diagram WCI 316002169 Contact Us For Availability
NI
Warming Plate WCI 316065304 Contact Us For Availability
NI
Edge Gasket WCI 316071902 Contact Us For Availability
NI
Range LP Conversion Kit Installation Instruct WCI 316105833 Contact Us For Availability
NI
Installation WCI 316105834 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Rivet WCI 3203618 Contact Us For Availability
NI
Repair Parts List WCI 5995342713 Contact Us For Availability
× ![]()
