Model Electrolux 790.74403993 Dual-Fuel Range (Kenmore 79074403993) – Common Parts & Diagrams
All Parts
BURNER

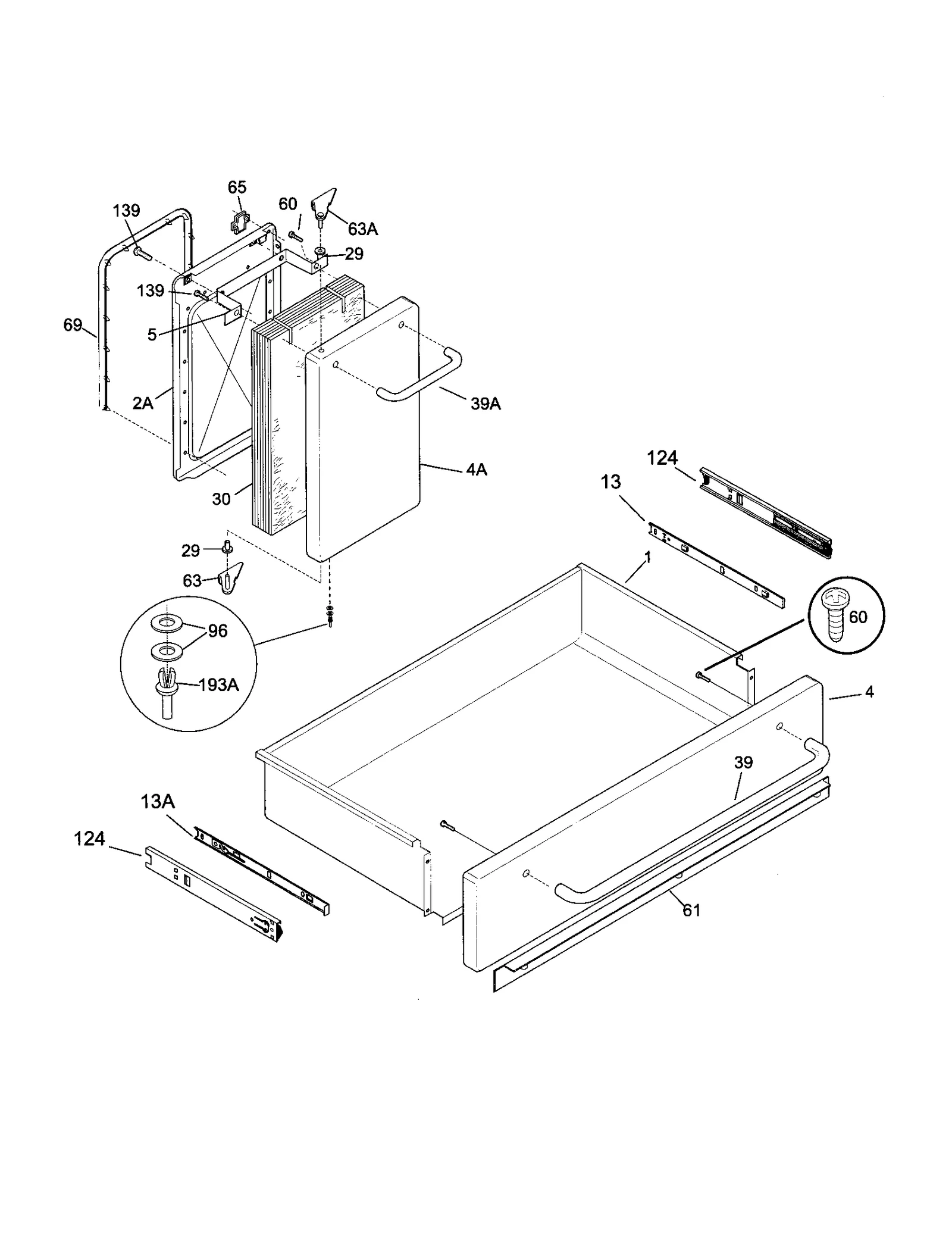

DRAWER/DOOR

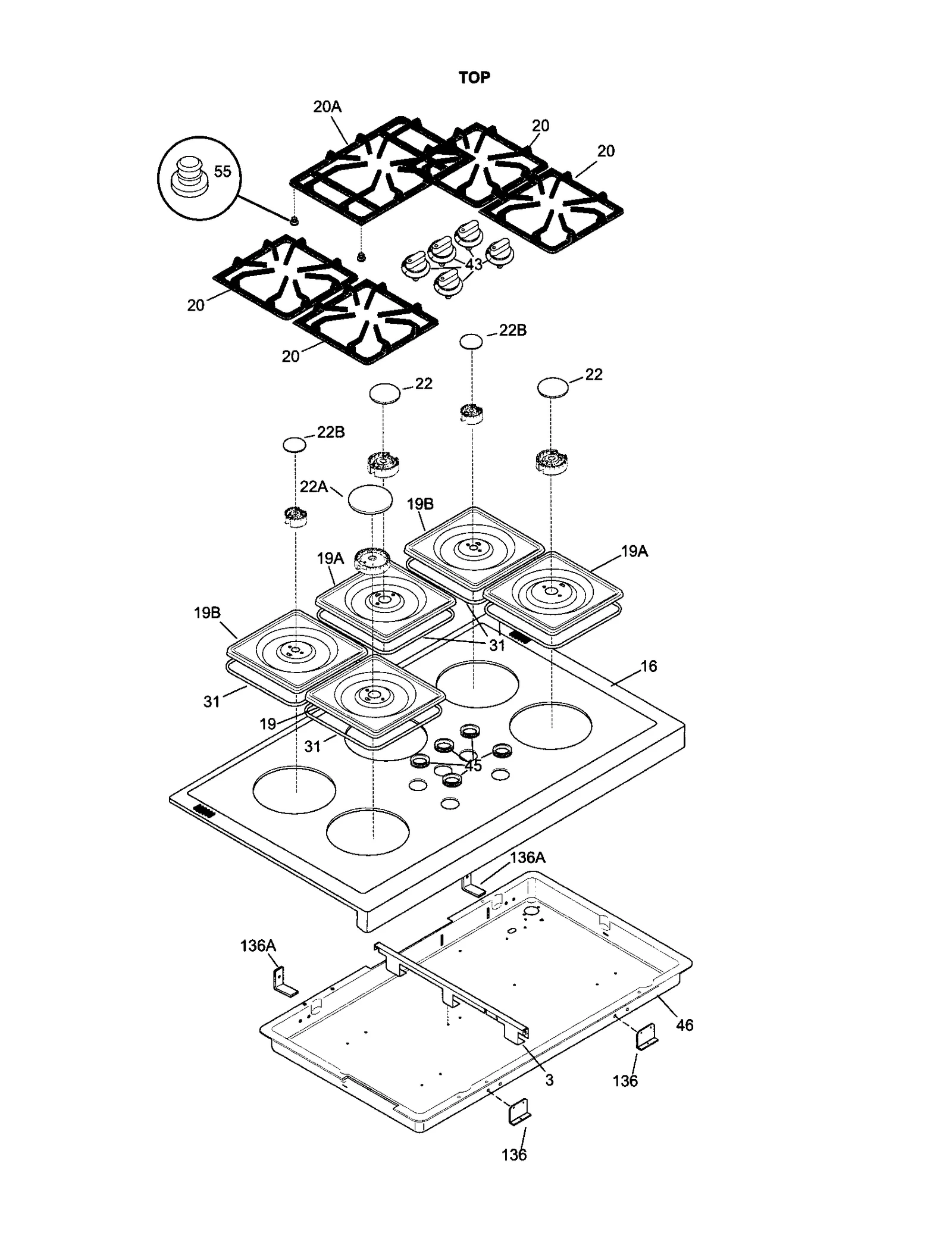

TOP

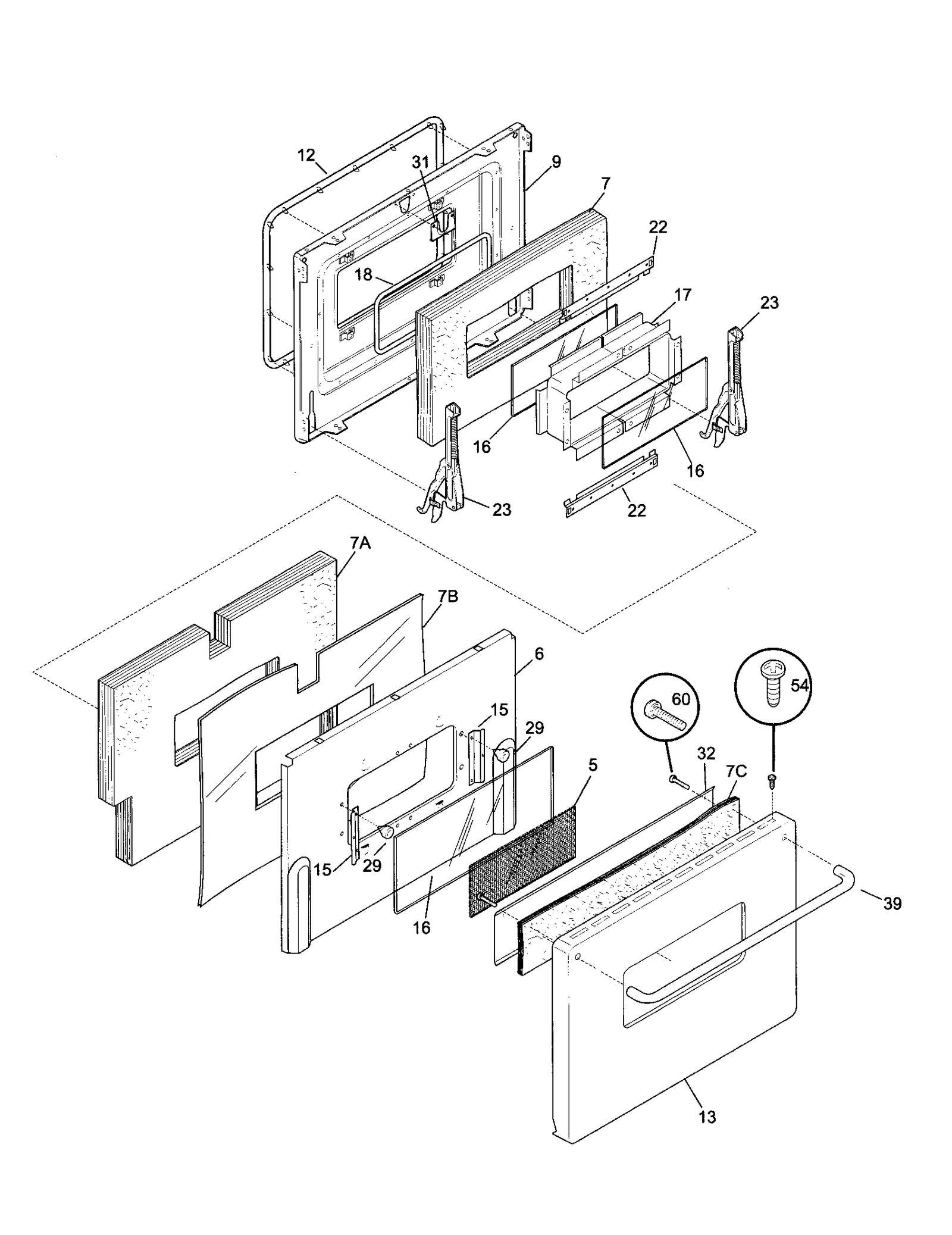

DOOR

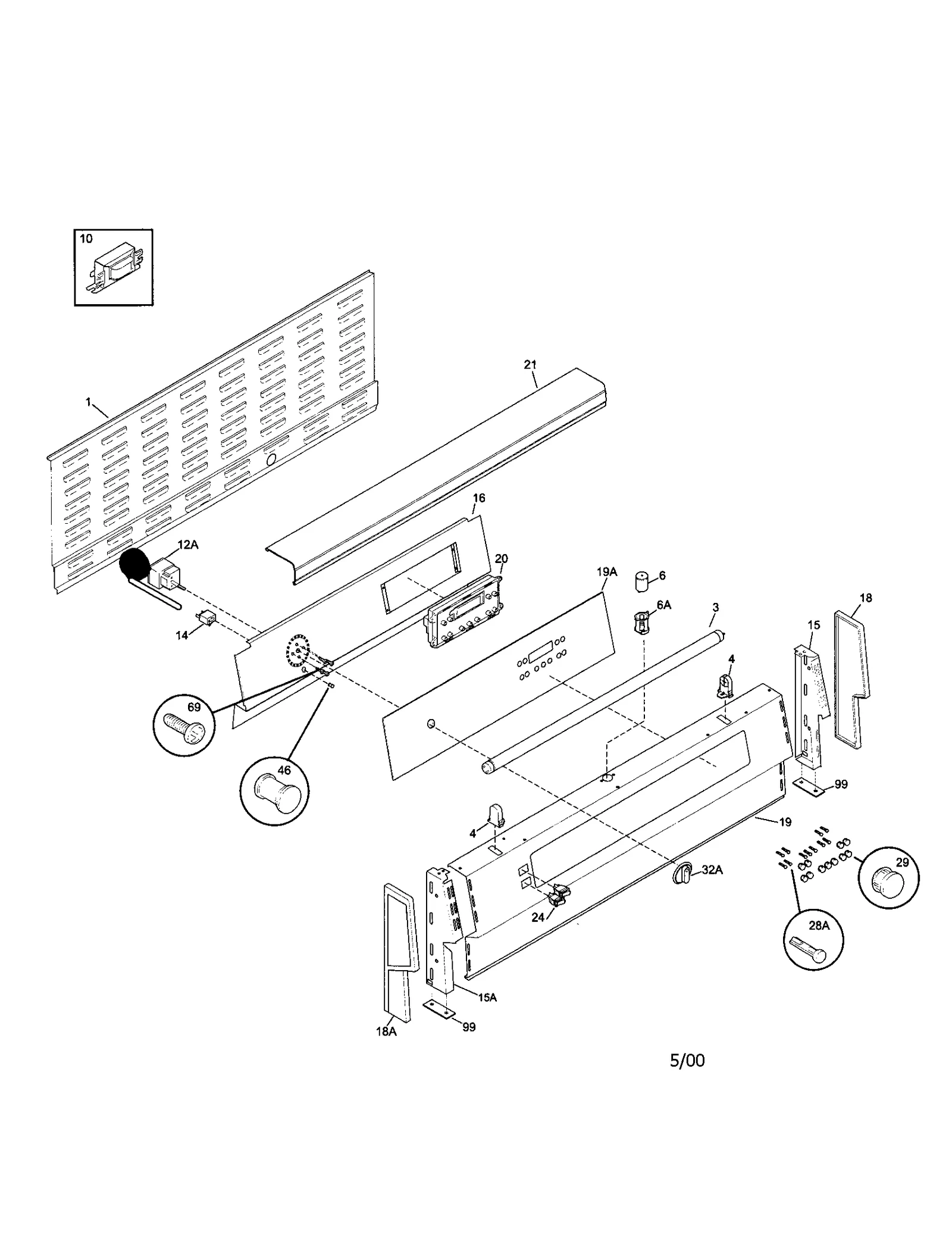

BACKGUARD

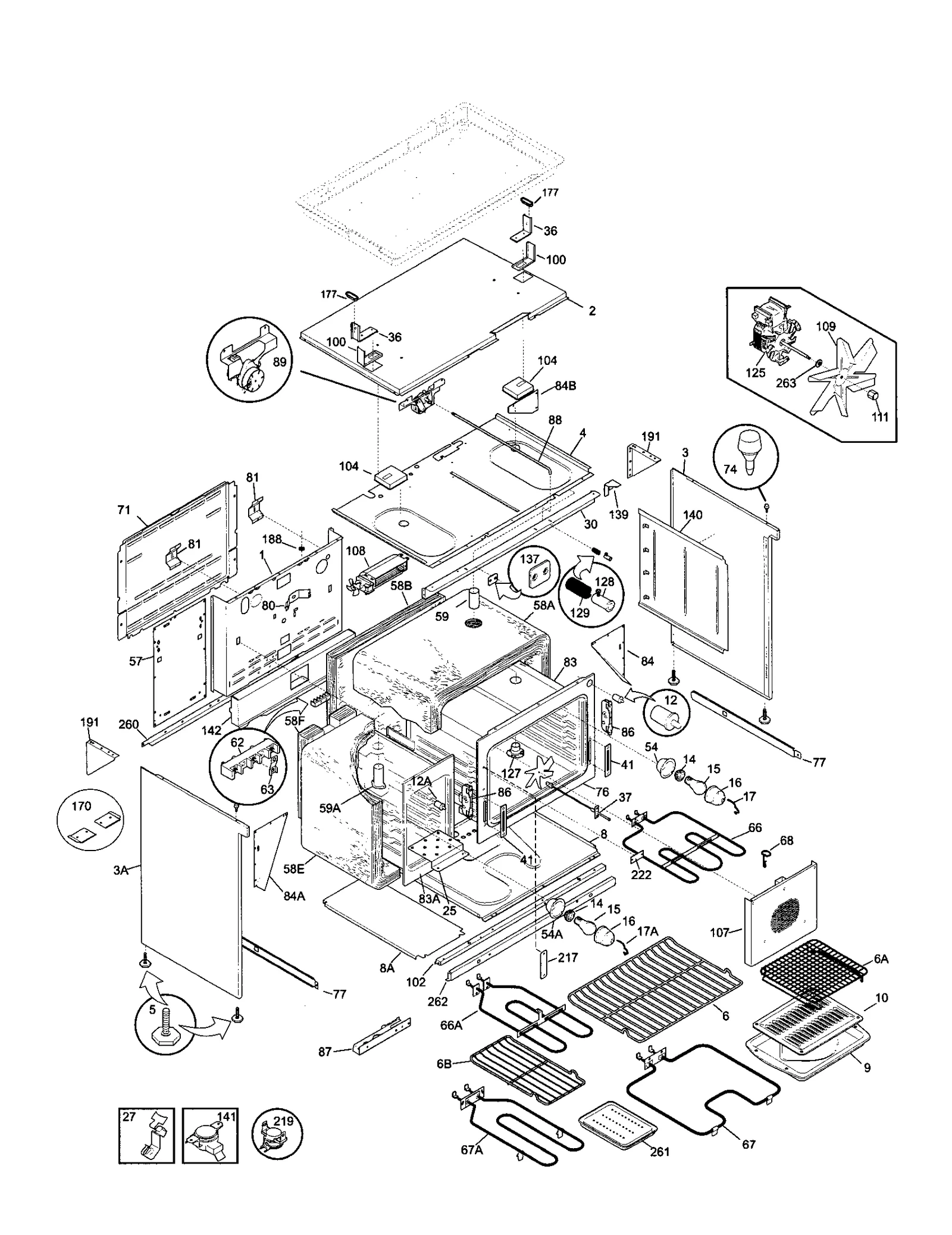

BODY
Common parts from model Electrolux 790.74403993 Dual-Fuel Range (Kenmore 79074403993)
1
Range Storage Drawer WCI 3202108 Contact Us For Availability
1
Shield WCI 318086801 Contact Us For Availability
1
Main WCI 318066402 Contact Us For Availability
2
Range Surface Burner Valve WCI 318087040 Contact Us For Availability
2
Air Conduit WCI 318173610 Contact Us For Availability
2A
Range Surface Burner Valve WCI 318087001 Contact Us For Availability
2B
Range Surface Burner Valve WCI 5303935042 Contact Us For Availability
3
Cooktop Igniter Switch WCI 316032002 Contact Us For Availability
3
Lamp Bulb WCI 5303286690 Contact Us For Availability
3
Panel WCI 318066007 Contact Us For Availability
3A
Panel WCI 318066008 Contact Us For Availability
4
Range Surface Burner Supply Tube WCI 318167716 Contact Us For Availability
4
Receptacle WCI 318110300 Contact Us For Availability
4
Burner Box WCI 318073706 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
5
Range Surface Burner Supply Tube, Right Front WCI 318167715 Contact Us For Availability
5
Glass WCI 318041220 Contact Us For Availability
6
Cooktop Burner Supply Tube WCI 318167706 Contact Us For Availability
6
Range Light Starter WCI 5308068062 Contact Us For Availability
6
Door Baffle WCI 318057000 Contact Us For Availability
6
Oven Rack WCI 5303310522 Contact Us For Availability
6A
Holder WCI 318110400 Contact Us For Availability
6A
Shelf WCI 5303311206 Contact Us For Availability
6B
Oven Rack WCI 318119700 Contact Us For Availability
7
Range Surface Burner Supply Tube, Left Rear WCI 318167713 Contact Us For Availability
7
Insulation WCI 5303310532 Contact Us For Availability
7A
Insulation WCI 318106000 Contact Us For Availability
7B
INSULATION - DOOR WCI 5304400472 Contact Us For Availability
7C
Insulation WCI 3204813 Contact Us For Availability
8
Range Spark Module WCI 318079000 Contact Us For Availability
8
Frigidaire Shield WCI 318179104 Contact Us For Availability
8A
Range Small Oven Lower Insulation Shield WCI 318071900 Contact Us For Availability
9
Kit Oven Liner WCI 5303320621 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Cooktop Burner WCI 318148001 Contact Us For Availability
10
Ballast WCI 318122802 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
10A
Cooktop Burner Head WCI 318148002 Contact Us For Availability
10B
Cooktop Burner WCI 318148000 Contact Us For Availability
12
SWITCH-LIGHT WCI 5301214211 Contact Us For Availability
13
Range Surface Burner Manifold Supply Tube WCI 318054507 Contact Us For Availability
13
Oven Door Panel WCI 318009110 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
14
Light Lamp WCI 5303323991 Contact Us For Availability
15
Bracket WCI 318149300 Contact Us For Availability
15
Bracket WCI 5303304000 Contact Us For Availability
15A
Bracket WCI 5303304001 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Switch WCI 318181400 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Glass Spacer WCI 318139000 Contact Us For Availability
17A
Range Oven Light Lens Retainer WCI 5303205904 Contact Us For Availability
18
Seal-rope WCI 5303310531 Contact Us For Availability
18
End Cap WCI 5303304540 Contact Us For Availability
18A
End Cap WCI 5303304541 Contact Us For Availability
19
Range Drip Pan WCI 318168124 Contact Us For Availability
19
Range Control Panel WCI 318181701 Contact Us For Availability
19A
Glass WCI 318181800 Contact Us For Availability
19B
Range Drip Pan WCI 318168104 Contact Us For Availability
20
Clock WCI 318010101 Contact Us For Availability
21
Trim WCI 318051301 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303310511 Contact Us For Availability
22A
Lge Brnr Cap WCI 318076420 Contact Us For Availability
22B
Sim Brnr Cap WCI 318076400 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
25
Range Oven Heat Shield, Lower WCI 318133000 Contact Us For Availability
28A
Range Timer Knob Shaft WCI 316080600 Contact Us For Availability
29
Range Clock Timer Selector Button (Black) WCI 318017800 Contact Us For Availability
29
Door Spacer WCI 5303310535 Contact Us For Availability
30
Main Top Bracket WCI 318023913 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
32
Deflector-ha WCI 318057210 Contact Us For Availability
32A
Knob WCI 318099204 Contact Us For Availability
36
Flue Conduit WCI 318182110 Contact Us For Availability
39
Door Handle WCI 318039801 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
45
Bushing WCI 318146210 Contact Us For Availability
46
Range Indicator Light Lens WCI 5308006417 Contact Us For Availability
46
Range Main Top Burner Box WCI 318077002 Contact Us For Availability
54
Range Screw, #10 x 1/2-in WCI 5303317975 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
54A
Oven Light Housing WCI 5303271606 Contact Us For Availability
55
Spacer WCI 318096700 Contact Us For Availability
57
Panel WCI 318055701 Contact Us For Availability
58A
Insulation WCI 5303310539 Contact Us For Availability
58B
Insulation WCI 5303310538 Contact Us For Availability
58E
Insulation WCI 5301305817 Contact Us For Availability
58F
Insulation WCI 5301167905 Contact Us For Availability
59
Oven Ve Tube WCI 5303320844 Contact Us For Availability
59A
Tube WCI 318072521 Contact Us For Availability
61
Range Storage Drawer Front Panel Trim, Lower WCI 318107700 Contact Us For Availability
63
Ground Plate WCI 5303310517 Contact Us For Availability
66A
Broiler Element WCI 318110100 Contact Us For Availability
69
Range Oven Door Seal WCI 318053300 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
74
Bumper WCI 5308003107 Contact Us For Availability
76
Frame WCI 318056004 Contact Us For Availability
76A
Cooktop Burner Air Mixing Tube WCI 318167800 Contact Us For Availability
77
Cooktop Burner Mounting Bracket, Medium and L WCI 318112010 Contact Us For Availability
77
Slide Bracket WCI 318144210 Contact Us For Availability
79
Range Surface Burner Supply Tube, Center WCI 318167712 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Oven Spring WCI 5303301261 Contact Us For Availability
83
Liner WCI 318089609 Contact Us For Availability
83A
Liner-oven A WCI 318089200 Contact Us For Availability
84
Gusset-rear WCI 5303326184 Contact Us For Availability
84A
Bracket WCI 5303326185 Contact Us For Availability
84B
Gusset WCI 318055901 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111800 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 5303311160 Contact Us For Availability
89A
Latch Switch WCI 318120710 Contact Us For Availability
99
Range Control Panel End Cap Spacer WCI 5303304544 Contact Us For Availability
100
Flue Conduit WCI 318182010 Contact Us For Availability
102
Channel WCI 318111901 Contact Us For Availability
104
Flue Adapter WCI 318182210 Contact Us For Availability
107
Fan Cover WCI 318119600 Contact Us For Availability
108
Range Blower WCI 318073002 Contact Us For Availability
109
Range Convection Fan Blade WCI 5303311203 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
136
Bracket WCI 318180300 Contact Us For Availability
136A
Bracket Box WCI 318181100 Contact Us For Availability
137
Strike WCI 3204318 Contact Us For Availability
139
Fill Bracket WCI 318042900 Contact Us For Availability
140
Retainer Insert WCI 318071300 Contact Us For Availability
141
Thermostat Switch WCI 5303284446 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
170
Range Anti-Tip Bracket WCI 5304405241 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
188
Bushing WCI 5303321205 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
219
Range Safety Thermostat WCI 318003600 Contact Us For Availability
222
Plate WCI 318080000 Contact Us For Availability
260
Support WCI 318055500 Contact Us For Availability
261
Pan WCI 08014183 Contact Us For Availability
262
Channel WCI 08011954 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
× ![]()
