Model Kenmore 790.72502011 RANGE – Common Parts & Diagrams

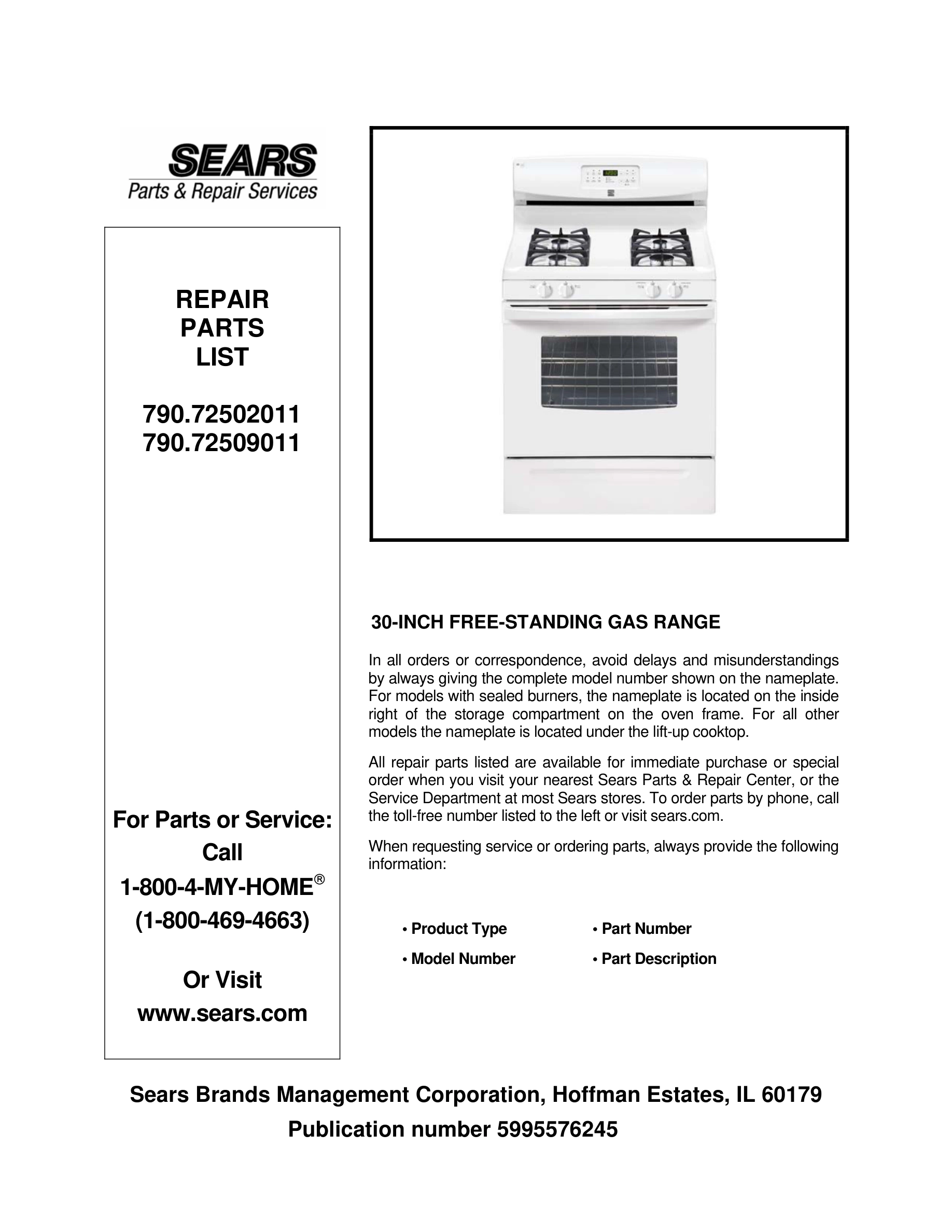

01 - COVER

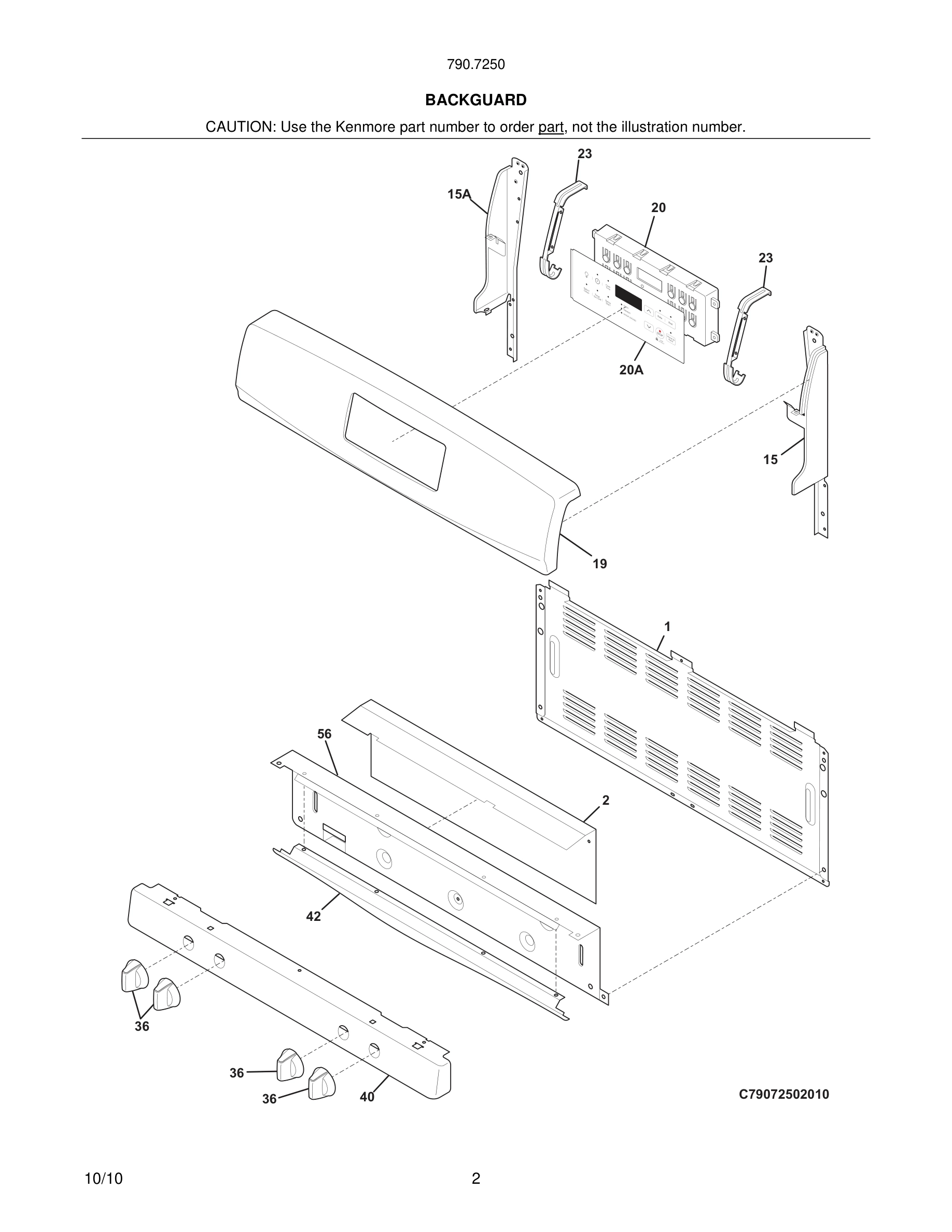

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - BODY
11 - TOP/DRAWER
13 - DOOR
Common parts from model Kenmore 790.72502011 RANGE
*
Screw, 8-18 x 0.5, chrome WCI 316021109 Contact Us For Availability
*
Screw, hex head cup pt, 8-18 x 0.375, black WCI 316021105 Contact Us For Availability
*
Screw, wafer head, 8-32T x 0.500, black WCI 5303285179 Contact Us For Availability
*
Screw, 10-16 x .486 WCI 316089500 Contact Us For Availability
*
Screw, valve mtg., 1/4 - 20 WCI 316215600 Contact Us For Availability
*
Screw, sims lp, #8-32 x 5/16", black WCI 316418900 Contact Us For Availability
*
Screw, trilobe, 10-32 x 5/16", black WCI 316418901 Contact Us For Availability
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
1#
Manifold Pipe WCI 316417900 Contact Us For Availability
2
Shield, backguard, inner WCI 316497600 Contact Us For Availability
2#
Valve, 12/14K burner, w/mtg screw WCI 5303935306 Contact Us For Availability
2A#
Valve, 5K top burner, w/mtg screw WCI 5303935308 Contact Us For Availability
2C#
Valve, 9.5K burner, w/mtg screw WCI 5303935305 Contact Us For Availability
3
Trim kit-door, 3 sided, white, w/tape WCI 5303935326 Contact Us For Availability
3#
Harness-ignitor WCI 316580611 Contact Us For Availability
4
Glass-oven door, white, outer WCI 316553202 Contact Us For Availability
4
Panel, drawer, white, front WCI 316403401 Contact Us For Availability
5
Screw, leveling, plastic, rear, (2) WCI 316272900 Contact Us For Availability
7
Insulation, oven door WCI 316403900 Contact Us For Availability
8
Panel, oven bottom WCI 316400603 Contact Us For Availability
9
Liner-oven door WCI 316423807 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10#
Burner, sealed, 14K WCI 316438600 Contact Us For Availability
10A#
Burner, sealed, 5K WCI 316438200 Contact Us For Availability
10C#
Burner, sealed, 9.5K WCI 316558300 Contact Us For Availability
11#
Ignitor/orifice assy., top burner, right fron WCI 316536614 Contact Us For Availability
11A#
Ignitor/orifice assy., top burner, right rear WCI 316536610 Contact Us For Availability
11B#
Ignitor/orifice assy., top burner, left rear, WCI 316536600 Contact Us For Availability
11C#
Ignitor/orifice assy., top burner, left front WCI 316536602 Contact Us For Availability
12
Screw, burner, head mtg, (8) WCI 316540900 Contact Us For Availability
12#
Switch, oven light, door frame WCI 316445500 Contact Us For Availability
13#
Tube, 3/8, aluminum, rgltr to manf, with fitt WCI 316489100 Contact Us For Availability
14#
Receptacle, oven light WCI 316116400 Contact Us For Availability
14*
Screw, hex, 8-18 x 3/8, nick, (3), regulator WCI 316021104 Contact Us For Availability
15
Bracket, regulator WCI 316091600 Contact Us For Availability
15
Support, backguard, white, RH WCI 316411403 Contact Us For Availability
15A
Support, backguard, white, LH WCI 316411402 Contact Us For Availability
16
Maintop, assembly, white WCI 316254506 Contact Us For Availability
17
Retainer, lens WCI 316087500 Contact Us For Availability
17#
Valve, safety WCI 316404901 Contact Us For Availability
18
Latch Assembly, oven door WCI 316405800 Contact Us For Availability
18#
Burner, oven WCI 316404400 Contact Us For Availability
19*
Cover, broil Ignitor WCI 316401500 Contact Us For Availability
20
Grate, black WCI 316202405 Contact Us For Availability
20#
Controller, electronic, ES335 WCI 316557211 Contact Us For Availability
21
Nut, hex head sems WCI 5303013272 Contact Us For Availability
21
Clip, bodyside WCI 316408000 Contact Us For Availability
22
Bracket-bodyside, (2) WCI 316286300 Contact Us For Availability
23
Hinge, oven door WCI 316575906 Contact Us For Availability
23
Bracket, clock mtg WCI 316441500 Contact Us For Availability
23#
Burner, broiler WCI 316404304 Contact Us For Availability
25
Shield, heat, lower WCI 316406200 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
26#
Ignitor, bake burner WCI 316489403 Contact Us For Availability
26A
Bracket-support, chassis, aluminum WCI 316498200 Contact Us For Availability
33
Shield, rear wall WCI 316405900 Contact Us For Availability
36
Knob, top valve, white, (4) WCI 316353103 Contact Us For Availability
37
Screw, assy mtg, (8), ignitor/orifice WCI 316240600 Contact Us For Availability
37#
Probe, oven temp WCI 316490000 Contact Us For Availability
44
Spacer, oven door WCI 316517600 Contact Us For Availability
44#
Orifice, top burner, 14K WCI 316527511 Contact Us For Availability
44A#
Orifice, top burner, 5K WCI 316527504 Contact Us For Availability
44C#
Orifice, top burner, 9.5K WCI 316527500 Contact Us For Availability
47#
Kit Assembly, LP conversion, yellow WCI 316542403 Contact Us For Availability
52
Cap, door trim, white WCI 316575500 Contact Us For Availability
58A
Insulation, oven wrapper WCI 316403700 Contact Us For Availability
58B
Insulation, oven back WCI 316403600 Contact Us For Availability
58G
Insulation, main front WCI 08067973 Contact Us For Availability
82
Shield, bake burner WCI 316400801 Contact Us For Availability
86
Receptacle, hinge WCI 316441300 Contact Us For Availability
× ![]()
