Model Kenmore 790.71562700 RANGE – Common Parts & Diagrams
Common parts from model Kenmore 790.71562700 RANGE
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
*#
Wiring Harness, ignitor module WCI 316253700 Contact Us For Availability
*#
Harness, wiring, main WCI 316416641 Contact Us For Availability
2
Shield, backguard, inner WCI 316497600 Contact Us For Availability
2C#

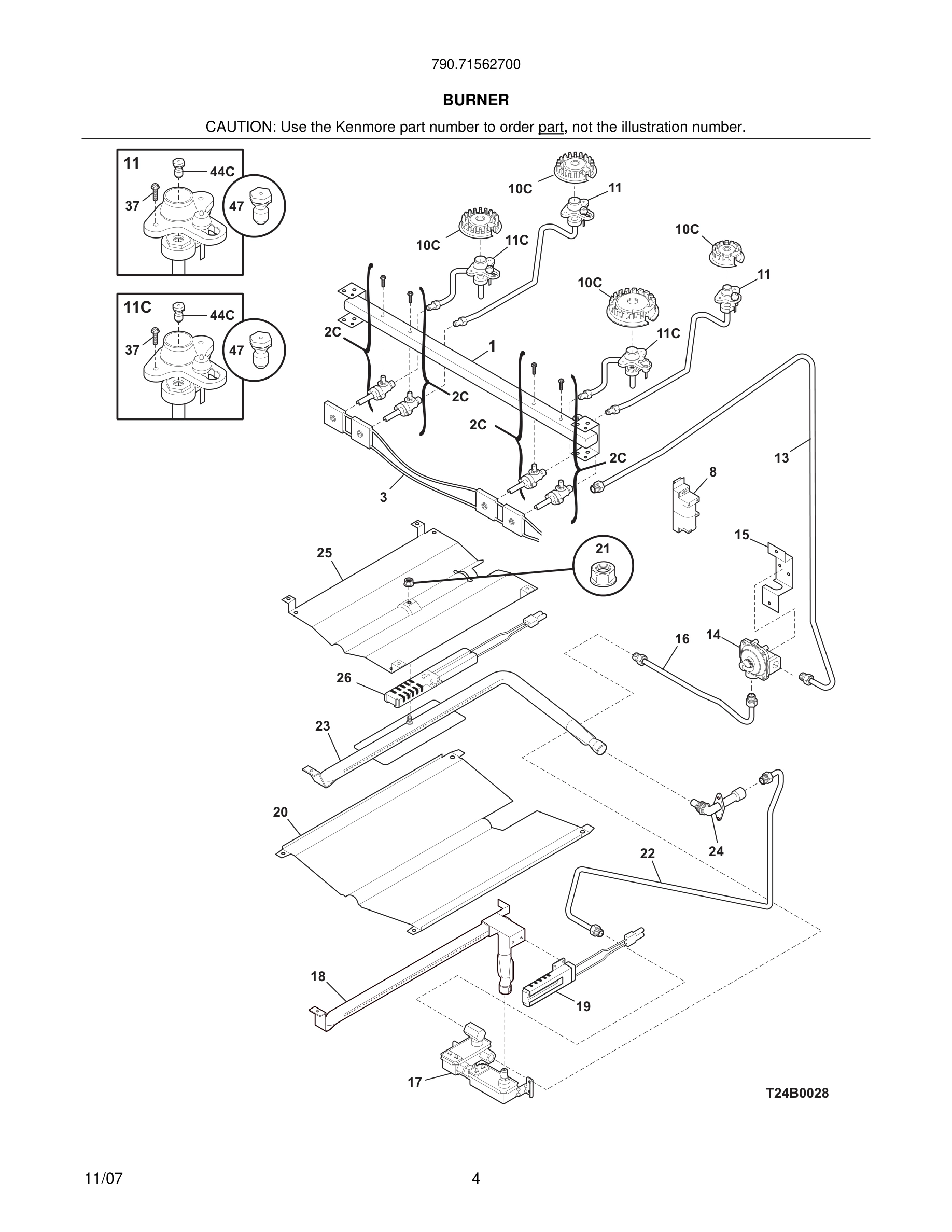

Valve, 9.5K burner, w/mtg screw WCI 5303935234 Contact Us For Availability
4

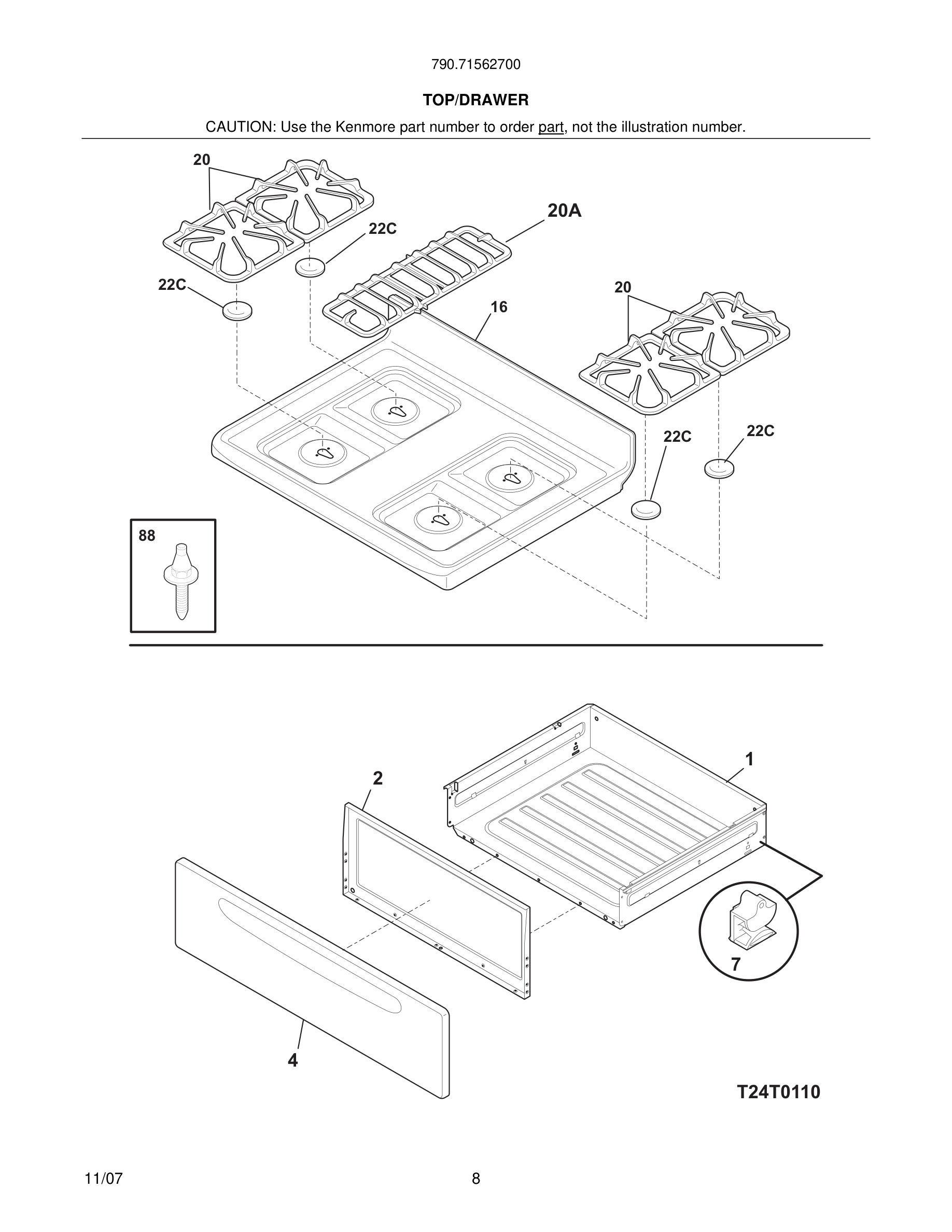

Panel, drawer, white, front WCI 316403401 Contact Us For Availability
4

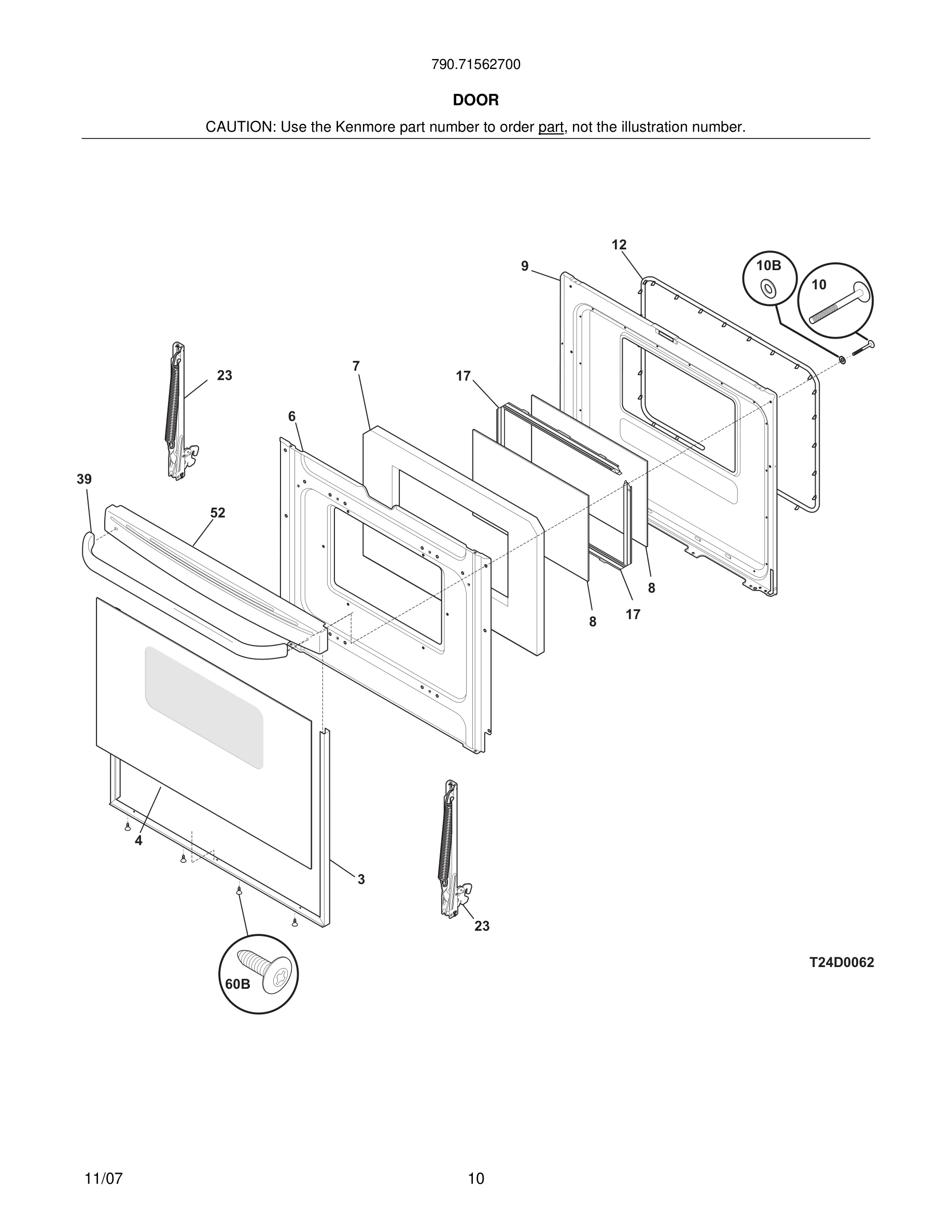

Glass, oven door, white, outer WCI 316427203 Contact Us For Availability
6

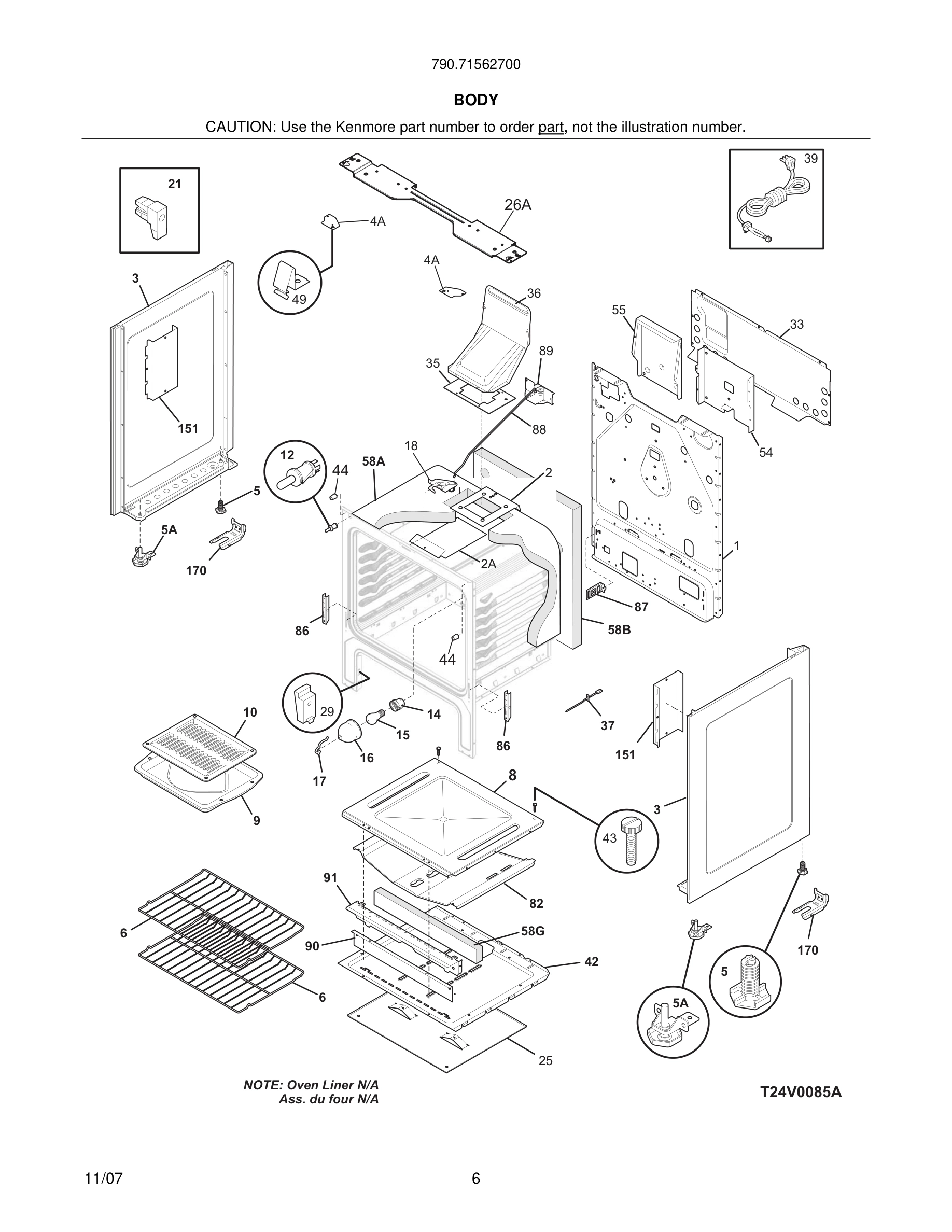

Rack, oven WCI 316404500 Contact Us For Availability
8
Glass, oven door, inner, (2) WCI 316427701 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
15
Support, backguard, white, RH WCI 316411403 Contact Us For Availability
15A
Support, backguard, white, LH WCI 316411402 Contact Us For Availability
22#
Tube, valve to mixer WCI 316405401 Contact Us For Availability
22C
Cap, 9.5K burner, gray, medium WCI 316213504 Contact Us For Availability
23
Bracket, clock mtg WCI 316441500 Contact Us For Availability
23
Hinge, oven door, yellow titan, (2) WCI 316456301 Contact Us For Availability
23#
Burner, broiler WCI 316404300 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
47#
LP Conversion Kit, white WCI 316243700 Contact Us For Availability
58B
Insulation, oven back WCI 316403600 Contact Us For Availability
× ![]()
