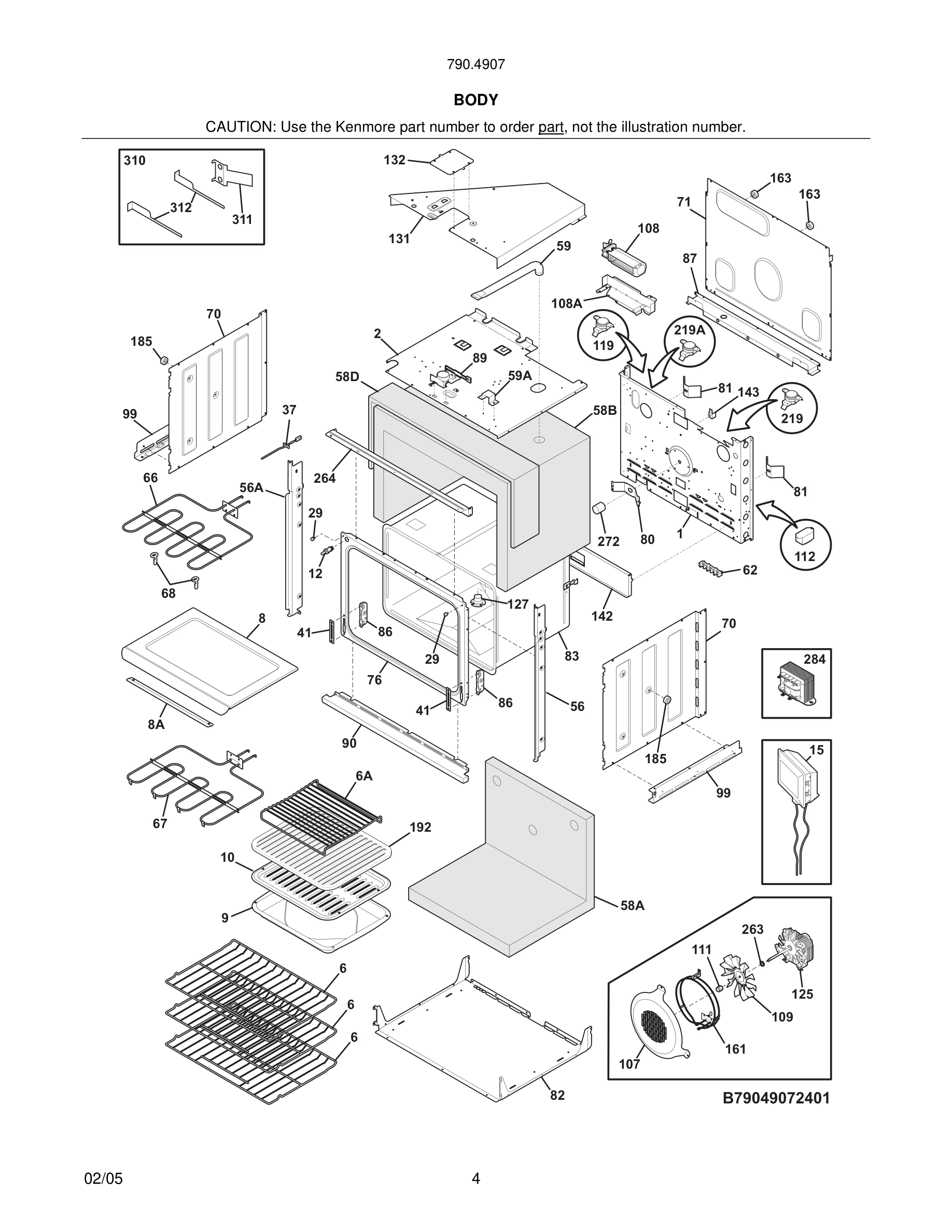

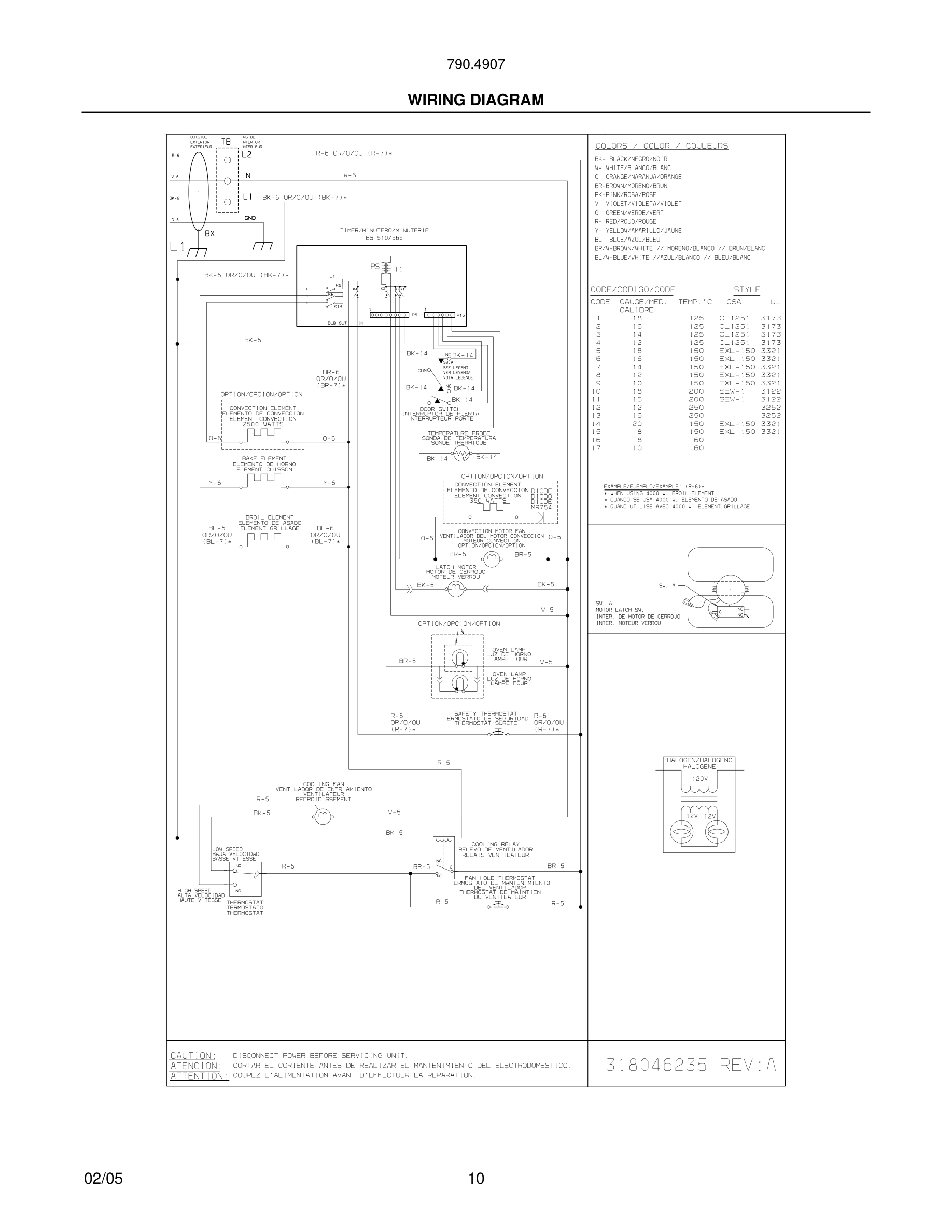

Model Kenmore 790.49072401 OVEN – Common Parts & Diagrams

*
Harness, wiring, main
Harness, wiring, main WCI 318231738 Contact Us For Availability
View on Model
2B
Cover, box
Cover, box WCI 318260100 Contact Us For Availability
View on Model
3
Trim, oven door, black, upper
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
View on Model
3A
Trim, oven door, side, (2)
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
View on Model
4
Glass Assy., oven door, bisque, outer, w/ tri
Glass Assy., oven door, bisque, outer, w/ tri WCI 318261306 Contact Us For Availability
View on Model
6
Baffle, door
Baffle, door WCI 318260500 Contact Us For Availability
View on Model
8
Cover, element
Cover, element WCI 318262001 No Longer Available
View on Model
9
Liner, oven door
Liner, oven door WCI 318259601 Contact Us For Availability
View on Model
15
Lamp, oven, (2), halogen
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
View on Model
20#
Clock/Timer, electronic, ES565W1
Clock/Timer, electronic, ES565W1 WCI 316418770 Contact Us For Availability
View on Model
23
Hinge, oven door, (2)
Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014402 Contact Us For Availability
View on Model
39
Handle, door, white
Handle, door, white WCI 316268301 Contact Us For Availability
View on Model
39
Handle, door, bisque
Handle, door, bisque WCI 316268302 Contact Us For Availability
View on Model
39
Handle, door, black
Handle, door, black WCI 316268300 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
59A
Bracket, vent tube
Bracket, vent tube WCI 318261600 Contact Us For Availability
View on Model
70
Shield, insulation, sides, (2)
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
View on Model
71
Panel, rear box
Panel, rear box WCI 318260004 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056217 Contact Us For Availability
View on Model
80
Plate, oven mtg
Plate, oven mtg WCI 5303320846 Contact Us For Availability
View on Model
81
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
82
Shield, insulation, lower
Shield, insulation, lower WCI 318258700 Contact Us For Availability
View on Model
83
Liner, oven assy
Liner, oven assy WCI 318261401 Contact Us For Availability
View on Model
86
Receptacle, hinge
Receptacle, hinge WCI 5303310524 Contact Us For Availability
View on Model
87
Bracket, cable mtg.
Bracket, cable mtg. WCI 318260602 Contact Us For Availability
View on Model
90
Trim, oven front, black, bottom
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
View on Model
90
Trim, oven front, white, bottom
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
View on Model
90
Trim, oven front, bisque, bottom
Trim, oven front, bisque, bottom WCI 318259702 Contact Us For Availability
View on Model
107
Cover, fan
Cover, fan WCI 318219401 Contact Us For Availability
View on Model
108A
Bracket, fan support
Bracket, fan support WCI 318251300 Contact Us For Availability
View on Model
112#
Relay
Relay WCI 318112701 Contact Us For Availability
View on Model
131
Box, vent
Box, vent WCI 318272900 Contact Us For Availability
View on Model
142
Deflector
Deflector WCI 318123910 Contact Us For Availability
View on Model
143
Support, wire/glass
Support, wire/glass WCI 318172904 Contact Us For Availability
View on Model
163
Spacer
Spacer WCI 318014111 Contact Us For Availability
View on Model
264
Trim, oven, black, front
Trim, oven, black, front WCI 318257701 Contact Us For Availability
View on Model
272
Tube, protector
Tube, protector WCI 318249401 Contact Us For Availability
View on Model
284
Transformer
Transformer WCI 318244500 Contact Us For Availability
View on Model
310
Cabinet Mounting Kit
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
View on Model
311
Bracket, cabinet mtg, (2)
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
