Model Kenmore 790.49063400 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

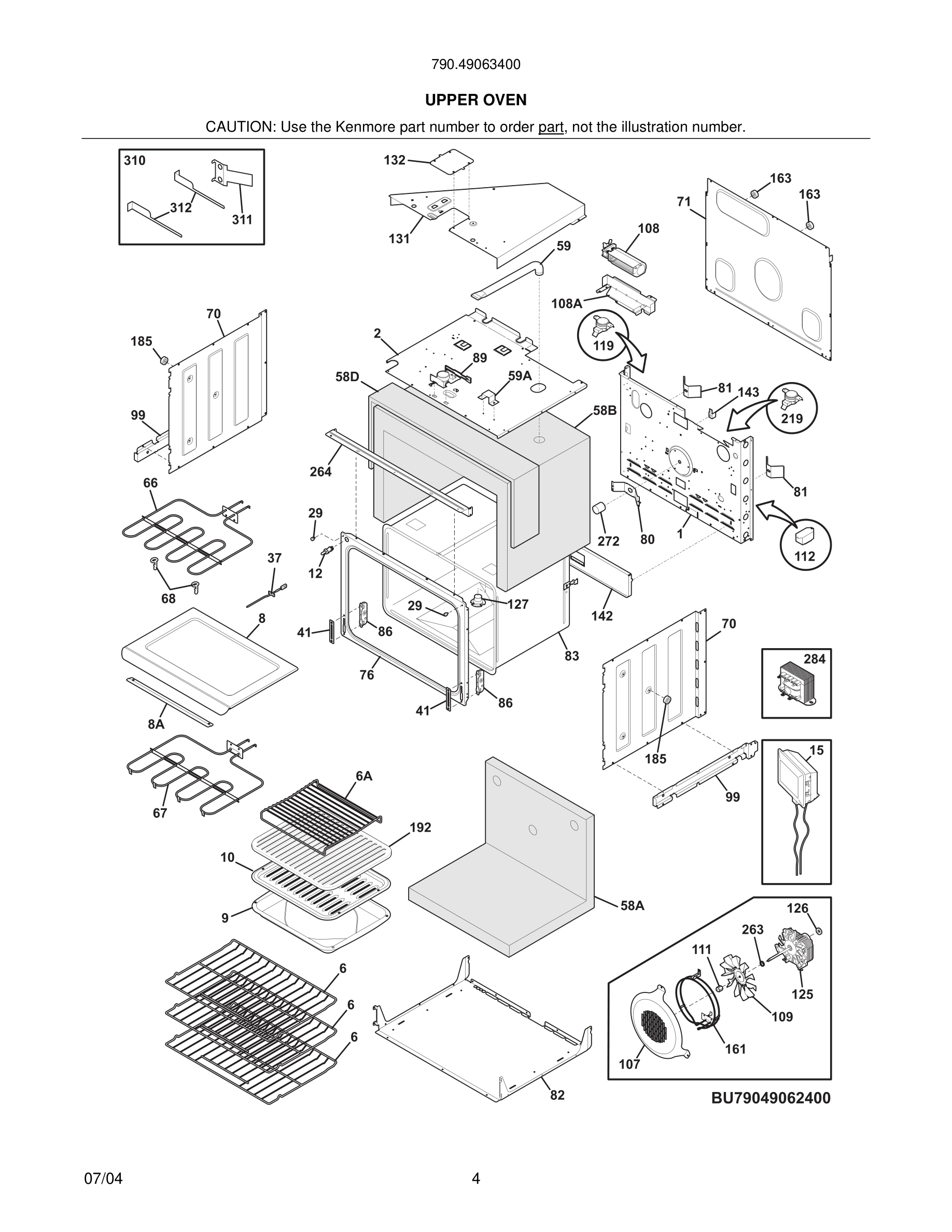

05 - UPPER OVEN
07 - UPPER OVEN

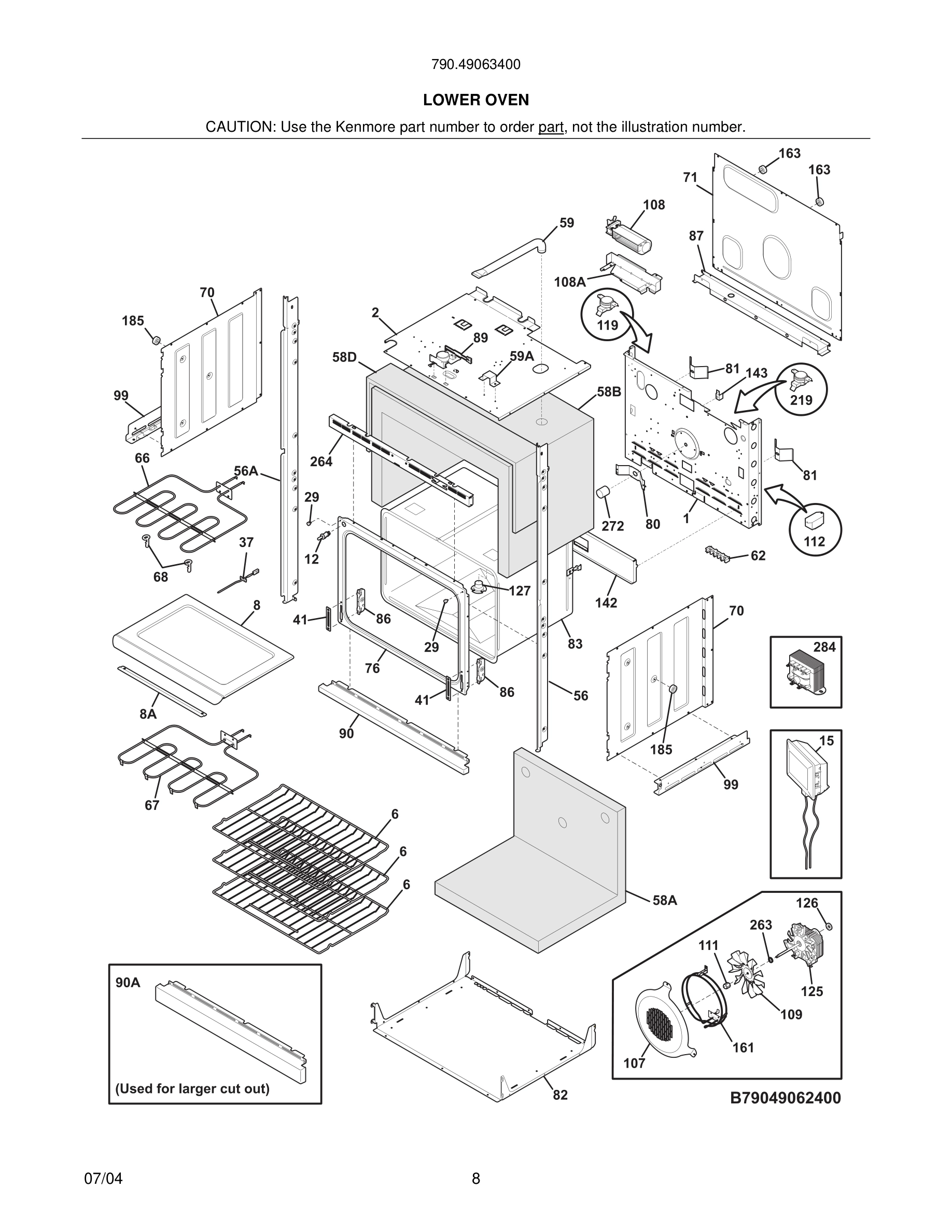

09 - LOWER OVEN
11 - LOWER OVEN

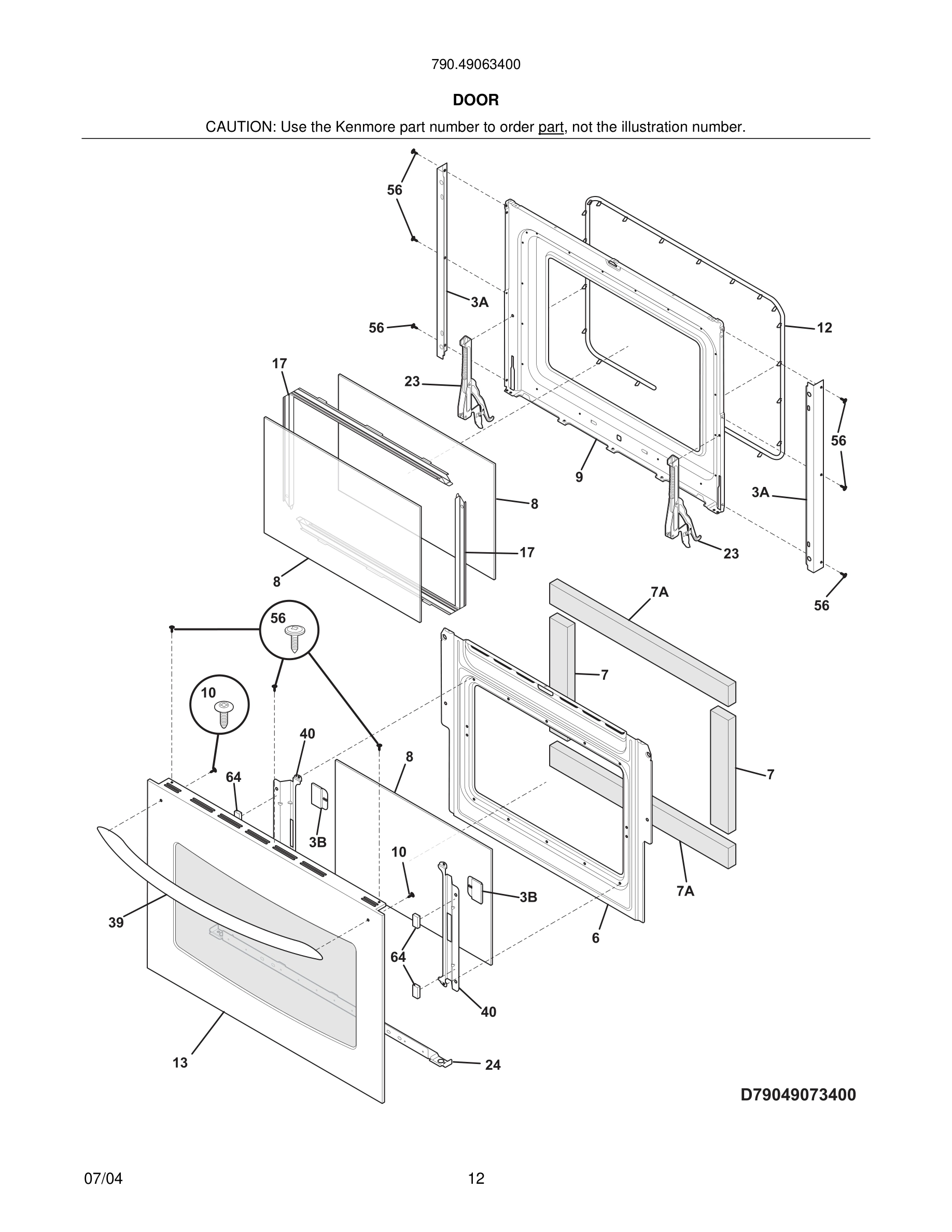

13 - DOOR

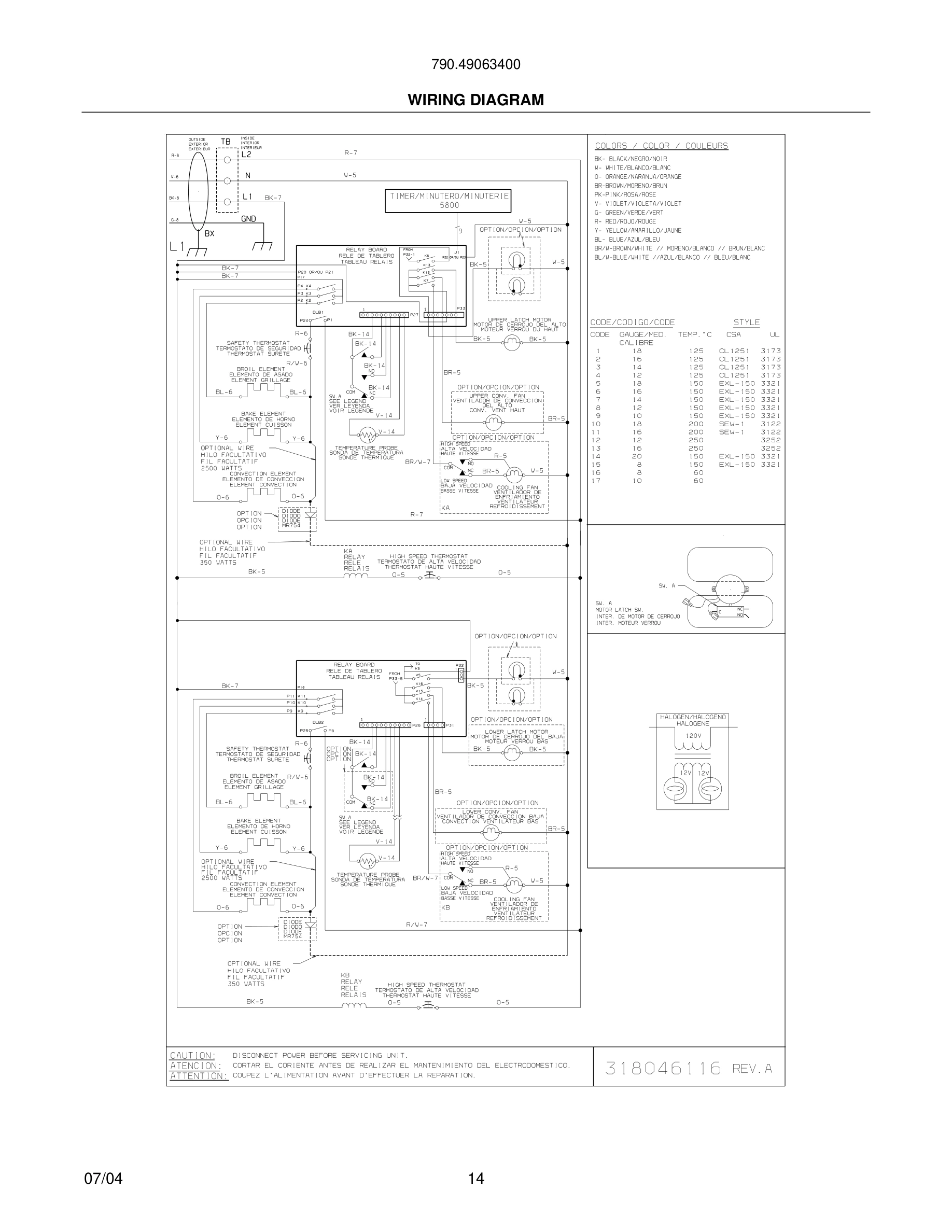

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.49063400 OVEN
*
Clip, wire retainer WCI 3015722 Contact Us For Availability
*
Harness, latch WCI 318231705 Contact Us For Availability
*
Screw, 8 x 5/8 WCI 3131048 Contact Us For Availability
*
Harness, wiring, main WCI 318231703 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
1
Back, main WCI 318259200 Contact Us For Availability
2
Shield, insulation, upper WCI 318258900 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Rack, oven WCI 318262500 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
8
Cover, element WCI 318262001 Contact Us For Availability
8A
Bracket, element cover WCI 318285300 Contact Us For Availability
9
Liner, oven door, upper WCI 318259605 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272150 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
15*
Harness, wiring, halogen lamp WCI 318052197 Contact Us For Availability
20#
Control, electronic, dual oven WCI 316429711 Contact Us For Availability
23
Hinge, oven door WCI 318024720 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
39
Handle, door/drawer, stainless WCI 316432300 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
56
Trim, side filler, graphite, RH WCI 318259918 Contact Us For Availability
56A
Trim, side filler, graphite, LH WCI 318259919 Contact Us For Availability
58A
Insulation, oven wrapper, back/bottom WCI 318133791 Contact Us For Availability
58B
Insulation, oven wrapper, top/sides WCI 318133790 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318133793 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260000 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258700 Contact Us For Availability
83
Liner, oven assy WCI 318261401 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, oven front, graphite, bottom WCI 318259706 Contact Us For Availability
90A
Trim, oven front, graphite, bottom WCI 318259707 Contact Us For Availability
97
Board, relay, dual oven WCI 316429800 Contact Us For Availability
107
Cover, fan WCI 318219401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
126
Washer, motor, RH, convection WCI 318142100 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire/glass WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
219#
Thermostat, safety WCI 318003606 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
272
Tube, protector WCI 318249401 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
