Model Kenmore 790.48902001 WALL OVEN / MICROWAVE COMBO – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - DIAGRAM 5

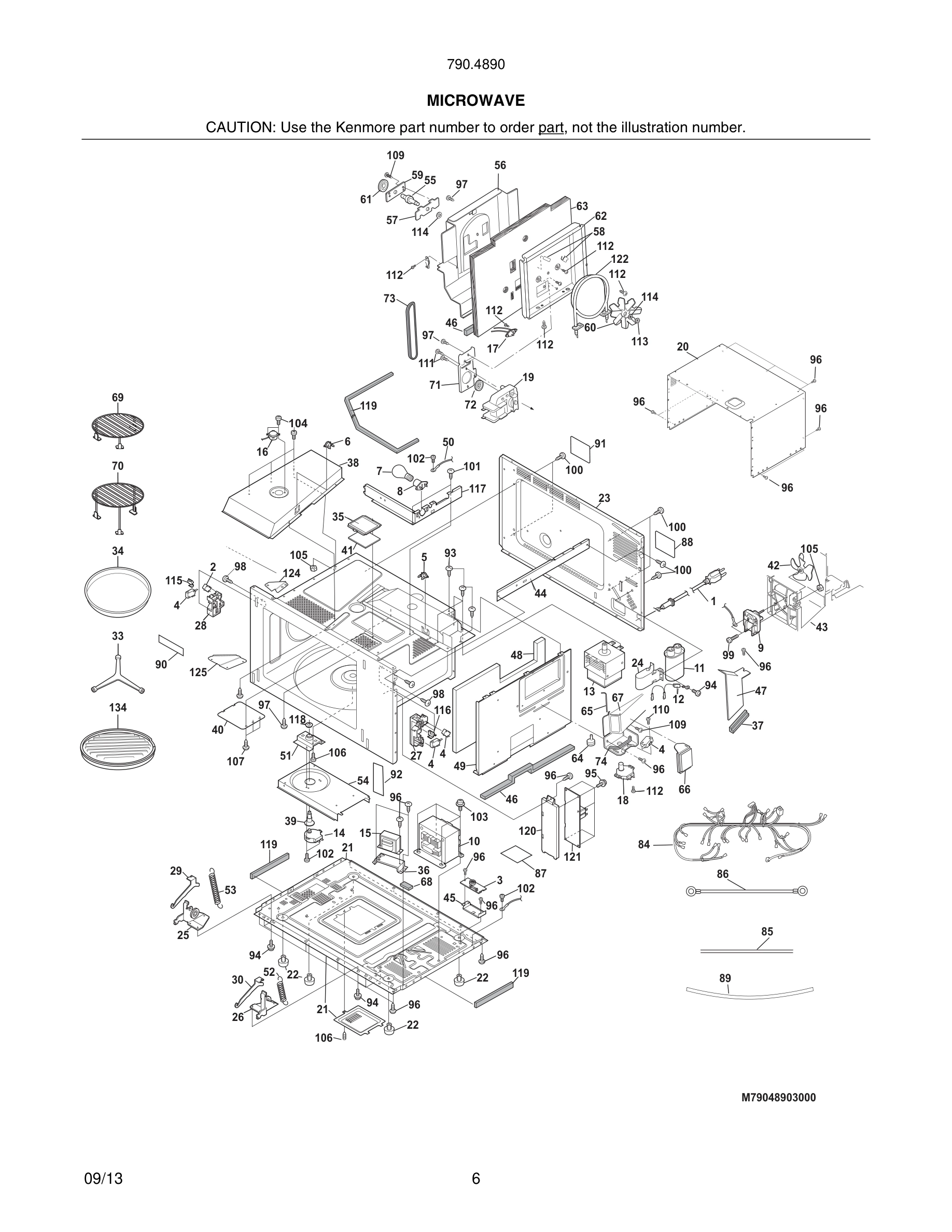

07 - DIAGRAM 7

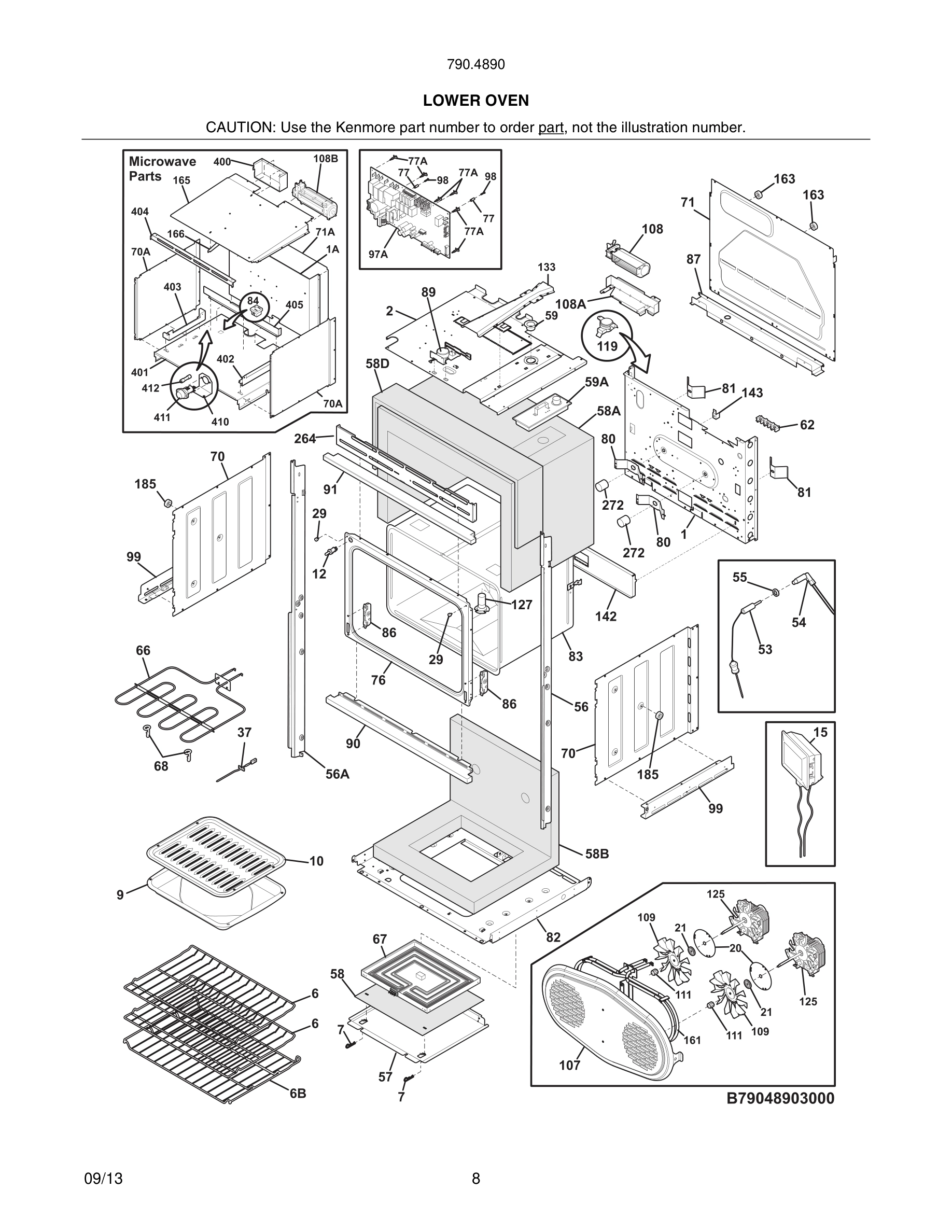

09 - LOWER OVEN
11 - LOWER OVEN

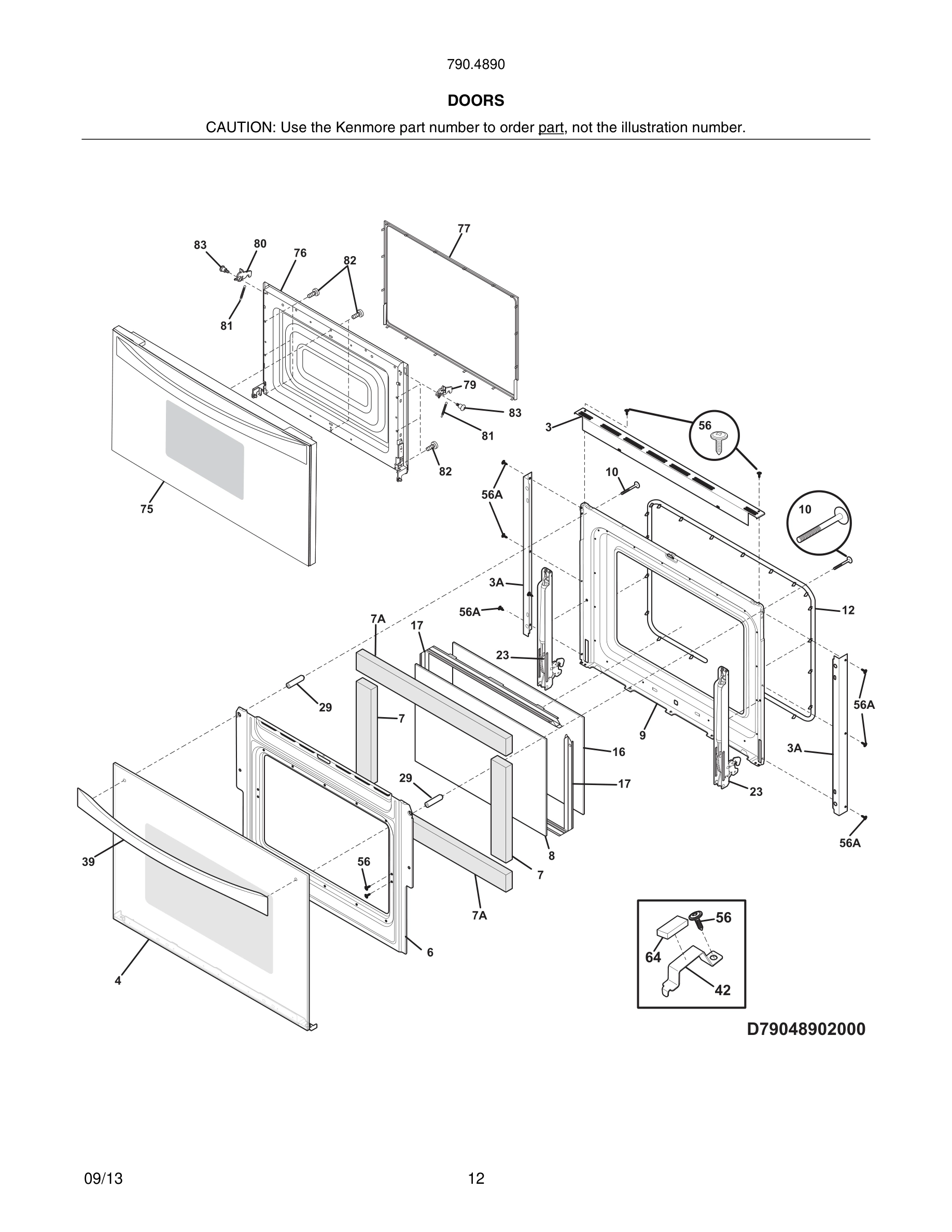

13 - DOORS
14 - WIRING DIAGRAM
Common parts from model Kenmore 790.48902001 WALL OVEN / MICROWAVE COMBO
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Retainer, wiring WCI 5304400192 Contact Us For Availability
*#
Wiring Harness, bake element WCI 318231870 Contact Us For Availability
*#
Harness, wiring, display/control, to relay bo WCI 318532194 Contact Us For Availability
*#
Harness, wiring, main WCI 318532190 Contact Us For Availability
*#
Harness, wiring, temp probe, door switch WCI 318532192 Contact Us For Availability
1A
Back, main, upper oven WCI 318259215 Contact Us For Availability
2
Shield, insulation, upper WCI 318258957 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260205 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., door, white, outer, w/trim WCI 318299528 Contact Us For Availability
4
Glass Assy., door, black, outer, w/trim WCI 318299527 Contact Us For Availability
6
Rack, oven, (2) WCI 318262520 Contact Us For Availability
6
Baffle, door WCI 318260531 Contact Us For Availability
6B
Rack, oven WCI 318919803 Contact Us For Availability
7
Pin, locking, (2) WCI 318368300 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Liner, oven door WCI 318411693 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
Screw, 10-24 x 1.770, handle mtg WCI 5304477986 Contact Us For Availability
12
Seal, oven door, upper WCI 318053121 Contact Us For Availability
20
Plate, retainer WCI 318389400 Contact Us For Availability
20#
Board, control, UIB, microcombi WCI 316570400 Contact Us For Availability
23
Hinge, door, oven, (2) WCI 318567103 Contact Us For Availability
29
Spacer, door WCI 318014411 Contact Us For Availability
29
Cam, door, LH WCI 5304480640 Contact Us For Availability
34
Tray, turntable WCI 5304480643 Contact Us For Availability
39
Handle, door/drawer, white, w/spacer WCI 316353900 Contact Us For Availability
39
Handle, door/drawer, black, w/spacer WCI 316353901 Contact Us For Availability
51
Bracket, turntable mount WCI 5304451459 Contact Us For Availability
56
Trim, side filler, white, RH WCI 318903632 Contact Us For Availability
56
Trim, side filler, black, RH WCI 318903634 Contact Us For Availability
56A
Screw, 8-18 x 3/8 WCI 5304476599 Contact Us For Availability
56A
Trim, side filler, white, LH WCI 318903633 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318903635 Contact Us For Availability
57
Panel, service WCI 318361610 Contact Us For Availability
58
Insulation, service panel, 12.47 x 14.77 WCI 318330501 Contact Us For Availability
58A
Insulation, wrapper, top & sides WCI 318594501 Contact Us For Availability
58B
Insulation, wrapper, back & bottom WCI 318594515 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318372006 Contact Us For Availability
59A#
Catalyst Assembly, electronic WCI 318914900 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259105 Contact Us For Availability
70A
Shield, insulation, sides, (2) WCI 318259116 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
71A
Panel, rear box, upper WCI 318260011 Contact Us For Availability
75
Door Assembly, outer, white, w/trim-handle WCI 5304480650 Contact Us For Availability
76
Front, oven WCI 318056292 Contact Us For Availability
77
Spacer, control WCI 318293702 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258775 Contact Us For Availability
83
Liner, oven assy WCI 318261430 Contact Us For Availability
86*
Screw, #10-32x1/2 WCI 5304481623 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260622 Contact Us For Availability
89#
Motor, latch assy WCI 318261228 Contact Us For Availability
90
Trim, base, white WCI 318259832 Contact Us For Availability
90
Trim, base, black WCI 318259831 Contact Us For Availability
91
Trim, white WCI 318934512 Contact Us For Availability
91
Trim, black WCI 318934511 Contact Us For Availability
96
Screw, 4 mm x 12 mm WCI 5304451553 Contact Us For Availability
107
Cover, fan, dual WCI 318550200 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
117
Guide, air, RH WCI 5304480654 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
133
Chimney WCI 318347800 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
161#
Element, convection, duo WCI 318535300 Contact Us For Availability
163
Spacer WCI 318531703 Contact Us For Availability
165
Shield, heat, base WCI 318381740 Contact Us For Availability
166
Deflector, divider WCI 318577001 Contact Us For Availability
264
Trim, oven, black, front WCI 318257766 Contact Us For Availability
272
Tube, protector WCI 318249412 Contact Us For Availability
400
Box, cooling duct WCI 318576901 Contact Us For Availability
401
Plate, support, microwave, 30" WCI 318297208 Contact Us For Availability
402
Bracket, attachment WCI 318406714 Contact Us For Availability
403
Bracket, attachment WCI 318407603 Contact Us For Availability
404
Trim, vent, black WCI 318410506 Contact Us For Availability
405
Panel, back filler WCI 318935102 Contact Us For Availability
410
Bracket, fuse WCI 318933901 Contact Us For Availability
× ![]()
