Model Kenmore 790.48143800 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL

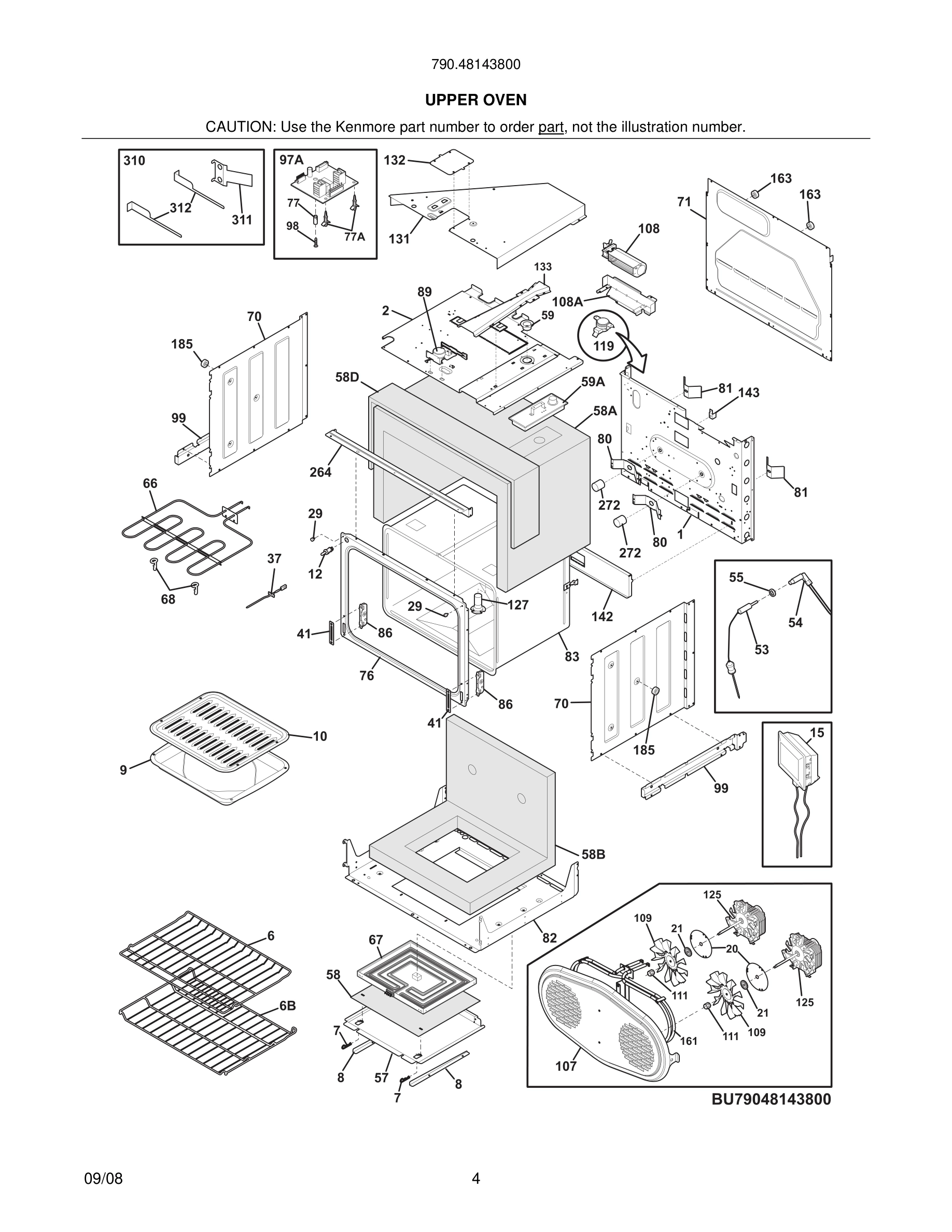

05 - UPPER OVEN
07 - UPPER OVEN
09 - LOWER OVEN

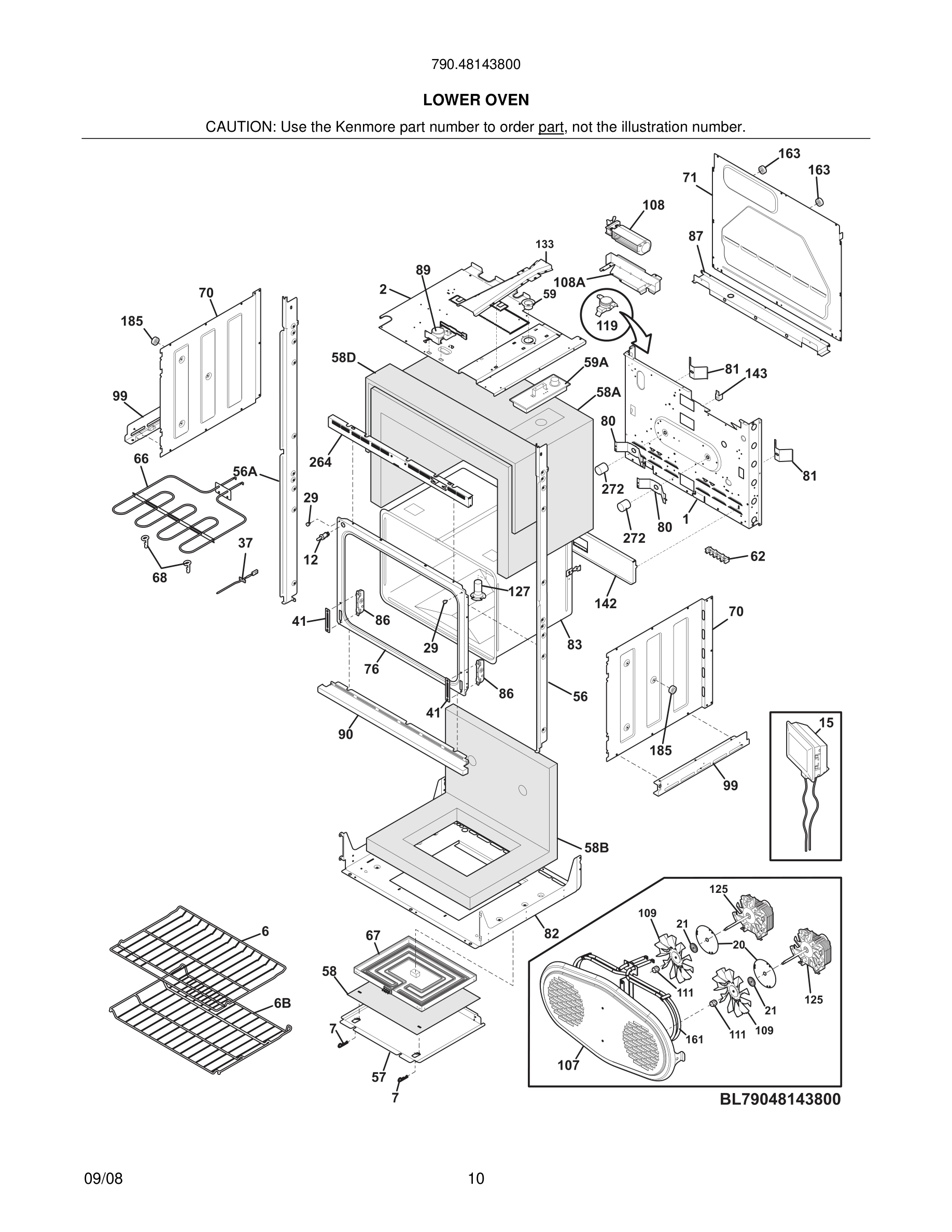

11 - LOWER OVEN
13 - DOORS

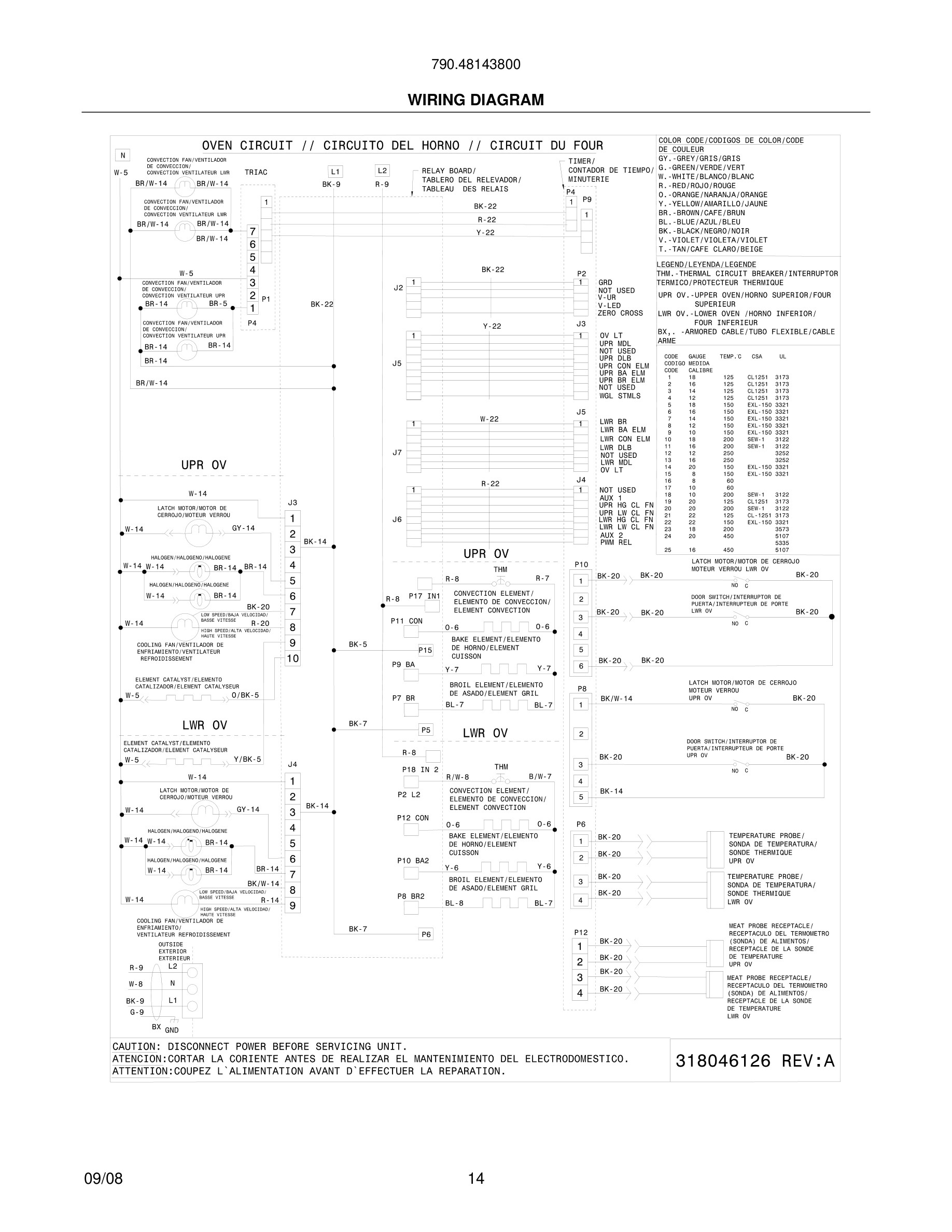

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.48143800 OVEN
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Harness, wiring WCI 318532161 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
9
Liner, oven door WCI 318411605 Contact Us For Availability
13
Door Assembly, outer, stainless/black, plane WCI 318272115 Contact Us For Availability
13
Door Assembly, outer, stainless/black, w/namp WCI 318919100 Contact Us For Availability
15*
Insulation, oven light WCI 318268099 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
19#
Control Panel Assy., glass, black, w/membrane WCI 318280449 Contact Us For Availability
20
Plate, retainer WCI 318389400 Contact Us For Availability
23
Hinge, door, (2) WCI 318024747 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318903605 Contact Us For Availability
57
Panel, service WCI 318361610 Contact Us For Availability
58
Insulation, service panel, 12.47 x 14.77 WCI 318330501 Contact Us For Availability
58A
Insulation, wrapper, back and bottom WCI 318926900 Contact Us For Availability
58B
Insulation, wrapper, top and sides WCI 318536600 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318372006 Contact Us For Availability
59A#
Catalyst Assembly, electronic WCI 318914900 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258730 Contact Us For Availability
83
Liner, oven assy WCI 318261430 Contact Us For Availability
86
Receptacle, hinge WCI 318328010 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, base, stainless WCI 318259807 Contact Us For Availability
97A#
Board, relay, convection WCI 316519203 Contact Us For Availability
107
Cover, fan, dual WCI 318550200 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
119#
Switch, thermal WCI 318004906 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
127
Adapter Assembly, w/vent tube, and catalyst WCI 318357001 Contact Us For Availability
133
Chimney WCI 318347800 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
161#
Element, convection, duo WCI 318535300 Contact Us For Availability
163
Spacer, (2) WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
272
Tube, protector WCI 318249403 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
