Model Kenmore 790.47913601 OVEN – Common Parts & Diagrams
01 - COVER

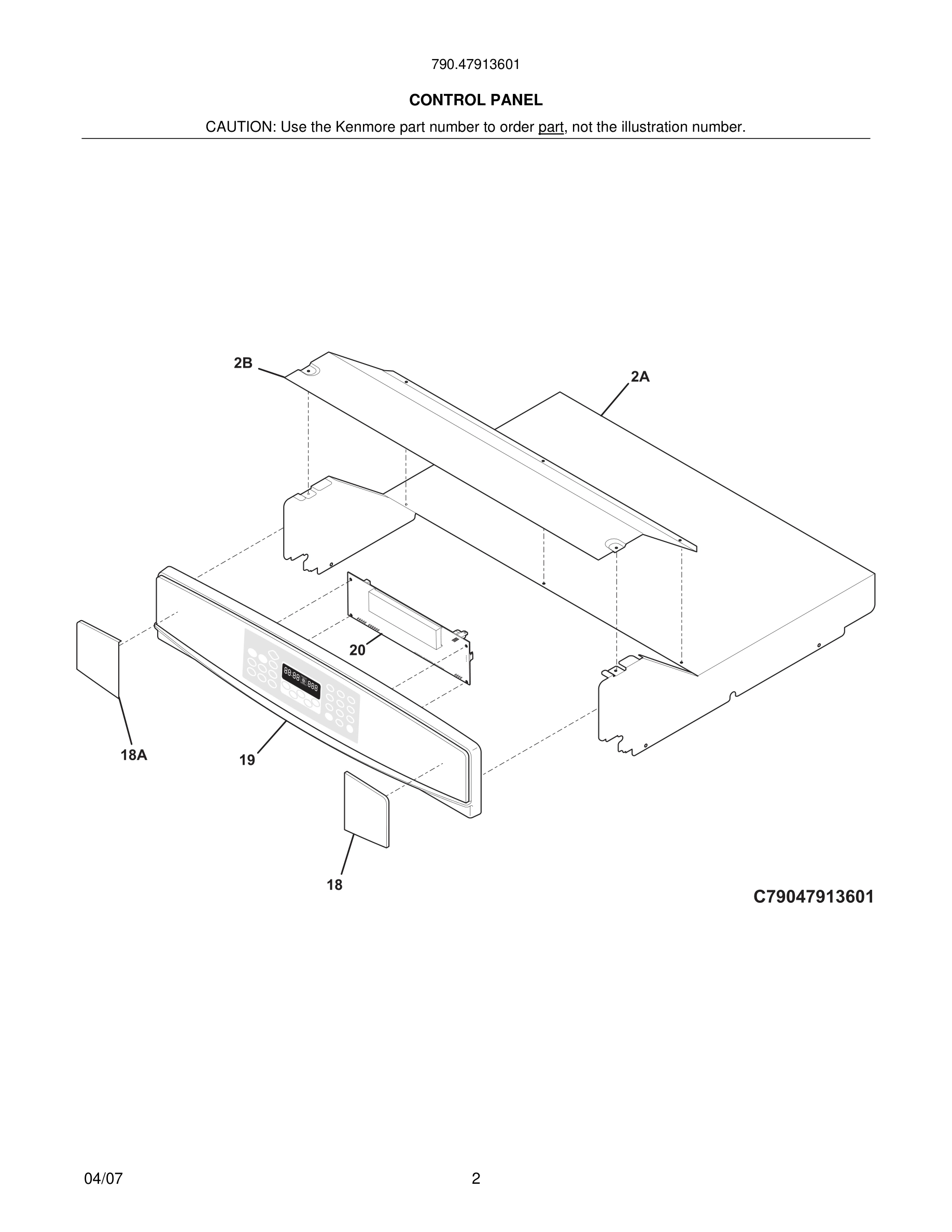

03 - CONTROL PANEL
05 - UPPER OVEN
07 - UPPER OVEN
09 - LOWER OVEN
11 - LOWER OVEN
13 - DOORS
14 - WIRING DIAGRAM
Common parts from model Kenmore 790.47913601 OVEN
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Wiring Harness, bake element WCI 318231838 Contact Us For Availability
*#
Harness, wiring, main, latch WCI 318231750 Contact Us For Availability
*#
Wiring Harness, latch, NO BAS WCI 318199746 Contact Us For Availability
*#
Wriring Harness, main WCI 318370309 Contact Us For Availability
1
Back, main WCI 318259204 Contact Us For Availability
2
Shield, insulation, upper WCI 318258902 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Rack, oven WCI 318262500 Contact Us For Availability
6
Baffle, door WCI 318260520 Contact Us For Availability
7
Pin, locking, (2) WCI 318368300 Contact Us For Availability
9
Liner, door WCI 318259605 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272150 Contact Us For Availability
13
Door Assy, w/nameplate, stainless steel, lowe WCI 318272180 Contact Us For Availability
15
Lamp, oven, (2), halogen WCI 318241000 Contact Us For Availability
15*
Harness, wiring, halogen lamp WCI 318052197 Contact Us For Availability
15*
Insulation, oven light WCI 318268099 Contact Us For Availability
20#
Control, electronic, ES615W5, dual oven WCI 316443821 Contact Us For Availability
23
Hinge, door, (2) WCI 318024714 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
39
Handle, door/drawer, stainless WCI 316432300 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318259915 Contact Us For Availability
57
Panel, service WCI 318361602 Contact Us For Availability
58
Insulation, service panel, 12.47 x 14.77 WCI 318330501 Contact Us For Availability
58A
Insulation, oven wrapper WCI 318285055 Contact Us For Availability
58B
Insulation, rear & bottom, oven wrapper WCI 318362100 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318285058 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
71*
Bracket, insul. panel WCI 318340200 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258714 Contact Us For Availability
83
Liner, oven assy WCI 318261417 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90A
Trim, oven front, black, bottom WCI 318259704 Contact Us For Availability
107
Cover, fan WCI 318219401 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
131
Box, vent WCI 318272900 Contact Us For Availability
132
Plate, shield WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
272
Tube, protector WCI 318249401 Contact Us For Availability
284
Transformer WCI 318244500 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
