Model Kenmore 790.47873401 OVEN – Common Parts & Diagrams

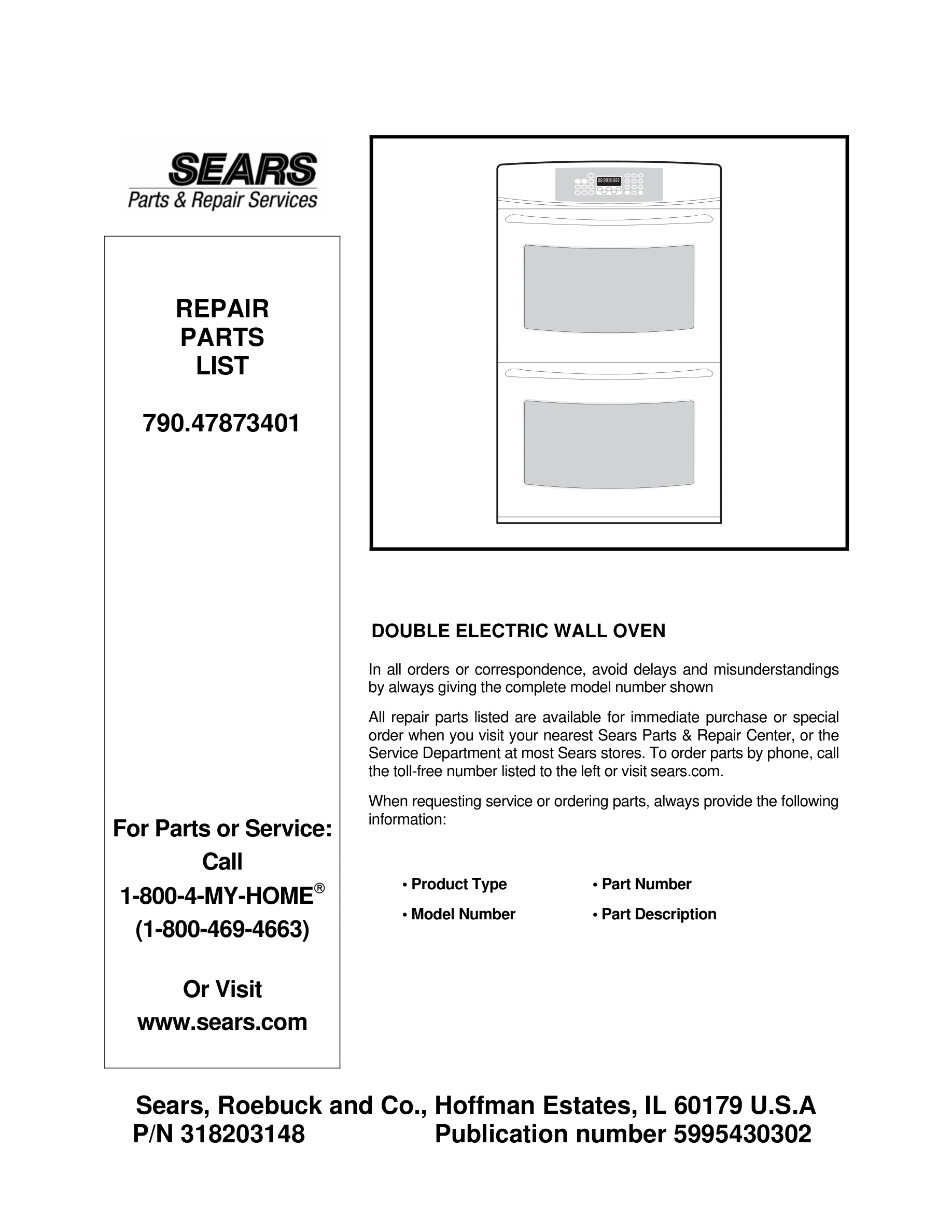

01 - COVER

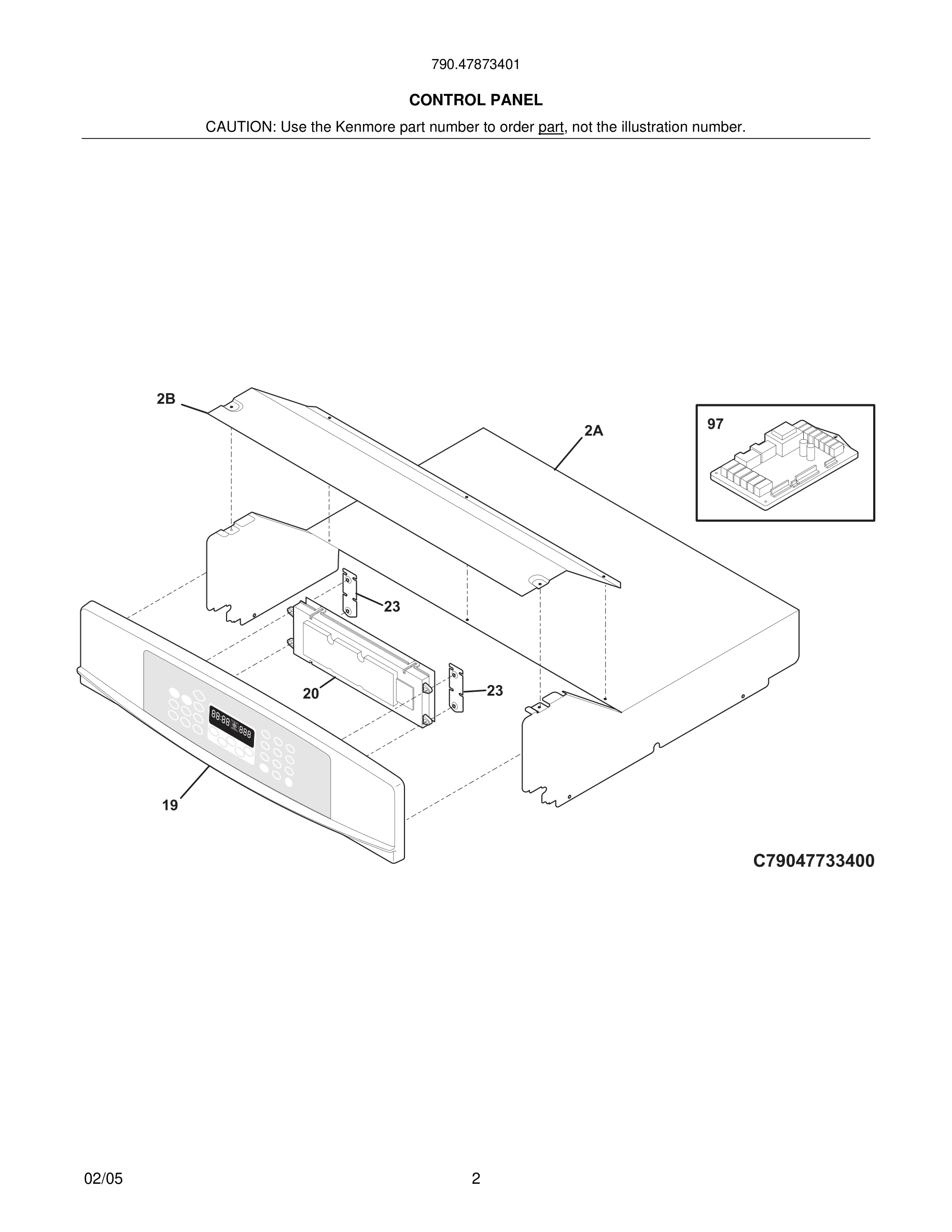

03 - CONTROL PANEL

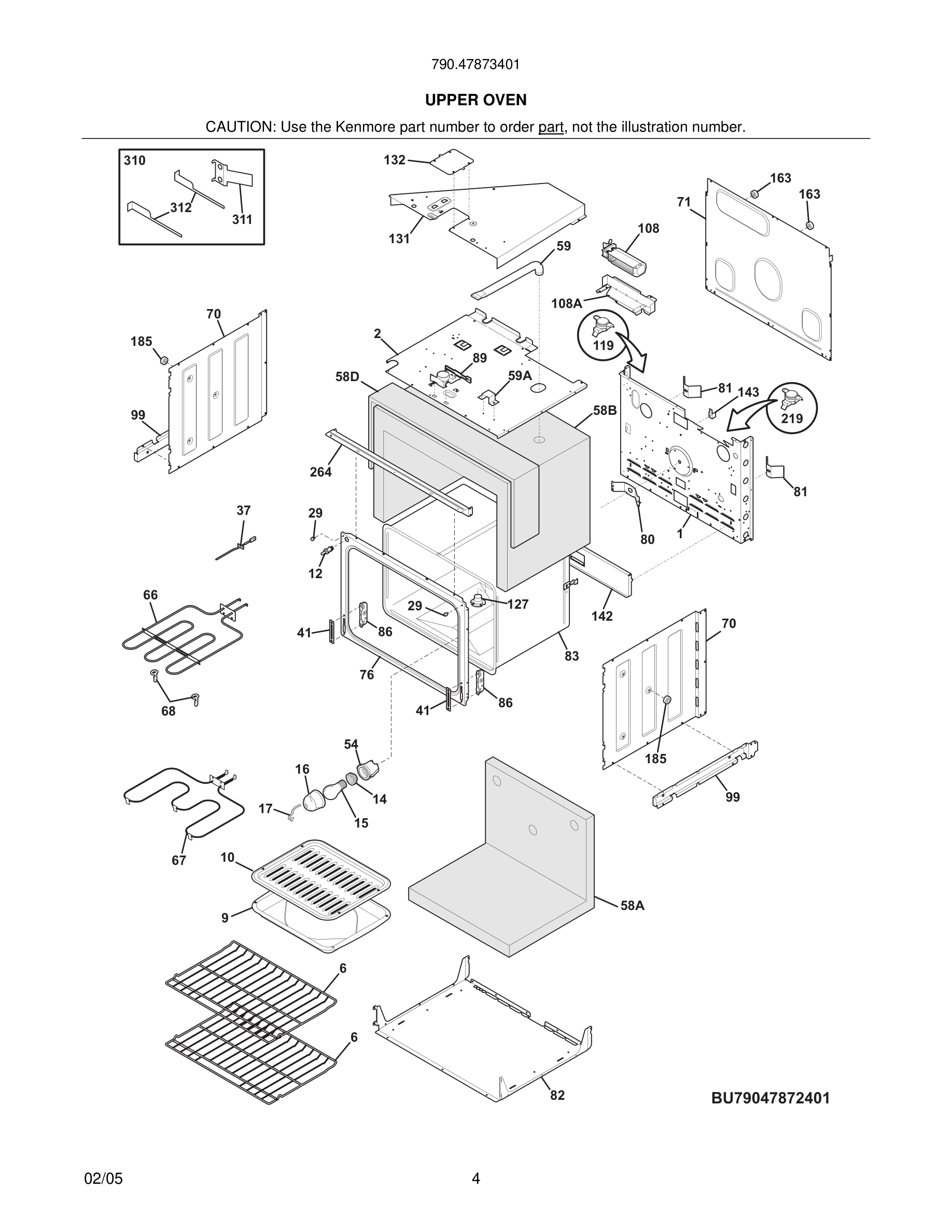

05 - UPPER OVEN

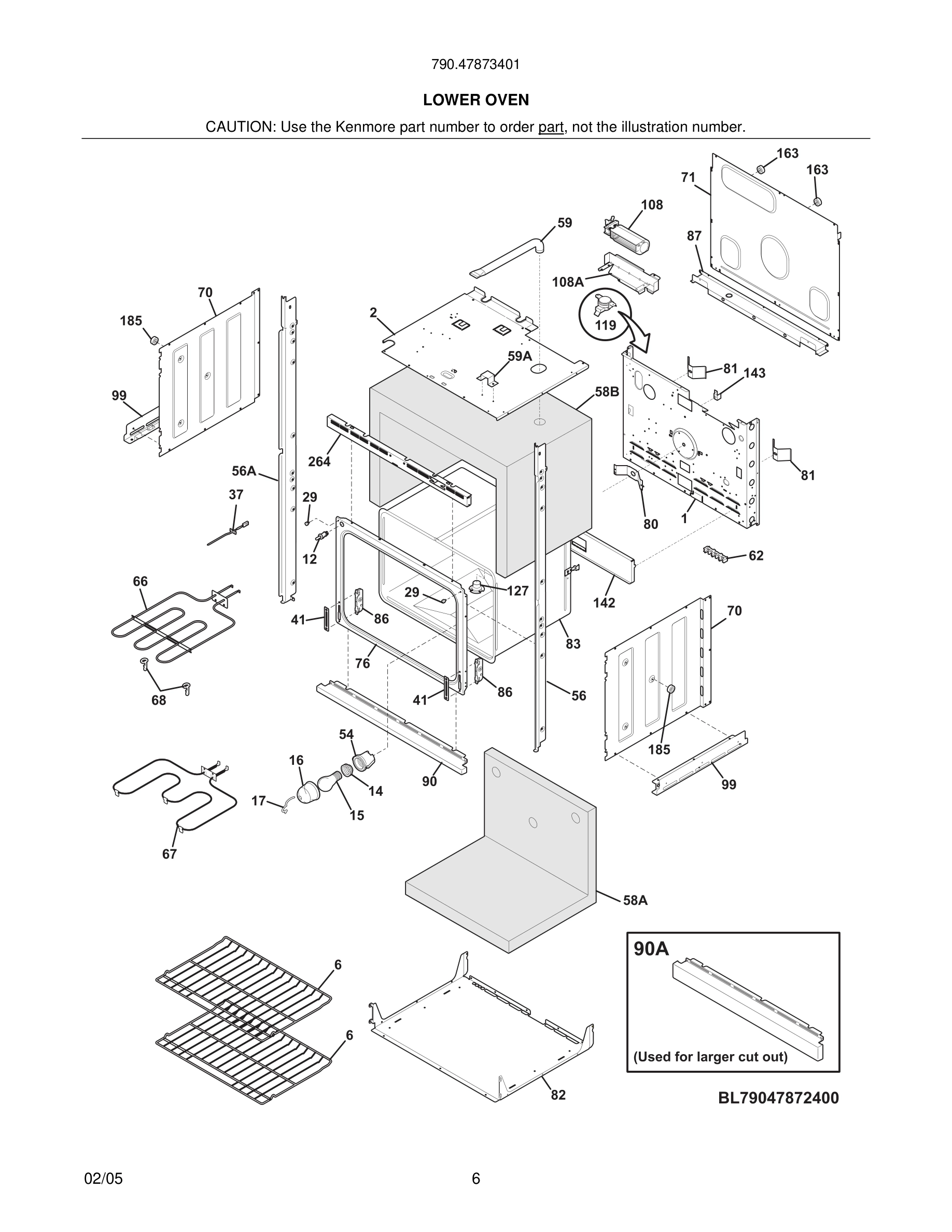

07 - LOWER OVEN

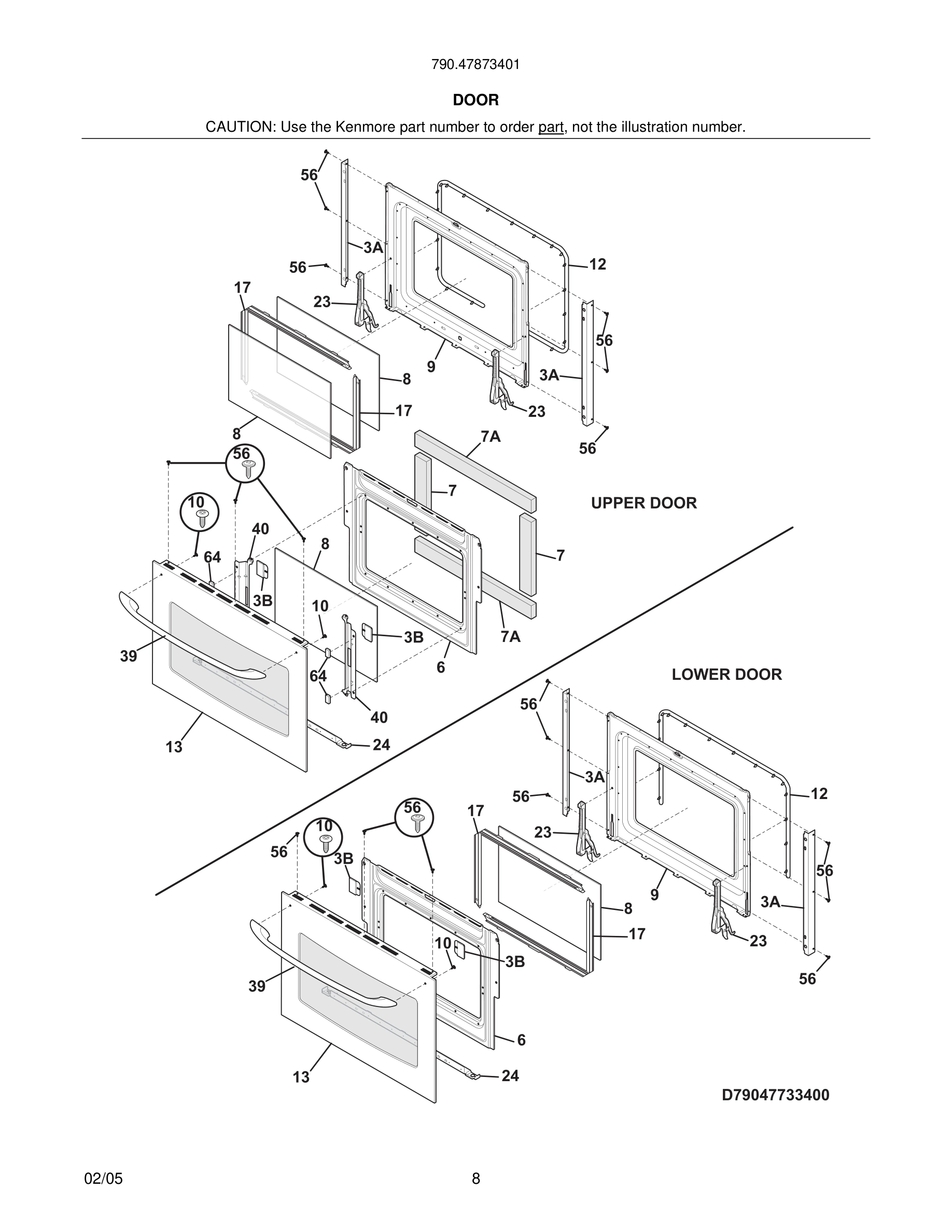

09 - DOOR

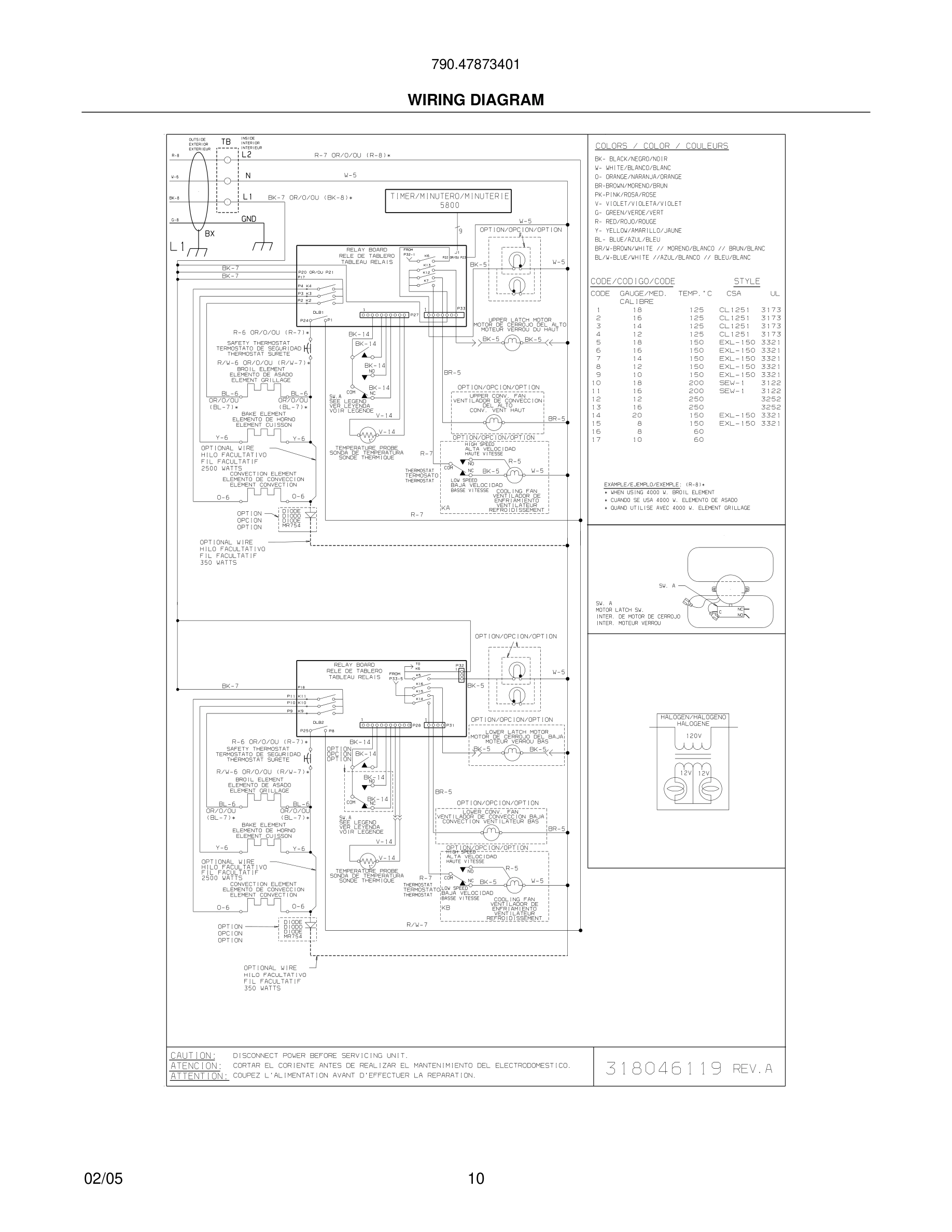

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.47873401 OVEN
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Harness, wiring, latch-relay WCI 318231713 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
9
Liner, oven door, upper WCI 318259605 Contact Us For Availability
9
Liner, lower door WCI 318259607 Contact Us For Availability
12
Seal, lower door WCI 318053325 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272150 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
20#
Control, electronic, dual oven WCI 316429707 Contact Us For Availability
23
Hinge, oven door WCI 318024714 Contact Us For Availability
23
Hinge, lower door, (2) WCI 318024721 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
39
Handle, door, black WCI 316209701 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318259915 Contact Us For Availability
58A
Insulation, oven wrapper, back/bottom WCI 318133791 Contact Us For Availability
58B
Insulation, oven wrapper, top/sides WCI 318133790 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260004 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258700 Contact Us For Availability
83
Liner, oven assy WCI 318261403 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260602 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90A
Trim, oven front, black, bottom WCI 318259704 Contact Us For Availability
97
Board, relay, dual oven WCI 316429800 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire/glass WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
