Model Kenmore 790.47853400 OVEN – Common Parts & Diagrams

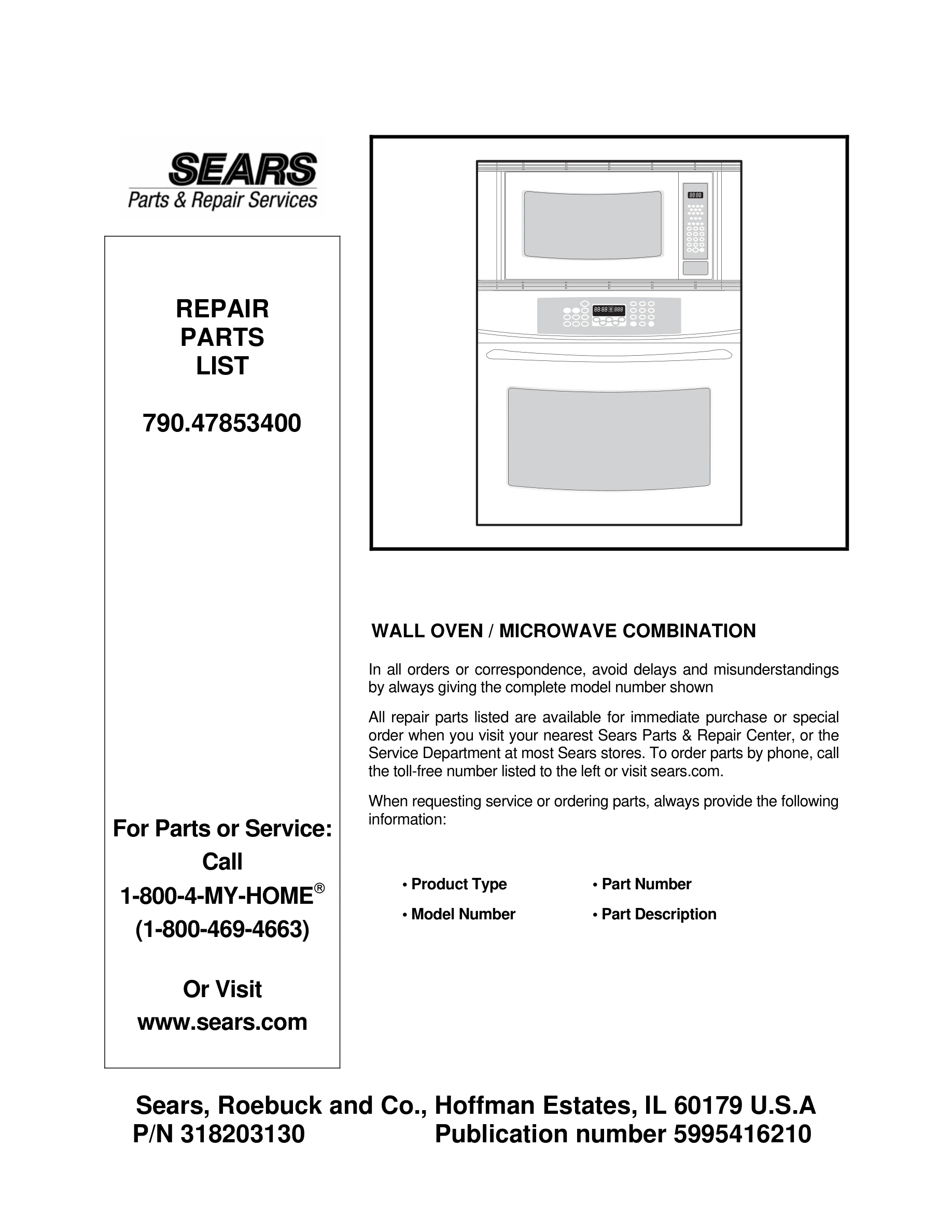

01 - COVER

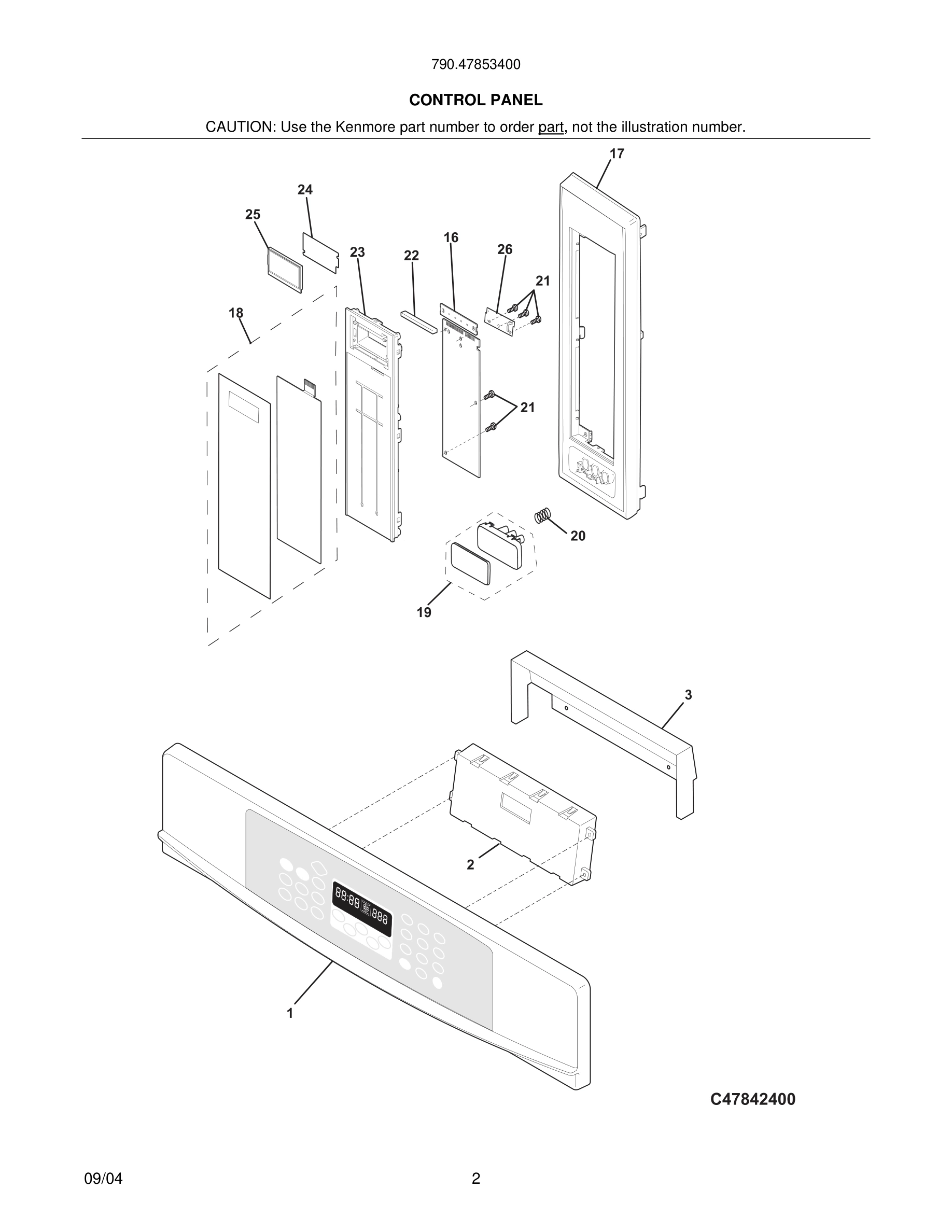

03 - CONTROL PANEL

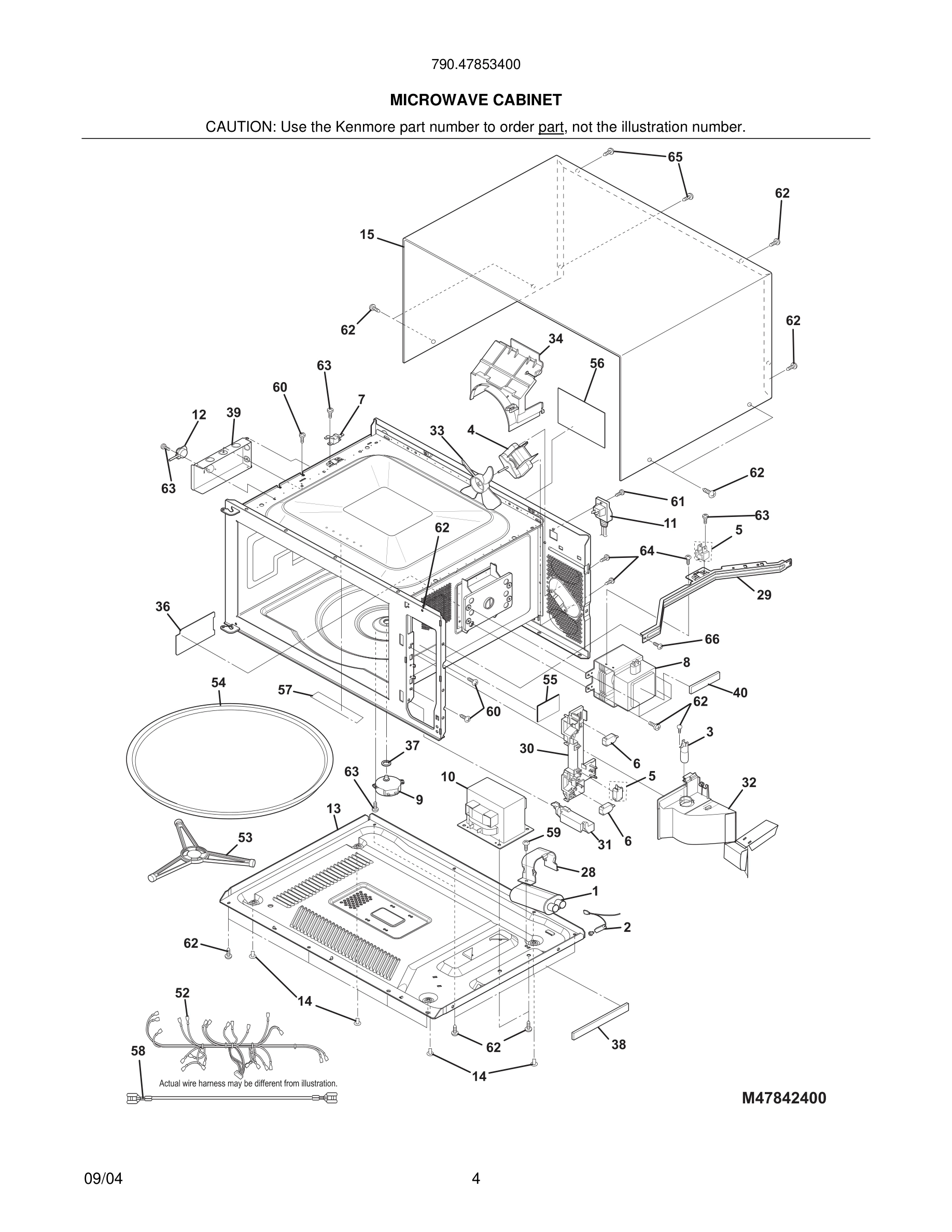

05 - MICROWAVE CABINET

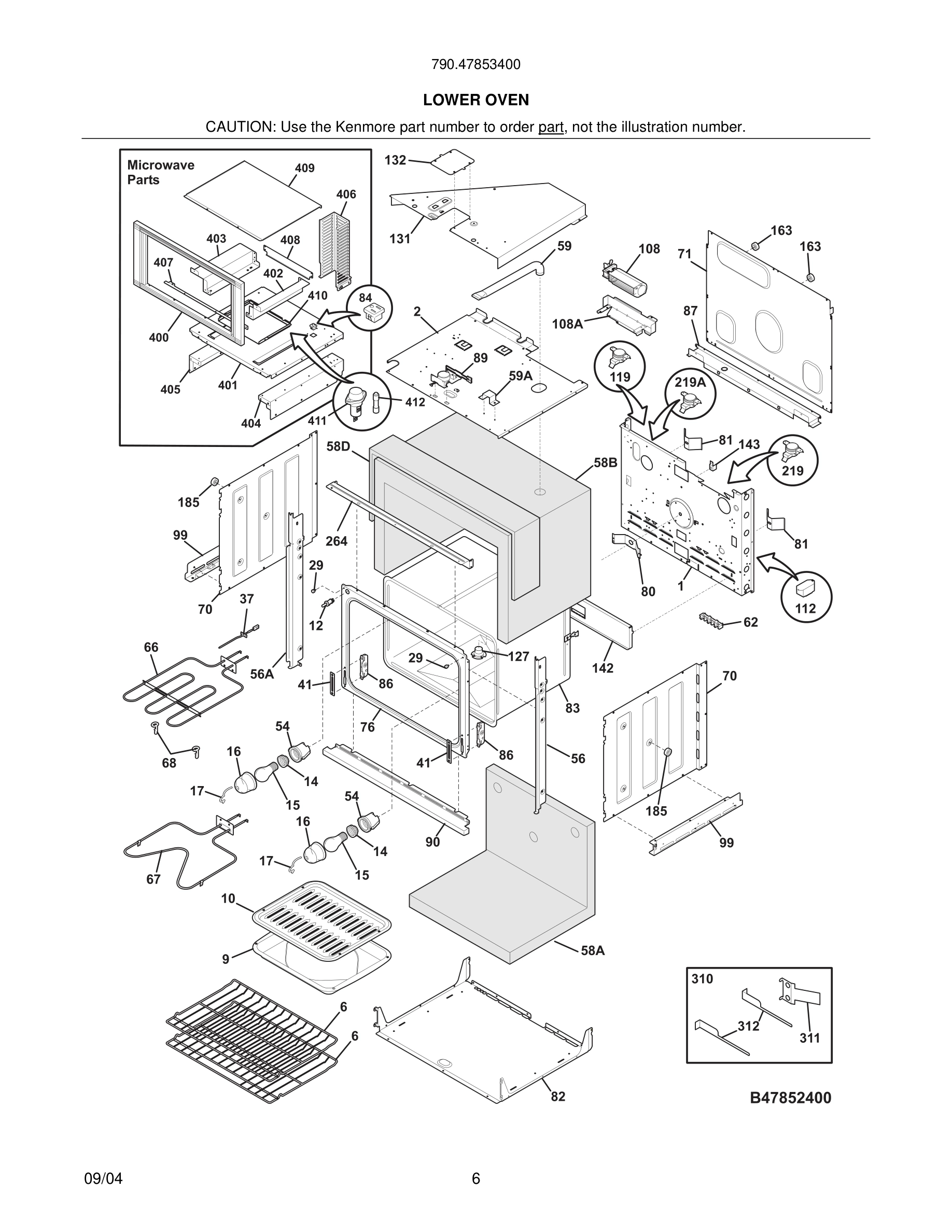

07 - LOWER OVEN
09 - LOWER OVEN

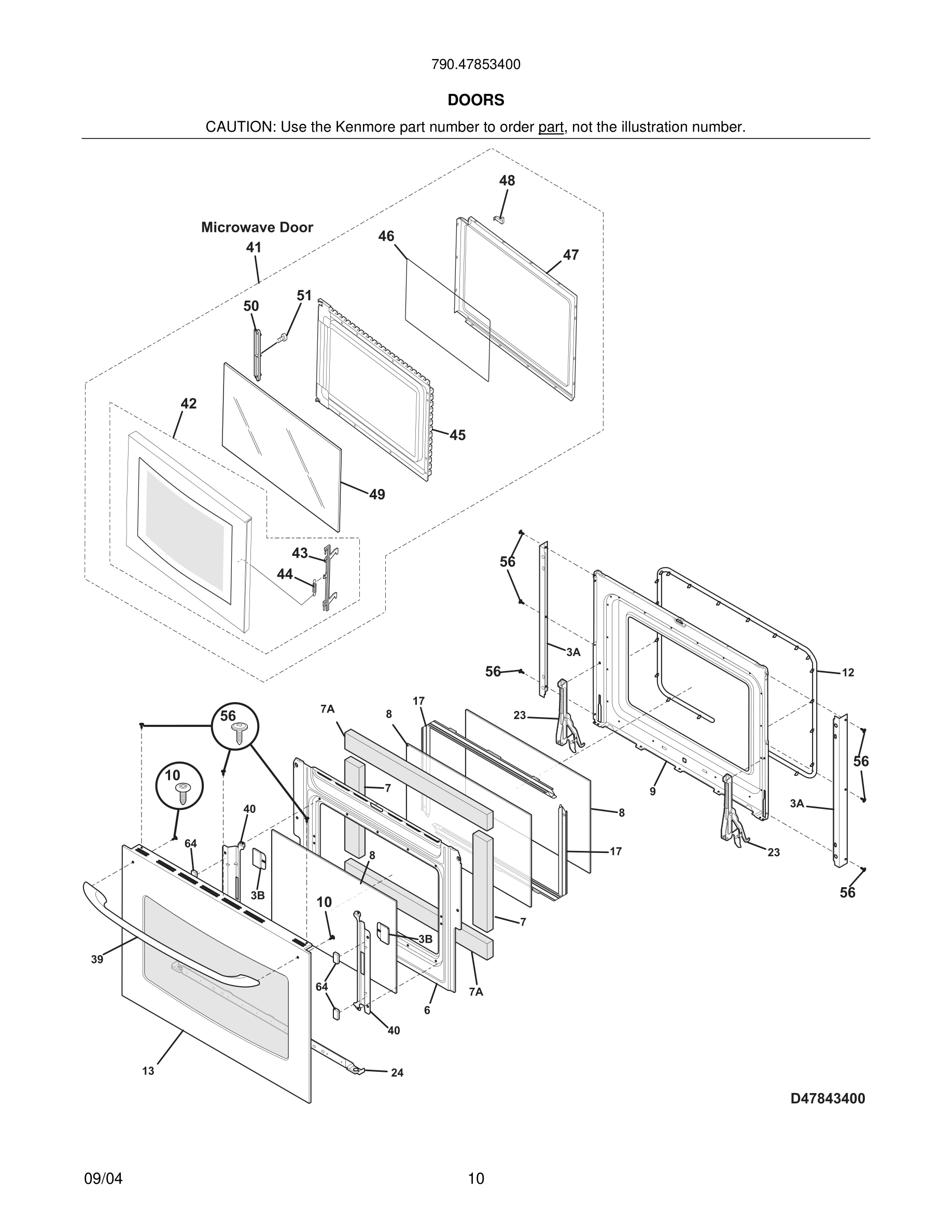

11 - DOORS

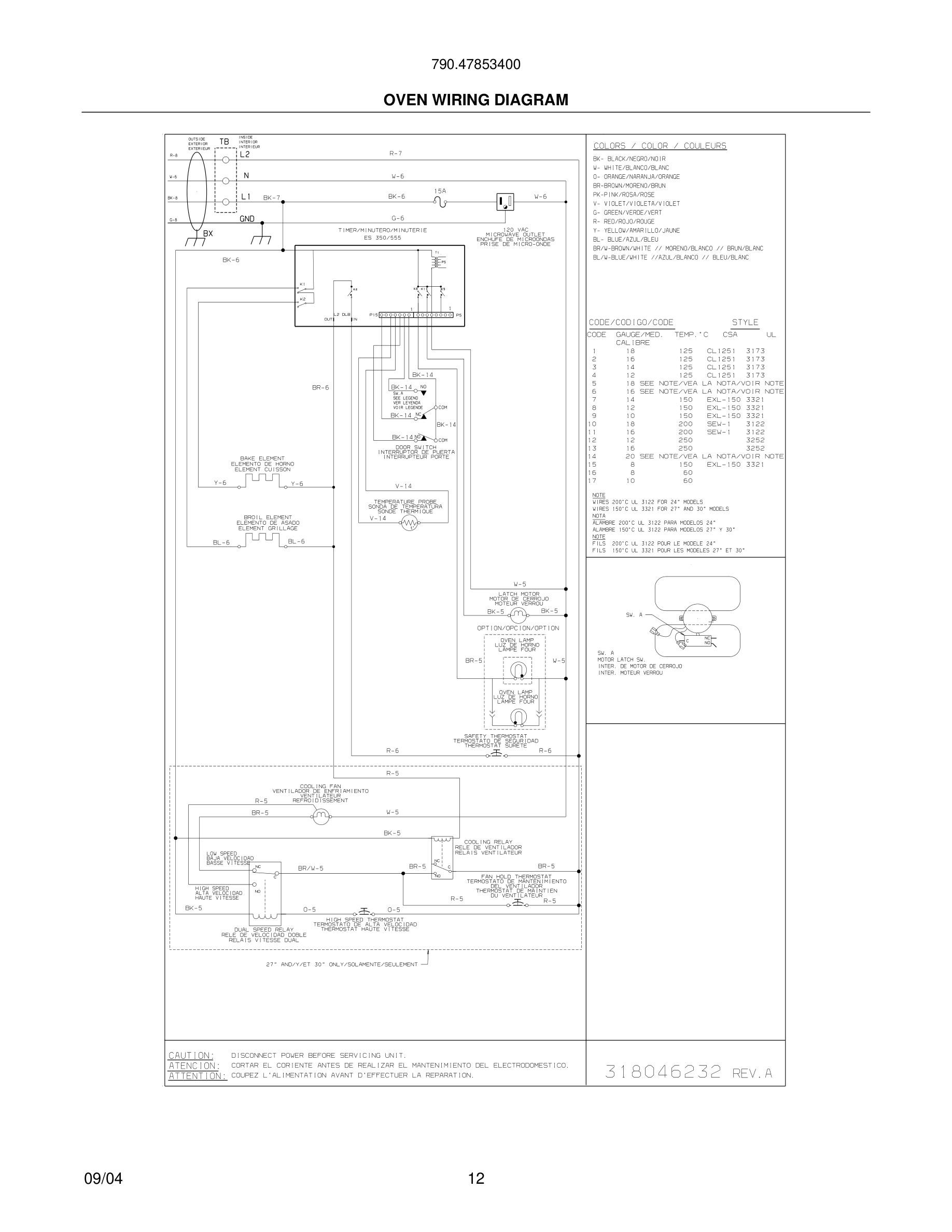

12 - WIRING DIAGRAM

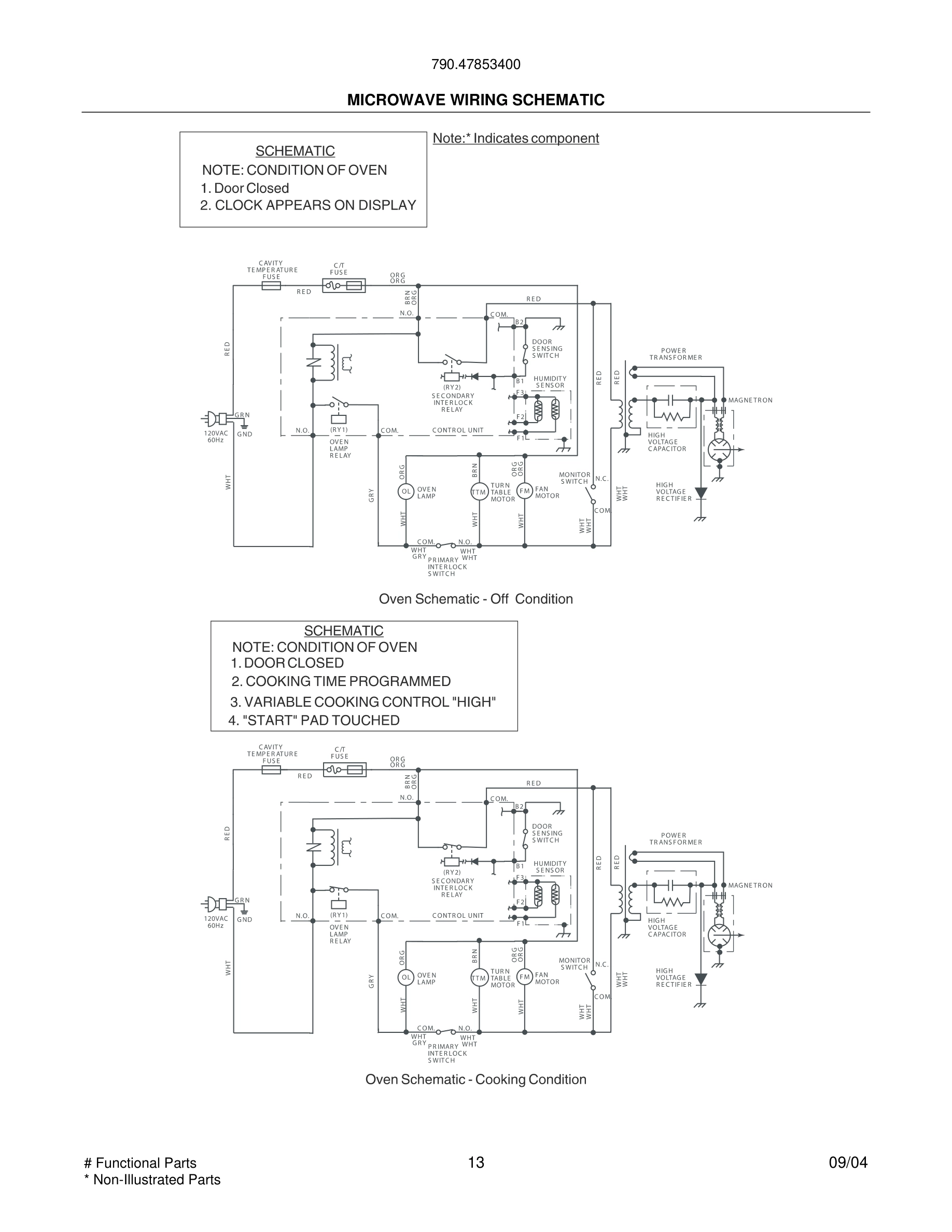

13 - WIRING SCHEMATIC
Common parts from model Kenmore 790.47853400 OVEN
*
Harness, wiring, main WCI 318231719 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
1
Back, main WCI 318259200 Contact Us For Availability
2
Shield, insulation, upper WCI 318258900 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Rack, oven WCI 318262500 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
9
Pan, broiler WCI 5303317977 Contact Us For Availability
9
Liner, oven door, upper WCI 318259605 Contact Us For Availability
10
Insert, broiler pan WCI 5303317976 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272150 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
22
Connector, rubber, control board WCI 5304440832 Contact Us For Availability
23
Hinge, oven door WCI 318024714 Contact Us For Availability
24
Trim, door, black, lower WCI 318260301 Contact Us For Availability
25#
LCD, display WCI 5304440835 Contact Us For Availability
37
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
39
Handle, door, black WCI 316209701 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
41
Door Assembly, complete, stainless WCI 5304442139 Contact Us For Availability
42
Frame Assembly, door, stainless WCI 5304442143 Contact Us For Availability
49
Glass, door, black WCI 5304442148 Contact Us For Availability
50
Door Stop WCI 5304440862 Contact Us For Availability
51
Screw WCI 5304440866 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56
Trim, side filler, black, RH WCI 318276304 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318276305 Contact Us For Availability
58A
Insulation, oven wrapper, back/bottom WCI 318133791 Contact Us For Availability
58B
Insulation, oven wrapper, top/sides WCI 318133790 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318133793 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260004 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258700 Contact Us For Availability
83
Liner, oven assy WCI 318261402 Contact Us For Availability
84#
Outlet-electrical, miniature, black-glossy WCI 318146828 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260602 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
131
Box, vent WCI 318272900 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire/glass WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
219#
Thermostat, safety WCI 318003606 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
400
Trim Assembly, microwave, 30", stainless WCI 318275703 Contact Us For Availability
401
Plate, support, microwave, 30" WCI 318276001 Contact Us For Availability
402
Bracket, base pad, RH WCI 318276200 Contact Us For Availability
403
Bracket, base pad, LH WCI 318276201 Contact Us For Availability
404
Bracket, support plate, LH WCI 318276400 Contact Us For Availability
405
Bracket, support plate, RH WCI 318276401 Contact Us For Availability
406
Shield, microwave rear WCI 318277200 Contact Us For Availability
407
Bracket, bottom trim, black WCI 318277601 Contact Us For Availability
408
Baffle WCI 318277700 Contact Us For Availability
409
Bracket, top trim WCI 318295300 Contact Us For Availability
410
Flue, microwave WCI 318296500 Contact Us For Availability
× ![]()
