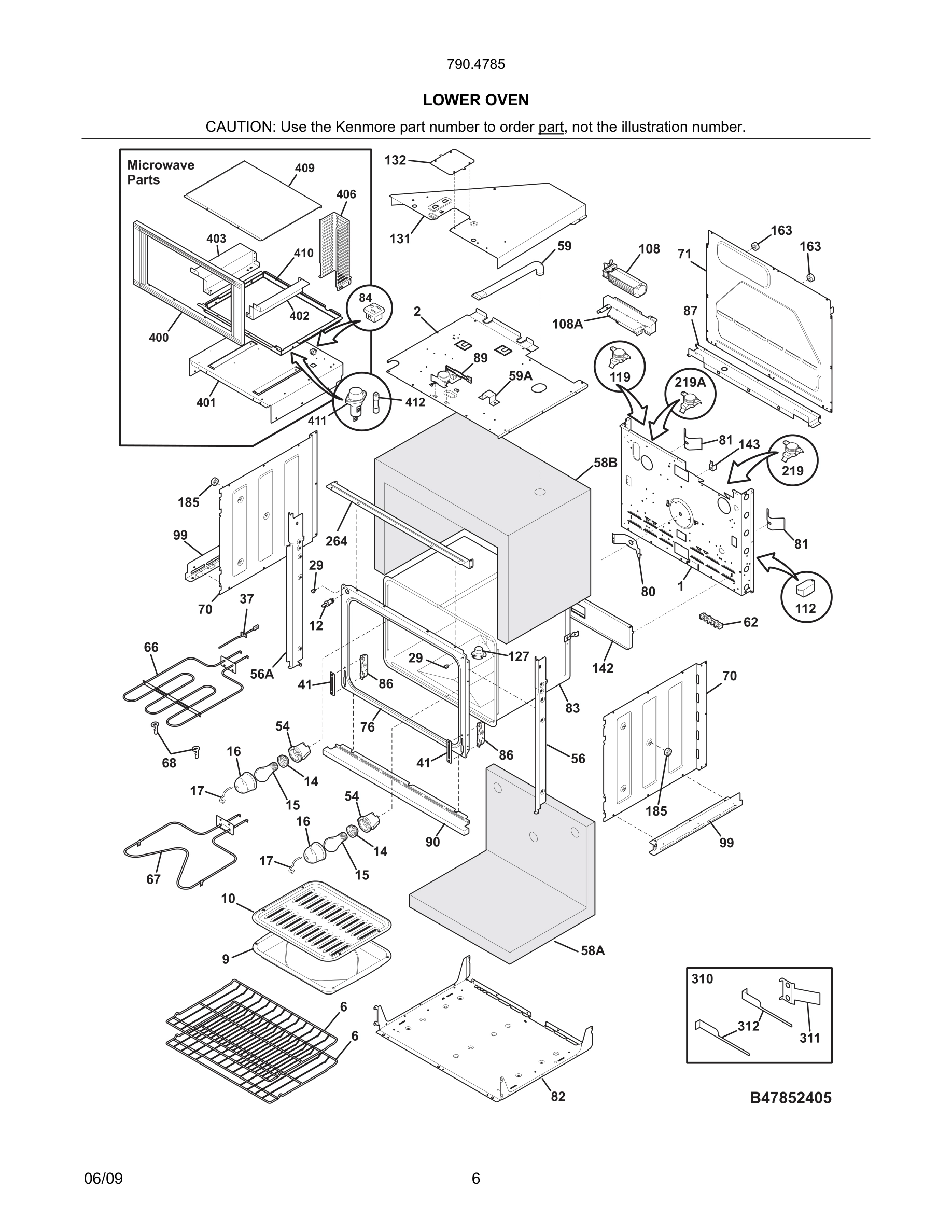

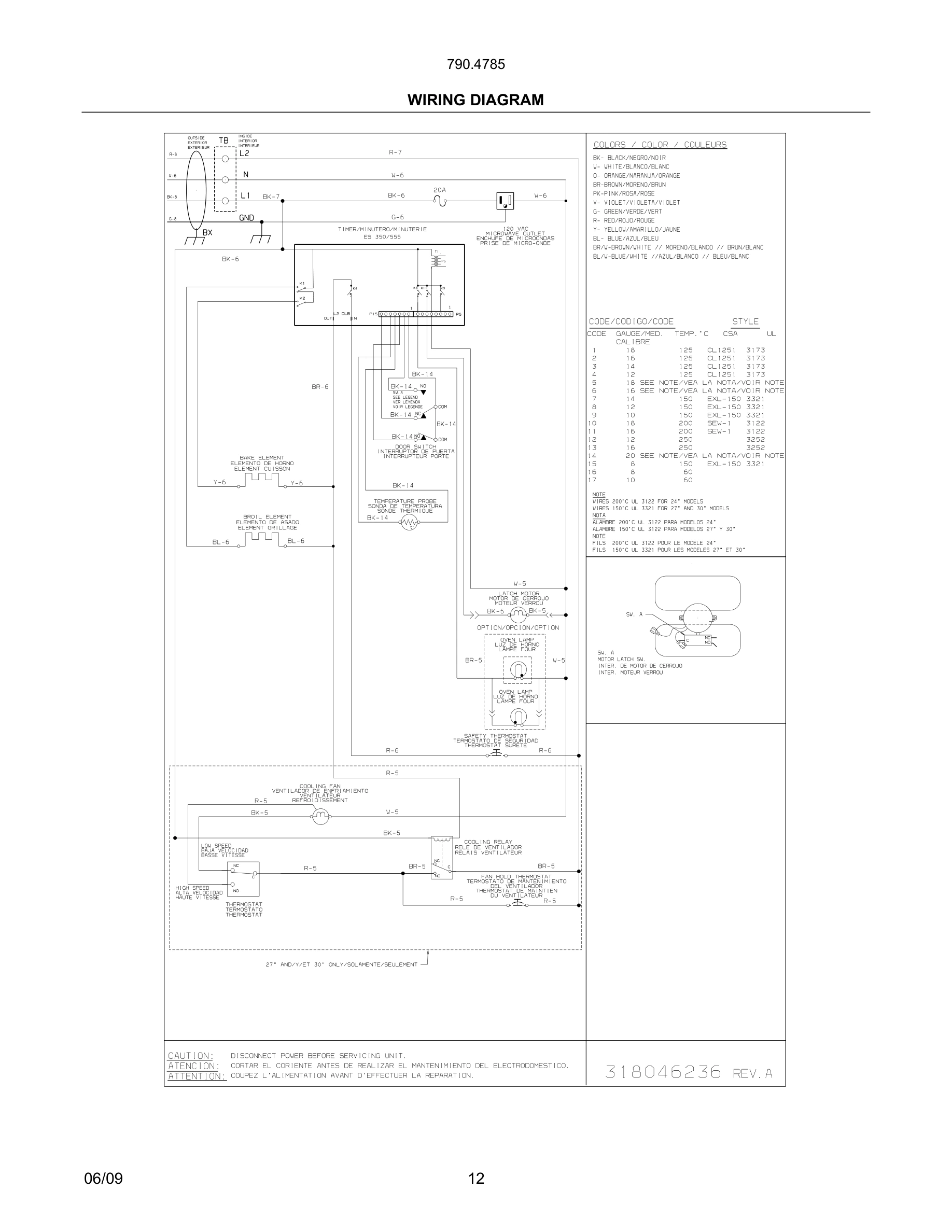

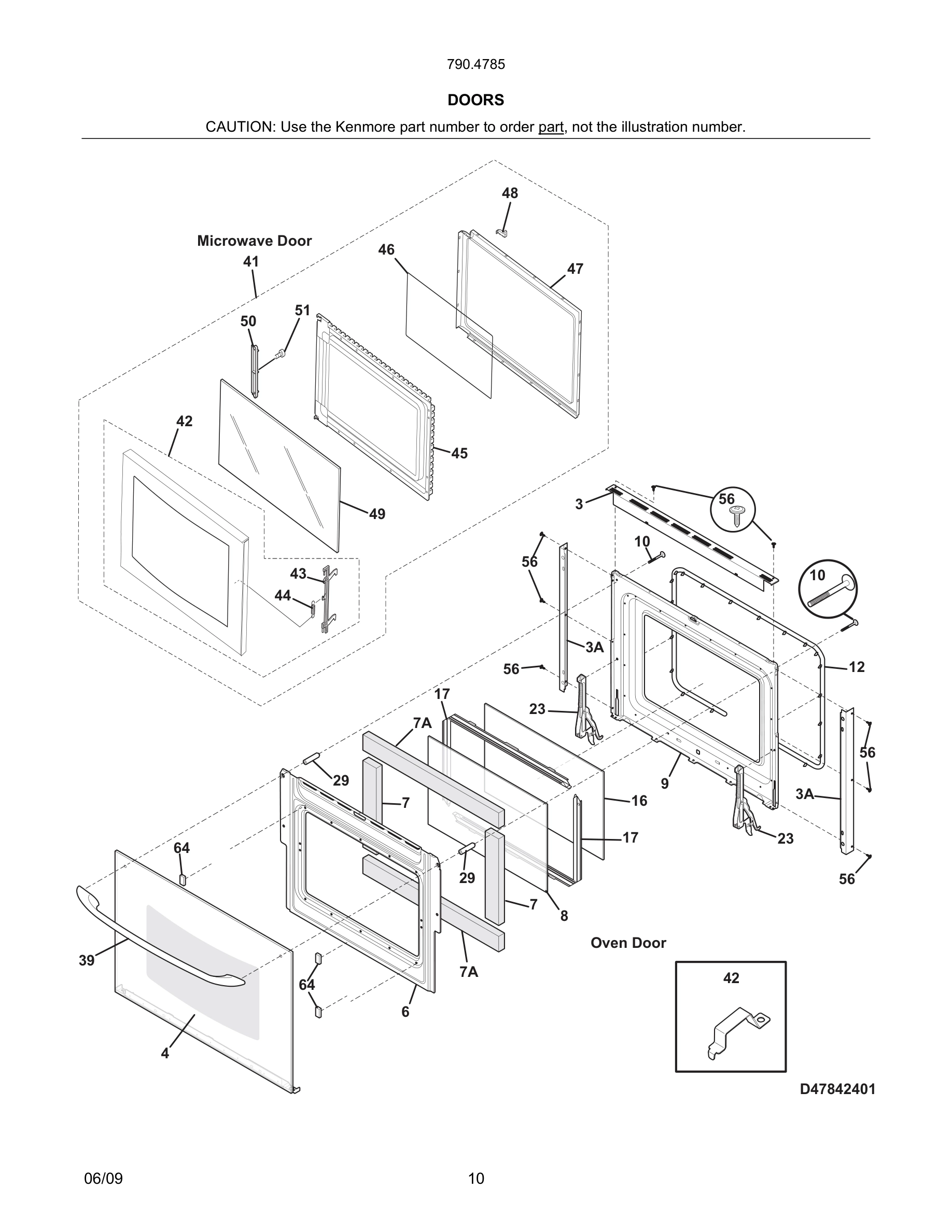

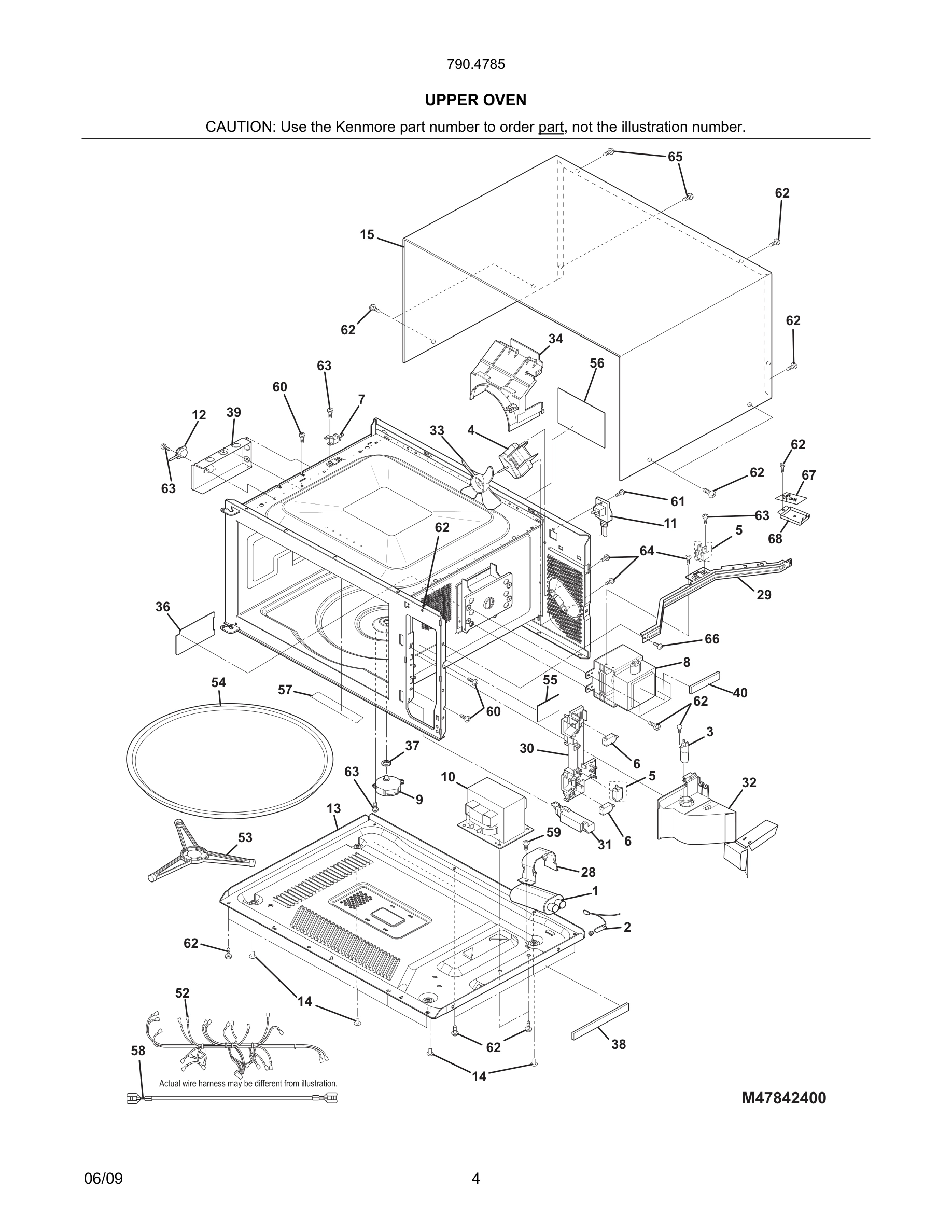

Model Kenmore 790.47852407 WALL OVEN / MICROWAVE COMBO – Common Parts &amp; Diagrams

*

5303323277 Frigidaire Oven Screw Backorder WCI 5303323277 $6.34

*

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

*

5303325980 Frigidaire Oven Screw Backorder WCI 5303325980 $8.15

*

5304480396 Frigidaire Screw Backorder WCI 5304480396 $7.23

*

Harness, wiring, main WCI 318231735 Contact Us For Availability

*

Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability

*#

5304506955 Frigidaire Assembly Harness Backorder WCI 5304506955 $100.30

1

Control Panel Assy., glass, bisque, w/membran WCI 318277502 Contact Us For Availability

2#

316418556 Frigidaire Timer Clock Assembly Backorder WCI 316418556 $267.24

3

Trim, oven door, black, upper WCI 318260201 Contact Us For Availability

3A

Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability

4

318261358 Frigidaire Glass Assembly In Stock WCI 318261358 $209.06

4

Glass Assy., oven door, white, outer, w/trim WCI 318261356 Contact Us For Availability

4

Glass Assy., oven door, bisque, outer, w/trim WCI 318261357 Contact Us For Availability

6

Baffle, door WCI 318260520 Contact Us For Availability

6#

5304493153 Frigidaire Microwave Door Switch In Stock WCI 5304493153 $52.71

7#

5304440780 Frigidaire Microwave Fuse Backorder WCI 5304440780 $54.24

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $11.32

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

8#

5304521745 Frigidaire Microwave Magnetron In Stock WCI 5304521745 $138.45

9

Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability

9

Liner, oven door, upper WCI 318259601 Contact Us For Availability

10

5304453223 Frigidaire Oven Screw In Stock WCI 5304453223 $8.41

10

Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability

11#

5304440784 Frigidaire Microwave Power Cord Backorder WCI 5304440784 $76.18

12

316445501 Frigidaire Oven Switch In Stock WCI 316445501 $56.93

12

318053120 Frigidaire Oven Range Door Seal In Stock WCI 318053120 $98.18

12#

5304440785 Frigidaire Microwave Sensor Backorder WCI 5304440785 $35.91

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

16

Glass, oven door, heat barrier, lower door WCI 318212210 Contact Us For Availability

16#

5304440820 Frigidaire Microwave Control Board Backorder WCI 5304440820 $300.59

17

318264733 Frigidaire Oven Spacer Backorder WCI 318264733 $42.57

17

Retainer, light cover WCI 5304400195 Contact Us For Availability

19

Push Button, door, black WCI 5304440827 Contact Us For Availability

19

Push Button, door, white WCI 5304442133 Contact Us For Availability

22

Connector, rubber, control board WCI 5304440832 Contact Us For Availability

23

5304440833 Frigidaire Microwave Panel In Stock WCI 5304440833 $49.58

23

Hinge, door, upper, (2) WCI 318024722 Contact Us For Availability

25#

LCD, display WCI 5304440835 Contact Us For Availability

29

Spacer, door WCI 318014402 Contact Us For Availability

36

5304440845 Frigidaire Microwave Cover Backorder WCI 5304440845 $65.55

37

Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability

37#

316217002 Frigidaire Oven Temperature Probe In Stock WCI 316217002 $43.36

39

316443601 Frigidaire Oven Handle In Stock WCI 316443601 $69.71

39

316443602 Frigidaire Oven Range Bisque Door H Backorder WCI 316443602 $80.24

39

5304458312 Frigidaire Oven Door Handle In Stock WCI 5304458312 $68.13

Cover, hinge cutout WCI 5303310526 Contact Us For Availability

Door Assembly, complete, white WCI 5304442136 Contact Us For Availability

Door Assembly, complete, bisque WCI 5304442137 Contact Us For Availability

Door Assembly, complete, black WCI 5304442138 Contact Us For Availability

318382302 Frigidaire Bracket Backorder WCI 318382302 $30.36

Frame Assembly, door, white WCI 5304442140 Contact Us For Availability

Frame Assembly, door, bisque WCI 5304442141 Contact Us For Availability

Frame Assembly, door, black WCI 5304442142 Contact Us For Availability

43

5304441893 Frigidaire Microwave Latch Backorder WCI 5304441893 $31.25

44

5304440316 Frigidaire Microwave Spring Assemb In Stock WCI 5304440316 $38.57

45

5304440857 Frigidaire Microwave Panel Backorder WCI 5304440857 $112.73

45

Panel, inner door, white WCI 5304442144 Contact Us For Availability

45

Panel, inner door, bisque WCI 5304440859 Contact Us For Availability

46

5304440860 Frigidaire Microwave Seal Backorder WCI 5304440860 $39.88

47

5304440861 Frigidaire Microwave Choke Cover Backorder WCI 5304440861 $45.26

48

5304442145 Frigidaire Microwave Door Stop Backorder WCI 5304442145 $10.87

49

Glass, door, white WCI 5304442146 Contact Us For Availability

49

Glass, door, bisque WCI 5304442147 Contact Us For Availability

49

Glass, door, black WCI 5304442148 Contact Us For Availability

50

Door Stop WCI 5304440862 Contact Us For Availability

51

Screw WCI 5304440866 Contact Us For Availability

54

5304529482 Frigidaire Glass Tray Assembly In Stock WCI 5304529482 $67.22

54

Housing, oven light WCI 318222400 Contact Us For Availability

56

5304436875 Frigidaire Oven Screw In Stock WCI 5304436875 $8.60

56A

Trim, side filler, white, LH WCI 318276313 Contact Us For Availability

56A

Trim, side filler, bisque, LH WCI 318276317 Contact Us For Availability

56A

Trim, side filler, black, LH WCI 318276315 Contact Us For Availability

58A

Insulation, oven wrapper WCI 318285055 Contact Us For Availability

58B

Insulation, oven back, back/bottom WCI 318133791 Contact Us For Availability

59A

Bracket, vent tube WCI 318261600 Contact Us For Availability

62

5304409888 Frigidaire Oven Terminal Block Ass In Stock WCI 5304409888 $16.27

62*

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25

62*

5303323139 Frigidaire Oven Screw Backorder WCI 5303323139 $8.58

64

318165800 Frigidaire Oven Door Glass Spacer w In Stock WCI 318165800 $11.32

66#

318255605 Frigidaire Oven Broil Element Range In Stock WCI 318255605 $115.29

67#

318255401 Frigidaire Oven Element In Stock WCI 318255401 $144.94

67#

5304492543 Frigidaire Microwave Electronic No In Stock WCI 5304492543 $49.84

68

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 $20.91

70

Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability

71

Panel, rear box WCI 318260007 Contact Us For Availability

76

Front, oven WCI 318056217 Contact Us For Availability

80

Plate, oven mtg WCI 5303320846 Contact Us For Availability

81

Spring, oven WCI 318192400 Contact Us For Availability

82

Shield, insulation, lower WCI 318258707 Contact Us For Availability

83

Liner, oven assy WCI 318261402 Contact Us For Availability

84#

Outlet-electrical, miniature, black-glossy WCI 318146833 Contact Us For Availability

86

Receptacle, hinge WCI 318342400 Contact Us For Availability

87

Bracket, cable mtg. WCI 318260600 Contact Us For Availability

89#

318261230 Frigidaire Oven Motor In Stock WCI 318261230 $82.09

90

Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability

90

Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability

90

Trim, oven front, bisque, bottom WCI 318259702 Contact Us For Availability

99

318256201 Frigidaire Oven Bracket Backorder WCI 318256201 $36.22

108#

318073028 Frigidaire Oven Motor In Stock WCI 318073028 $186.75

108A

Bracket, fan support WCI 318251300 Contact Us For Availability

112#

Relay WCI 318112701 Contact Us For Availability

119#

318004900 Frigidaire Thermal Switch In Stock WCI 318004900 $38.09

127

318317100 Frigidaire Adapter Assembly Backorder WCI 318317100 $47.51

131

Box, vent WCI 318272900 Contact Us For Availability

132

318003000 Frigidaire Plate Backorder WCI 318003000 $2.81

142

Deflector WCI 318123910 Contact Us For Availability

143

Support, wire WCI 318172904 Contact Us For Availability

163

Spacer, (2) WCI 318014111 Contact Us For Availability

185

318531800 Frigidaire Oven Spacer Backorder WCI 318531800 $8.14

219#

318003614 Frigidaire Thermostat In Stock WCI 318003614 $61.86

219A

318003624 Frigidaire Oven High Limit Thermost In Stock WCI 318003624 $14.92

264

Trim, oven, black, front WCI 318257701 Contact Us For Availability

310

Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability

311

Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability

311*

5304438005 Frigidaire Oven Screw Backorder WCI 5304438005 $6.32

312

318246702 Frigidaire Tool Appliance In Stock WCI 318246702 $7.23

312

318246703 Frigidaire Tool Backorder WCI 318246703 $7.23

400

Trim Assembly, microwave, 30", white WCI 318275701 Contact Us For Availability

400

Trim Assembly, microwave, 30", bisque WCI 318275702 Contact Us For Availability

400

Trim Assembly, microwave, 30", black WCI 318275700 Contact Us For Availability

401

Plate, support, microwave, 30" WCI 318297203 Contact Us For Availability

402

Bracket, base pad, RH WCI 318276202 Contact Us For Availability

403

Bracket, base pad, LH WCI 318276203 Contact Us For Availability

406

Shield, microwave rear WCI 318277200 Contact Us For Availability

409

Bracket, top trim WCI 318295300 Contact Us For Availability

410

Flue, black WCI 318297101 Contact Us For Availability

412#

318647300 Frigidaire Microwave Fuse and Holde In Stock WCI 318647300 $130.20
