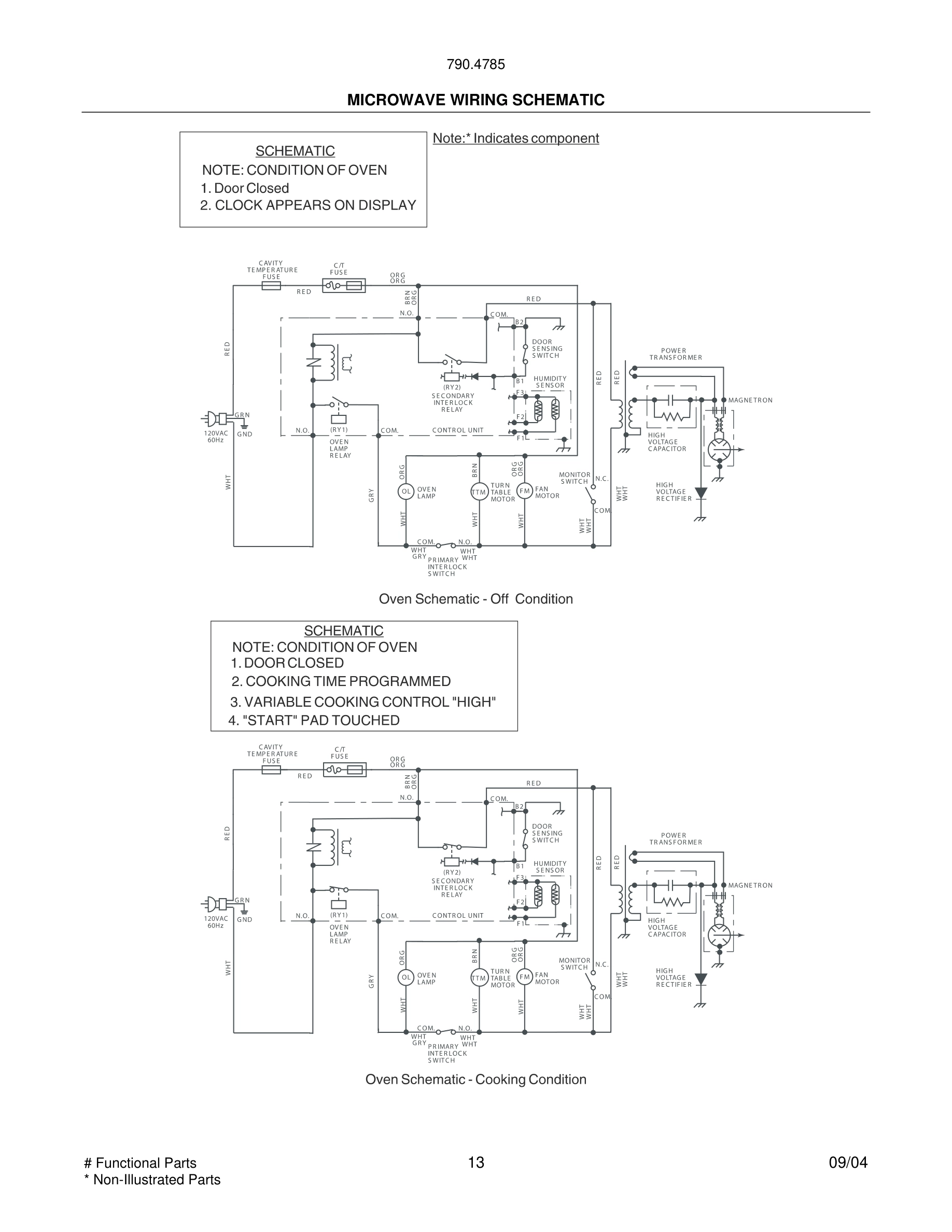

Model Kenmore 790.47852400 OVEN – Common Parts &amp; Diagrams

*

5303211311 Frigidaire Refrigerator Screw Backorder WCI 5303211311 $9.06

*

5303323129 Frigidaire Oven Screw Backorder WCI 5303323129 $9.06

*

5303323277 Frigidaire Oven Screw Backorder WCI 5303323277 $6.34

*

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $9.06

*

5304415832 Frigidaire Oven Screw Backorder WCI 5304415832 $8.60

*

5304480396 Frigidaire Screw Backorder WCI 5304480396 $7.23

*

Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability

*

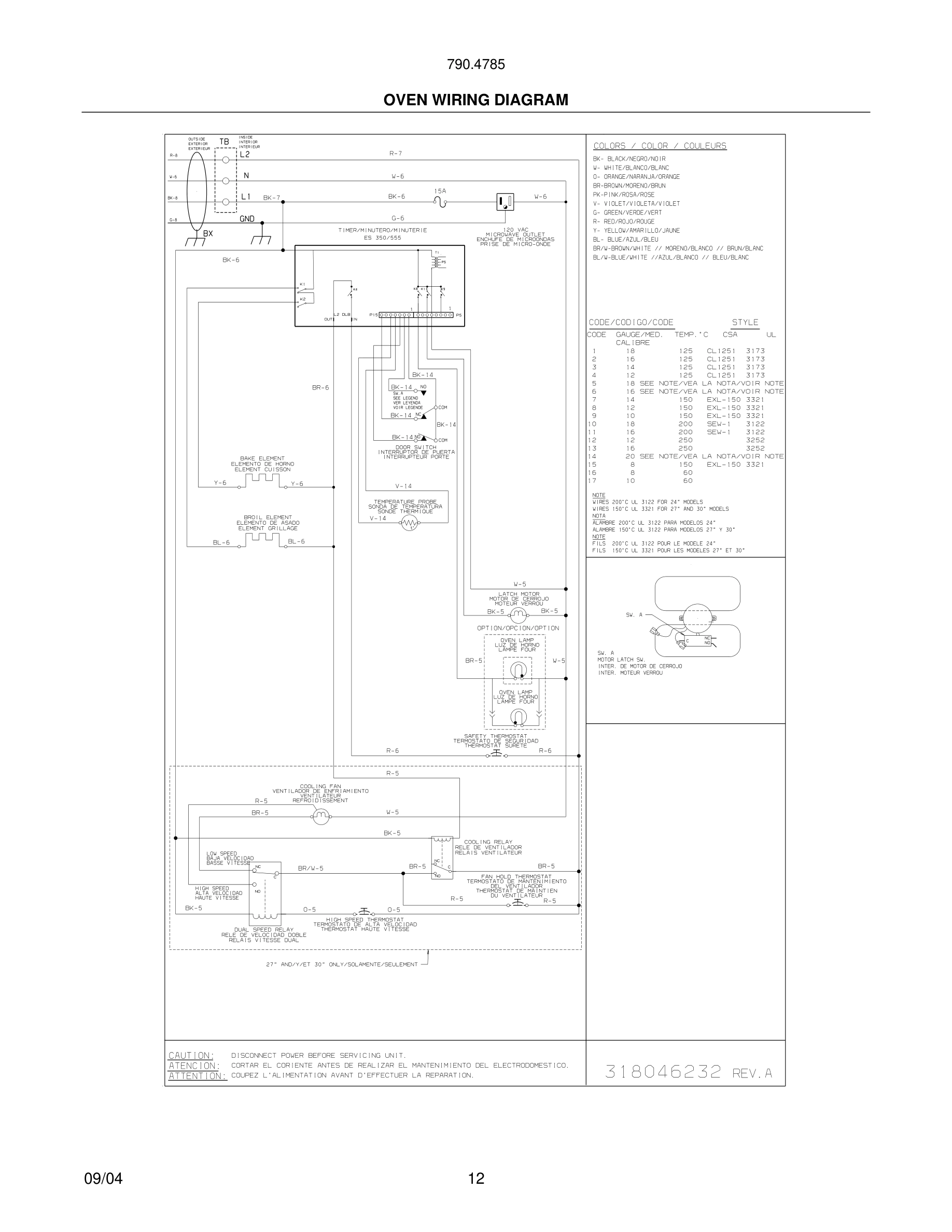

Harness, wiring, main WCI 318231719 Contact Us For Availability

*#

5304506955 Frigidaire Assembly Harness Backorder WCI 5304506955 $100.30

1

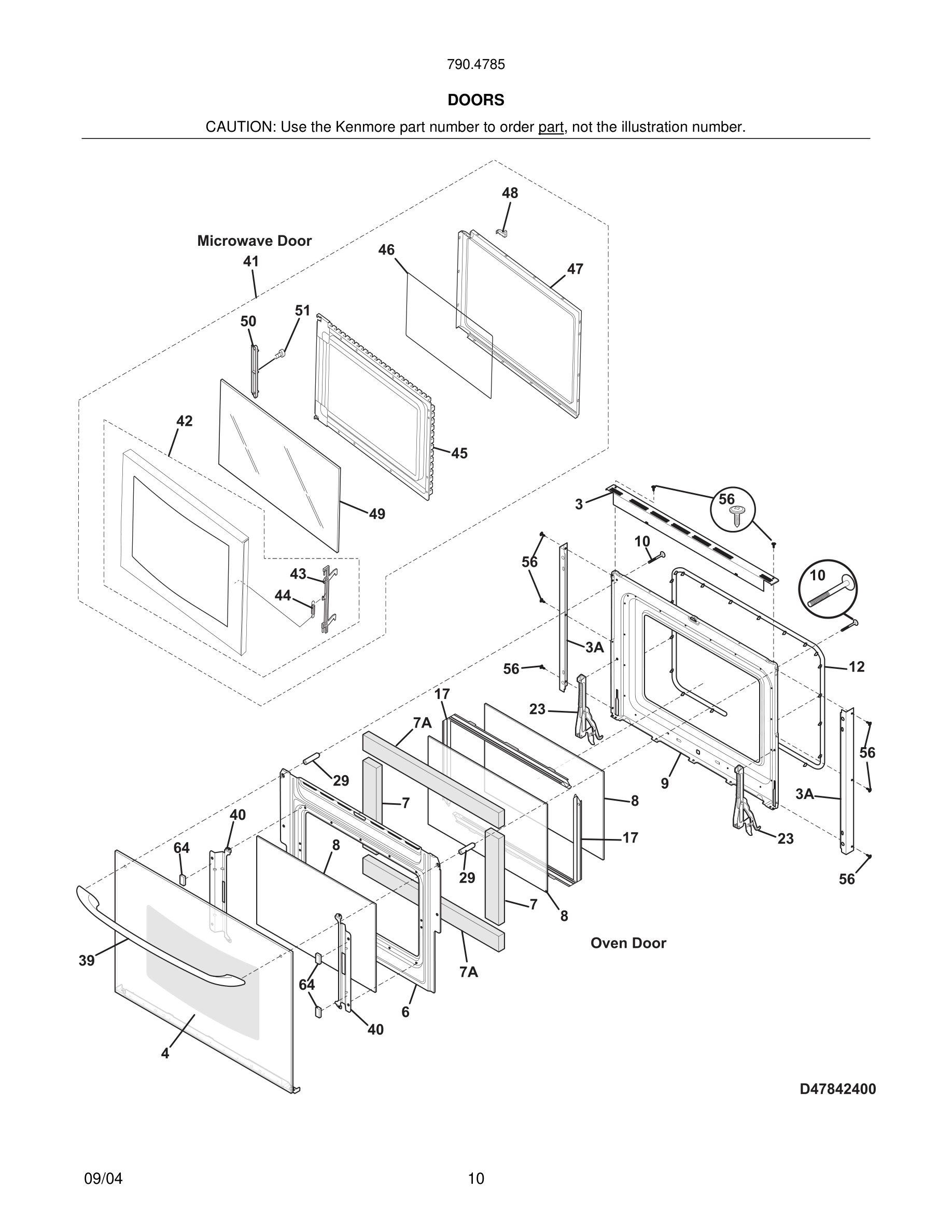

Control Panel Assy., glass, bisque, w/membran WCI 318277502 Contact Us For Availability

2#

316418556 Frigidaire Timer Clock Assembly Backorder WCI 316418556 $267.24

3

Trim, oven door, black, upper WCI 318260201 Contact Us For Availability

3A

Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability

4

318261301 Frigidaire Oven Glass Assembly Backorder WCI 318261301 $327.92

4

318403500 Frigidaire Oven Outer Door Glass Bl Backorder WCI 318403500 $220.33

4

Glass Assy., oven door, bisque, outer, w/ tri WCI 318261306 Contact Us For Availability

6

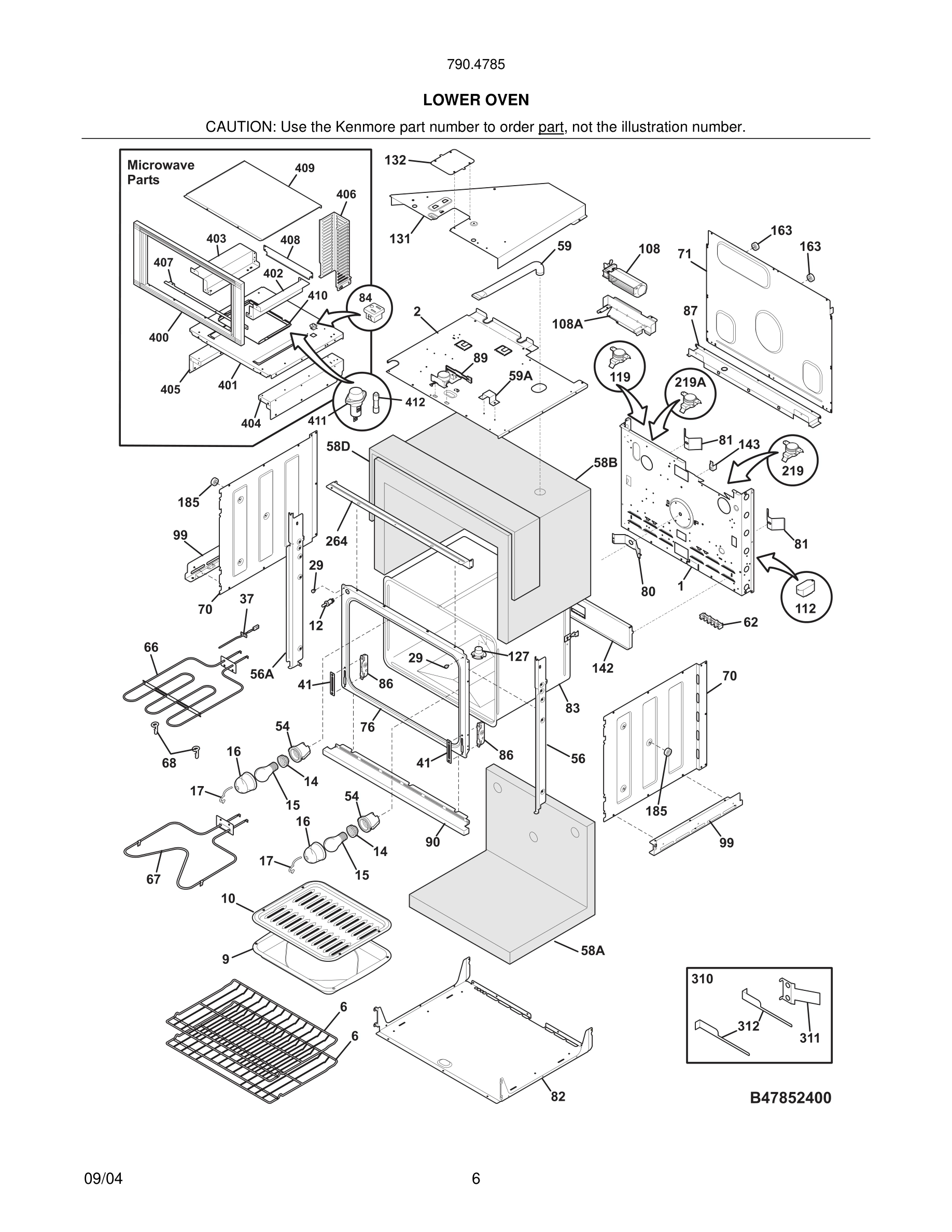

Rack, oven WCI 318262500 Contact Us For Availability

6

Baffle, door WCI 318260500 Contact Us For Availability

6#

5304493153 Frigidaire Microwave Door Switch In Stock WCI 5304493153 $52.71

7

318372018 Frigidaire Insulation Backorder WCI 318372018 $9.04

7#

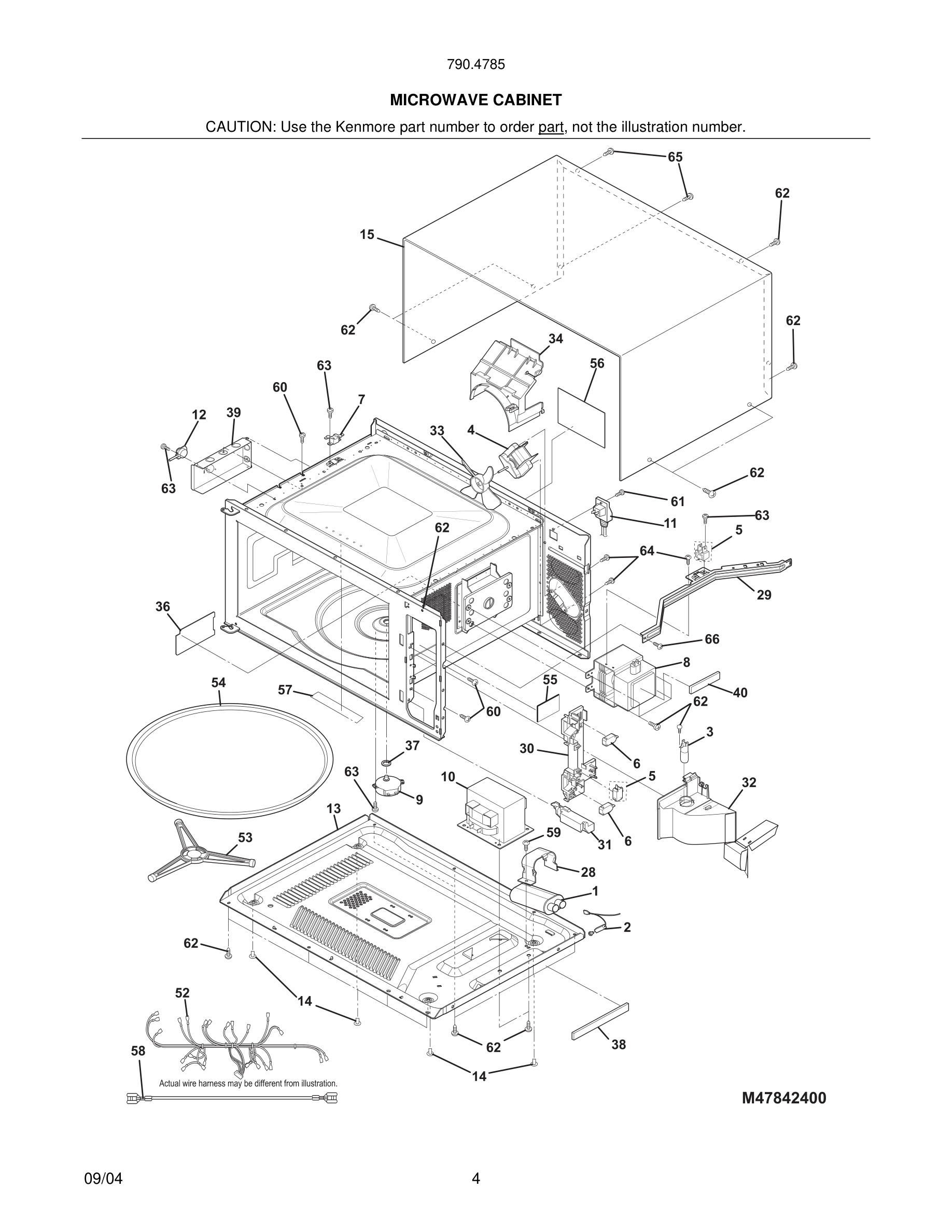

5304440780 Frigidaire Microwave Fuse Backorder WCI 5304440780 $54.24

7A

318372016 Frigidaire Insulation Backorder WCI 318372016 $11.32

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

8#

5304521745 Frigidaire Microwave Magnetron In Stock WCI 5304521745 $138.45

9

Pan, broiler WCI 5303317977 Contact Us For Availability

9

Liner, oven door WCI 318259601 Contact Us For Availability

10

5304500008 Frigidaire Oven Screw In Stock WCI 5304500008 $7.23

10

Insert, broiler pan WCI 5303317976 Contact Us For Availability

11#

5304440784 Frigidaire Microwave Power Cord Backorder WCI 5304440784 $76.18

12

318053120 Frigidaire Oven Range Door Seal In Stock WCI 318053120 $98.18

12#

316445501 Frigidaire Oven Switch In Stock WCI 316445501 $56.93

12#

5304440785 Frigidaire Microwave Sensor Backorder WCI 5304440785 $35.91

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

16

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.87

16#

5304440820 Frigidaire Microwave Control Board Backorder WCI 5304440820 $300.59

17

5304504811 Frigidaire Glass Spacer In Stock WCI 5304504811 $14.94

17

Retainer, light cover WCI 5304400195 Contact Us For Availability

19

Push Button, door opener, black WCI 5304440827 Contact Us For Availability

19

Push Button, door opener, white WCI 5304442133 Contact Us For Availability

22

Connector, rubber, control board WCI 5304440832 Contact Us For Availability

23

5304440833 Frigidaire Microwave Panel In Stock WCI 5304440833 $49.58

23

Hinge, oven door, (2) WCI 5303310828 Contact Us For Availability

25#

LCD, display WCI 5304440835 Contact Us For Availability

29

318147430 Frigidaire Oven Bumper In Stock WCI 318147430 $11.32

29

Spacer, door WCI 318014402 Contact Us For Availability

36

5304440845 Frigidaire Microwave Cover Backorder WCI 5304440845 $65.55

37

Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability

37#

316217002 Frigidaire Oven Temperature Probe In Stock WCI 316217002 $43.36

39

5304519505 Frigidaire White Handle Kit Backorder WCI 5304519505 $69.03

39

Handle, door, bisque WCI 316209702 Contact Us For Availability

39

Handle, door, black WCI 316209701 Contact Us For Availability

40

318382302 Frigidaire Bracket Backorder WCI 318382302 $30.36

Cover, hinge cutout WCI 5303310526 Contact Us For Availability

Door Assembly, complete, white WCI 5304442136 Contact Us For Availability

Door Assembly, complete, bisque WCI 5304442137 Contact Us For Availability

Door Assembly, complete, black WCI 5304442138 Contact Us For Availability

42

Frame Assembly, door, white WCI 5304442140 Contact Us For Availability

42

Frame Assembly, door, bisque WCI 5304442141 Contact Us For Availability

42

Frame Assembly, door, black WCI 5304442142 Contact Us For Availability

43

5304441893 Frigidaire Microwave Latch Backorder WCI 5304441893 $31.25

44

5304440316 Frigidaire Microwave Spring Assemb In Stock WCI 5304440316 $38.57

45

5304440857 Frigidaire Microwave Panel Backorder WCI 5304440857 $112.73

45

Panel, inner door, white WCI 5304442144 Contact Us For Availability

45

Panel, inner door, bisque WCI 5304440859 Contact Us For Availability

46

5304440860 Frigidaire Microwave Seal Backorder WCI 5304440860 $39.88

47

5304440861 Frigidaire Microwave Choke Cover Backorder WCI 5304440861 $45.26

48

5304442145 Frigidaire Microwave Door Stop Backorder WCI 5304442145 $10.87

49

Glass, door, white WCI 5304442146 Contact Us For Availability

49

Glass, door, bisque WCI 5304442147 Contact Us For Availability

49

Glass, door, black WCI 5304442148 Contact Us For Availability

50

Door Stop WCI 5304440862 Contact Us For Availability

51

Screw WCI 5304440866 Contact Us For Availability

54

5304529482 Frigidaire Glass Tray Assembly In Stock WCI 5304529482 $67.22

54

Housing, oven light WCI 318222400 Contact Us For Availability

5304436875 Frigidaire Oven Screw In Stock WCI 5304436875 $8.60

Trim, side filler, white, RH WCI 318276302 Contact Us For Availability

Trim, side filler, bisque, RH WCI 318276306 Contact Us For Availability

Trim, side filler, black, RH WCI 318276304 Contact Us For Availability

56A

Trim, side filler, white, LH WCI 318276303 Contact Us For Availability

56A

Trim, side filler, bisque, LH WCI 318276307 Contact Us For Availability

56A

Trim, side filler, black, LH WCI 318276305 Contact Us For Availability

58A

Insulation, oven wrapper, back/bottom WCI 318133791 Contact Us For Availability

58B

Insulation, oven wrapper, top/sides WCI 318133790 Contact Us For Availability

58D

Insulation, 1/2" thick, 43 x 9.5 WCI 318133793 Contact Us For Availability

59A

Bracket, vent tube WCI 318261600 Contact Us For Availability

62

5304409888 Frigidaire Oven Terminal Block Ass In Stock WCI 5304409888 $16.27

62*

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25

62*

5303323139 Frigidaire Oven Screw Backorder WCI 5303323139 $8.58

64

318165800 Frigidaire Oven Door Glass Spacer w In Stock WCI 318165800 $11.32

66#

318255605 Frigidaire Oven Broil Element Range In Stock WCI 318255605 $115.29

67#

318255401 Frigidaire Oven Element In Stock WCI 318255401 $144.94

68

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 $20.91

70

Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability

71

Panel, rear box WCI 318260004 Contact Us For Availability

76

Front, oven WCI 318056217 Contact Us For Availability

80

Plate, oven mtg WCI 5303320846 Contact Us For Availability

81

Spring, oven WCI 318192400 Contact Us For Availability

82

Shield, insulation, lower WCI 318258700 Contact Us For Availability

83

Liner, oven assy WCI 318261402 Contact Us For Availability

84#

Outlet-electrical, miniature, black-glossy WCI 318146828 Contact Us For Availability

86

Receptacle, hinge WCI 5303310524 Contact Us For Availability

87

Bracket, cable mtg. WCI 318260602 Contact Us For Availability

89#

318261213 Frigidaire Oven Motor Backorder WCI 318261213 $86.42

90

Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability

90

Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability

90

Trim, oven front, bisque, bottom WCI 318259702 Contact Us For Availability

99

318256201 Frigidaire Oven Bracket Backorder WCI 318256201 $36.22

108#

318073028 Frigidaire Oven Motor In Stock WCI 318073028 $186.75

108A

Bracket, fan support WCI 318251300 Contact Us For Availability

112#

Relay WCI 318112701 Contact Us For Availability

119#

318004900 Frigidaire Thermal Switch In Stock WCI 318004900 $0.00

127

318317100 Frigidaire Adapter Assembly Backorder WCI 318317100 $47.51

131

Box, vent WCI 318272900 Contact Us For Availability

132

318003000 Frigidaire Plate Backorder WCI 318003000 $2.81

142

Deflector WCI 318123910 Contact Us For Availability

143

Support, wire/glass WCI 318172904 Contact Us For Availability

163

Spacer WCI 318014111 Contact Us For Availability

185

318531800 Frigidaire Oven Spacer Backorder WCI 318531800 $8.14

219#

Thermostat, safety WCI 318003606 Contact Us For Availability

219A

318003624 Frigidaire Oven High Limit Thermost In Stock WCI 318003624 $14.92

264

Trim, oven, black, front WCI 318257701 Contact Us For Availability

310

Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability

311

Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability

311*

5304438005 Frigidaire Oven Screw Backorder WCI 5304438005 $6.32

312

318246702 Frigidaire Tool Appliance In Stock WCI 318246702 $7.23

312

318246703 Frigidaire Tool Backorder WCI 318246703 $7.23

400

Trim Assembly, microwave, 30", white WCI 318275701 Contact Us For Availability

400

Trim Assembly, microwave, 30", bisque WCI 318275702 Contact Us For Availability

400

Trim Assembly, microwave, 30", black WCI 318275700 Contact Us For Availability

401

Plate, support, microwave, 30" WCI 318276001 Contact Us For Availability

402

Bracket, base pad, RH WCI 318276200 Contact Us For Availability

403

Bracket, base pad, LH WCI 318276201 Contact Us For Availability

404

Bracket, support plate, LH WCI 318276400 Contact Us For Availability

405

Bracket, support plate, RH WCI 318276401 Contact Us For Availability

406

Shield, microwave rear WCI 318277200 Contact Us For Availability

407

Bracket, bottom trim, black WCI 318277601 Contact Us For Availability

408

Baffle WCI 318277700 Contact Us For Availability

409

Bracket, top trim WCI 318295300 Contact Us For Availability

410

Flue, microwave WCI 318296500 Contact Us For Availability

412#

318647300 Frigidaire Microwave Fuse and Holde In Stock WCI 318647300 $130.20
