Model Electrolux 790.47844400 Wall Oven/Microwave Combo (Kenmore 79047844400) – Common Parts & Diagrams

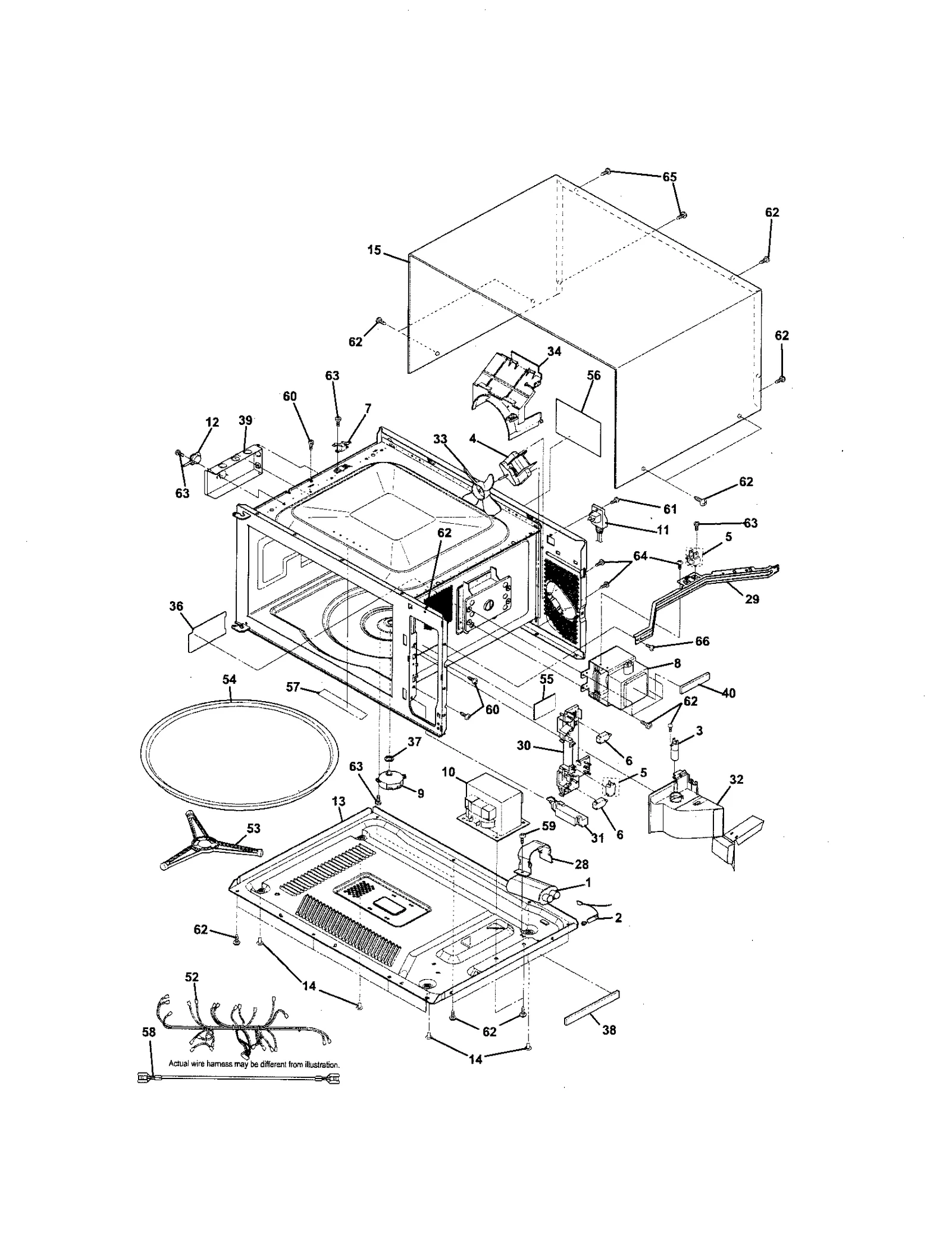

MICROWAVE CABINET

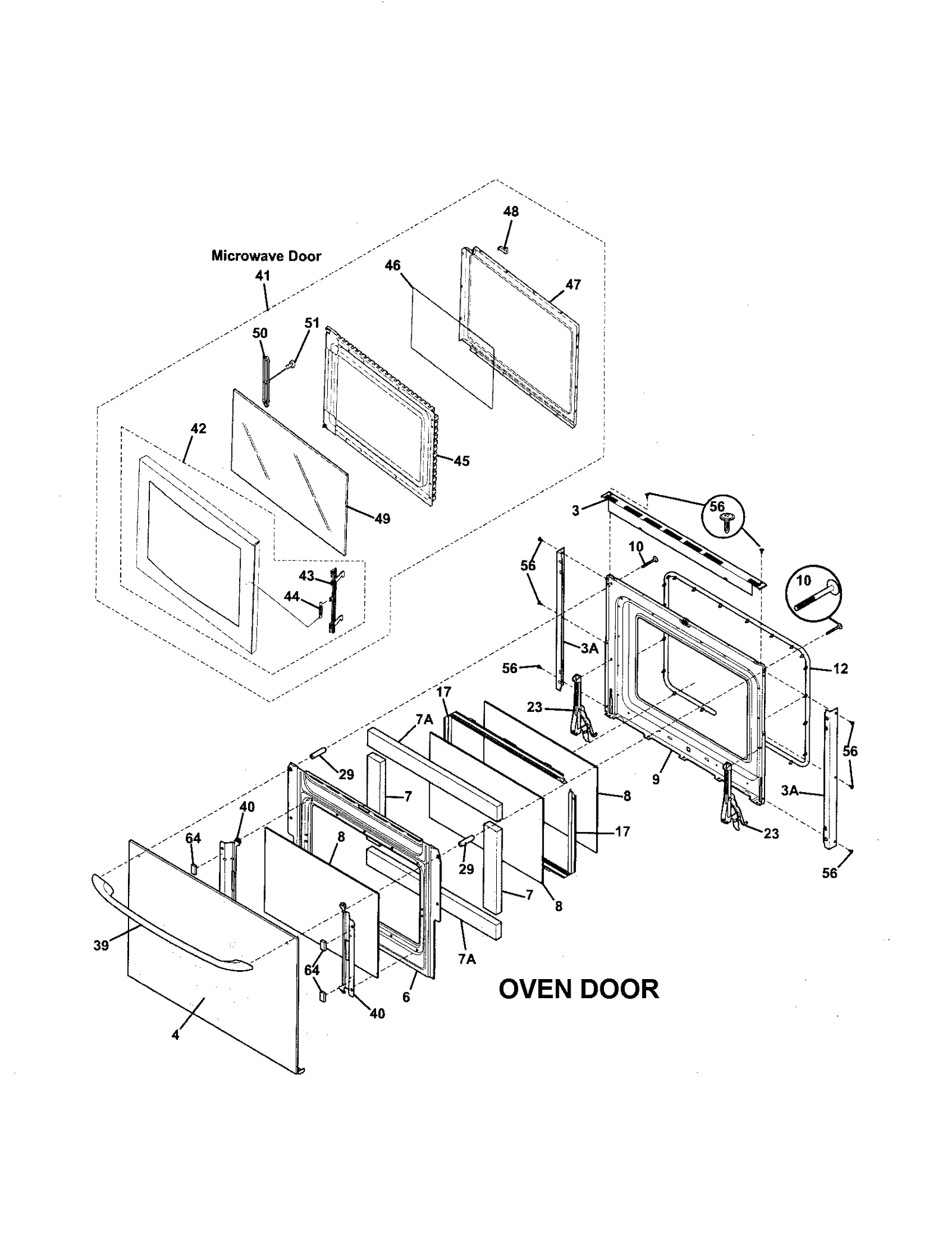

MICROWAVE AND OVEN DOORS

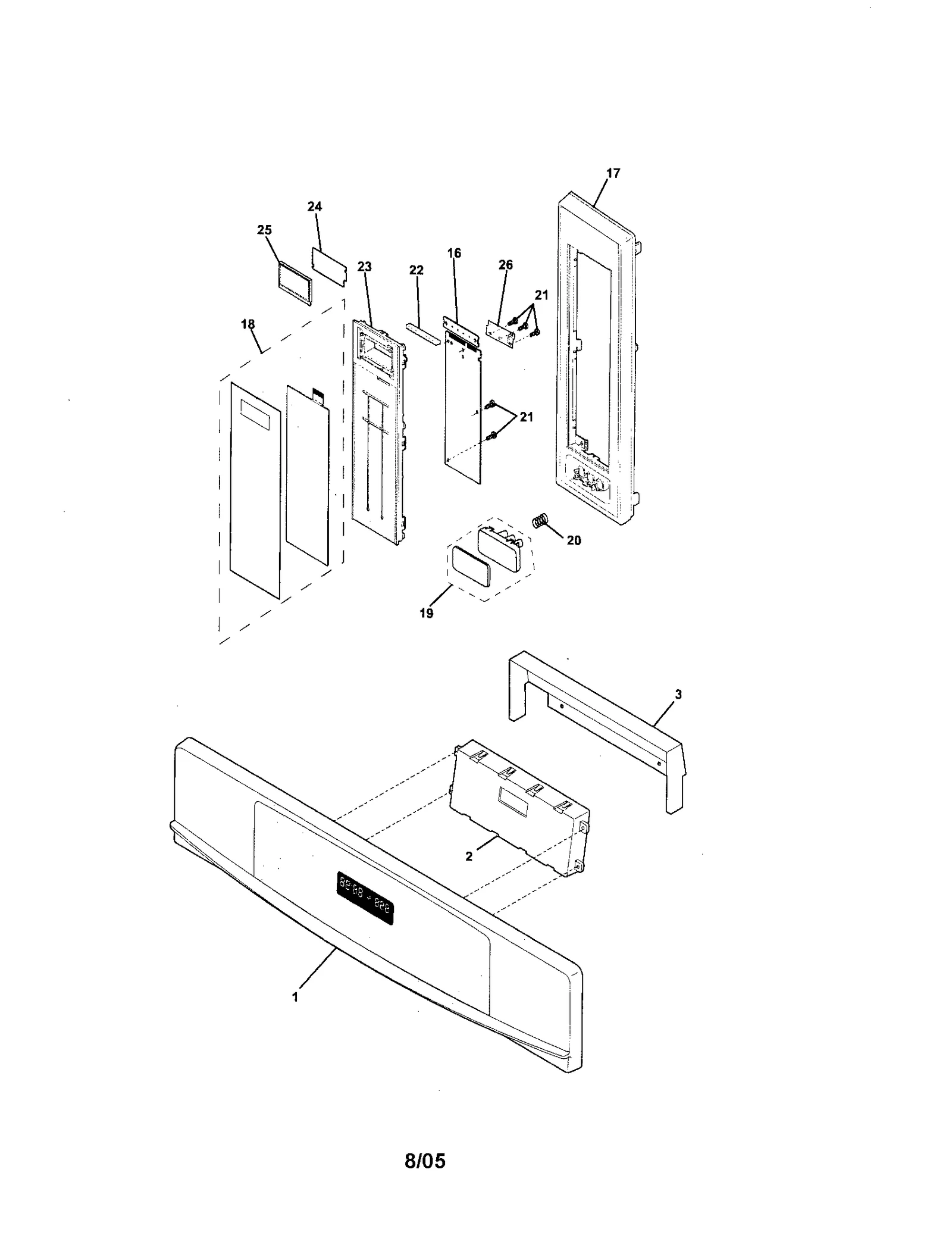

CONTROL PANEL
All Parts

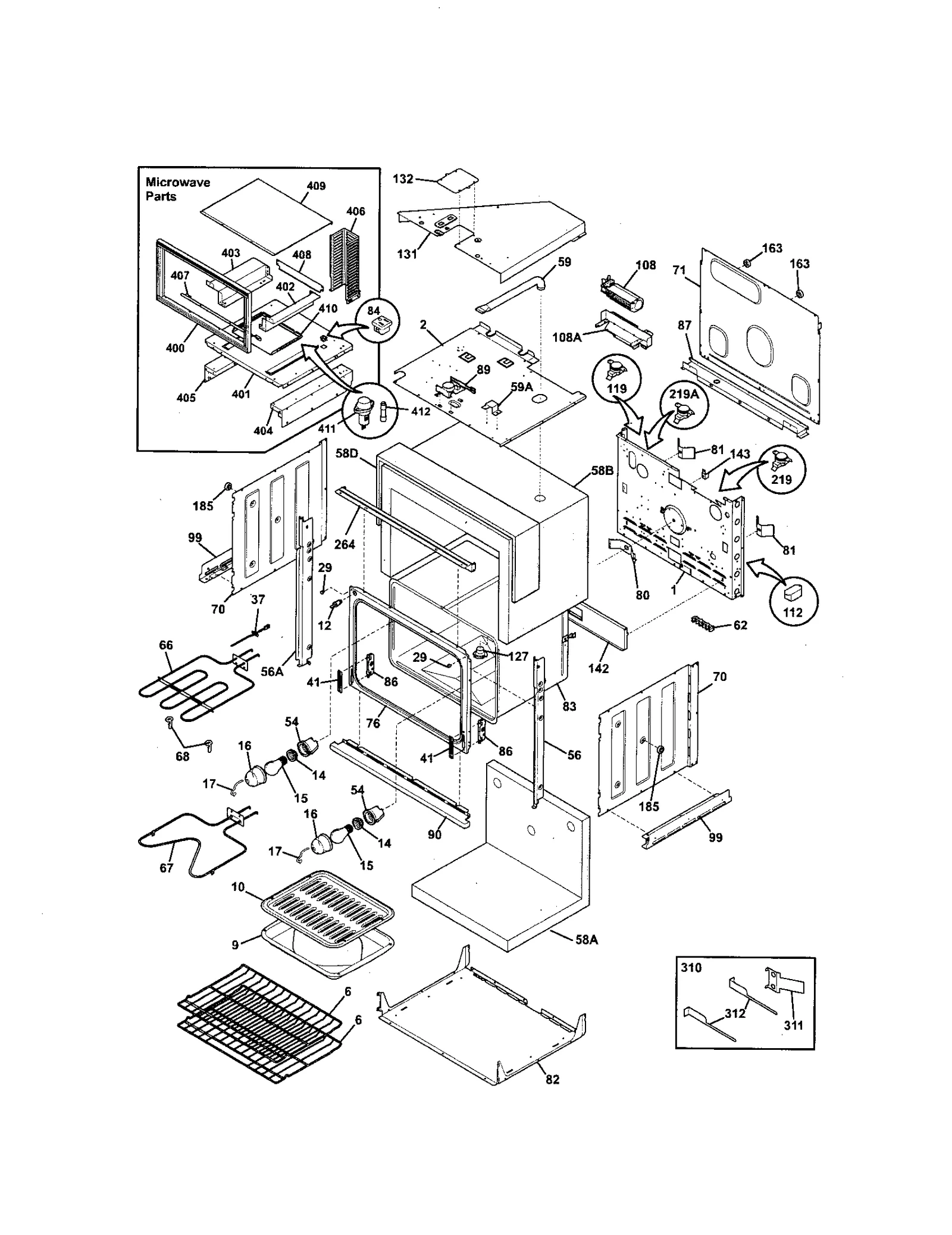

LOWER OVEN
Common parts from model Electrolux 790.47844400 Wall Oven/Microwave Combo (Kenmore 79047844400)
1
Oven Control Panel WCI 318277101 Contact Us For Availability
1
Back WCI 318259210 Contact Us For Availability
1A
Wall Oven Control Panel (Bisque) WCI 318277102 Contact Us For Availability
1B
Wall Oven Control Panel Assembly WCI 318277100 Contact Us For Availability
2
Shield WCI 318258910 Contact Us For Availability
3
Wall Oven Door Vent Trim (Black) WCI 318260211 Contact Us For Availability
3
Deflector WCI 318295700 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Wall Oven Door Outer Panel Assembly (White) WCI 318261353 Contact Us For Availability
4B
Wall Oven Door Outer Panel Assembly (Black) WCI 318261355 Contact Us For Availability
8
Wall Oven Door Inner Glass WCI 318212200 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
12A
Clip WCI 3015722 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Wall Oven Microwave Control Panel Frame (Whit WCI 5304442127 Contact Us For Availability
17A
Frame WCI 5304442128 Contact Us For Availability
18
Overlay Assembly WCI 5304442130 Contact Us For Availability
18A
Overlay Assembly WCI 5304442131 Contact Us For Availability
18B
Range Selection Button Overlay WCI 5304442132 Contact Us For Availability
19
Microwave Door Release Button (White) WCI 5304442133 Contact Us For Availability
19A
Push Button WCI 5304440829 Contact Us For Availability
19B
Microwave Door Release Button (Black) WCI 5304440827 Contact Us For Availability
22
Microwave Electronic Control Board Seal WCI 5304440832 Contact Us For Availability
25
Microwave Display Board WCI 5304440835 Contact Us For Availability
26
Wall Oven Microwave Electronic Control Board WCI 5304440836 Contact Us For Availability
37
Bushing WCI 5304440288 Contact Us For Availability
39B
Handle WCI 318264400 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
45B
Wall Oven Microwave Door Inner Panel (Black) WCI 5304440857 Contact Us For Availability
46
Microwave Door Film WCI 5304440860 Contact Us For Availability
48
Door Stop WCI 5304442145 Contact Us For Availability
49
Oven Glass WCI 5304442146 Contact Us For Availability
49
Glass WCI 5304442148 Contact Us For Availability
49A
Glass WCI 5304442147 Contact Us For Availability
50
Stop WCI 5304440862 Contact Us For Availability
51
Screw WCI 5304440866 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318276302 Contact Us For Availability
56A
Trim WCI 318276303 Contact Us For Availability
56AA
Trim WCI 318276307 Contact Us For Availability
56AB
Oven Trim WCI 318276305 Contact Us For Availability
56C
Trim WCI 318276306 Contact Us For Availability
56E
Oven Trim WCI 318276304 Contact Us For Availability
58AC
Insulation WCI 318133795 Contact Us For Availability
58B
Insulation WCI 318133794 Contact Us For Availability
58D
Insulation WCI 318133793 Contact Us For Availability
59A
Bracket WCI 318261600 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Panel WCI 318260001 Contact Us For Availability
76
Wall Oven Front Frame WCI 318056222 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258710 Contact Us For Availability
83
Liner WCI 318261501 Contact Us For Availability
84
Electrical Outlet WCI 318146828 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Bracket WCI 318260601 Contact Us For Availability
90
Wall Oven Vent, Lower (White) WCI 318259710 Contact Us For Availability
90A
Oven Trim WCI 318259712 Contact Us For Availability
90B
Wall Oven Base Trim WCI 318259711 Contact Us For Availability
108A
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
108B
Screw WCI 08016432 Contact Us For Availability
112
Range Cooling Fan Relay WCI 318112701 Contact Us For Availability
131
Box WCI 318272900 Contact Us For Availability
132
Crosley Plate WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Stiffener WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
219
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
264
Wall Oven Vent Trim (Black) WCI 318257711 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
400
Oven Trim WCI 318275601 Contact Us For Availability
400A
Trim WCI 318275602 Contact Us For Availability
400B
Oven Trim WCI 318275600 Contact Us For Availability
401
Plate WCI 318276000 Contact Us For Availability
402
Bracket WCI 318276200 Contact Us For Availability
403
Bracket WCI 318276201 Contact Us For Availability
404
Bracket WCI 318276400 Contact Us For Availability
405
Bracket WCI 318276401 Contact Us For Availability
406
Shield WCI 318277200 Contact Us For Availability
407
Bracket WCI 318277601 Contact Us For Availability
408
Baffle WCI 318277700 Contact Us For Availability
409
Bracket WCI 318295300 Contact Us For Availability
410
Flue WCI 318296500 Contact Us For Availability
NI01
Parts List WCI 5995415717 Contact Us For Availability
NI02
Cooktop Use and Care Guide WCI 318200934 Contact Us For Availability
NI04
Wiring Diagram WCI 318046232 Contact Us For Availability
NI05
Instructions WCI 318201518 Contact Us For Availability
NI08
Oven Harness WCI 318231719 Contact Us For Availability
× ![]()
