Model Kenmore 790.47843405 WALL OVEN / MICROWAVE COMBO – Common Parts & Diagrams

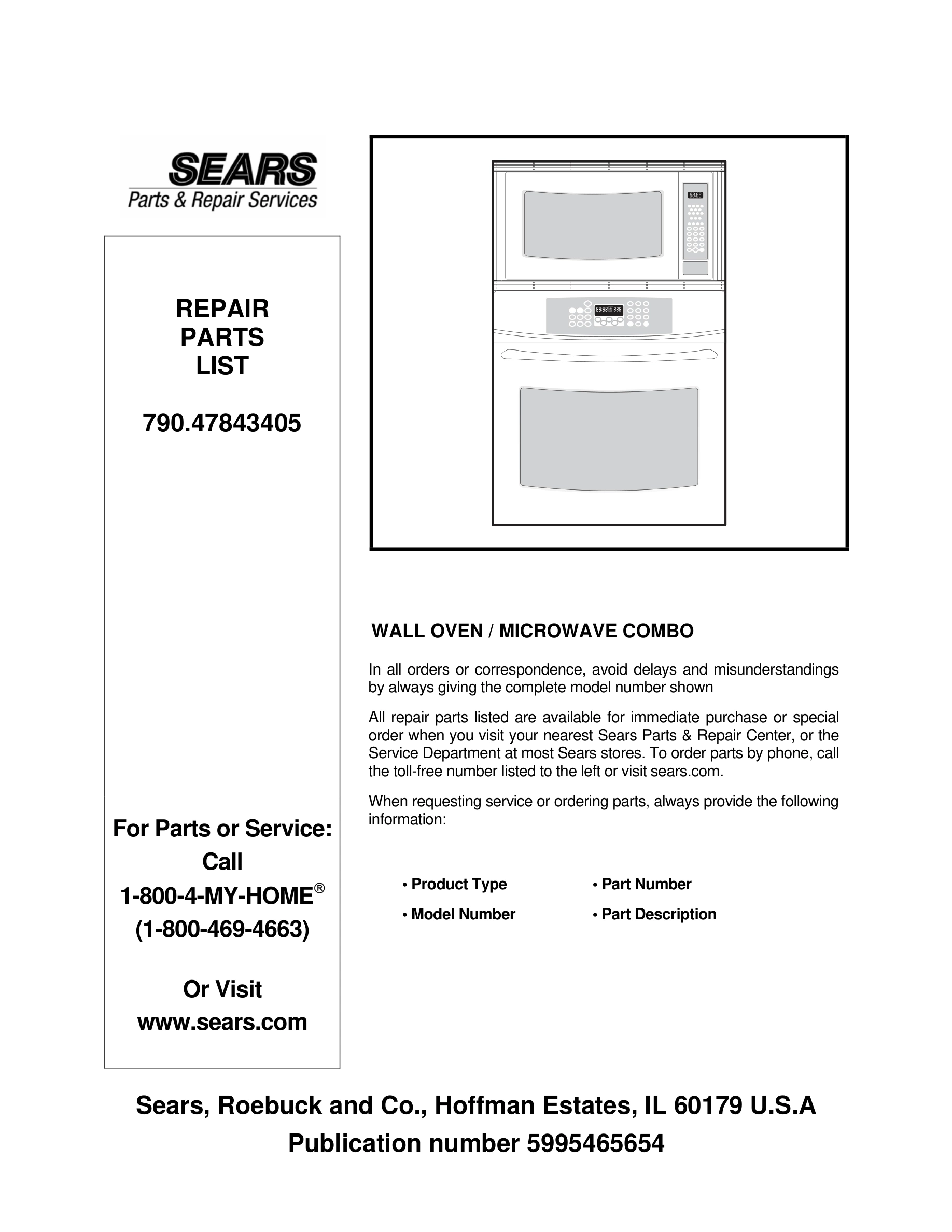

01 - COVER

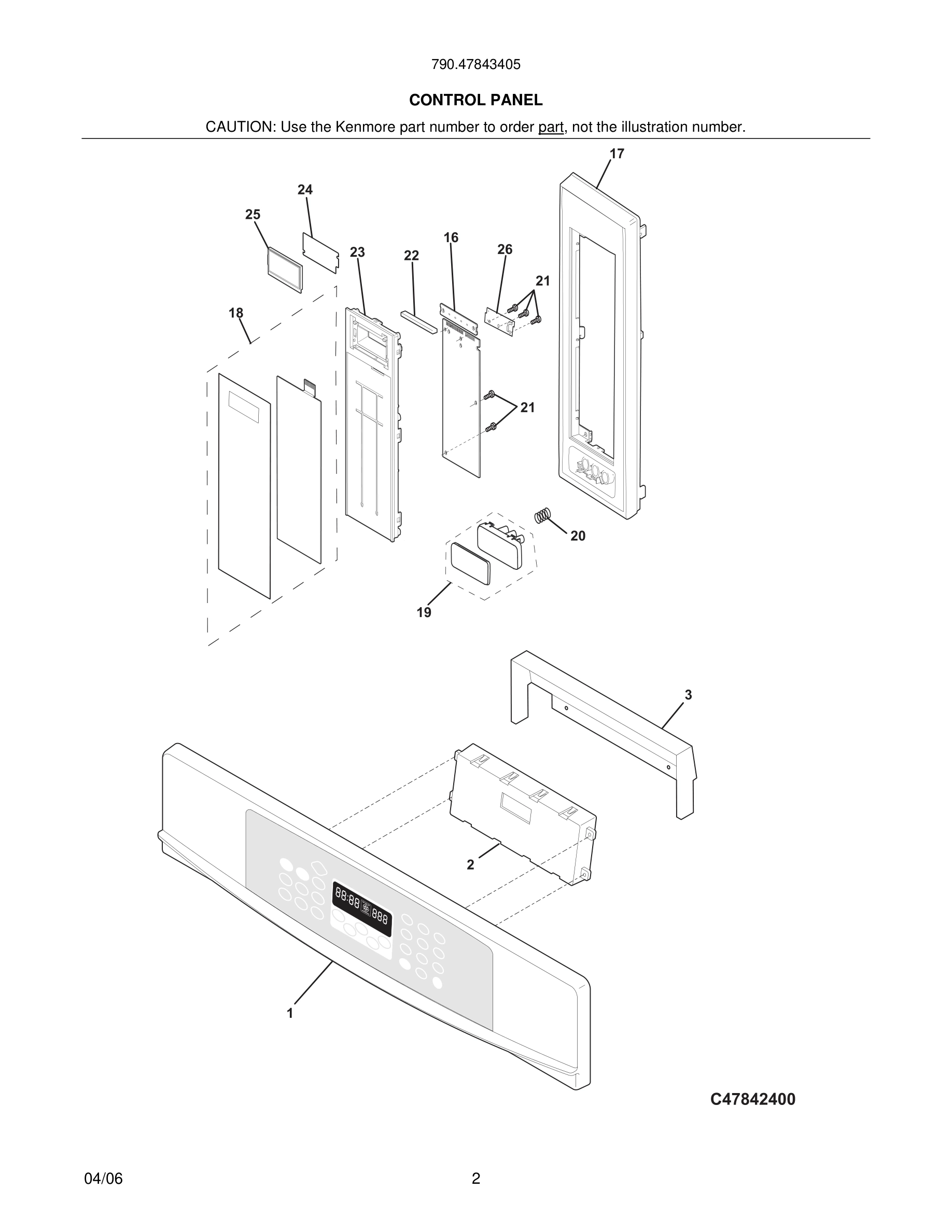

03 - CONTROL PANEL
05 - UPPER OVEN
07 - LOWER OVEN
09 - LOWER OVEN
11 - DOORS
12 - WIRING DIAGRAM
Common parts from model Kenmore 790.47843405 WALL OVEN / MICROWAVE COMBO
*
Harness, wiring, main WCI 318231735 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
1
Control Panel Assy., glass, black, w/membrane WCI 318277100 Contact Us For Availability
2
Shield, insulation, upper WCI 318258910 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
9
Pan, broiler WCI 5303317977 Contact Us For Availability
9
Liner, upper door WCI 318259615 Contact Us For Availability
10
Insert, broiler pan WCI 5303317976 Contact Us For Availability
12
Seal, oven door, upper WCI 318053135 Contact Us For Availability
13
Door Assy, stainless steel, outer, w/tape & f WCI 318272105 Contact Us For Availability
14*
Insulation, oven light WCI 318268099 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
22
Connector, rubber, control board WCI 5304440832 Contact Us For Availability
23
Hinge, door, (2) WCI 318024722 Contact Us For Availability
24
Trim, door, black, lower WCI 318260311 Contact Us For Availability
25#
LCD, display WCI 5304440835 Contact Us For Availability
37
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
39
Handle, door, black, oven WCI 318264400 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
41
Door Assembly, complete, stainless WCI 5304442139 Contact Us For Availability
42
Frame Assembly, door, stainless WCI 5304442143 Contact Us For Availability
46
Seal, door, film WCI 5304440860 Contact Us For Availability
48
Door Stop WCI 5304442145 Contact Us For Availability
49
Glass, door, black WCI 5304442148 Contact Us For Availability
50
Door Stop WCI 5304440862 Contact Us For Availability
51
Screw WCI 5304440866 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56
Trim, side filler, black, RH WCI 318276304 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318276305 Contact Us For Availability
58A
Insulation, rear & bottom, oven wrapper WCI 318285060 Contact Us For Availability
58B
Insulation, top & sides, oven wrapper WCI 318285059 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260001 Contact Us For Availability
76
Front, oven WCI 318056222 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258710 Contact Us For Availability
83
Liner, oven assy WCI 318261501 Contact Us For Availability
84#
Outlet-electrical, miniature, black-glossy WCI 318146833 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260601 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
131
Box, vent WCI 318272900 Contact Us For Availability
132
Plate, shield WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Trim, oven, black, front WCI 318257711 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
400
Trim Assembly, microwave, 27", stainless WCI 318275603 Contact Us For Availability
401
Plate, support, microwave, 27" WCI 318297202 Contact Us For Availability
402
Bracket, base pad, RH WCI 318276202 Contact Us For Availability
403
Bracket, base pad, LH WCI 318276203 Contact Us For Availability
406
Shield, microwave rear WCI 318277200 Contact Us For Availability
409
Bracket, top trim WCI 318295300 Contact Us For Availability
410
Flue, black WCI 318297101 Contact Us For Availability
× ![]()
