Model Kenmore 790.47842409 WALL OVEN / MICROWAVE COMBO – Common Parts & Diagrams

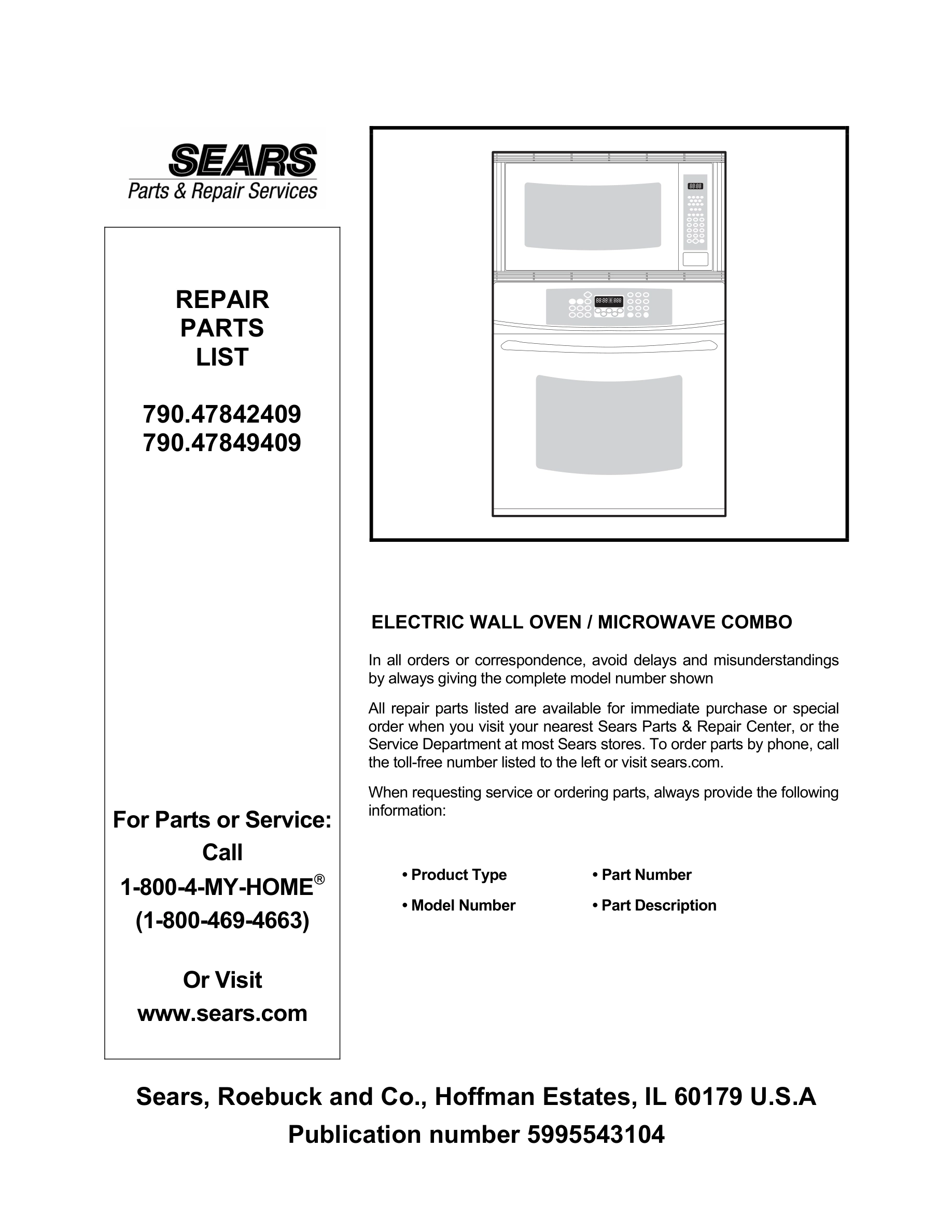

01 - COVER

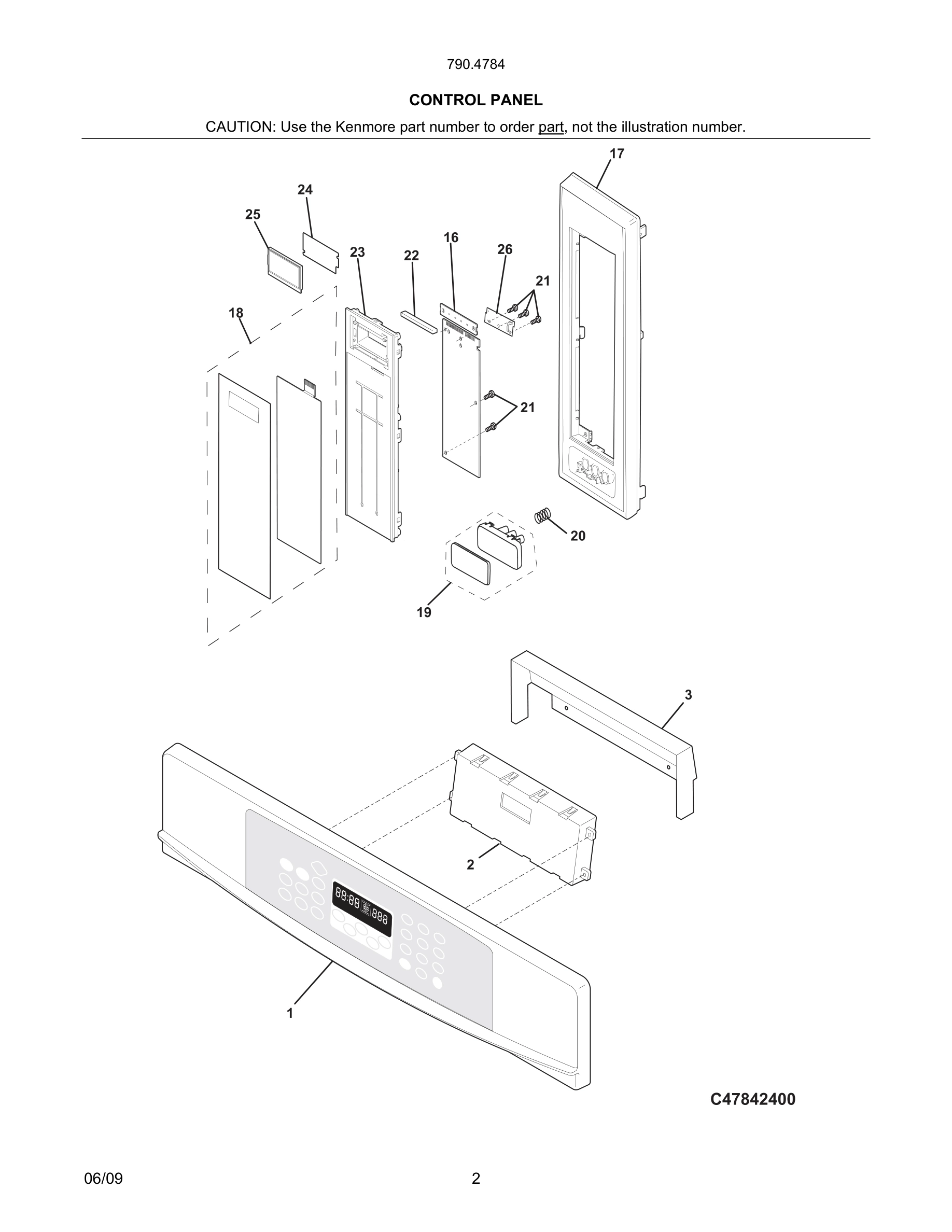

03 - CONTROL PANEL

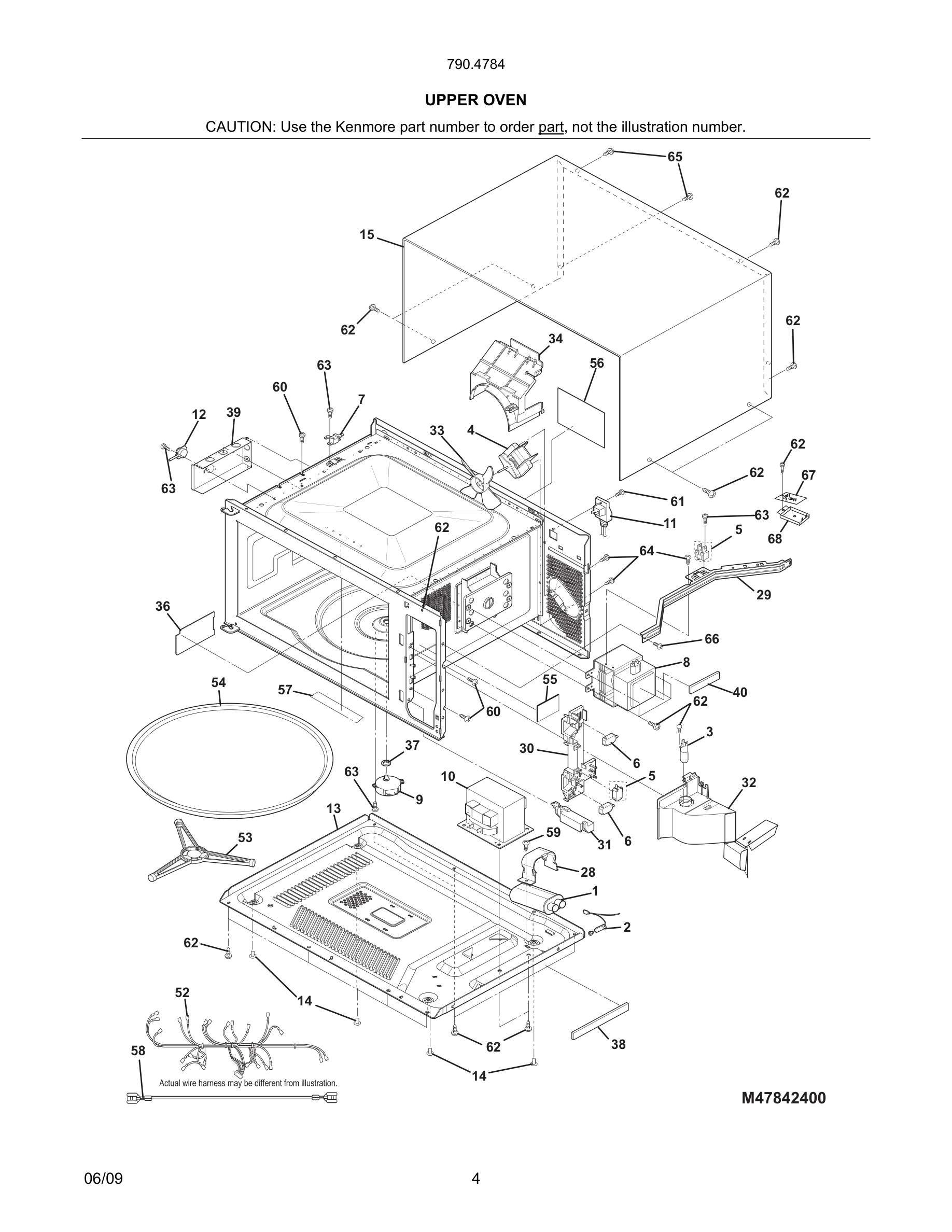

05 - UPPER OVEN

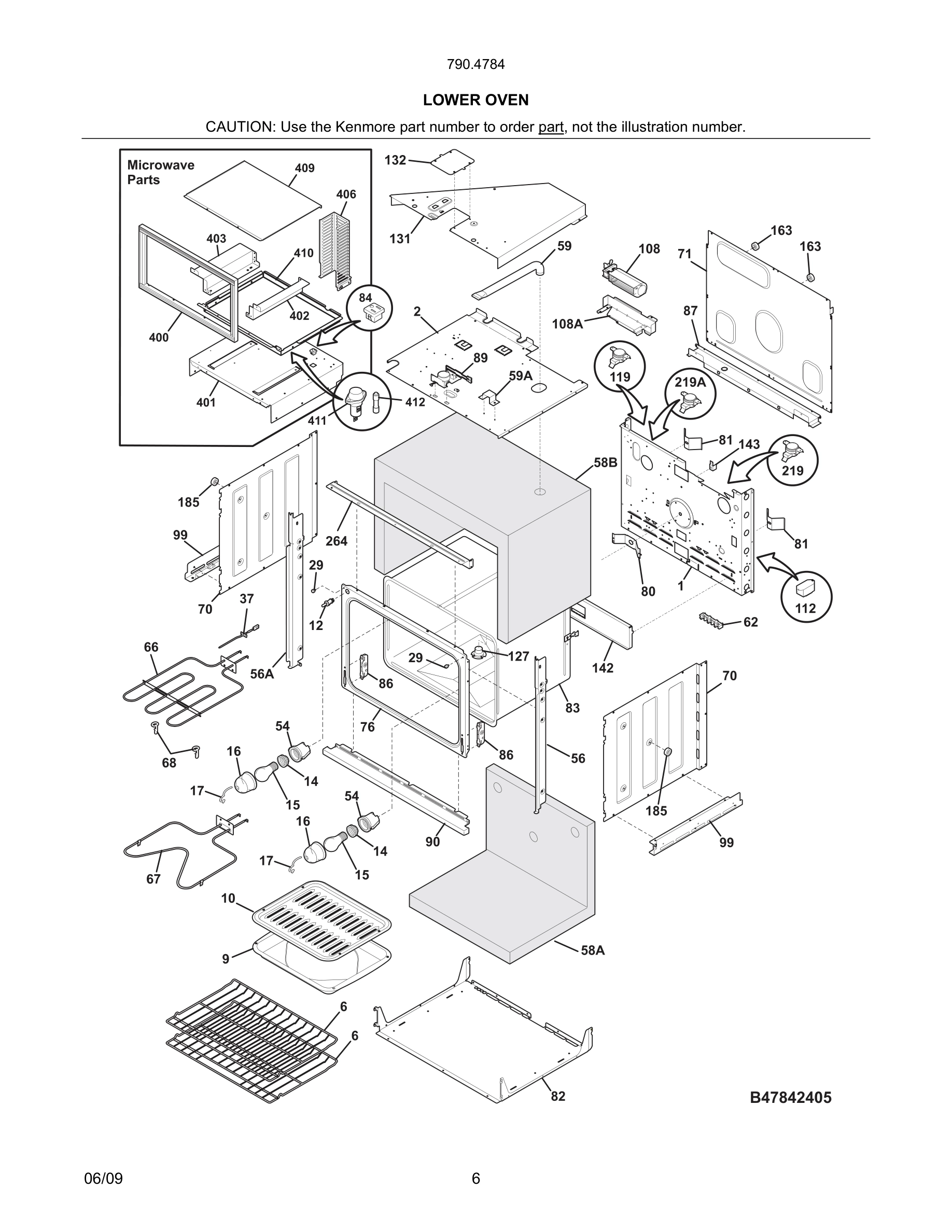

07 - LOWER OVEN
09 - LOWER OVEN

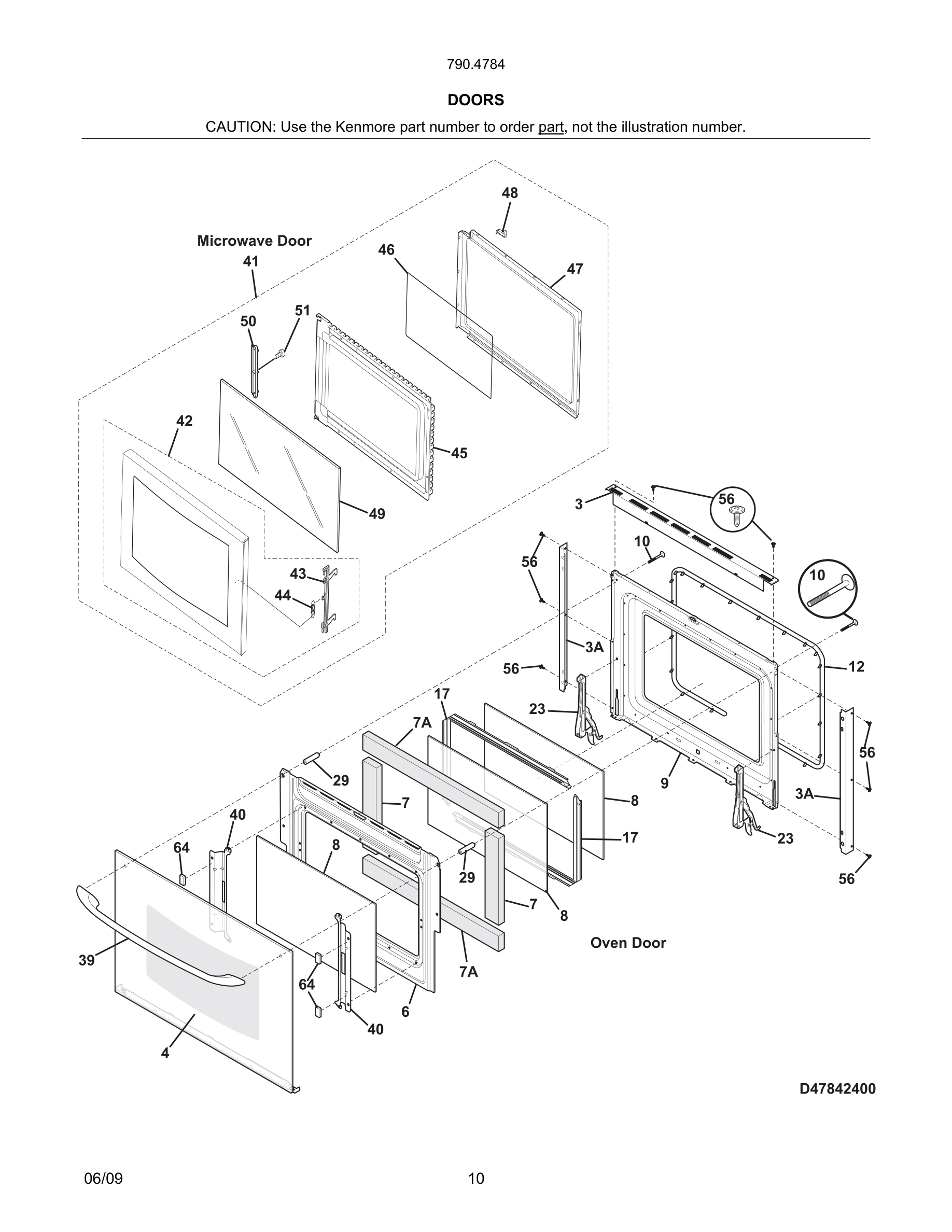

11 - DOORS

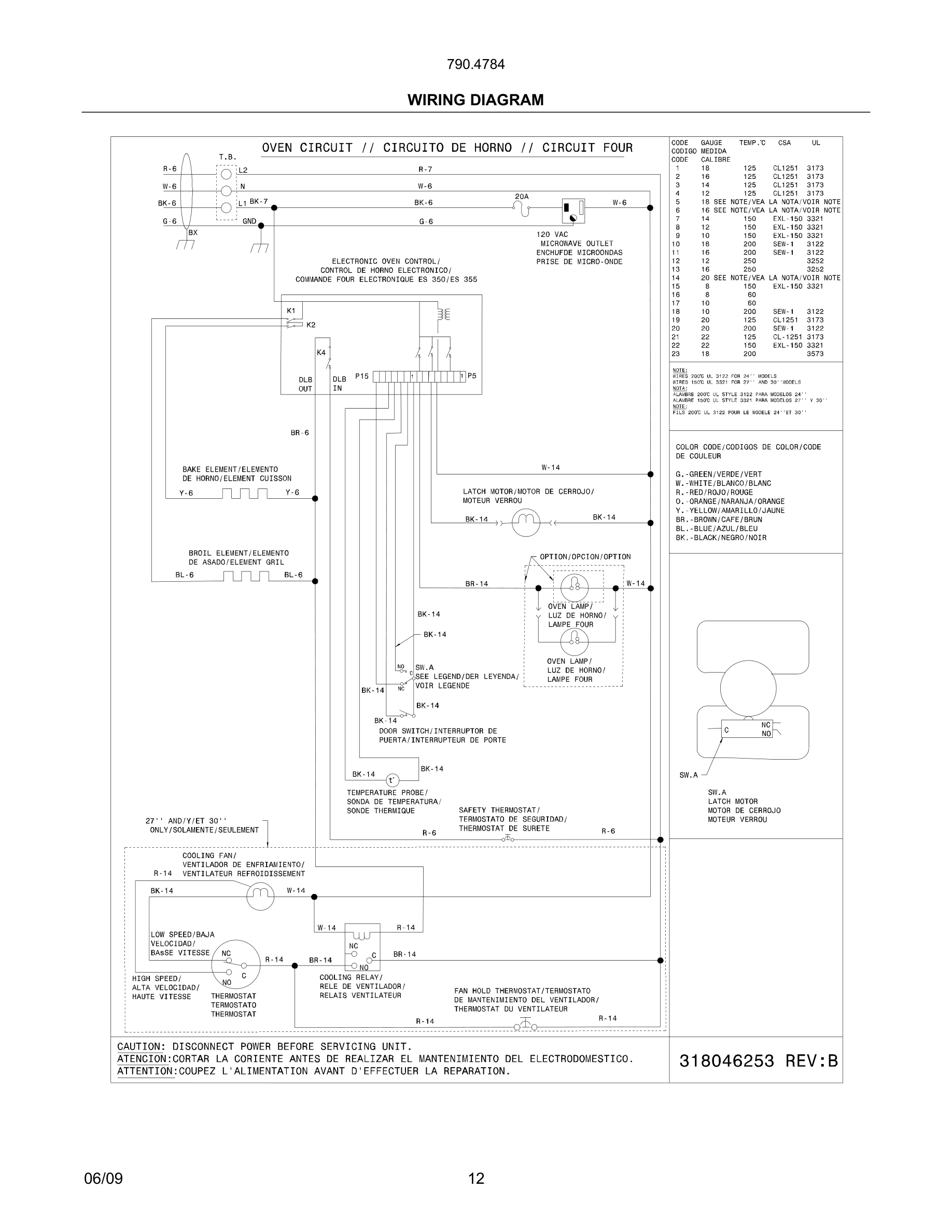

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.47842409 WALL OVEN / MICROWAVE COMBO
*#
Harness, wiring, main WCI 318231754 Contact Us For Availability
*#
Wiring Harness, power board, to triac, main WCI 318370375 Contact Us For Availability
1
Control Panel Assy., glass, black, w/membrane WCI 318277100 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260211 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, black, outer, w/trim WCI 318261361 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/trim WCI 318261359 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
9
Liner, oven door, upper WCI 318259652 Contact Us For Availability
12
Gasket, oven door seal WCI 318053126 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
19
Push Button, door, black WCI 5304440827 Contact Us For Availability
19
Push Button, door, white WCI 5304442133 Contact Us For Availability
22
Connector, rubber, control board WCI 5304440832 Contact Us For Availability
23
Hinge, oven door, (2) WCI 318567101 Contact Us For Availability
25#
LCD, display WCI 5304440835 Contact Us For Availability
29
Spacer, door WCI 318014405 Contact Us For Availability
37
Bushing, motor shaft, turntable WCI 5304440288 Contact Us For Availability
39
Handle, door, black, oven WCI 318264400 Contact Us For Availability
39
Handle, door, white, oven WCI 318264401 Contact Us For Availability
41
Door Assembly, complete, white WCI 5304442136 Contact Us For Availability
41
Door Assembly, complete, black WCI 5304442138 Contact Us For Availability
42
Frame Assembly, door, white WCI 5304442140 Contact Us For Availability
42
Frame Assembly, door, black WCI 5304442142 Contact Us For Availability
45
Panel, inner door, white WCI 5304442144 Contact Us For Availability
46
Seal, door, film WCI 5304440860 Contact Us For Availability
48
Door Stop WCI 5304442145 Contact Us For Availability
49
Glass, door, white WCI 5304442146 Contact Us For Availability
49
Glass, door, black WCI 5304442148 Contact Us For Availability
50
Door Stop WCI 5304440862 Contact Us For Availability
51
Screw WCI 5304440866 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56A
Trim, side filler, white, LH WCI 318276313 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318276315 Contact Us For Availability
58A
Insulation, rear & bottom, oven wrapper WCI 318285060 Contact Us For Availability
58B
Insulation, oven wrapper WCI 318386110 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260001 Contact Us For Availability
76
Front, oven WCI 318056224 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258710 Contact Us For Availability
83
Liner, oven assy WCI 318261501 Contact Us For Availability
84#
Outlet-electrical, miniature, black-glossy WCI 318146833 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260601 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259710 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112703 Contact Us For Availability
131
Box, vent WCI 318272901 Contact Us For Availability
132
Plate, shield WCI 318003000 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer, (4) WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257711 Contact Us For Availability
400
Trim Assembly, microwave, 27", white WCI 318275601 Contact Us For Availability
400
Trim Assembly, microwave, 27", black WCI 318275600 Contact Us For Availability
401
Plate, support, microwave, 27" WCI 318297206 Contact Us For Availability
402
Bracket, base pad, RH WCI 318276202 Contact Us For Availability
403
Bracket, base pad, LH WCI 318276203 Contact Us For Availability
406
Shield, microwave rear WCI 318277201 Contact Us For Availability
409
Bracket, top trim WCI 318295301 Contact Us For Availability
410
Flue, black WCI 318297111 Contact Us For Availability
× ![]()
