Model Kenmore 790.47773400 OVEN – Common Parts & Diagrams

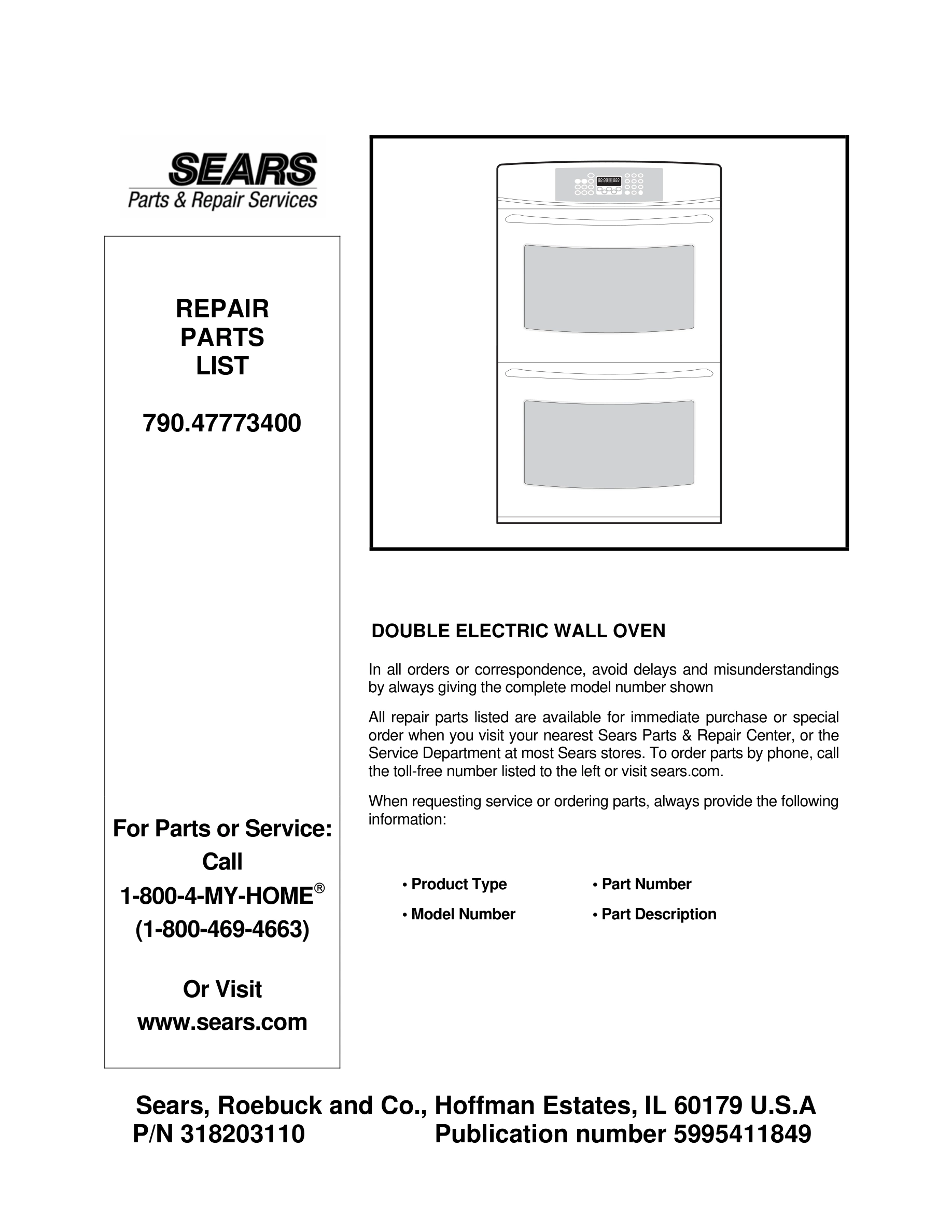

01 - COVER

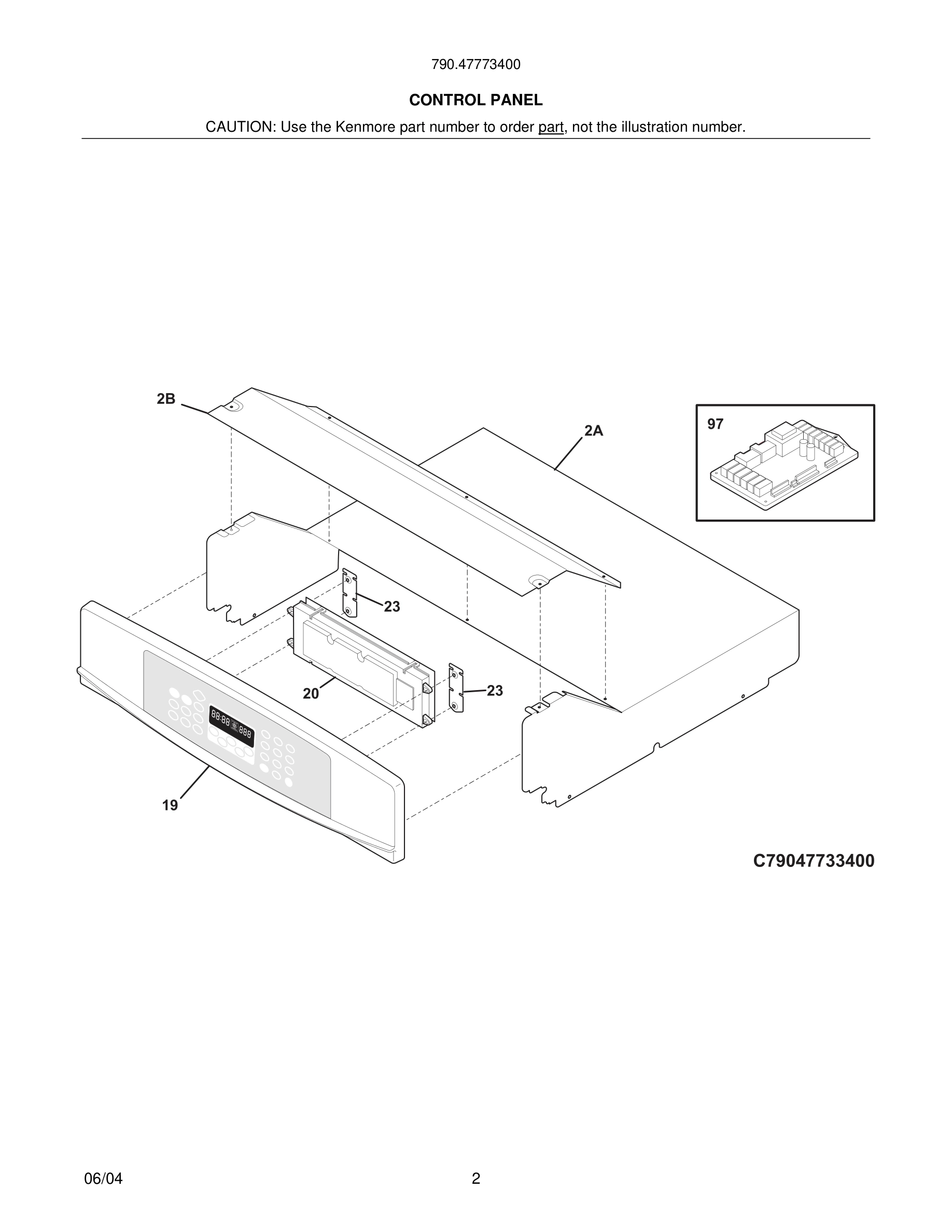

03 - CONTROL PANEL
05 - UPPER OVEN
07 - UPPER OVEN
09 - LOWER OVEN
14 - WIRING DIAGRAM
Common parts from model Kenmore 790.47773400 OVEN
*
Clip, wire retainer WCI 3015722 Contact Us For Availability
*
Harness, latch WCI 318231705 Contact Us For Availability
1
Back, main WCI 318259200 Contact Us For Availability
2
Shield, insulation, upper WCI 318258900 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
6
Rack, oven WCI 318262500 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
20#
Control, electronic, dual oven WCI 316429708 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318259915 Contact Us For Availability
58A
Insulation, oven wrapper, back/bottom WCI 318133791 Contact Us For Availability
58B
Insulation, oven wrapper, top/sides WCI 318133790 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318133793 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260000 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258700 Contact Us For Availability
83
Liner, oven assy WCI 318261402 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90A
Trim, oven front, black, bottom WCI 318259704 Contact Us For Availability
97
Board, relay, dual oven WCI 316429800 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire/glass WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
219#
Thermostat, safety WCI 318003606 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
