Model Kenmore 790.47772400 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - UPPER OVEN

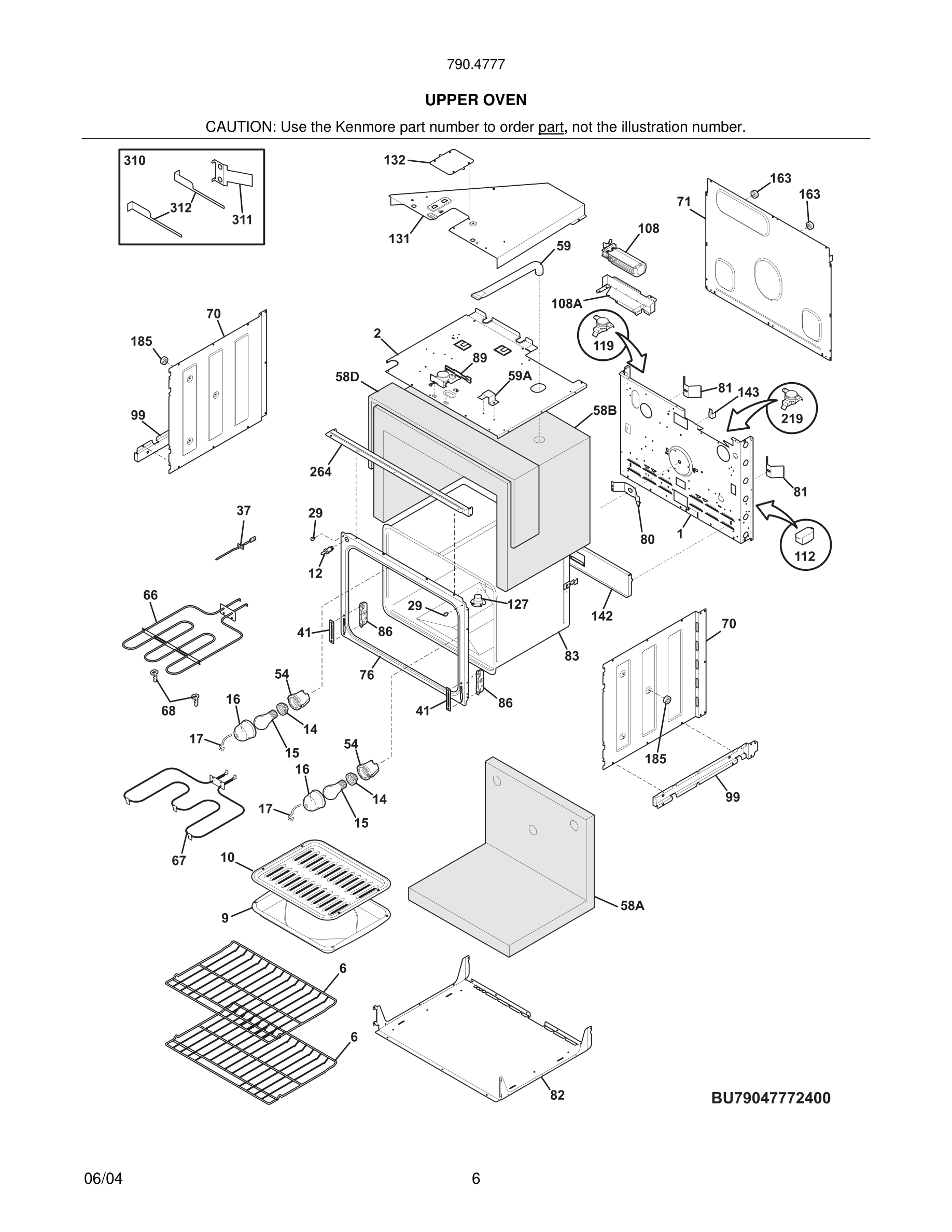

07 - UPPER OVEN

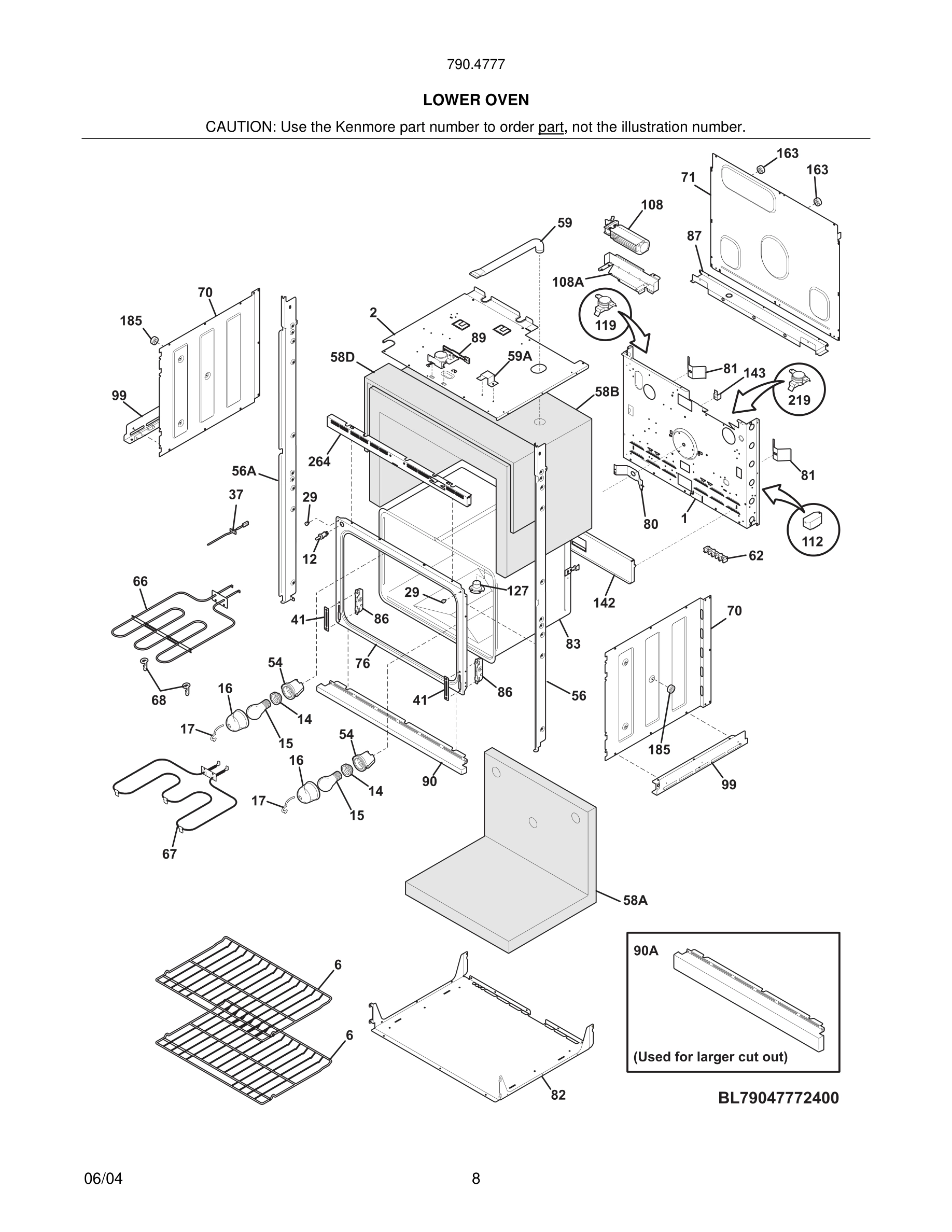

09 - LOWER OVEN
11 - LOWER OVEN
13 - DOOR

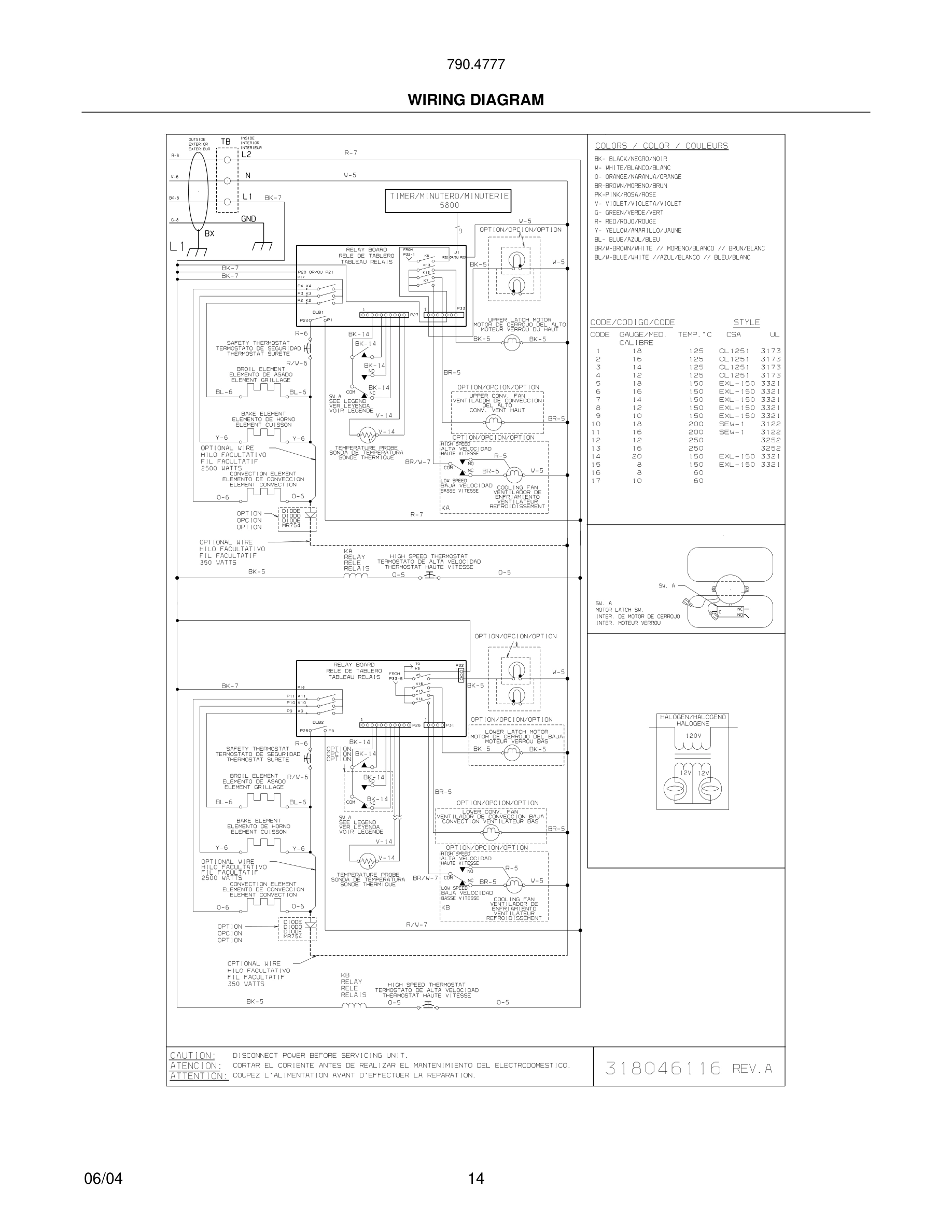

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.47772400 OVEN
*
Screw, 8 x 5/8 WCI 3131048 Contact Us For Availability
*
Harness, wiring, main WCI 318231708 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260201 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/ tri WCI 318261306 Contact Us For Availability
6
Baffle, door WCI 318260500 Contact Us For Availability
9
Liner, oven door, upper WCI 318259601 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
20#
Control, electronic, dual oven WCI 316429708 Contact Us For Availability
23
Hinge, oven door, upper WCI 318024720 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
39
Handle, door, bisque WCI 316209702 Contact Us For Availability
39
Handle, door, black WCI 316209701 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318133793 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260000 Contact Us For Availability
76
Front, oven WCI 318056217 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258700 Contact Us For Availability
83
Liner, oven assy WCI 318261402 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259701 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259700 Contact Us For Availability
90
Trim, oven front, bisque, bottom WCI 318259702 Contact Us For Availability
90A
Trim, oven front, black, bottom WCI 318259704 Contact Us For Availability
90A
Trim, oven front, white, bottom WCI 318259703 Contact Us For Availability
90A
Trim, oven front, bisque, bottom WCI 318259705 Contact Us For Availability
97
Board, relay, dual oven WCI 316429800 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire/glass WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
219#
Thermostat, safety WCI 318003606 Contact Us For Availability
264
Trim, oven, black, front WCI 318257701 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
