Model Electrolux 790.47769402 Electric Oven (Kenmore 79047769402) – Common Parts & Diagrams

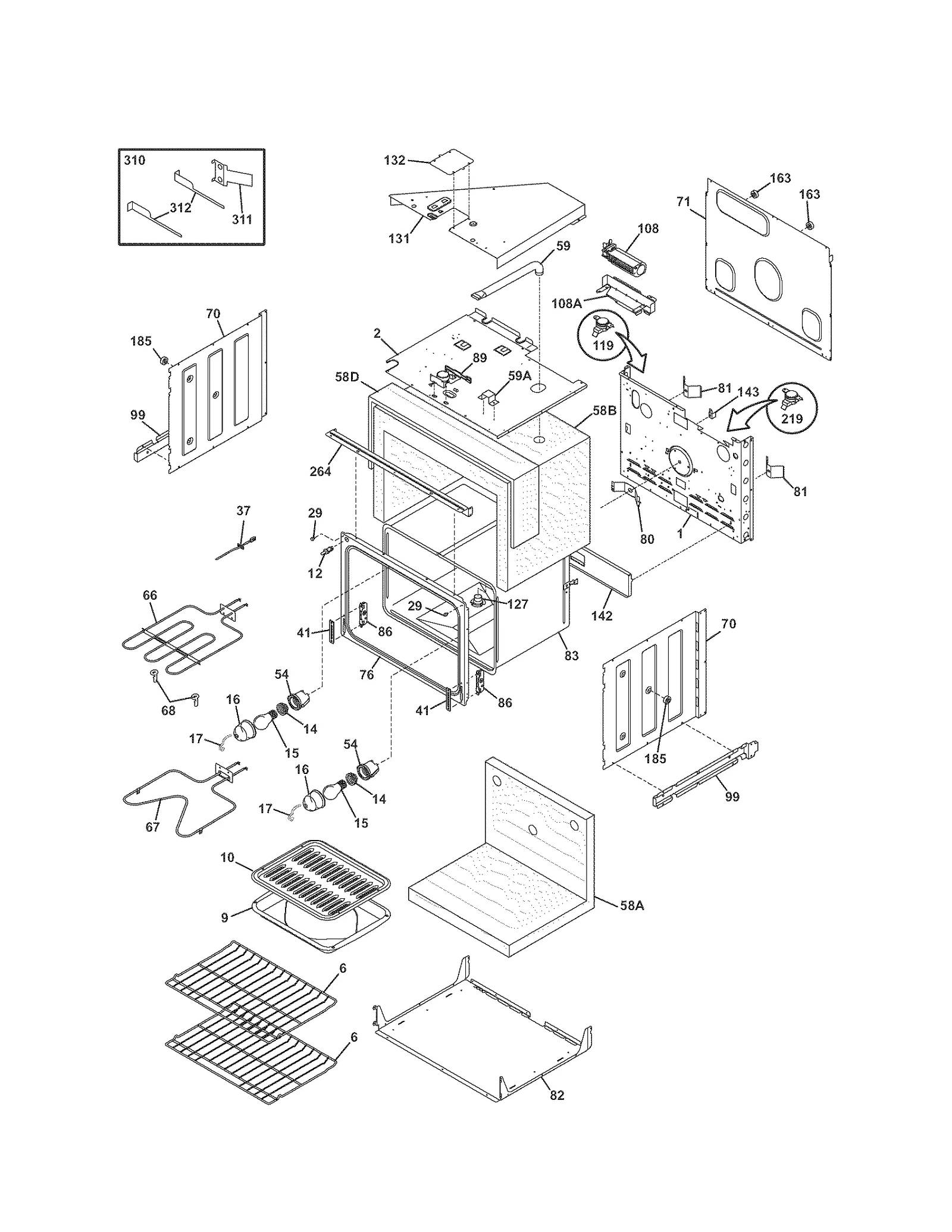

UPPER OVEN

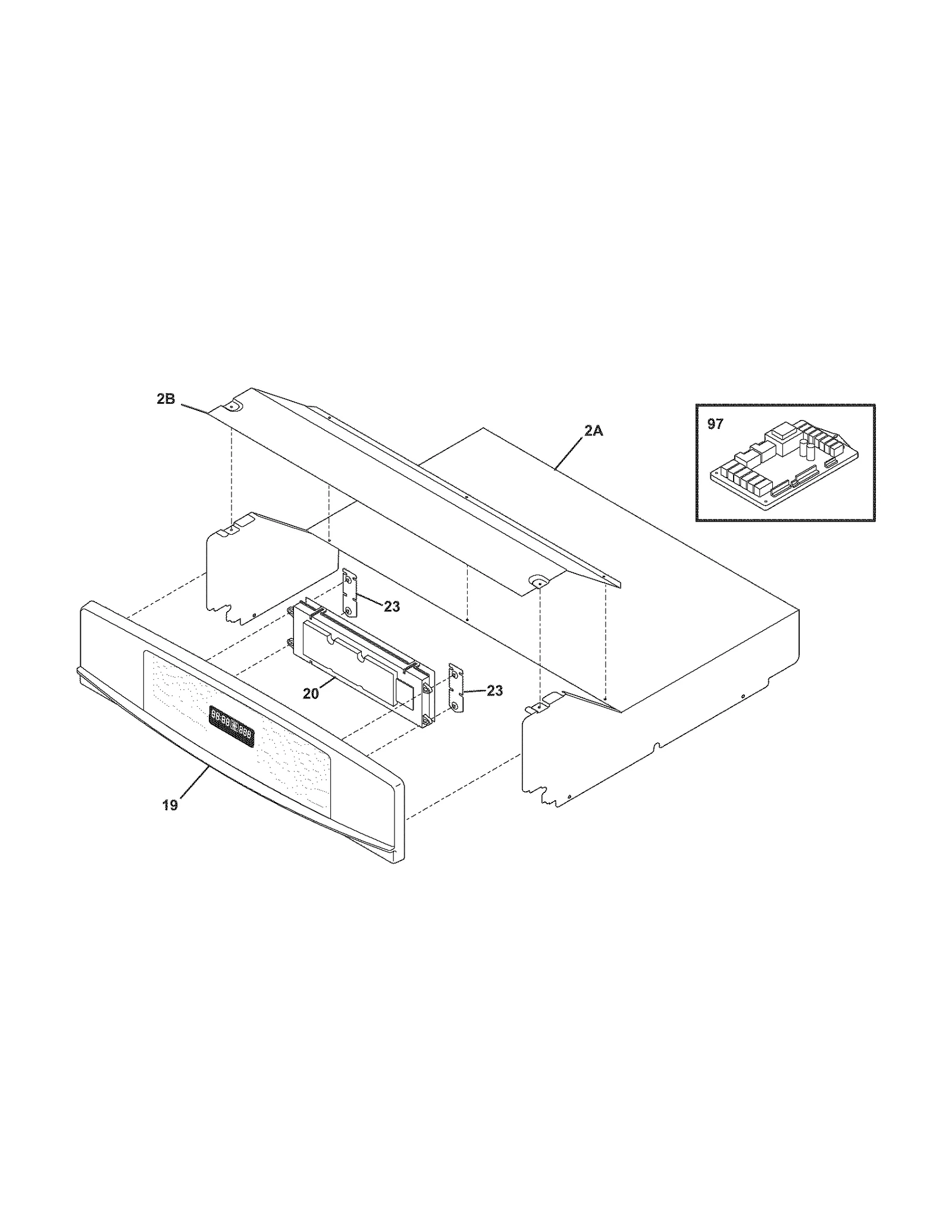

CONTROL PANEL
DOORS
LOWER OVEN
Common parts from model Electrolux 790.47769402 Electric Oven (Kenmore 79047769402)
1
Back WCI 318259210 Contact Us For Availability
2
Shield WCI 318258910 Contact Us For Availability
3
Wall Oven Door Vent Trim (Black) WCI 318260211 Contact Us For Availability
3A
Range Oven Door Trim WCI 318260401 Contact Us For Availability
4
Wall Oven Door Outer Panel Assembly (Black) WCI 318261361 Contact Us For Availability
8
Wall Oven Door Inner Glass WCI 318212200 Contact Us For Availability
9
Oven Liner WCI 318259611 Contact Us For Availability
12
Seal WCI 318053135 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Wall Oven Door Glass Retainer WCI 318264700 Contact Us For Availability
20
Wall Oven Dual-Oven Control Board WCI 316429703 Contact Us For Availability
23
Hinge WCI 318024722 Contact Us For Availability
29
Spacer WCI 318014402 Contact Us For Availability
39
Handle WCI 318264400 Contact Us For Availability
39
Wall Oven Door Handle (White) WCI 318264401 Contact Us For Availability
39
Handle WCI 318264402 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318259912 Contact Us For Availability
56
Oven Trim WCI 318259916 Contact Us For Availability
56A
Trim WCI 318259913 Contact Us For Availability
56A
Trim WCI 318259915 Contact Us For Availability
56A
Oven Trim WCI 318259917 Contact Us For Availability
58A
Insulation WCI 318285060 Contact Us For Availability
58B
Insulation WCI 318285059 Contact Us For Availability
58D
Oven Insulation WCI 318285058 Contact Us For Availability
59A
Bracket WCI 318261600 Contact Us For Availability
70
Shield WCI 318259100 Contact Us For Availability
71
Panel WCI 318260001 Contact Us For Availability
76
Wall Oven Front Frame WCI 318056222 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
82
Shield WCI 318258710 Contact Us For Availability
83
Liner WCI 318261501 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Bracket WCI 318260601 Contact Us For Availability
90
Wall Oven Base Trim WCI 318259711 Contact Us For Availability
90
Wall Oven Vent, Lower (White) WCI 318259710 Contact Us For Availability
90
Oven Trim WCI 318259712 Contact Us For Availability
97
Frigidaire Wall Oven Relay Control Board WCI 316429800 Contact Us For Availability
108
Range Convection Fan Motor Support Bracket WCI 318251300 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Stiffener WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
264
Wall Oven Trim, Center WCI 318257811 Contact Us For Availability
310
Wall Oven Mounting Kit WCI 5304440067 Contact Us For Availability
311
Wall Oven Installation Bracket WCI 318246010 Contact Us For Availability
NI
Wiring Harness WCI 318199738 Contact Us For Availability
NI
Harness WCI 318231740 Contact Us For Availability
NI
Insulation WCI 318268099 Contact Us For Availability
NI
Bracket WCI 318340200 Contact Us For Availability
× ![]()
