Model Kenmore 790.47762400 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - UPPER OVEN

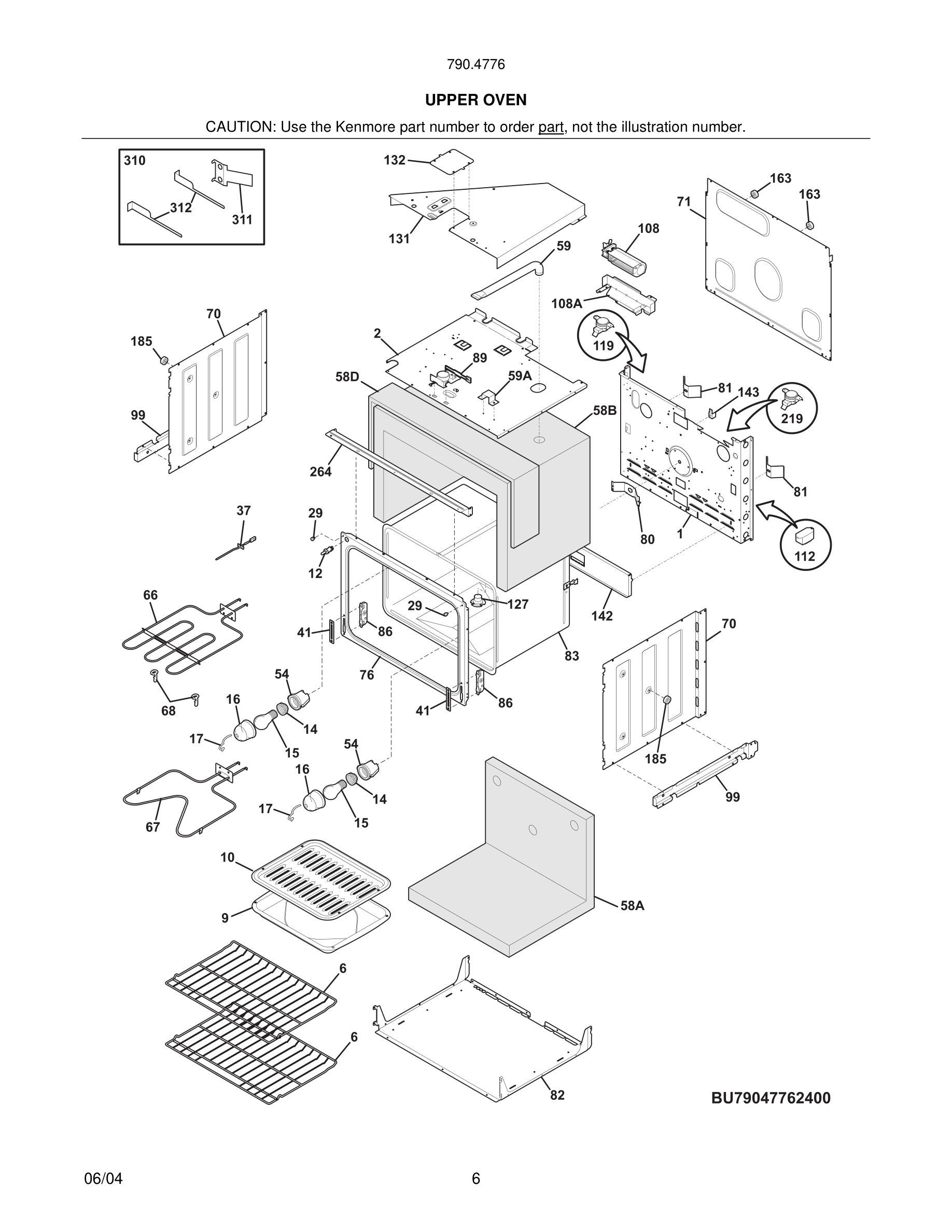

07 - UPPER OVEN
09 - LOWER OVEN

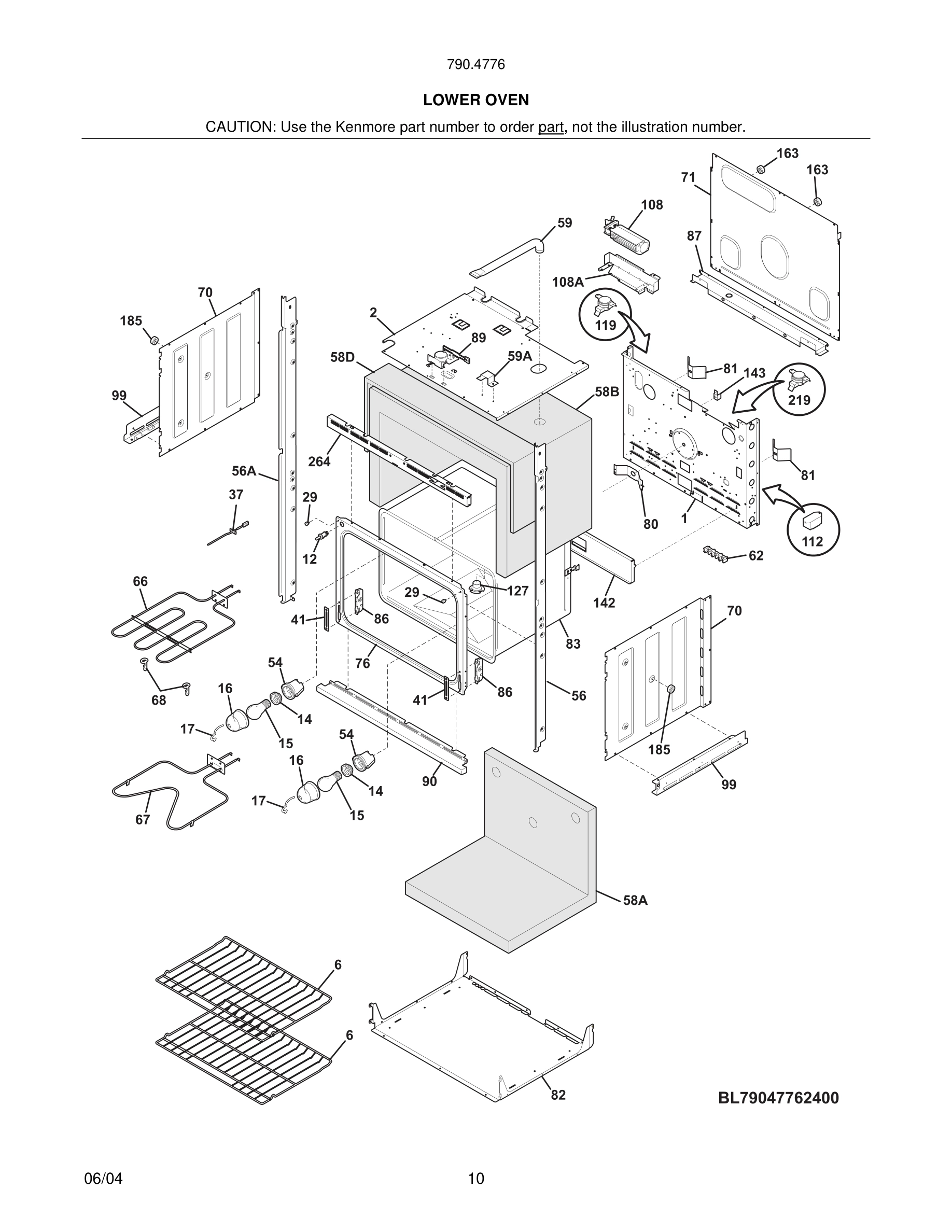

11 - LOWER OVEN
13 - DOOR

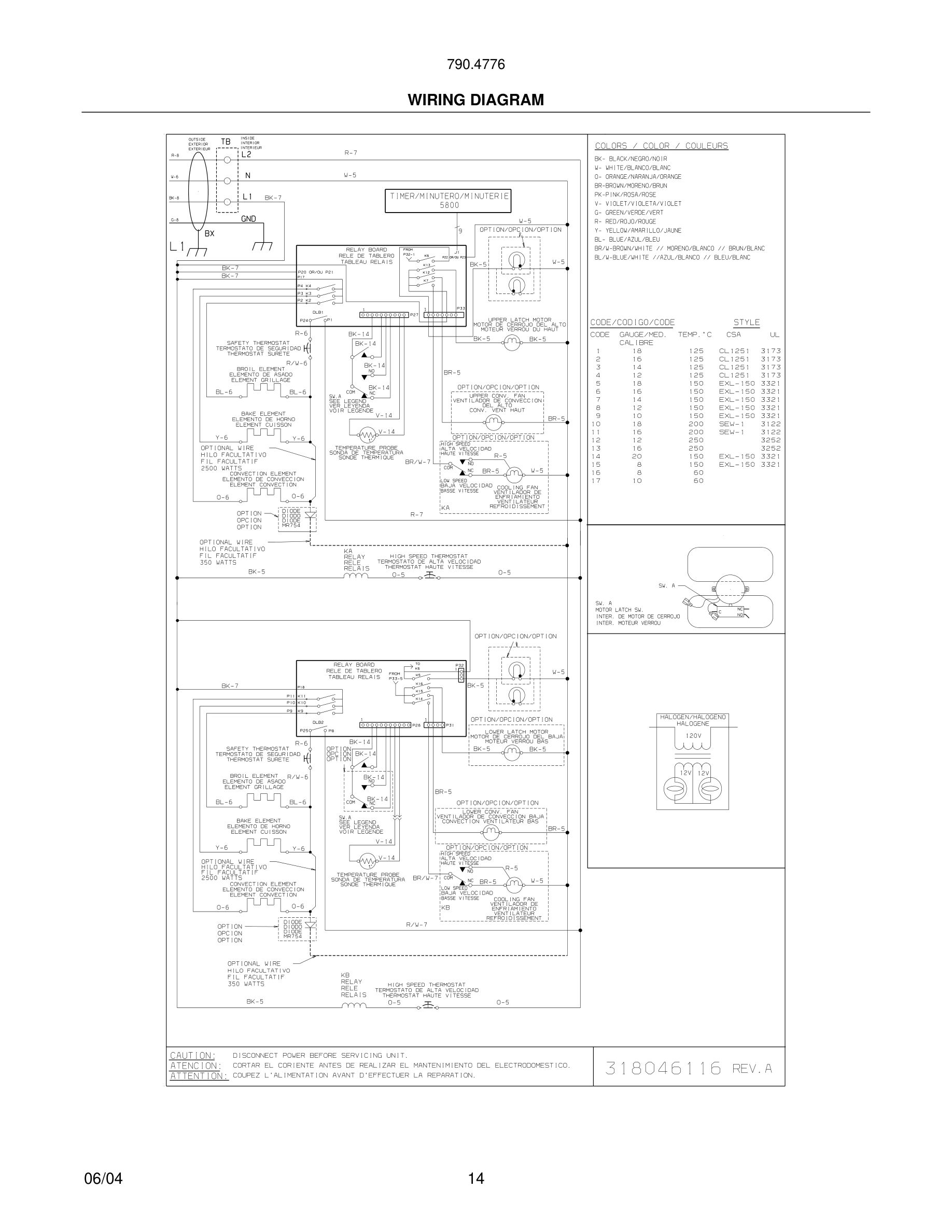

14 - WIRING DIAGRAM
Common parts from model Kenmore 790.47762400 OVEN
*
Harness, wiring, main WCI 318231708 Contact Us For Availability
3
Trim, oven door, black, upper WCI 318260211 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
4
Glass Assy., oven door, black, outer, w/ trim WCI 318261355 Contact Us For Availability
4
Glass Assy., oven door, white, outer, w/ trim WCI 318261353 Contact Us For Availability
4
Glass Assy., oven door, bisque, outer, w/ tri WCI 318261354 Contact Us For Availability
6
Baffle, door WCI 318260510 Contact Us For Availability
8
Glass, oven door, heat barrier WCI 318212200 Contact Us For Availability
9
Liner, oven door WCI 318259611 Contact Us For Availability
12
Seal, upper door WCI 318053125 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, (2) WCI 318264700 Contact Us For Availability
20#
Control, electronic, dual oven WCI 316429703 Contact Us For Availability
23
Hinge, upper door, (2) WCI 318024722 Contact Us For Availability
29
Spacer, door WCI 318014402 Contact Us For Availability
39
Handle, door, black, oven WCI 318264400 Contact Us For Availability
39
Handle, door, white, oven WCI 318264401 Contact Us For Availability
39
Handle, door, bisque, oven WCI 318264402 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
56
Trim, side filler, white, RH WCI 318259912 Contact Us For Availability
56
Trim, side filler, bisque, RH WCI 318259916 Contact Us For Availability
56A
Trim, side filler, white, LH WCI 318259913 Contact Us For Availability
56A
Trim, side filler, bisque, LH WCI 318259917 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318259915 Contact Us For Availability
58A
Insulation, oven wrapper, back/bottom WCI 318133795 Contact Us For Availability
58B
Insulation, oven wrapper, top/sides WCI 318133794 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318133793 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260001 Contact Us For Availability
76
Front, oven WCI 318056222 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258710 Contact Us For Availability
83
Liner, oven assy WCI 318261501 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260601 Contact Us For Availability
90
Trim, oven front, black, bottom WCI 318259711 Contact Us For Availability
90
Trim, oven front, white, bottom WCI 318259710 Contact Us For Availability
90
Trim, oven front, bisque, bottom WCI 318259712 Contact Us For Availability
97
Board, relay, dual oven WCI 316429800 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
112#
Relay WCI 318112701 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire/glass WCI 318172904 Contact Us For Availability
163
Spacer WCI 318014111 Contact Us For Availability
219#
Thermostat, safety WCI 318003606 Contact Us For Availability
264
Trim, oven, black, front WCI 318257811 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
