Model Electrolux 790.47104400 Gas Range (Kenmore 79047104400) – Common Parts & Diagrams
TOP/DRAWER
BURNER

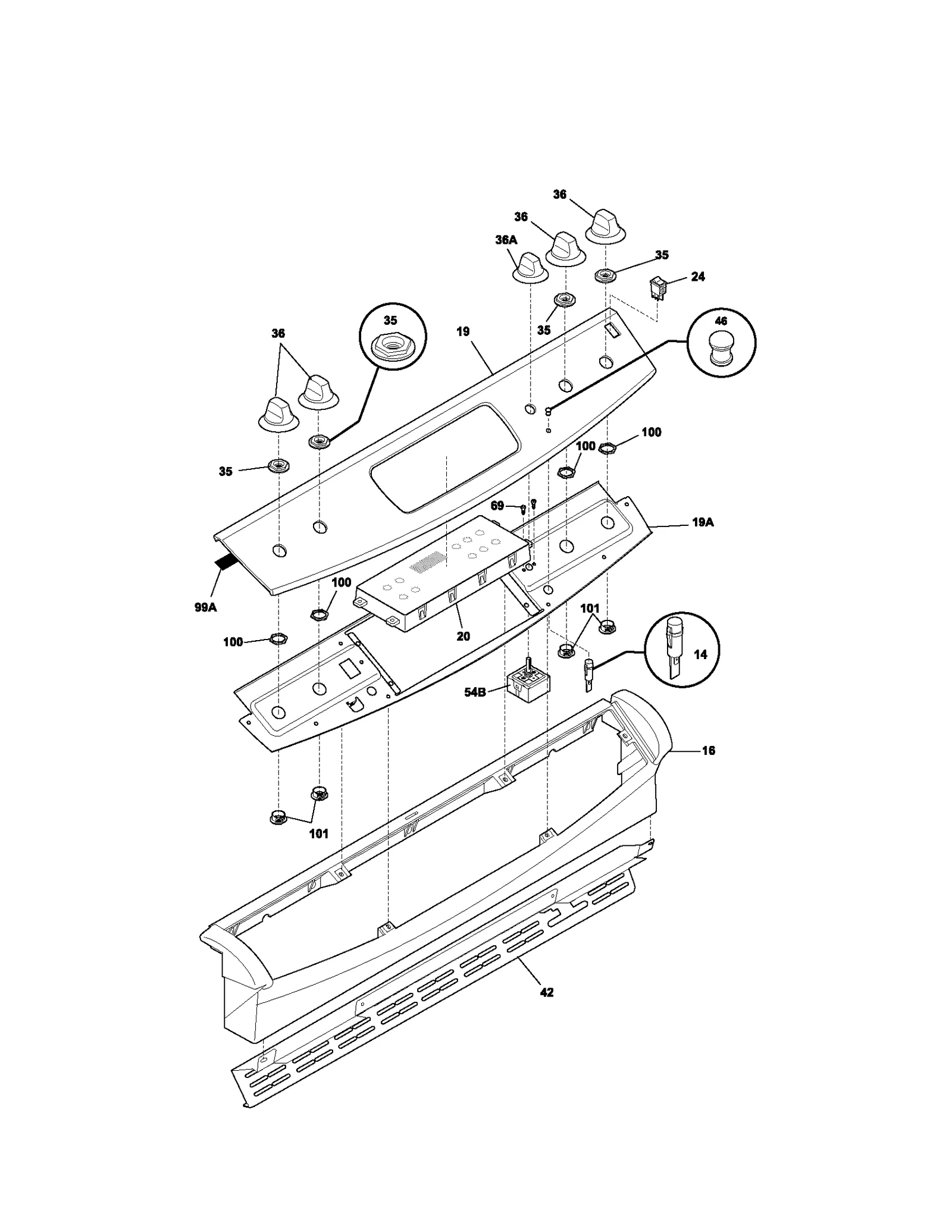

BACKGUARD

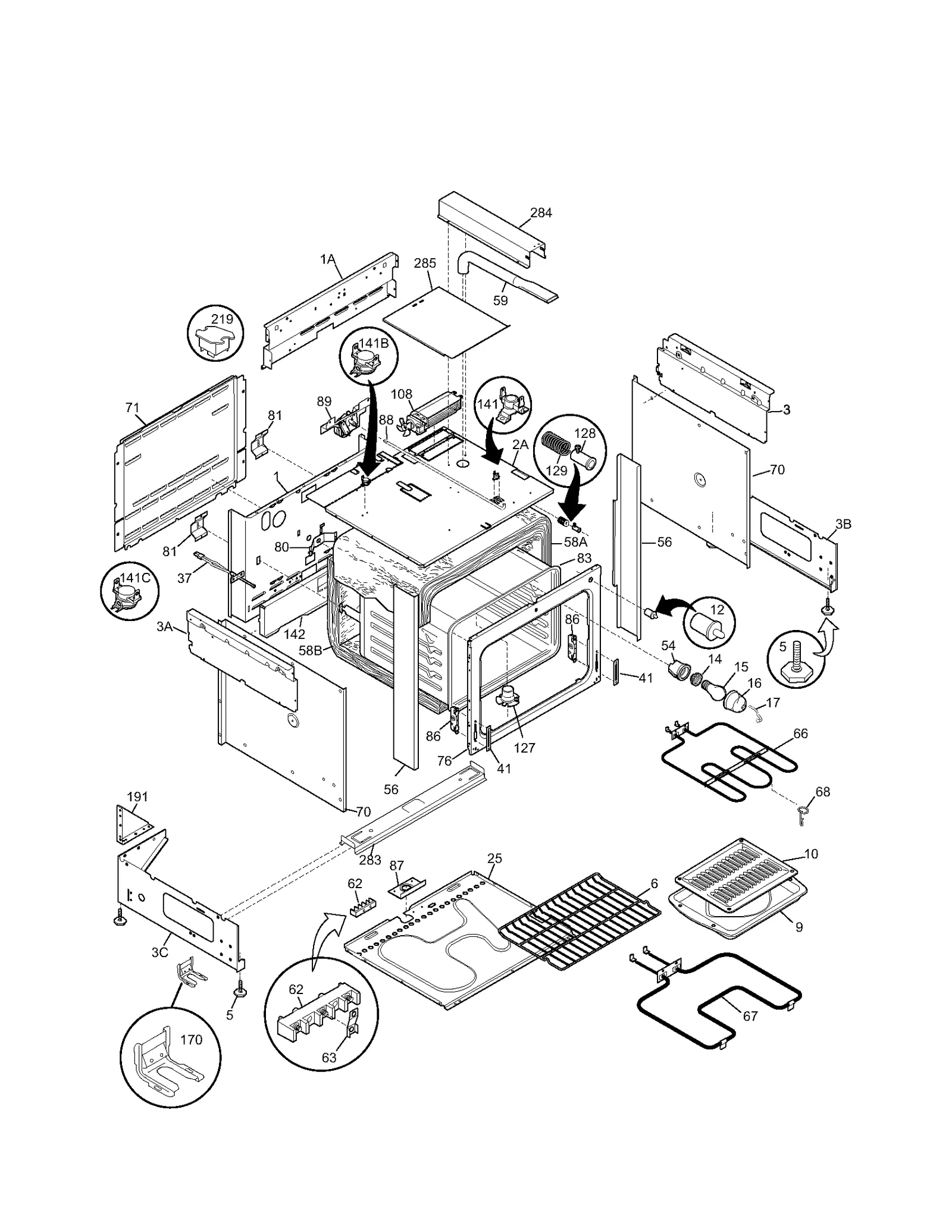

BODY

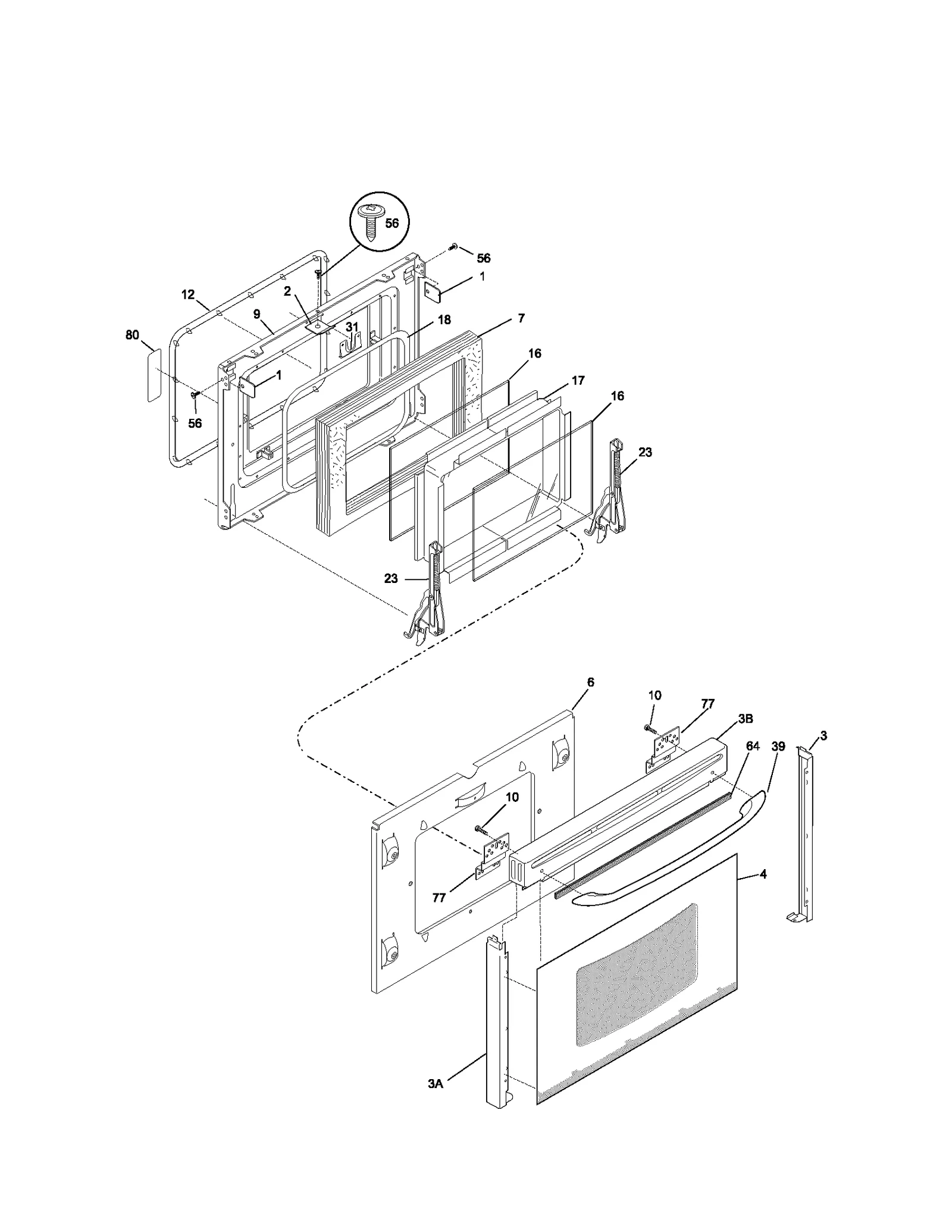

DOOR
Common parts from model Electrolux 790.47104400 Gas Range (Kenmore 79047104400)
1
Main WCI 318066402 Contact Us For Availability
1
Bracket WCI 318180310 Contact Us For Availability
1A
Panel WCI 318225100 Contact Us For Availability
2
Cooktop Burner Valve WCI 318233920 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
2A
Valve WCI 318233930 Contact Us For Availability
2A
Shield WCI 318227600 Contact Us For Availability
2C
Cooktop Burner Valve WCI 318233910 Contact Us For Availability
3
Panel WCI 318225200 Contact Us For Availability
3
Oven Trim WCI 318187810 Contact Us For Availability
3
Trim WCI 318187812 Contact Us For Availability
3
Range Trim WCI 318187814 Contact Us For Availability
3A
Panel WCI 318225201 Contact Us For Availability
3A
Oven Trim WCI 318187811 Contact Us For Availability
3A
Lh Door Trim WCI 318187813 Contact Us For Availability
3A
Trim, Left WCI 318187815 Contact Us For Availability
3B
Rh Panel WCI 318160010 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176647 Contact Us For Availability
3B
Trim WCI 318176648 Contact Us For Availability
3C
Lh Lo Panel WCI 318160011 Contact Us For Availability
4
Panel WCI 318187721 Contact Us For Availability
4
Range Front Door Panel Lower Trim (Bisque) WCI 318187722 Contact Us For Availability
4
Range Oven Door Outer Panel (Black) WCI 318187723 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Rack WCI 318025308 Contact Us For Availability
6
Shield WCI 318056802 Contact Us For Availability
7
Insulation WCI 318133781 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
10A
Frigidaire Range Surface Burner Head WCI 316223400 Contact Us For Availability
11
Igniter and Orifice Holder WCI 318221310 Contact Us For Availability
11A
Cooktop Igniter WCI 318221314 Contact Us For Availability
11C
Range Surface Burner Igniter and Orifice Hold WCI 318221311 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
16
Range Main Top WCI 318223700 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
19A
Range Panel WCI 318224402 Contact Us For Availability
20
Clock Timer WCI 318185480 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22A
Range Surface Burner Cap (Black) WCI 316219800 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
24
Oven Switch WCI 318037520 Contact Us For Availability
25
Shield WCI 318179108 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
35
Retainer WCI 318233700 Contact Us For Availability
35
Retainer WCI 318233701 Contact Us For Availability
35
Retainer WCI 318233702 Contact Us For Availability
36
Range Surface Burner Knob (Black) WCI 316208119 Contact Us For Availability
36
Range Burner Control Knob WCI 316208118 Contact Us For Availability
36
Knob WCI 316208120 Contact Us For Availability
36A
Knob WCI 318229400 Contact Us For Availability
36A
Knob WCI 318229401 Contact Us For Availability
36A
Range Knob WCI 318229402 Contact Us For Availability
39
Oven Handle WCI 316209701 Contact Us For Availability
39
Oven Door Handle WCI 316209702 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim WCI 318224301 Contact Us For Availability
44A
Range Surface Burner Orifice WCI 316237900 Contact Us For Availability
44B
Range Surface Burner Orifice Assembly WCI 316237903 Contact Us For Availability
46
Lens WCI 318228300 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
54B
Switch WCI 318078810 Contact Us For Availability
56
Trim WCI 318225901 Contact Us For Availability
56
Oven Trim WCI 318225902 Contact Us For Availability
56
Trim WCI 318225903 Contact Us For Availability
58A
Insulation WCI 318133744 Contact Us For Availability
58B
Insulation WCI 318133769 Contact Us For Availability
59
Tube WCI 318072534 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Front WCI 318225302 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
80
Range Warming Drawer Gasket WCI 318054310 Contact Us For Availability
80
Range Anti-Tip Decal WCI 316221000 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
84
Range Safety Thermostat WCI 318005103 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111803 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
100
Range Surface Burner Control Switch Mounting WCI 318233800 Contact Us For Availability
101
Bushing WCI 318233400 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Range Thermal Cut-Off WCI 318005201 Contact Us For Availability
141
Thermostat WCI 318003607 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
153
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
153
Cooktop Burner Skirt, 14,000-BTU WCI 316264901 Contact Us For Availability
170
Range Anti-Tip Bracket WCI 5304405244 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
219
Range Cooling Fan Relay WCI 318112701 Contact Us For Availability
283
REINFORCEMENT BRACKET WCI 318179400 Contact Us For Availability
284
Box WCI 318226600 Contact Us For Availability
285
Shield WCI 318236200 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Wiring Diagram WCI 318045092 Contact Us For Availability
NI
Service Data Sheet WCI 318127013 Contact Us For Availability
NI
Use and Care Guide WCI 318200868 Contact Us For Availability
NI
Instructions WCI 318201662 Contact Us For Availability
NI
Parts List WCI 5995391868 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Bushing WCI 5304400795 Contact Us For Availability
× ![]()
