Model Electrolux 790.46991100 Electric Slide-In Range (Kenmore 79046991100) – Common Parts & Diagrams

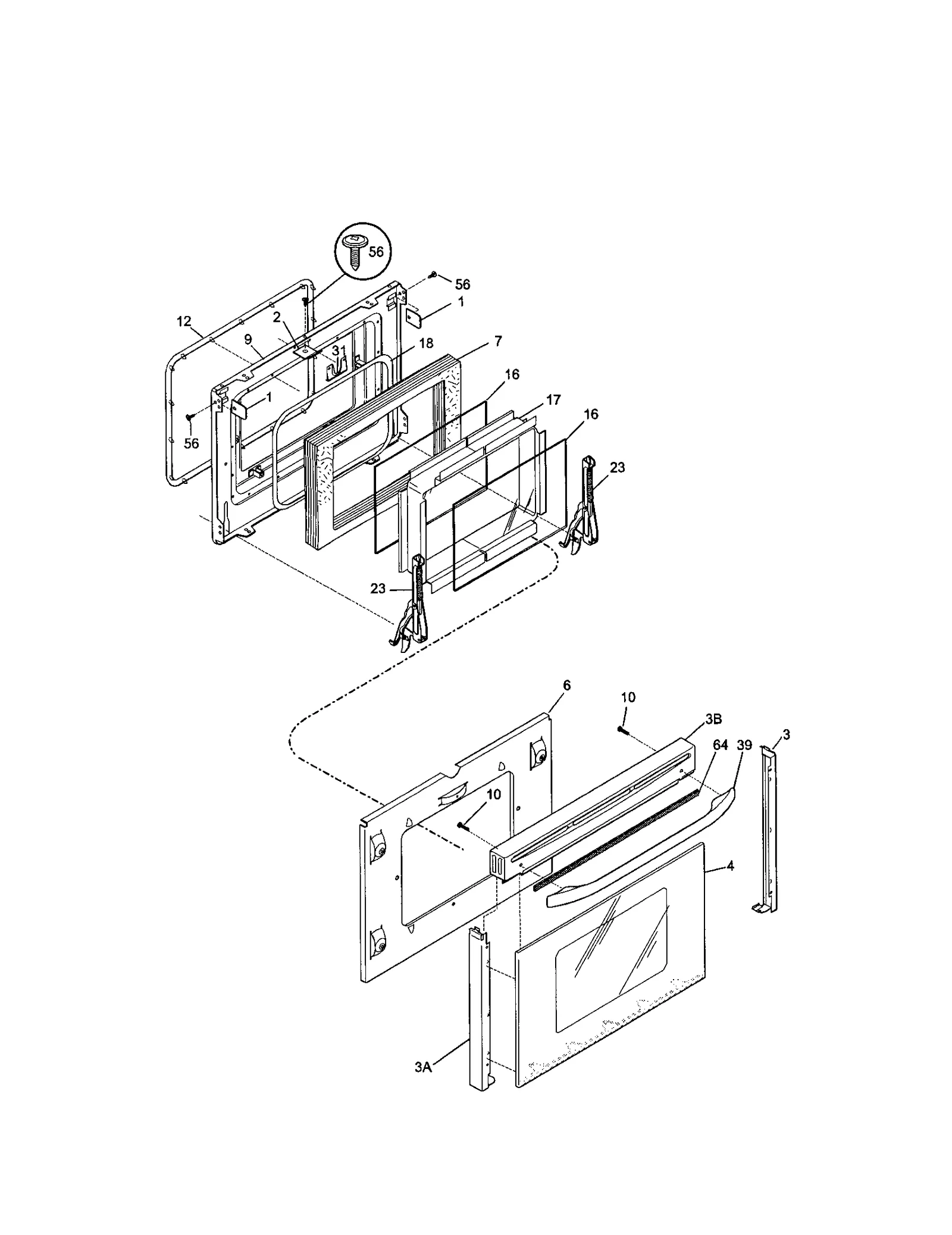

DOOR

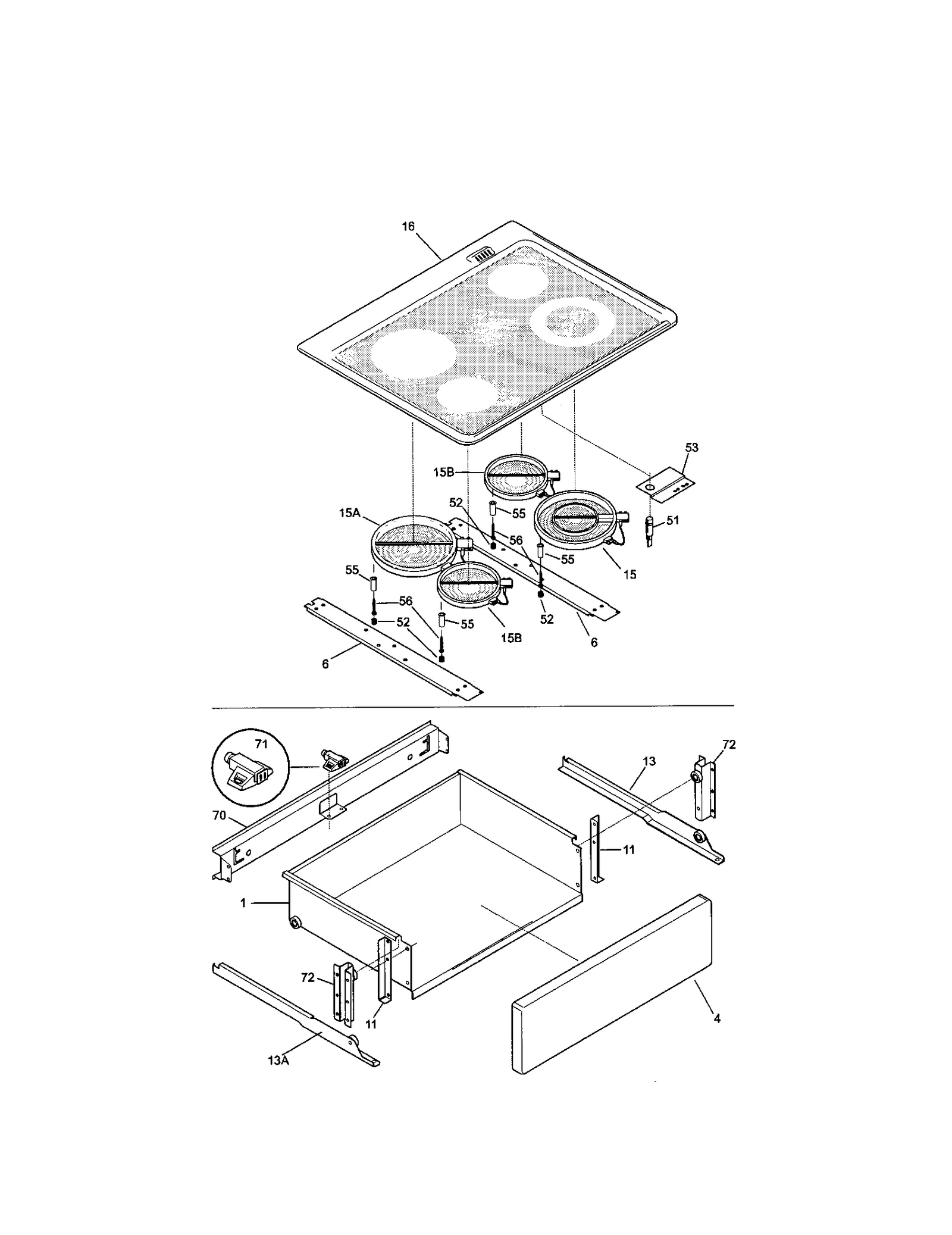

TOP/DRAWER

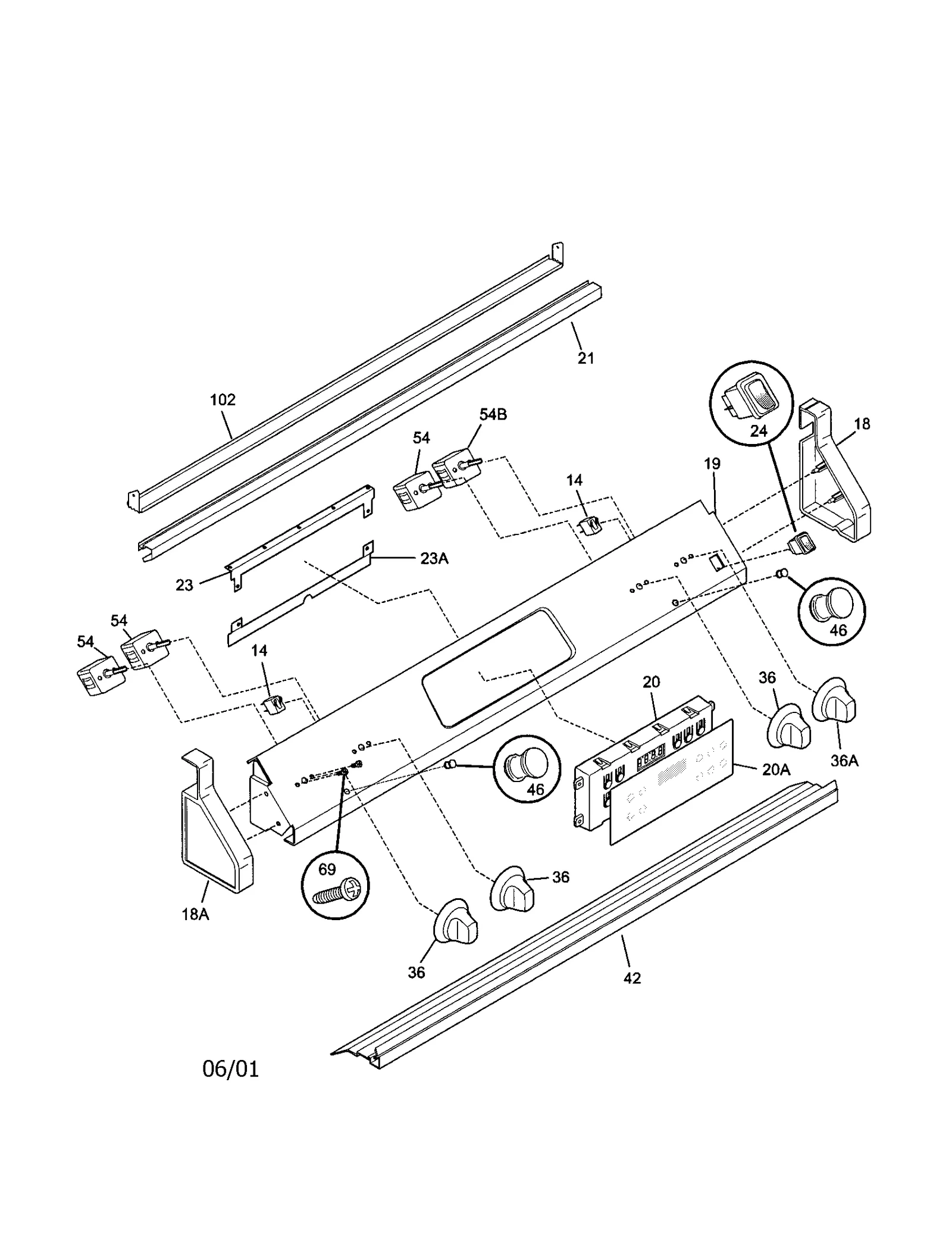

BACKGUARD
All Parts

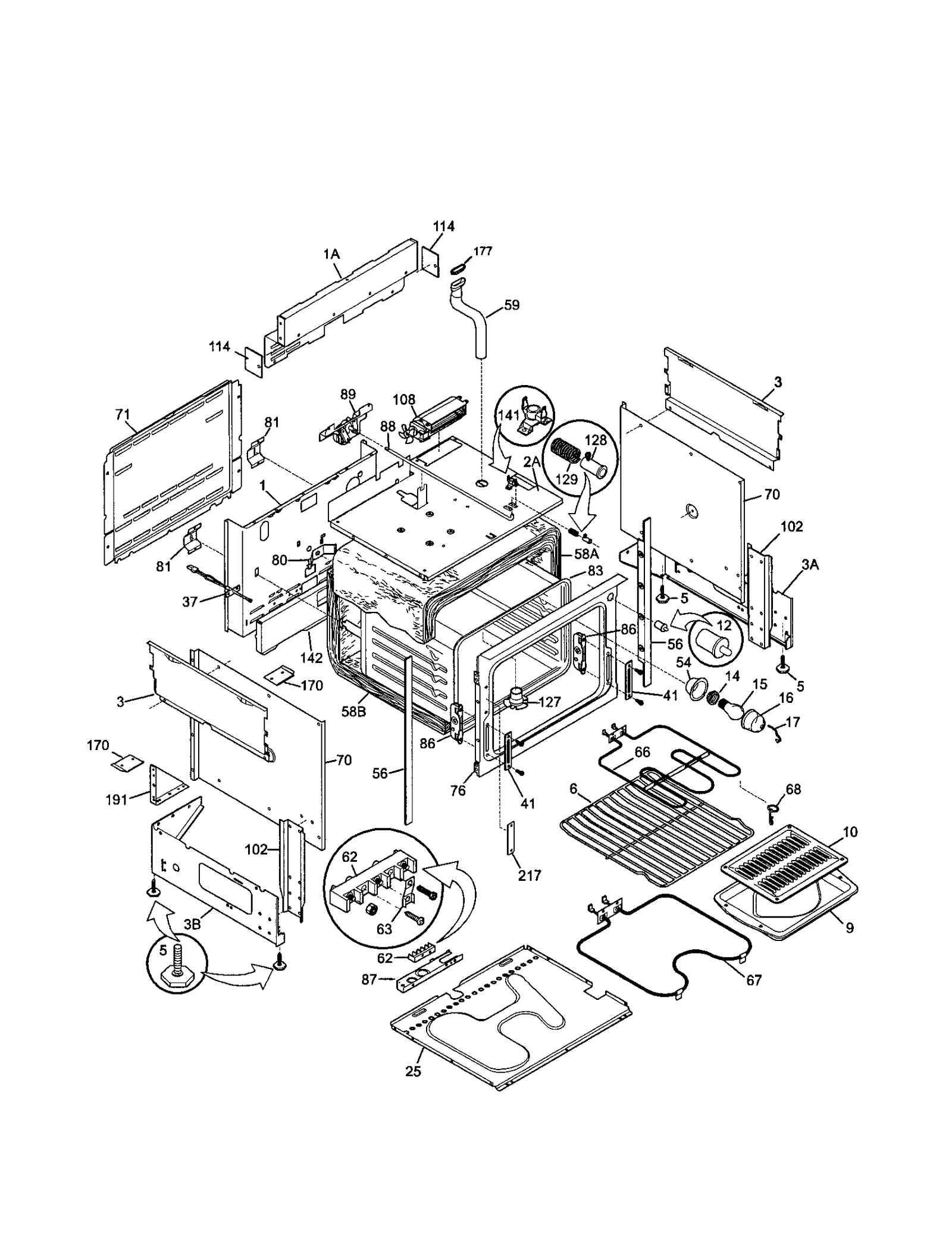

BODY
Common parts from model Electrolux 790.46991100 Electric Slide-In Range (Kenmore 79046991100)
1
Main WCI 318066402 Contact Us For Availability
1A
Main WCI 318070910 Contact Us For Availability
2A
Oven Shield WCI 318108600 Contact Us For Availability
3
Panel WCI 318159800 Contact Us For Availability
3A
Rh Panel WCI 318160010 Contact Us For Availability
3B
Lh Lo Panel WCI 318160011 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318187715 Contact Us For Availability
4B
Panel WCI 318134012 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
SUPPORT, ELEMENT (2) WCI 318194800 Contact Us For Availability
6
Oven Rack WCI 5303310522 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
11
Drawer Bracket WCI 5303311125 Contact Us For Availability
13
Drawer Channel WCI 5303311129 Contact Us For Availability
13A
Drawer Channel WCI 5303311130 Contact Us For Availability
14
Range Indicator Light WCI 5303051533 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
16
Top WCI 318079542 Contact Us For Availability
16A
Range Main Top WCI 318079543 Contact Us For Availability
16B
Top WCI 318079553 Contact Us For Availability
16C
Cooktop Main Top (Black) WCI 318079544 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254698 Contact Us For Availability
18B
Range Control Panel End Cap Set WCI 318254697 Contact Us For Availability
18C
End Cap-rh WCI 5303300160 Contact Us For Availability
19
Control Panel WCI 318182906 Contact Us For Availability
19A
Control Panel WCI 318182908 Contact Us For Availability
19B
Control Panel WCI 318182907 Contact Us For Availability
20
Clock WCI 318184401 Contact Us For Availability
20AA
Clock Overlay WCI 316220819 Contact Us For Availability
21
Trim Backguard WCI 318027804 Contact Us For Availability
21A
Trim Backguard WCI 318027807 Contact Us For Availability
21B
Trim Backguard WCI 318027803 Contact Us For Availability
23
Range Oven Control Board Bracket, Upper WCI 318015040 Contact Us For Availability
23A
Range Lower Bracket WCI 318015041 Contact Us For Availability
24A
Oven Switch WCI 318037520 Contact Us For Availability
25
PANEL, HEAT SHIELD, SM OVEN BOTTOM WCI 318179107 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Control Knob WCI 318196300 Contact Us For Availability
36A
Control Knob WCI 318196310 Contact Us For Availability
36AA
Range Control Knob WCI 318196311 Contact Us For Availability
36AB
Control Knob WCI 318196312 Contact Us For Availability
36B
Control Knob WCI 318196301 Contact Us For Availability
36C
Control Knob WCI 318196302 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim-vent Wh WCI 318106924 Contact Us For Availability
42A
Console Plate WCI 318106925 Contact Us For Availability
42B
Trim-vent Bl WCI 318106927 Contact Us For Availability
53
Bracket WCI 318125932 Contact Us For Availability
54
Range Surface Element Control Switch WCI 318120501 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
55
Cooking Appliance Element Spacer WCI 5303317178 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
56
Wht Ov Trim WCI 318002612 Contact Us For Availability
56A
Ov Frnt Trim WCI 318002614 Contact Us For Availability
56B
Oven Trim WCI 318002611 Contact Us For Availability
58A
Insulation WCI 5303310539 Contact Us For Availability
58B
Oven Insulation WCI 318132609 Contact Us For Availability
59
Tube WCI 318072502 Contact Us For Availability
63
Ground Plate WCI 5303310517 Contact Us For Availability
70
Bracket-slid WCI 5303311143 Contact Us For Availability
70
Retainer Insert WCI 5303300142 Contact Us For Availability
71
Magnet & Spr WCI 5303311144 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
72
Bracket & Wh WCI 5303311145 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111803 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 5303311160 Contact Us For Availability
89A
Latch Switch WCI 318120710 Contact Us For Availability
102
Mounting Bracket WCI 318055601 Contact Us For Availability
102
Oven Support WCI 5303311142 Contact Us For Availability
108
Fan Motor WCI 318073001 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Thermostat Switch WCI 5303284446 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
170
Range Anti-Tip Bracket WCI 5304405244 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Service Data Sheet WCI 318127005 Contact Us For Availability
NI
Cooktop Use and Care Guide WCI 318200828 Contact Us For Availability
NI
Installation WCI 318201603 Contact Us For Availability
NI
Screw WCI 5303325171 Contact Us For Availability
NI
Cap WCI 5303325173 Contact Us For Availability
NI
Repair Parts List WCI 5995353835 Contact Us For Availability
× ![]()
