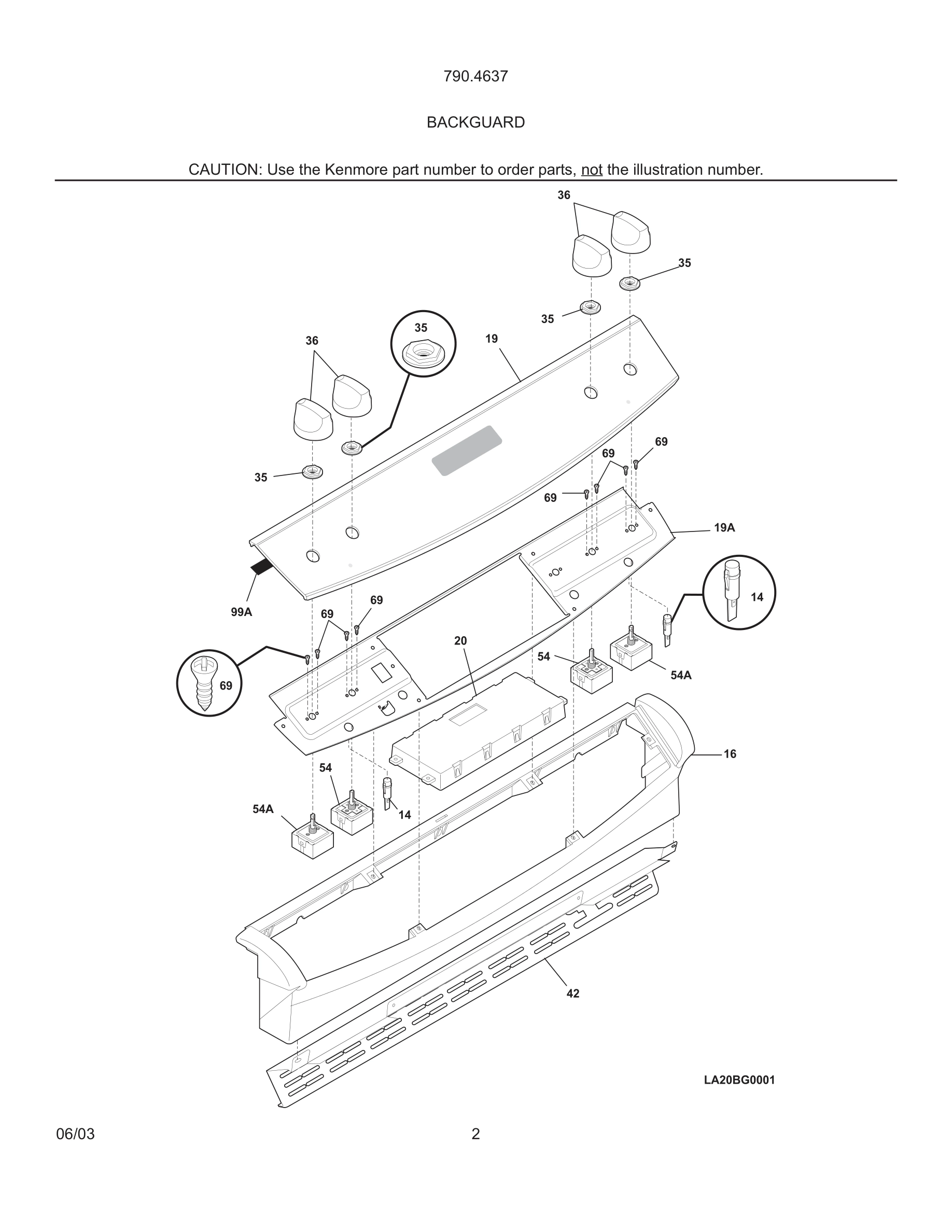

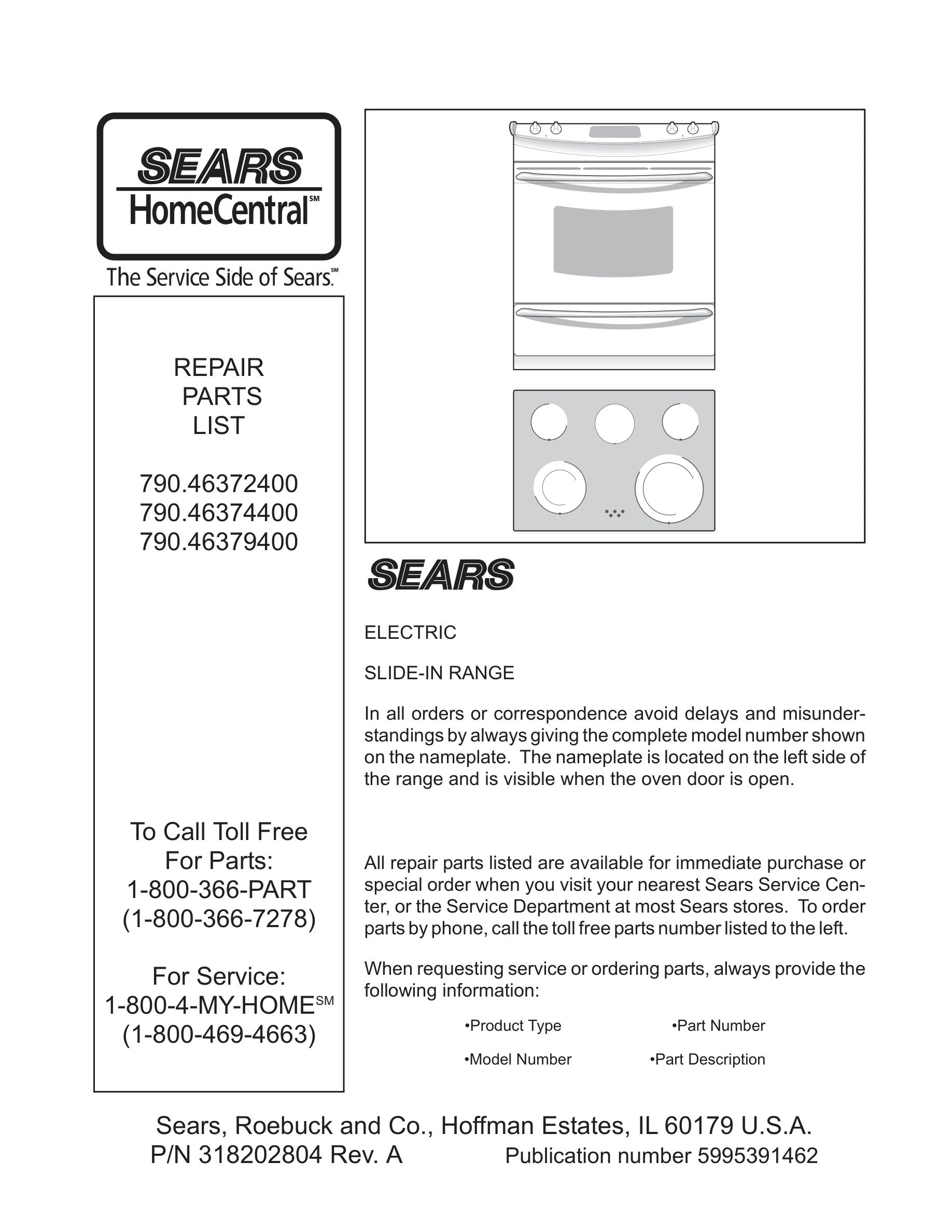

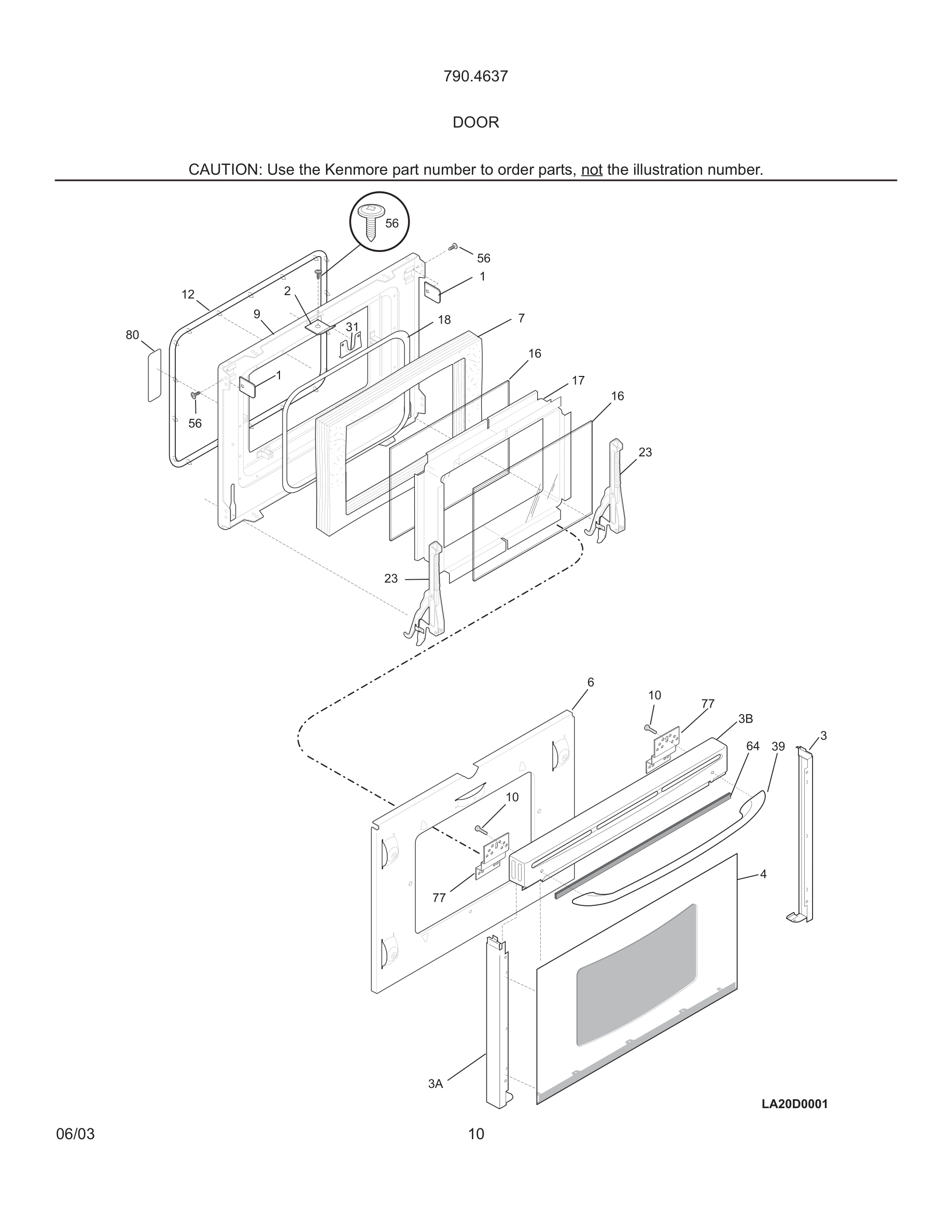

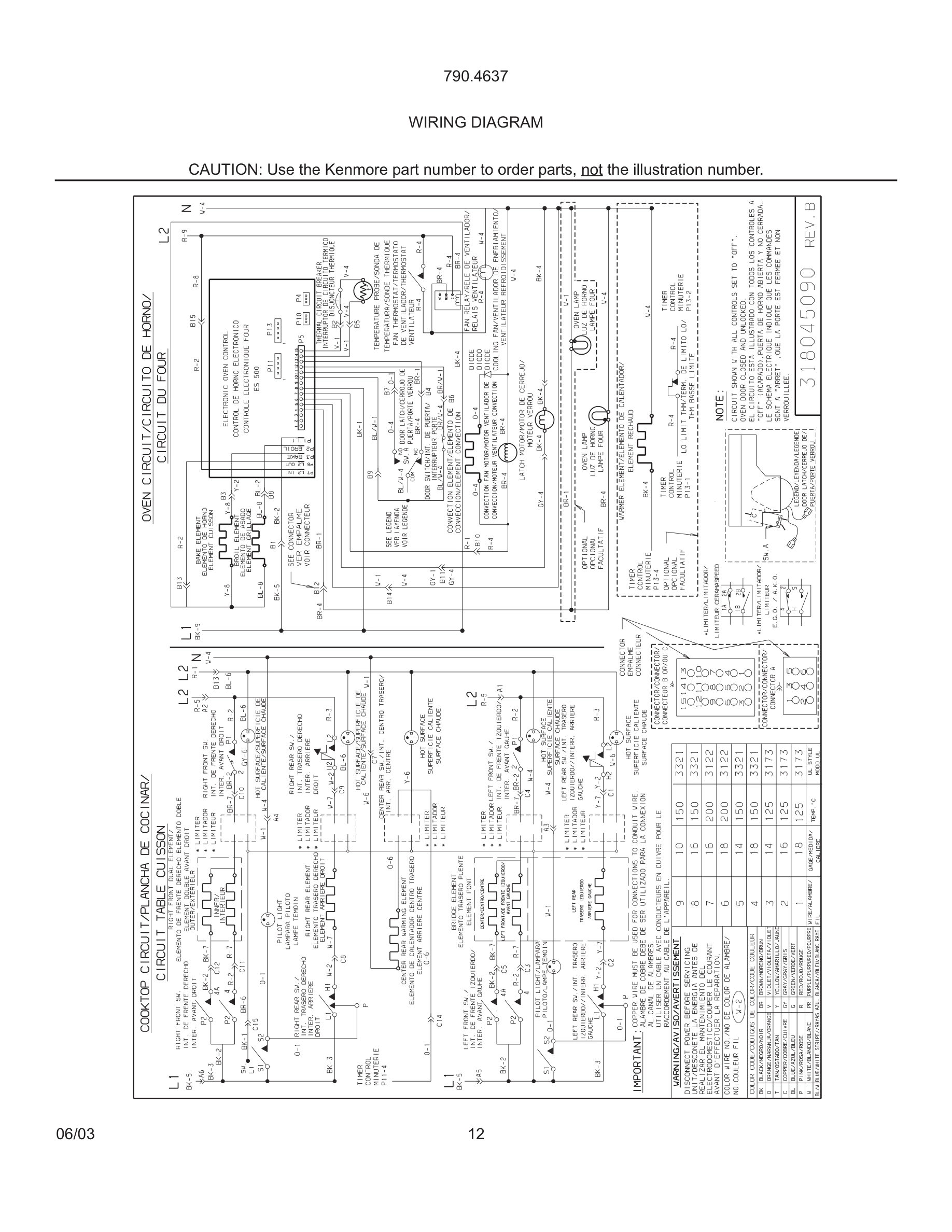

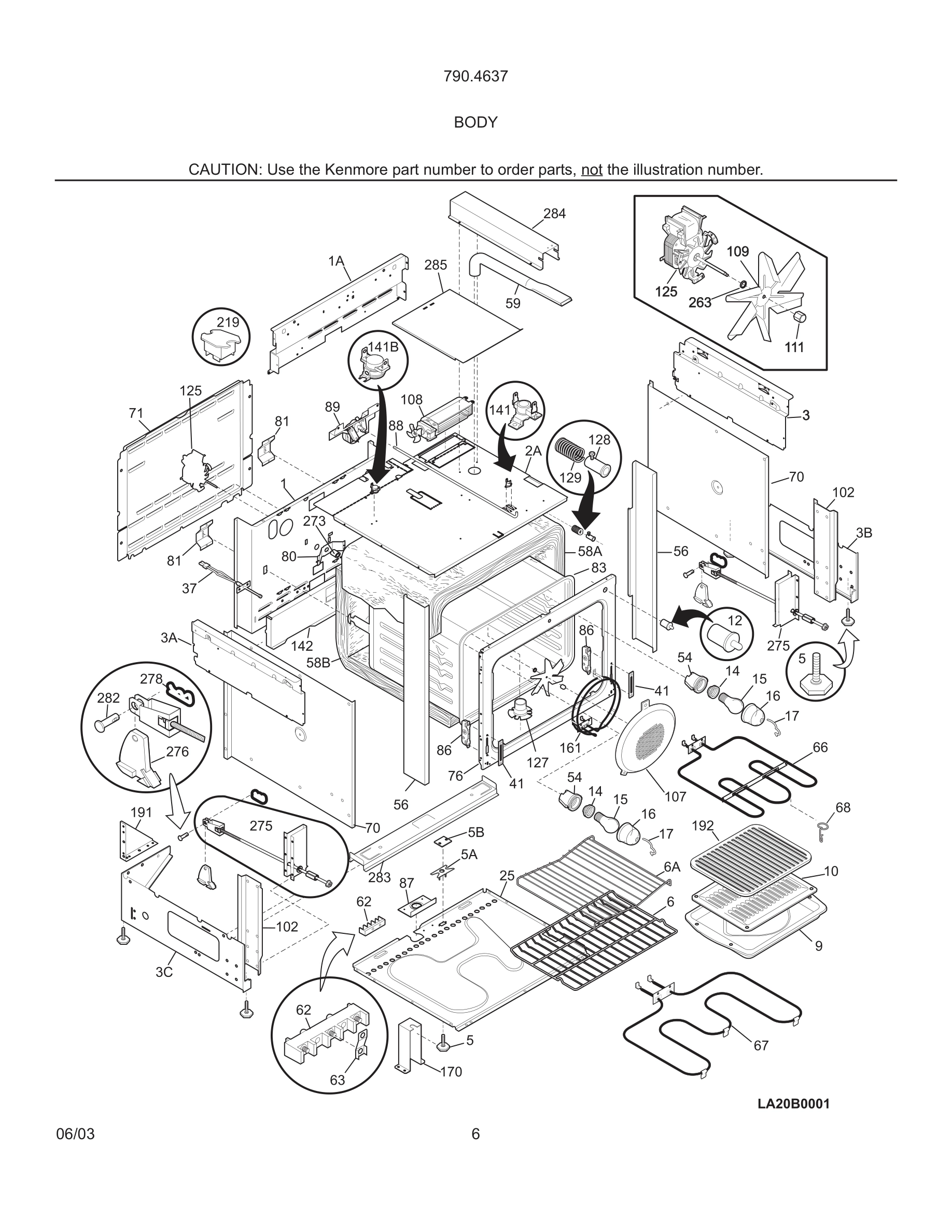

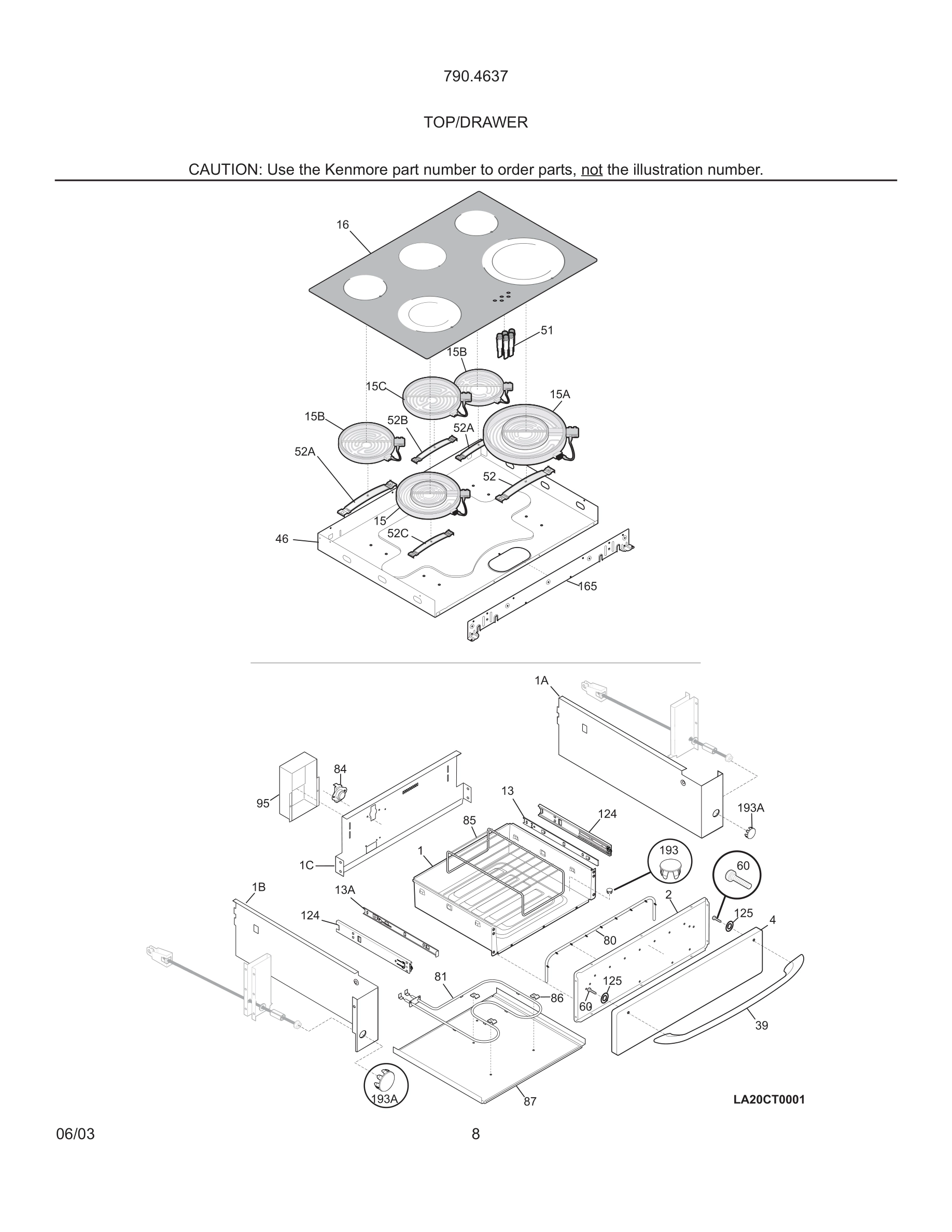

Model Kenmore 790.46372400 RANGE – Common Parts &amp; Diagrams

*

5303307980 Frigidaire Oven Screw Backorder WCI 5303307980 $9.06

*

Bushing,snap-in ,nylon WCI 5304400795 Contact Us For Availability

*

Clip,wiring WCI 318226300 Contact Us For Availability

*

Cleaner,cooktop WCI 316112100 Contact Us For Availability

*

Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability

1

Drawer,warmer WCI 318142500 Contact Us For Availability

1

Bracket,trim mtg WCI 318180310 Contact Us For Availability

1A

Deflector,warmer drawer ,RH WCI 318143333 Contact Us For Availability

1B

Deflector,warmer drawer ,LH WCI 318143332 Contact Us For Availability

1C

Deflector,warmer drawer ,rear WCI 318143203 Contact Us For Availability

2

Liner,drawer WCI 318108021 Contact Us For Availability

2

Bracket,upper trim mtg WCI 318180312 Contact Us For Availability

3

Trim,door ,white ,RH side WCI 318187810 Contact Us For Availability

3

Trim,door ,bisque ,RH side WCI 318187812 Contact Us For Availability

3

Trim,door ,black ,RH side WCI 318187814 Contact Us For Availability

3A

Trim,door ,white ,LH side WCI 318187811 Contact Us For Availability

3A

Trim,door ,bisque ,LH side WCI 318187813 Contact Us For Availability

3A

Trim,door ,black ,LH side WCI 318187815 Contact Us For Availability

3B

Trim,door ,white ,top WCI 318176646 Contact Us For Availability

3B

Trim,door ,bisque ,top WCI 318176648 Contact Us For Availability

3B

Trim,door ,black ,top WCI 318176647 Contact Us For Availability

4

Panel,drawer ,white ,front WCI 318134015 Contact Us For Availability

4

Panel,drawer ,bisque ,front WCI 318134016 Contact Us For Availability

4

Panel,drawer ,black ,front WCI 318134017 Contact Us For Availability

4

Panel,door front assy ,glass ,white ,with low WCI 318187721 Contact Us For Availability

4

Panel,door front assy ,glass ,bisque ,with lo WCI 318187722 Contact Us For Availability

4

Panel,door front assy ,glass ,black ,with low WCI 318187723 Contact Us For Availability

5

Screw,leveling WCI 318175503 Contact Us For Availability

6

Rack,oven WCI 318025311 Contact Us For Availability

6

Shield,insulation WCI 318056802 Contact Us For Availability

7

Insulation,oven door WCI 318133754 Contact Us For Availability

9

Liner,door WCI 318157011 Contact Us For Availability

12

318053103 Frigidaire Oven Door Seal Gasket Backorder WCI 318053103 $83.75

13

318259507 Frigidaire Oven Glide In Stock WCI 318259507 $40.80

13A

318259506 Frigidaire Oven Glide Backorder WCI 318259506 $40.80

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

316555800 Frigidaire Oven Dual Radiant Elemen In Stock WCI 316555800 $86.71

15A#

316282100 Frigidaire Oven Dual Surface Elemen In Stock WCI 316282100 $169.09

15B#

318198817 Frigidaire Oven Element Backorder WCI 318198817 $8.75

15C#

Element,surface ,warmer ,100 W WCI 318198804 Contact Us For Availability

Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability

Main Top,glass assy. ,black WCI 318223625 Contact Us For Availability

Main Top,glass assy. ,white WCI 318223623 Contact Us For Availability

Main Top,glass assy. ,bisque WCI 318223624 Contact Us For Availability

17

Retainer,light cover WCI 5304400195 Contact Us For Availability

17

Spacer,glass WCI 318042102 Contact Us For Availability

18

Seal,window WCI 318053001 Contact Us For Availability

19

Panel,control assy. ,white ,w/ membrane WCI 318239713 Contact Us For Availability

19A

Panel,control mtg. WCI 318224403 Contact Us For Availability

20#

Clock/Timer,electronic ,ES550 WCI 316272208 Contact Us For Availability

23

Hinge,oven door WCI 318024700 Contact Us For Availability

31

Latch,oven door WCI 5303310536 Contact Us For Availability

37#

316217002 Frigidaire Oven Temperature Probe In Stock WCI 316217002 $43.36

39

Handle,door ,white WCI 316268301 Contact Us For Availability

39

Handle,door ,bisque WCI 316268302 Contact Us For Availability

39

Handle,door ,black WCI 316268300 Contact Us For Availability

41

Cover,hinge cutout WCI 5303310526 Contact Us For Availability

46

Box,burner WCI 318225401 Contact Us For Availability

51#

318044827 Frigidaire Oven Light Backorder WCI 318044827 $38.09

52

Spring,element mtg ,large WCI 318122007 Contact Us For Availability

52A

318122006 Frigidaire Small Element Mounting S Backorder WCI 318122006 $41.88

52B

Spring,element mtg ,700W & 2100W WCI 318122004 Contact Us For Availability

52C

318122010 Frigidaire Oven Spring Assembly Backorder WCI 318122010 $39.52

54

Housing,oven light WCI 318222400 Contact Us For Availability

54A#

318191023 Frigidaire Oven Switch In Stock WCI 318191023 $39.20

5303300265 Frigidaire Oven Screw Backorder WCI 5303300265 $9.04

Trim,oven ,white WCI 318225901 Contact Us For Availability

Trim,oven ,bisque WCI 318225903 Contact Us For Availability

Trim,oven ,black WCI 318225902 Contact Us For Availability

58A

Insulation,oven wrapper WCI 318133744 Contact Us For Availability

58B

Insulation,oven back WCI 318133769 Contact Us For Availability

59

Tube,vent ,oven WCI 318072534 Contact Us For Availability

60

5303311174 Frigidaire Oven Screw Backorder WCI 5303311174 $9.50

62#

5304409888 Frigidaire Oven Terminal Block Ass In Stock WCI 5304409888 $16.27

62*

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25

63

Plate,grounding strap WCI 316208500 Contact Us For Availability

64

Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability

66#

318255605 Frigidaire Oven Broil Element Range In Stock WCI 318255605 $115.29

67#

318255401 Frigidaire Oven Element In Stock WCI 318255401 $151.75

68

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 $20.91

69

5303288565 Frigidaire Screw In Stock WCI 5303288565 $1.87

70

Shield,insulation WCI 318194400 Contact Us For Availability

71

Panel,wiring cover ,rear WCI 5303310515 Contact Us For Availability

76

Front,oven WCI 318225302 Contact Us For Availability

77

Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability

80

Gasket,warmer drawer WCI 318054310 Contact Us For Availability

80

Plate,oven mtg WCI 5303320846 Contact Us For Availability

80

Label,anti-tip WCI 316221000 Contact Us For Availability

81

Spring,oven WCI 318192400 Contact Us For Availability

81#

318255301 Frigidaire Oven Element In Stock WCI 318255301 $62.29

83

Liner,oven assy WCI 318089617 Contact Us For Availability

84#

Thermostat,safety WCI 318005103 Contact Us For Availability

85

807328301 Frigidaire Oven Rack Backorder WCI 807328301 $51.54

86

Receptacle,hinge WCI 5303310524 Contact Us For Availability

86

Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability

87

Plate,mounting WCI 318111803 Contact Us For Availability

87

Base,warmer WCI 318121503 Contact Us For Availability

88

Rod,latch WCI 318118904 Contact Us For Availability

89#

318095957 Frigidaire Oven Motor Backorder WCI 318095957 $85.37

89*

Switch WCI 318120711 Contact Us For Availability

95

Cover,wire WCI 318143702 Contact Us For Availability

102

Support,oven front WCI 5303311142 Contact Us For Availability

107

Cover,fan WCI 318219401 Contact Us For Availability

108#

318073028 Frigidaire Oven Motor Backorder WCI 318073028 $161.94

109

318398302 Frigidaire Stove Oven Range Convect In Stock WCI 318398302 $15.38

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.20

124

316105501 Frigidaire P-1 Glide Backorder WCI 316105501 $57.37

125

134716700 Frigidaire Washer Backorder WCI 134716700 $1.35

125#

Motor,fan WCI 316234601 Contact Us For Availability

127

318317100 Frigidaire Adapter Assembly Backorder WCI 318317100 $47.51

128

Bushing WCI 5303311163 Contact Us For Availability

129

5303311164 Frigidaire Oven Spring Backorder WCI 5303311164 $11.32

141#

Switch,thermal cutout WCI 318005201 Contact Us For Availability

141B

Thermostat,safety WCI 318003607 Contact Us For Availability

142

Deflector WCI 318123901 Contact Us For Availability

161#

Element,convection ,2500 W WCI 318050710 Contact Us For Availability

165

Plate,mounting WCI 318227500 Contact Us For Availability

170

Bracket,Anit-tip WCI 5304417440 Contact Us For Availability

191

Bracket,angle ,corner WCI 5303304030 Contact Us For Availability

192

5304495353 Frigidaire Oven Griddle Backorder WCI 5304495353 $114.16

193

Cap,plug WCI 5303325173 Contact Us For Availability

193A

Plug,button WCI 3204817 Contact Us For Availability

219#

Relay WCI 318112701 Contact Us For Availability

263

316008401 Frigidaire Washer P-1 In Stock WCI 316008401 $7.23

273

Tube,protector WCI 5303311207 Contact Us For Availability

275

Leveling assy WCI 318174800 Contact Us For Availability

276

Came WCI 318096200 Contact Us For Availability

278

Lock Pin WCI 5304412258 Contact Us For Availability

282

Pivot pin WCI 5304412259 Contact Us For Availability

283

Support,reinforcement WCI 318179400 Contact Us For Availability

284

Box,vent tube WCI 318226600 Contact Us For Availability

285

Shield,hidden wires WCI 318236200 Contact Us For Availability
