Model Electrolux 790.46139301 Gas Range (Kenmore 79046139301) – Common Parts & Diagrams
BACKGUARD
TOP/DRAWER

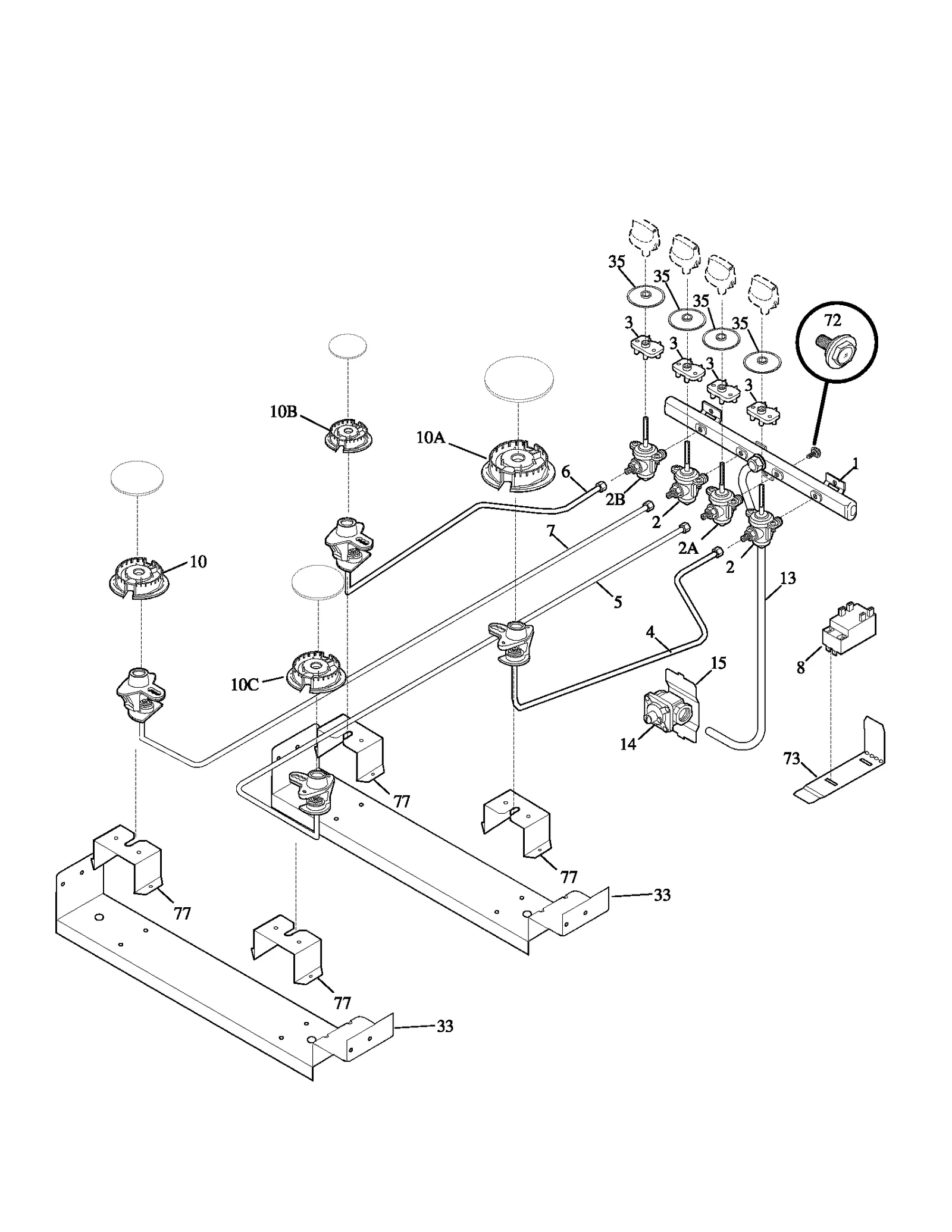

BURNER
DOOR

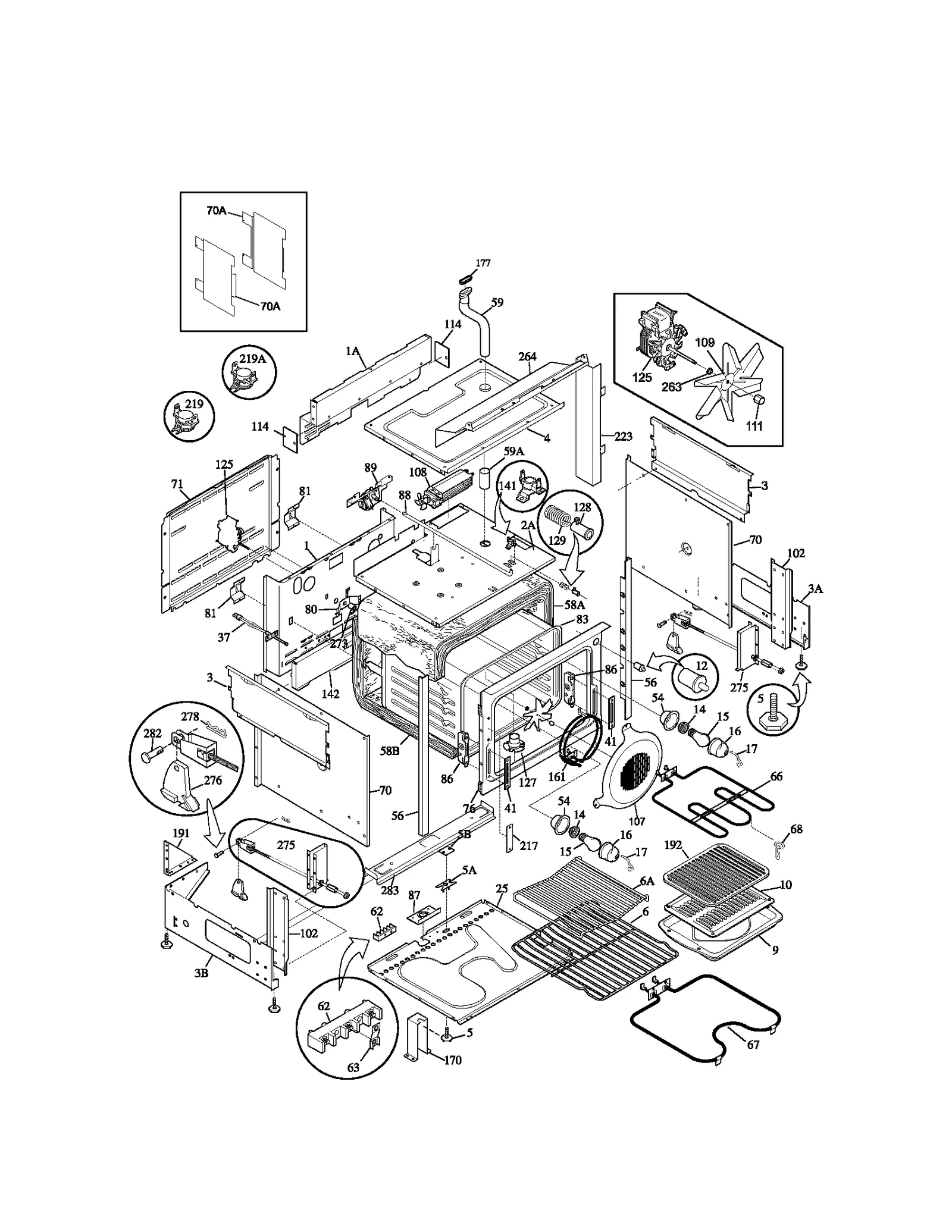

BODY
Common parts from model Electrolux 790.46139301 Gas Range (Kenmore 79046139301)
1
Manifold WCI 318177303 Contact Us For Availability
1
Bracket WCI 318180310 Contact Us For Availability
1
Main WCI 318066402 Contact Us For Availability
1A
Main WCI 318070910 Contact Us For Availability
2
Range Surface Burner Valve WCI 318087315 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
2A
Range Surface Burner Valve WCI 318087314 Contact Us For Availability
2A
Shield WCI 318227600 Contact Us For Availability
2B
Range Surface Burner Valve WCI 318087313 Contact Us For Availability
3
Oven Trim WCI 318187810 Contact Us For Availability
3
Trim WCI 318187812 Contact Us For Availability
3
Range Trim WCI 318187814 Contact Us For Availability
3
Panel WCI 318159800 Contact Us For Availability
3A
Oven Trim WCI 318187811 Contact Us For Availability
3A
Lh Door Trim WCI 318187813 Contact Us For Availability
3A
Trim, Left WCI 318187815 Contact Us For Availability
3A
Body Panel WCI 318160004 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176647 Contact Us For Availability
3B
Trim WCI 318176648 Contact Us For Availability
3B
Body Panel WCI 318160005 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318187715 Contact Us For Availability
4
Range Surface Burner Tube and Orifice Assembl WCI 316224401 Contact Us For Availability
4
Oven Trim WCI 318187714 Contact Us For Availability
4
Trim WCI 318187716 Contact Us For Availability
4
Panel WCI 318073900 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
5
Range Surface Burner Igniter and Orifice Hold WCI 316224500 Contact Us For Availability
5A
Tee Nut, Sna WCI 08013303 Contact Us For Availability
5B
Retainer WCI 318175202 Contact Us For Availability
6
Range Surface Burner Igniter and Orifice Hold WCI 316224400 Contact Us For Availability
6
Shield WCI 318056802 Contact Us For Availability
6
Rack WCI 318025308 Contact Us For Availability
6A
Shelf WCI 318219500 Contact Us For Availability
7
Range Surface Burner Tube and Orifice WCI 316224501 Contact Us For Availability
7
Insulation WCI 318133781 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Range Surface Burner Head WCI 316212300 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
10B
Range Sealed Burner Assembly WCI 316206400 Contact Us For Availability
13
Oven Tube WCI 318054503 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
15
Bracket WCI 318122901 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
22
Range Surface Burner Cap WCI 316242800 Contact Us For Availability
22A
Cooktop Burner Cap (Black) WCI 316242700 Contact Us For Availability
22B
Range Surface Burner Cap WCI 316206500 Contact Us For Availability
22B
Range Surface Burner Cap (Gray) WCI 316206501 Contact Us For Availability
22C
Range Surface Burner Cap WCI 316242900 Contact Us For Availability
22C
Range Surface Burner Cap (Gray) WCI 316242901 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
25
Heat Shield WCI 318179103 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
33
Support WCI 318171500 Contact Us For Availability
35
Bushing WCI 318146300 Contact Us For Availability
36A
Range Surface Burner Knob WCI 316121600 Contact Us For Availability
36A
Range Surface Burner Knob (Biscuit) WCI 316121603 Contact Us For Availability
39
Range Oven Door Handle (Black) WCI 316241105 Contact Us For Availability
39
Handle WCI 316241106 Contact Us For Availability
39
Oven Handle WCI 316241108 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
43
Cooktop Burner Knob WCI 316121804 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Oven Trim WCI 318002611 Contact Us For Availability
56
Wht Ov Trim WCI 318002612 Contact Us For Availability
56
Ov Frnt Trim WCI 318002614 Contact Us For Availability
58A
Insulation WCI 318133744 Contact Us For Availability
58B
Insulation WCI 318133769 Contact Us For Availability
59
Tube WCI 318072519 Contact Us For Availability
59A
Tube WCI 318072520 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199802 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
73
Plate WCI 318080100 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
77
Support WCI 318192600 Contact Us For Availability
80
Range Warming Drawer Gasket WCI 318054310 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Liner WCI 318089617 Contact Us For Availability
84
Range Safety Thermostat WCI 318005103 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Warmer Base WCI 318121503 Contact Us For Availability
87
Mounting Plate WCI 318111803 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
95
Wire Cover WCI 318143702 Contact Us For Availability
102
Oven Support WCI 5303311142 Contact Us For Availability
107
Cover WCI 318219401 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
125
Range Convection Fan Assembly WCI 316234601 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Range Thermal Cut-Off WCI 318005201 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241601 Contact Us For Availability
153
Range Surface Burner Skirt WCI 316241801 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241901 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241701 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241600 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241603 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241700 Contact Us For Availability
153
Range Surface Burner Skirt, 11,000-BTU WCI 316241703 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241800 Contact Us For Availability
153
Range Surface Burner Skirt, 9,500-BTU (Bisque WCI 316241803 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241900 Contact Us For Availability
153
Cooktop Burner Skirt WCI 316241903 Contact Us For Availability
161
ELEMENT, CONVECTION, 2500 W WCI 318050710 Contact Us For Availability
164
Grate WCI 316241400 Contact Us For Availability
170
**anti-tip WCI 5304417440 Contact Us For Availability
177
Gasket WCI 318053810 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
193
Button Plug WCI 3204817 Contact Us For Availability
193
Cap WCI 5303325173 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
219
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
223
Cover WCI 318038402 Contact Us For Availability
264
Wire Cover WCI 318077602 Contact Us For Availability
273
Tube WCI 5303311207 Contact Us For Availability
275
Leveling Ass WCI 318174800 Contact Us For Availability
276
Came WCI 318096200 Contact Us For Availability
278
Lock Pin WCI 5304412258 Contact Us For Availability
282
Pivot WCI 5304412259 Contact Us For Availability
283
REINFORCEMENT BRACKET WCI 318179400 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range LP Conversion Kit WCI 318186901 Contact Us For Availability
NI
Range Oven Control Overlay WCI 316246900 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Range Wire Harness WCI 318052149 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Wiring Clip WCI 318226300 Contact Us For Availability
NI
Bushing WCI 5304400795 Contact Us For Availability
× ![]()
