Model Kenmore 790.46132301 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

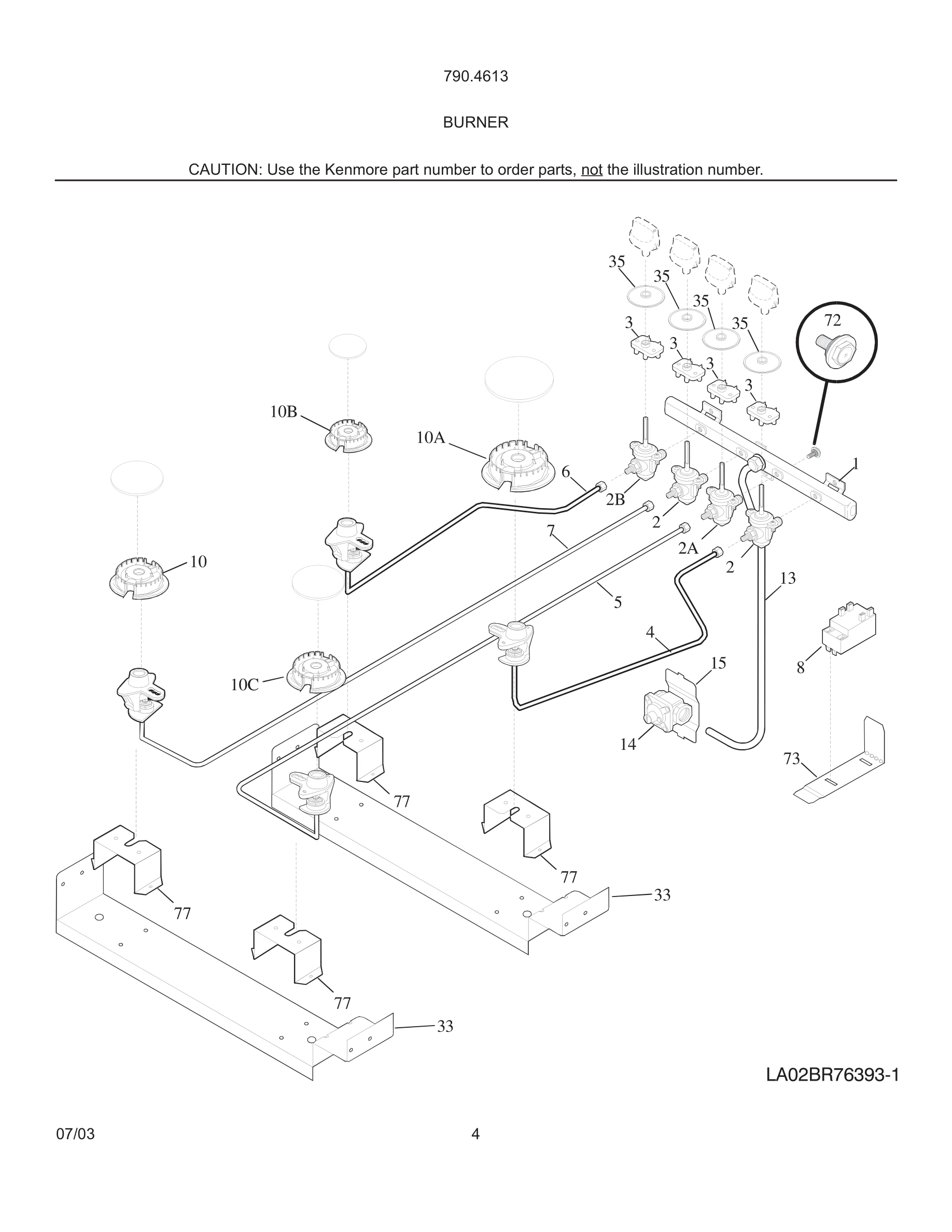

05 - BURNER

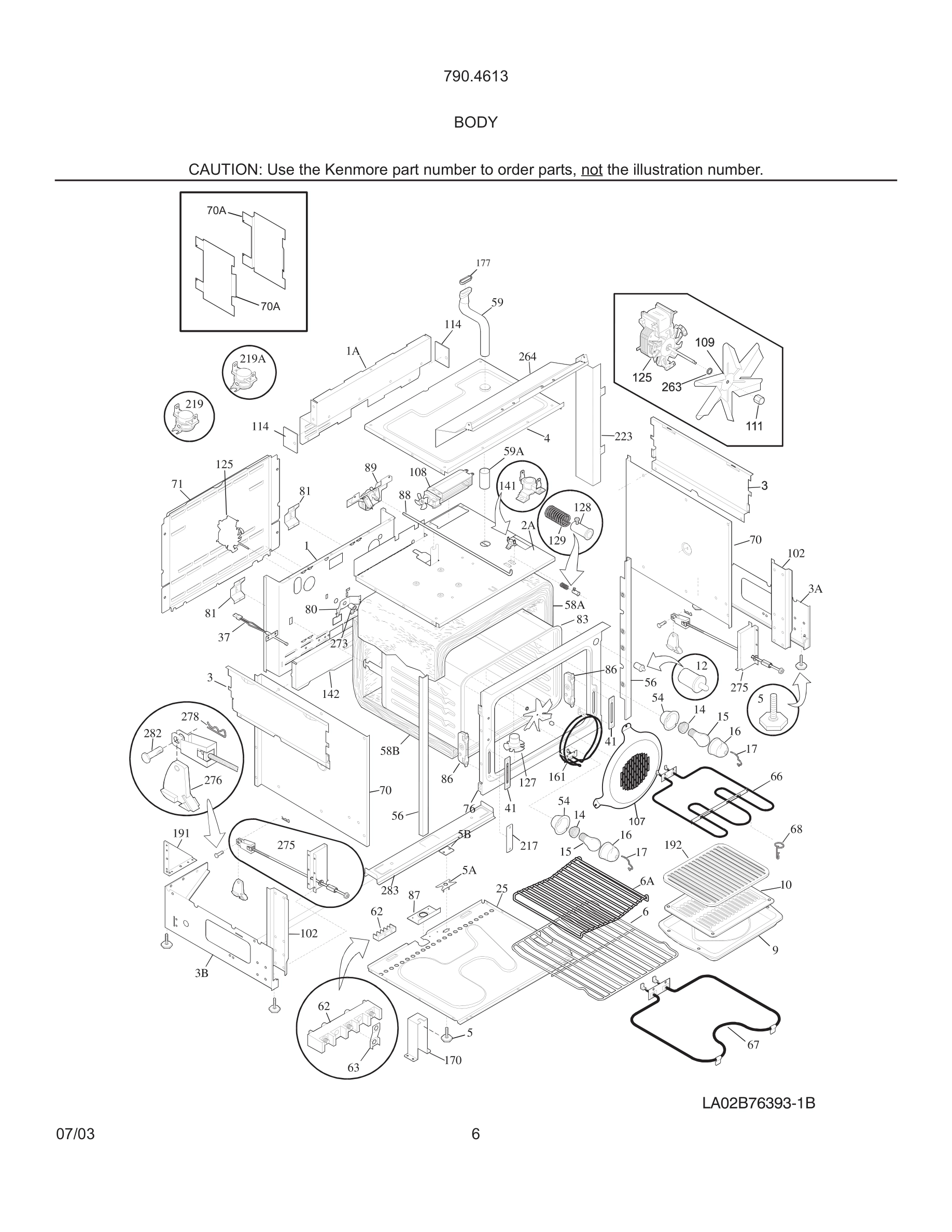

07 - BODY
09 - BODY

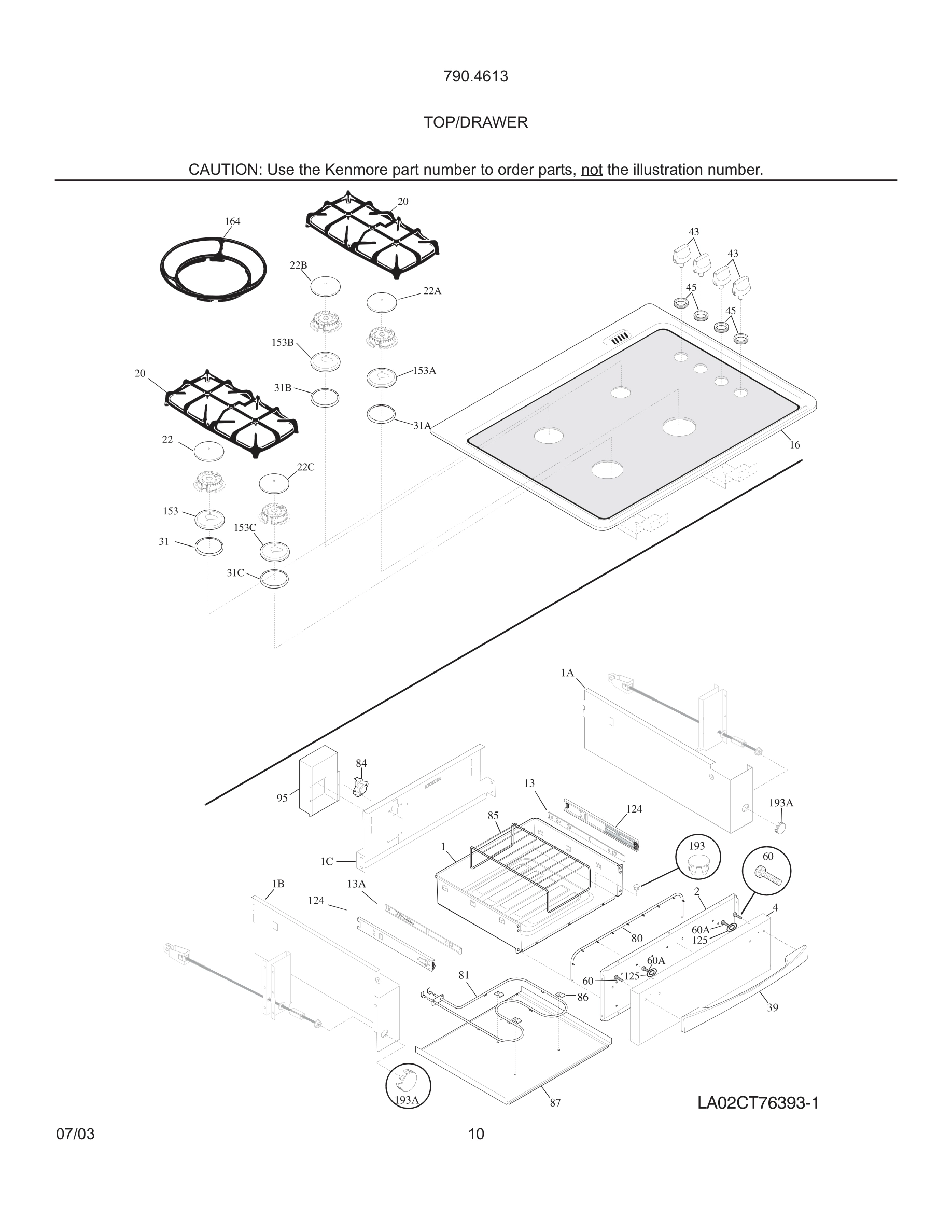

11 - TOP/DRAWER
13 - TOP/DRAWER

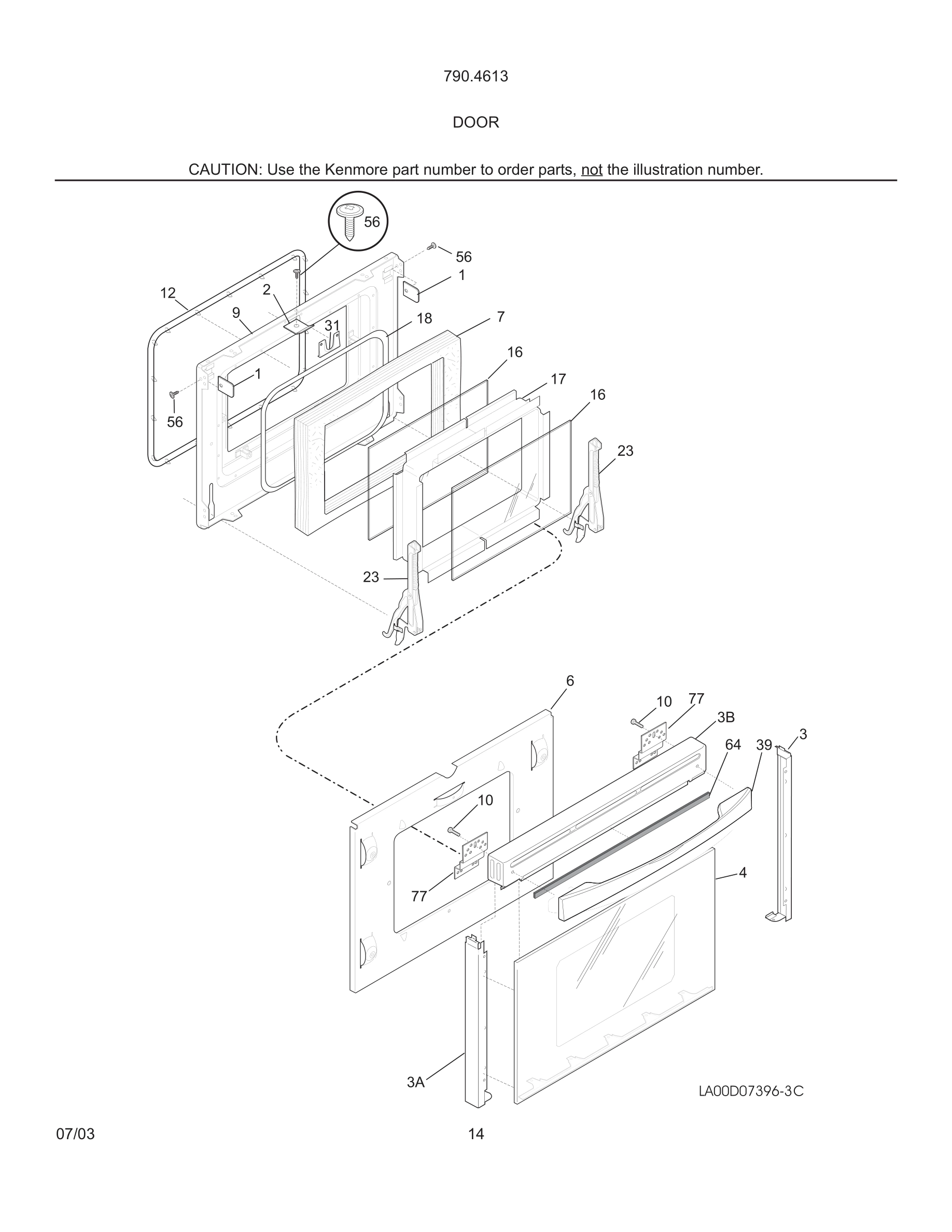

15 - DOOR

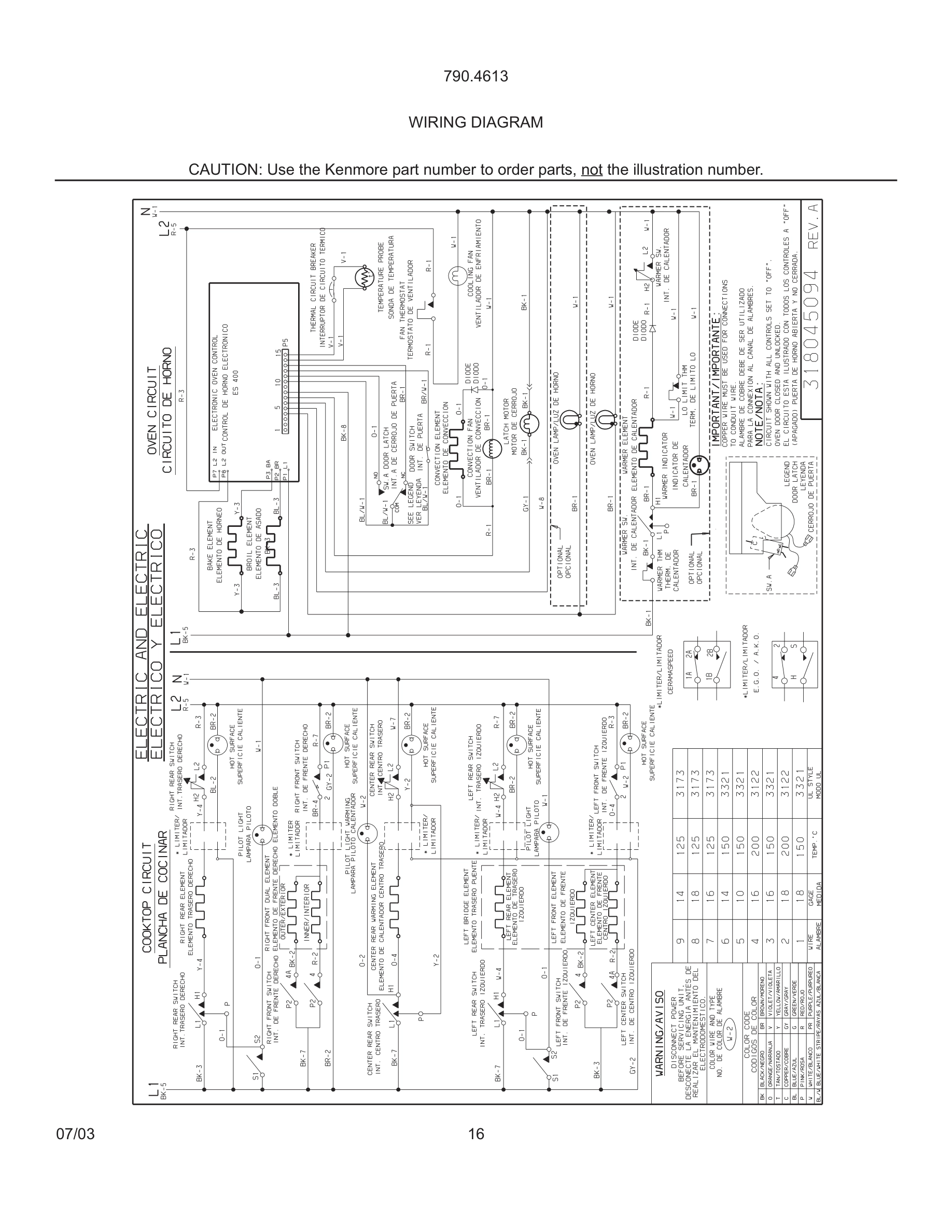

16 - WIRING DIAGRAM
17 - WIRING DIAGRAM
Common parts from model Kenmore 790.46132301 RANGE
*
LP Conversion Kit WCI 318186901 Contact Us For Availability
*
Bushing,snap-in ,nylon WCI 5304400795 Contact Us For Availability
*
Clip,wiring WCI 318226300 Contact Us For Availability
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cleaner,cooktop WCI 316112100 Contact Us For Availability
*
Cleaner,grate WCI 316119700 Contact Us For Availability
1
Drawer,warmer WCI 318142500 Contact Us For Availability
1
Bracket,trim mtg WCI 318180310 Contact Us For Availability
1A
Deflector,warmer drawer ,RH WCI 318143333 Contact Us For Availability
1B
Deflector,warmer drawer ,LH WCI 318143332 Contact Us For Availability
1C
Deflector,warmer drawer ,rear WCI 318143203 Contact Us For Availability
2
Liner,drawer WCI 318108021 Contact Us For Availability
2
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
2#
Valve,burner ,1800 BTU WCI 318087315 Contact Us For Availability
2A#
Valve,burner ,1200 BTU WCI 318087314 Contact Us For Availability
2B#
Valve,burner ,675 BTU WCI 318087313 Contact Us For Availability
3
Trim,door ,white ,RH side WCI 318187810 Contact Us For Availability
3
Trim,door ,bisque ,RH side WCI 318187812 Contact Us For Availability
3
Trim,door ,black ,RH side WCI 318187814 Contact Us For Availability
3A
Trim,door ,white ,LH side WCI 318187811 Contact Us For Availability
3A
Trim,door ,bisque ,LH side WCI 318187813 Contact Us For Availability
3A
Trim,door ,black ,LH side WCI 318187815 Contact Us For Availability
3B
Trim,door ,white ,top WCI 318176646 Contact Us For Availability
3B
Trim,door ,bisque ,top WCI 318176648 Contact Us For Availability
3B
Trim,door ,black ,top WCI 318176647 Contact Us For Availability
4
Panel,door front assy ,glass ,white ,with low WCI 318187715 Contact Us For Availability
4
Panel,drawer ,white ,front WCI 318134006 Contact Us For Availability
4
Panel,drawer ,bisque WCI 318134008 Contact Us For Availability
4
Panel,drawer ,black ,front WCI 318134007 Contact Us For Availability
4
Panel,door front assy ,glass ,bisque ,with lo WCI 318187716 Contact Us For Availability
4
Panel,door front assy ,glass ,black ,with low WCI 318187714 Contact Us For Availability
5#
Ignitor/orifice assy.,top burner ,front,9.5K, WCI 316224500 Contact Us For Availability
6
Shield,insulation WCI 318056802 Contact Us For Availability
6#
Ignitor/orifice assy.,top burner ,rear,5K,w/h WCI 316224400 Contact Us For Availability
7
Insulation,oven door WCI 318133781 Contact Us For Availability
9
Liner,door WCI 318157011 Contact Us For Availability
10#
Burner,sealed ,11K WCI 316212300 Contact Us For Availability
14#
Regulator,pressure WCI 318122700 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
16
Main Top,glass ,white WCI 318154707 Contact Us For Availability
16
Main Top,glass ,bisque WCI 318154708 Contact Us For Availability
16
Main Top,glass ,black WCI 318154709 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
20
Grate,gray WCI 316249701 Contact Us For Availability
20
Grate,brown WCI 316249702 Contact Us For Availability
20
Grate,black WCI 316249700 Contact Us For Availability
20*
Overlay,clock ,white WCI 316246900 Contact Us For Availability
22
Cap,11K burner ,black WCI 316242800 Contact Us For Availability
22
Cap,11K burner ,gray WCI 316242801 Contact Us For Availability
22
Cap,11K burner ,brown WCI 316242803 Contact Us For Availability
22A
Cap,14K burner ,black WCI 316242700 Contact Us For Availability
22A
Cap,14K burner ,gray WCI 316242701 Contact Us For Availability
22A
Cap,14K burner ,brown WCI 316242703 Contact Us For Availability
22B
Cap,5K burner ,black WCI 316206500 Contact Us For Availability
22B
Cap,5K burner ,gray WCI 316206501 Contact Us For Availability
22B
Cap,5K burner ,brown WCI 316206502 Contact Us For Availability
22C
Cap,9.5K burner ,black WCI 316242900 Contact Us For Availability
22C
Cap,9.5K burner ,gray WCI 316242901 Contact Us For Availability
22C
Cap,9.5K burner ,brown WCI 316242903 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
36A
Knob,warm zone/drw ,white WCI 316121600 Contact Us For Availability
36A
Knob,warm zone/drw ,bisque WCI 316121603 Contact Us For Availability
39
Handle,door/drawer ,white WCI 316241106 Contact Us For Availability
39
Handle,door/drawer ,bisque WCI 316241108 Contact Us For Availability
39
Handle,door/drawer ,black WCI 316241105 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
43
Knob,top valve ,black WCI 316121804 Contact Us For Availability
43
Knob,top valve ,white WCI 316121803 Contact Us For Availability
43
Knob,top valve ,bisque WCI 316121816 Contact Us For Availability
45
Bushing WCI 318146210 Contact Us For Availability
54
Housing,oven light WCI 318222400 Contact Us For Availability
56
Trim,oven ,bisque ,front WCI 318002614 Contact Us For Availability
56
Trim,oven ,black ,front WCI 318002611 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent ,upper WCI 318072519 Contact Us For Availability
59A
Tube,oven vent ,lower WCI 318072520 Contact Us For Availability
63
Plate,grounding strap WCI 316208500 Contact Us For Availability
64
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
70
Shield,insulation WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199802 Contact Us For Availability
71
Panel,wiring cover ,rear WCI 5303310515 Contact Us For Availability
76
Front,oven WCI 318124100 Contact Us For Availability
77
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
80
Gasket,warmer drawer WCI 318054310 Contact Us For Availability
80
Plate,oven mtg WCI 5303320846 Contact Us For Availability
81
Spring,oven WCI 318192400 Contact Us For Availability
83
Liner,oven assy WCI 318089617 Contact Us For Availability
84#
Thermostat,safety WCI 318005103 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
86
Clip,hold down ,warmer element WCI 316095800 Contact Us For Availability
87
Plate,mounting WCI 318111803 Contact Us For Availability
87
Base,warmer WCI 318121503 Contact Us For Availability
88
Rod,latch WCI 318118904 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
95
Cover,wire WCI 318143702 Contact Us For Availability
102
Support,oven front WCI 5303311142 Contact Us For Availability
107
Cover,fan WCI 318219401 Contact Us For Availability
108#
Motor,blower WCI 318073012 Contact Us For Availability
114
Plate,filler WCI 318175100 Contact Us For Availability
125#
Motor,fan WCI 316234601 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141#
Switch,thermal cutout WCI 318005201 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
153
Skirt,11K burner ,black WCI 316241701 Contact Us For Availability
153
Skirt,11K burner ,gray WCI 316241700 Contact Us For Availability
153
Skirt,11K burner ,brown WCI 316241703 Contact Us For Availability
153A
Skirt,14K burner ,black WCI 316241601 Contact Us For Availability
153A
Skirt,14K burner ,gray WCI 316241600 Contact Us For Availability
153A
Skirt,14K burner ,brown WCI 316241603 Contact Us For Availability
153B
Skirt,5K burner ,black WCI 316241901 Contact Us For Availability
153B
Skirt,5K burner ,gray WCI 316241900 Contact Us For Availability
153B
Skirt,5K burner ,brown WCI 316241903 Contact Us For Availability
153C
Skirt,9.5K burner ,black WCI 316241801 Contact Us For Availability
153C
Skirt,9.5K burner ,gray WCI 316241800 Contact Us For Availability
153C
Skirt,9.5K burner ,brown WCI 316241803 Contact Us For Availability
161#
Element,convection ,2500 W WCI 318050710 Contact Us For Availability
164
Grate,WOK WCI 316241400 Contact Us For Availability
170
Bracket,Anit-tip WCI 5304417440 Contact Us For Availability
177
Gasket,vent WCI 318053810 Contact Us For Availability
191
Bracket,angle ,corner WCI 5303304030 Contact Us For Availability
193
Cap,plug WCI 5303325173 Contact Us For Availability
193A
Plug,button WCI 3204817 Contact Us For Availability
217
Plate,warning WCI 318112101 Contact Us For Availability
219A
Thermostat,safety WCI 318003606 Contact Us For Availability
223
Cover,tube WCI 318038402 Contact Us For Availability
264
Cover,wire WCI 318077602 Contact Us For Availability
273
Tube,protector WCI 5303311207 Contact Us For Availability
275
Leveling assy WCI 318174800 Contact Us For Availability
276
Came WCI 318096200 Contact Us For Availability
278
Lock Pin WCI 5304412258 Contact Us For Availability
282
Pivot pin WCI 5304412259 Contact Us For Availability
283
Support,reinforcement WCI 318179400 Contact Us For Availability
× ![]()
