Model Electrolux 790.46123300 Electric Range (Kenmore 79046123300) – Common Parts & Diagrams
TOP/DRAWER
DOOR

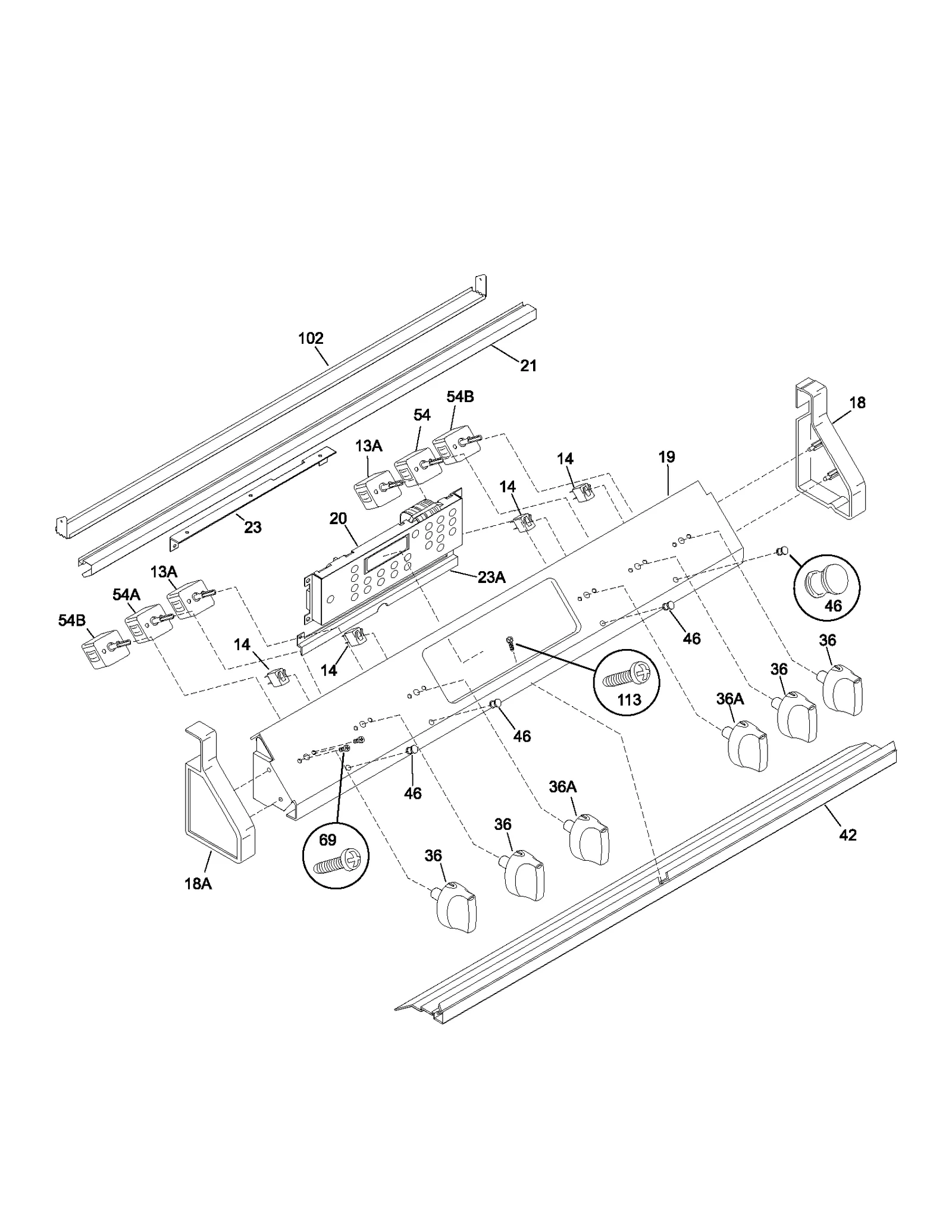

BACKGUARD

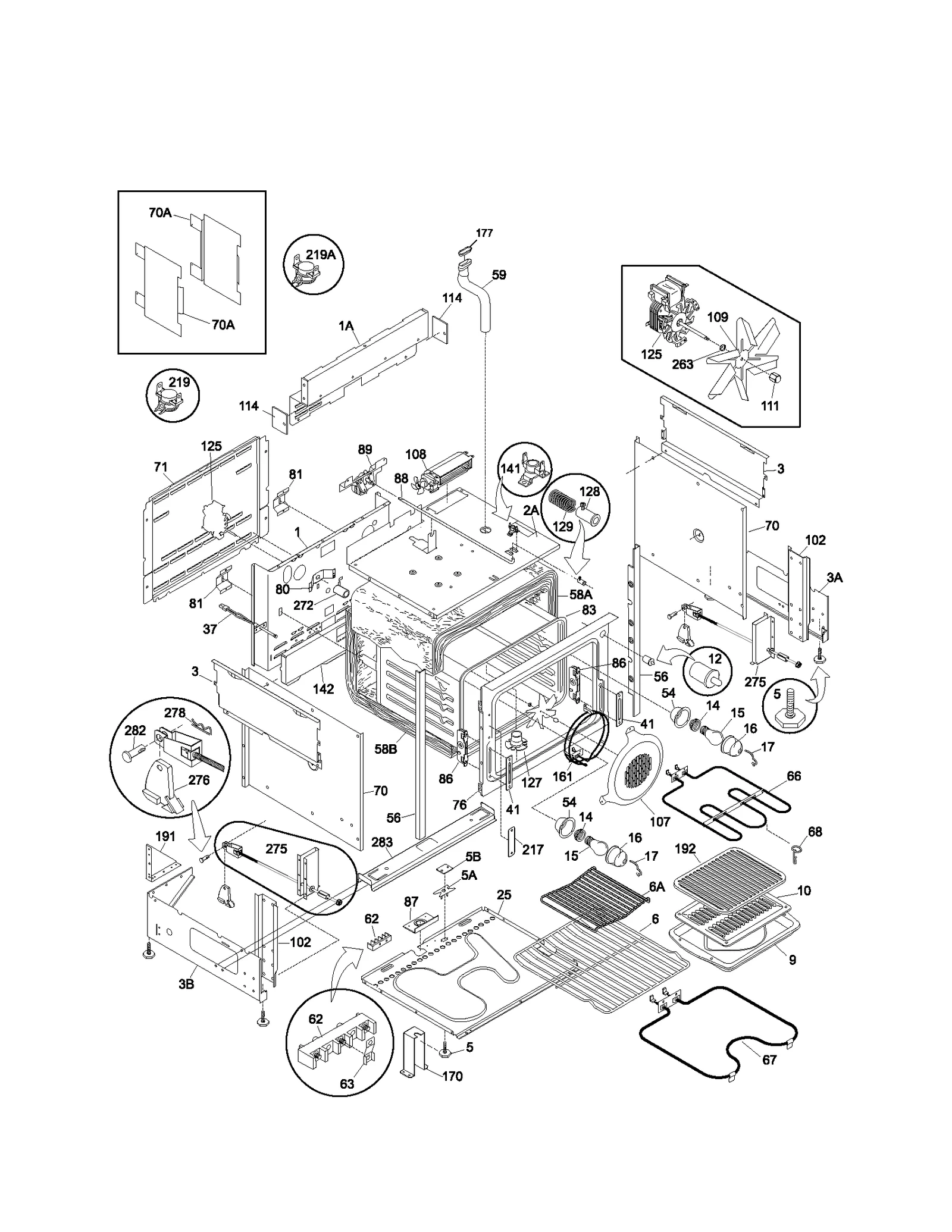

BODY
Common parts from model Electrolux 790.46123300 Electric Range (Kenmore 79046123300)
1
Main WCI 318066402 Contact Us For Availability
1A
Main WCI 318070910 Contact Us For Availability
2A
Oven Shield WCI 318108600 Contact Us For Availability
3
Panel WCI 318159800 Contact Us For Availability
3A
Body Panel WCI 318160004 Contact Us For Availability
3B
Body Panel WCI 318160005 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
5A
Tee Nut, Sna WCI 08013303 Contact Us For Availability
5B
Retainer WCI 318175202 Contact Us For Availability
6A
Shelf WCI 318219500 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
10A
Screw WCI 5304417411 Contact Us For Availability
13
Stainless WCI 318187909 Contact Us For Availability
14
Light Lamp WCI 318076700 Contact Us For Availability
15C
Range Warmer Zone Surface Element WCI 316098202 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
18
End Cap WCI 318039314 Contact Us For Availability
18A
End Cap WCI 318039315 Contact Us For Availability
19
Control Panel WCI 318182939 Contact Us For Availability
20
Clock Timer WCI 318198404 Contact Us For Availability
21
Trim Backguard WCI 318027806 Contact Us For Availability
22
Range Oven Door Glass Retainer WCI 5303310511 Contact Us For Availability
23
Hinge-oven D WCI 5303310828 Contact Us For Availability
23
BRACKET,CLOC WCI 318015042 Contact Us For Availability
23A
BRACKET,CLOC WCI 318015043 Contact Us For Availability
25
Heat Shield WCI 318179103 Contact Us For Availability
29
Bumper Base WCI 318147410 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Knob WCI 316121823 Contact Us For Availability
36A
Range Warming Drawer Knob (Black) WCI 316121604 Contact Us For Availability
39
Range Oven Door and Drawer Handle (Gray) WCI 316241109 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Vent Trim WCI 318106926 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
54A
Switch WCI 318220005 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
56
Oven Foot Trim WCI 318002615 Contact Us For Availability
57
Glass Support WCI 318172902 Contact Us For Availability
58A
Insulation WCI 318133744 Contact Us For Availability
58B
Insulation WCI 318133769 Contact Us For Availability
59
Tube WCI 318072502 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199802 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
80
Wall Oven Rear Panel Spacer Bracket WCI 5303320846 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Liner WCI 318089617 Contact Us For Availability
84
Range Safety Thermostat WCI 318005103 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111803 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
102
Mounting Bracket WCI 318055601 Contact Us For Availability
102
Oven Support WCI 5303311142 Contact Us For Availability
107
Cover WCI 318219401 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
125
Range Convection Fan Assembly WCI 316234601 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Range Thermal Cut-Off WCI 318005201 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
161
ELEMENT, CONVECTION, 2500 W WCI 318050710 Contact Us For Availability
170
**anti-tip WCI 5304417440 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
219
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
272
Tube WCI 5303311207 Contact Us For Availability
275
Leveling Ass WCI 318174800 Contact Us For Availability
276
Came WCI 318096200 Contact Us For Availability
278
Lock Pin WCI 5304412258 Contact Us For Availability
282
Pivot WCI 5304412259 Contact Us For Availability
283
REINFORCEMENT BRACKET WCI 318179400 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Range Video WCI 316124202 Contact Us For Availability
NI
Cover WCI 318037814 Contact Us For Availability
NI
Wiring Diagram WCI 318045064 Contact Us For Availability
NI
Service Data Sheet WCI 318127009 Contact Us For Availability
NI
Range Owner's Manual WCI 318200829 Contact Us For Availability
NI
Instructions WCI 318201605 Contact Us For Availability
NI
Parts List WCI 5995382784 Contact Us For Availability
NI
Wiring Clip WCI 318226300 Contact Us For Availability
× ![]()
