Model Kenmore 790.46103300 RANGE – Common Parts & Diagrams
01 - COVER
03 - BACKGUARD

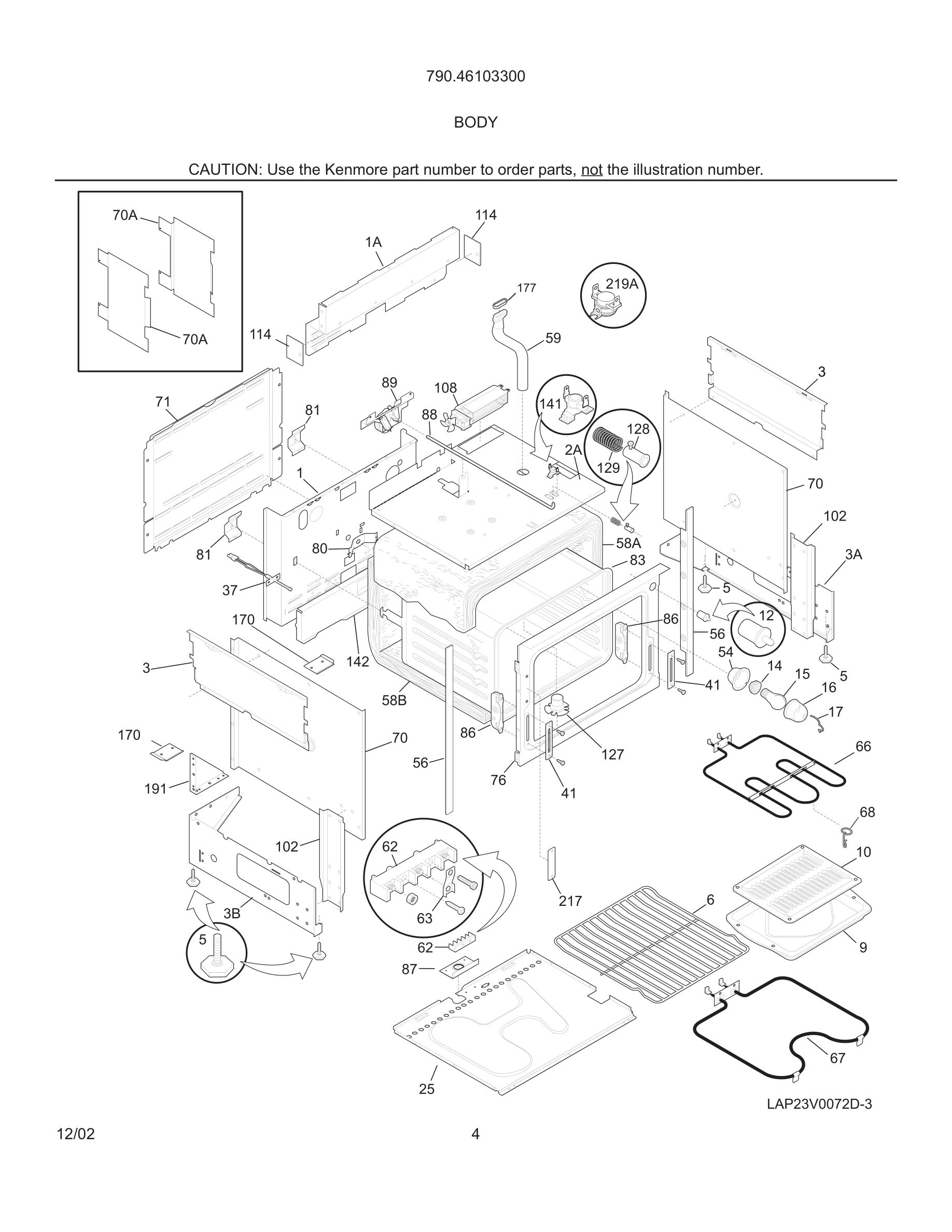

05 - BODY
07 - BODY

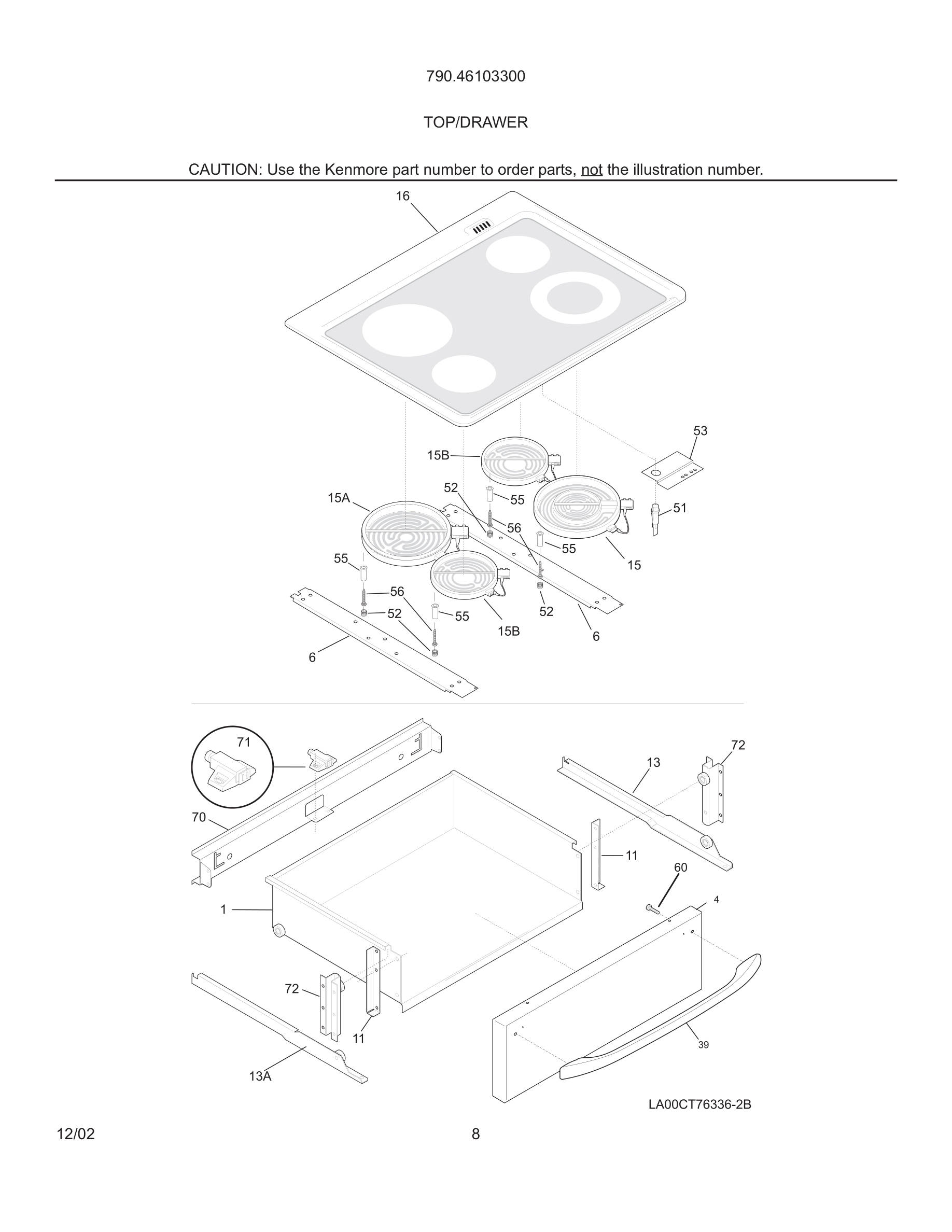

09 - TOP/DRAWER
11 - DOOR
12 - WIRING DIAGRAM
Common parts from model Kenmore 790.46103300 RANGE
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
*
Cap,plug WCI 5303325173 Contact Us For Availability
*
Cleaner,cooktop WCI 316112100 Contact Us For Availability
3A
Panel,lower side ,RH WCI 318160004 Contact Us For Availability
3B
Panel,lower side ,LH WCI 318160005 Contact Us For Availability
4
Panel,drawer ,stainless WCI 318107903 Contact Us For Availability
6
Support,element ,(2) WCI 318194800 Contact Us For Availability
6
Shield,insulation WCI 318056802 Contact Us For Availability
7
Insulation,oven door WCI 318133754 Contact Us For Availability
9
Pan,broiler WCI 5303317977 Contact Us For Availability
9
Liner,door WCI 318157011 Contact Us For Availability
10
Insert,broiler pan WCI 5303317976 Contact Us For Availability
10A
Screw,handle mtg. ,10-12 x 1 WCI 5304417411 Contact Us For Availability
11
Bracket,drawer WCI 5303311125 Contact Us For Availability
13
Channel,drawer ,RH WCI 5303311129 Contact Us For Availability
13
Stainless Panel,oven door ,w/ glass WCI 318187900 Contact Us For Availability
13A
Channel,drawer ,LH WCI 5303311130 Contact Us For Availability
15#
Element,surface ,6/9 ,1000/2100w ,dual radian WCI 318198911 Contact Us For Availability
16
Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability
16
Main Top,glass ,black WCI 318154701 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Spacer,glass WCI 318042102 Contact Us For Availability
18
Seal,window WCI 318053001 Contact Us For Availability
22
Bar,glass retainer WCI 5303310511 Contact Us For Availability
23
Hinge,oven door ,(2) WCI 5303310828 Contact Us For Availability
25
Panel,heat shield ,sm oven bottom WCI 318179107 Contact Us For Availability
29
Bumper,base WCI 318147410 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
39
Handle,door ,black WCI 316235500 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
53
Bracket,indicator light ,hot surface WCI 318125932 Contact Us For Availability
54
Housing,oven light WCI 5303310514 Contact Us For Availability
55
Spacer,element WCI 5303317178 Contact Us For Availability
56
Screw,element ,6 x 3/4 WCI 5303317179 Contact Us For Availability
56
Trim,oven ,black ,front WCI 318002611 Contact Us For Availability
57
Stiffener,glass WCI 318172902 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent WCI 318072502 Contact Us For Availability
63
Plate,grounding strap WCI 316208500 Contact Us For Availability
70
Shield,insulation WCI 318194400 Contact Us For Availability
70
Bracket,slide ,rear WCI 5303311143 Contact Us For Availability
70A
Deflector WCI 318199802 Contact Us For Availability
71
Panel,wiring cover ,rear WCI 5303310515 Contact Us For Availability
71
Magnet & spring assy WCI 5303311144 Contact Us For Availability
72
Bracket & wheel assy WCI 5303311145 Contact Us For Availability
76
Front,oven WCI 318124100 Contact Us For Availability
81
Spring,oven WCI 318192400 Contact Us For Availability
83
Liner,oven WCI 318089613 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
87
Plate,mounting WCI 318111803 Contact Us For Availability
88
Rod,latch WCI 318118904 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
102
Support,oven front WCI 5303311142 Contact Us For Availability
108#
Motor,blower WCI 318073012 Contact Us For Availability
114
Plate,filler WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141#
Switch,thermal cutout WCI 318005201 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
170
Anti-tip & accessories WCI 5304405244 Contact Us For Availability
177
Gasket,vent WCI 5303324040 Contact Us For Availability
191
Bracket,angle ,corner WCI 5303304030 Contact Us For Availability
217
Plate,warning WCI 318112101 Contact Us For Availability
219A
Thermostat,safety WCI 318003606 Contact Us For Availability
× ![]()
