Model Electrolux 790.45784300 Electric Range (Kenmore 79045784300) – Common Parts & Diagrams
DOOR
MAIN TOP

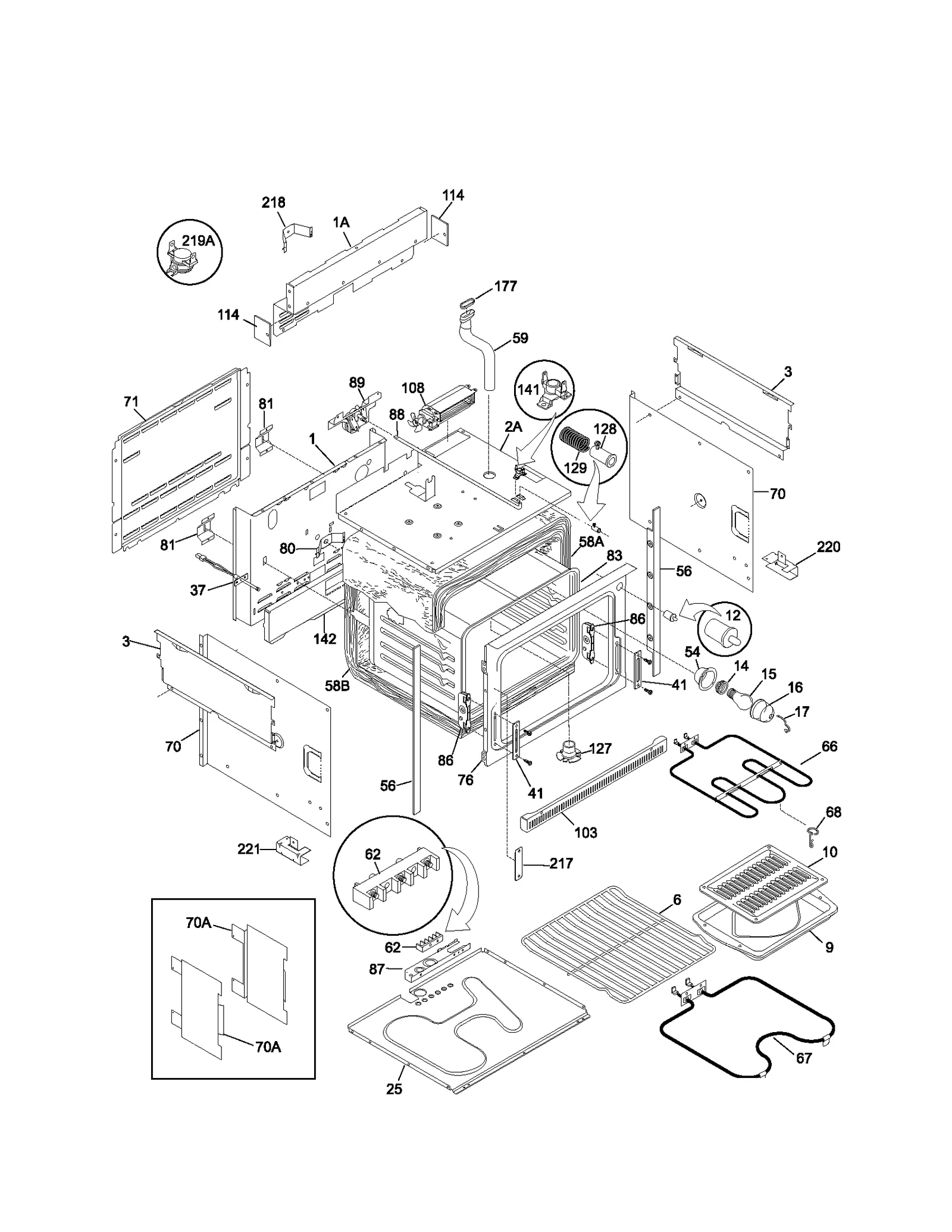

BODY

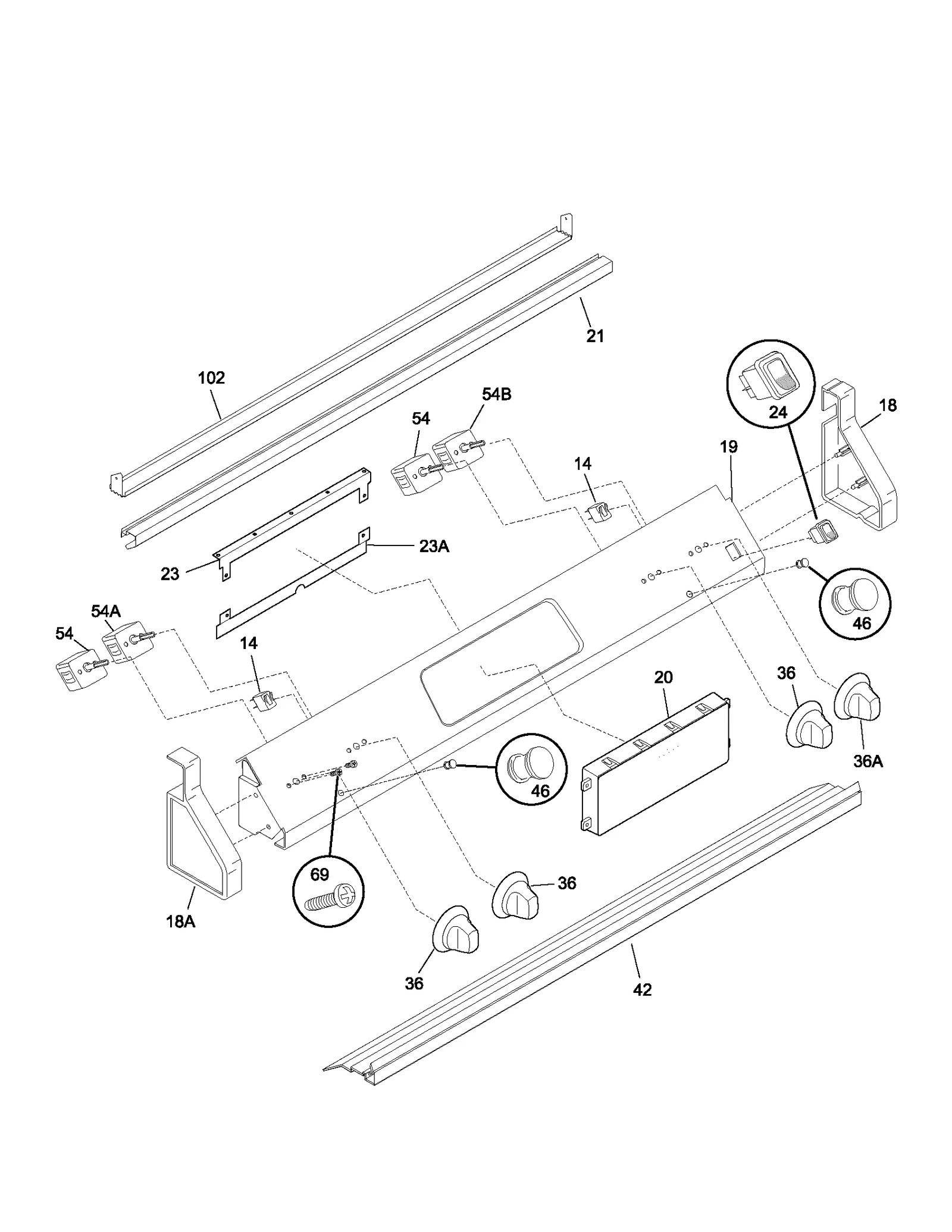

BACKGUARD
Common parts from model Electrolux 790.45784300 Electric Range (Kenmore 79045784300)
1
Main WCI 318066402 Contact Us For Availability
1A
Main WCI 318070910 Contact Us For Availability
2A
Oven Shield WCI 318108600 Contact Us For Availability
3
Panel WCI 318159800 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318187715 Contact Us For Availability
6
Rack WCI 318025308 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
14
Light Lamp WCI 318076700 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
16
Main WCI 318154700 Contact Us For Availability
16
Range Main Top (Black) WCI 318154701 Contact Us For Availability
16
Main WCI 318154702 Contact Us For Availability
16
Main WCI 318154703 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
End Cap WCI 318039310 Contact Us For Availability
18
End Cap WCI 318039312 Contact Us For Availability
18
End Cap WCI 318039316 Contact Us For Availability
18A
End Cap WCI 318039311 Contact Us For Availability
18A
End Cap WCI 318039313 Contact Us For Availability
18A
End Cap WCI 318039317 Contact Us For Availability
19
Control Panel WCI 318182906 Contact Us For Availability
19
Control Panel WCI 318182907 Contact Us For Availability
19
Control Panel WCI 318182908 Contact Us For Availability
20
Clock Timer WCI 318185410 Contact Us For Availability
20
Clock Timer WCI 318185411 Contact Us For Availability
20
Clock Timer WCI 318185412 Contact Us For Availability
21
Trim Backguard WCI 318027803 Contact Us For Availability
21
Trim Backguard WCI 318027804 Contact Us For Availability
21
Trim Backguard WCI 318027807 Contact Us For Availability
23
BRACKET,CLOC WCI 318015042 Contact Us For Availability
23A
BRACKET,CLOC WCI 318015043 Contact Us For Availability
24
Oven Switch WCI 318037520 Contact Us For Availability
25
PANEL, HEAT SHIELD, SM OVEN BOTTOM WCI 318179107 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
36
Control Knob WCI 318196300 Contact Us For Availability
36
Control Knob WCI 318196301 Contact Us For Availability
36
Control Knob WCI 318196302 Contact Us For Availability
36A
Range Control Knob WCI 318196311 Contact Us For Availability
36A
Control Knob WCI 318196310 Contact Us For Availability
36A
Control Knob WCI 318196312 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim-vent Bl WCI 318106927 Contact Us For Availability
42
Trim-vent Wh WCI 318106924 Contact Us For Availability
42
Console Plate WCI 318106925 Contact Us For Availability
53
Bracket WCI 318125932 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
55
Cooking Appliance Element Spacer WCI 5303317178 Contact Us For Availability
56
Range Surface Element Screw WCI 5303317179 Contact Us For Availability
56
Trim WCI 318002711 Contact Us For Availability
56
Trim WCI 318002712 Contact Us For Availability
56
Trim WCI 318002714 Contact Us For Availability
58A
Insulation WCI 318133744 Contact Us For Availability
58B
Insulation WCI 318133769 Contact Us For Availability
59
Tube WCI 318072502 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199802 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111800 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
102
Mounting Bracket WCI 318055601 Contact Us For Availability
103
Trim WCI 318169302 Contact Us For Availability
103
Trim (White) WCI 5303300213 Contact Us For Availability
103
Trim WCI 5303300217 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Range Thermal Cut-Off WCI 318005201 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
218
Bracket WCI 318054700 Contact Us For Availability
219
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Box Wire WCI 318078515 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Wiring Diagram WCI 318045062 Contact Us For Availability
NI
Service Data Sheet WCI 318127005 Contact Us For Availability
NI
Installation Instructions WCI 318201602 Contact Us For Availability
NI
Parts List WCI 5995382701 Contact Us For Availability
× ![]()
