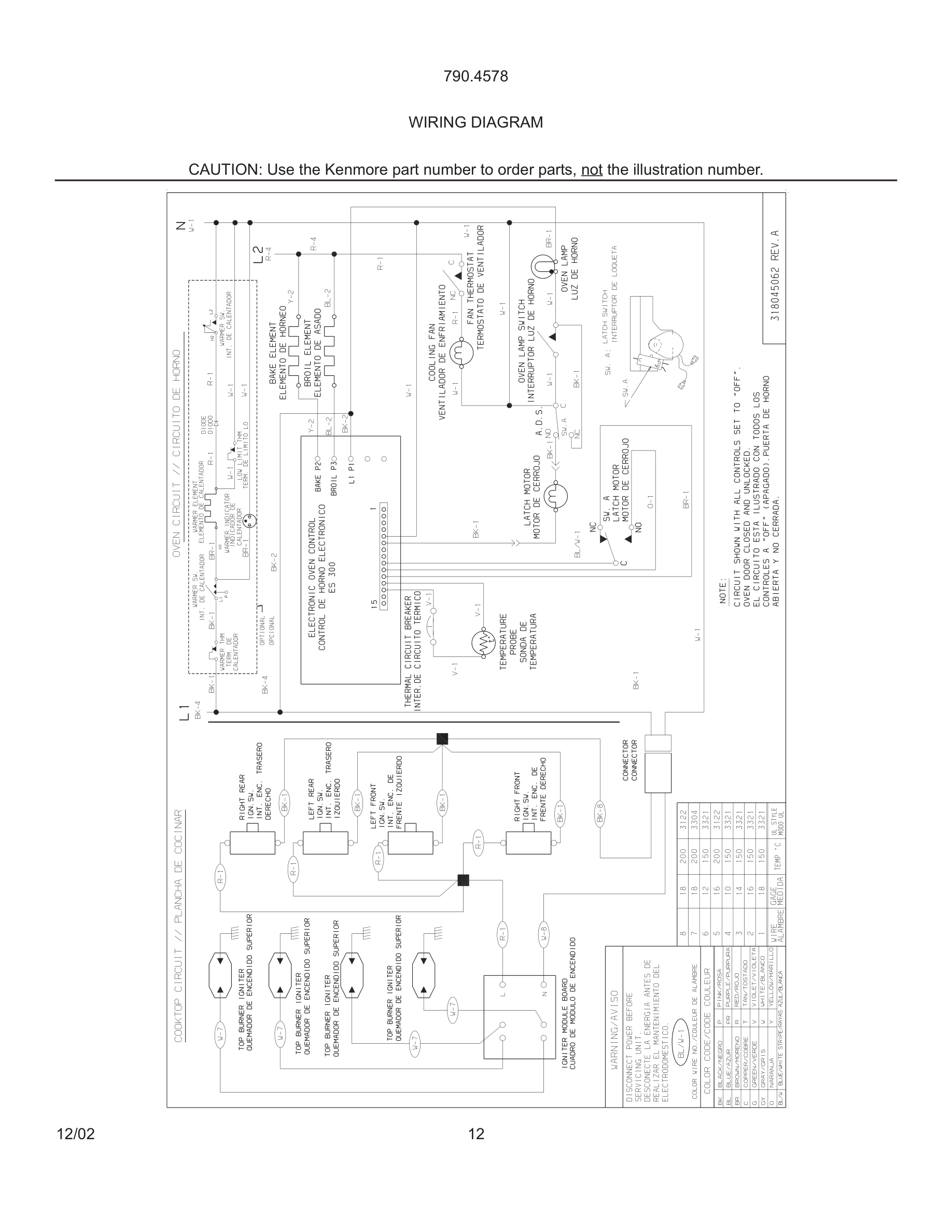

Model Kenmore 790.45781300 RANGE – Common Parts &amp; Diagrams

*

5303307980 Frigidaire Oven Screw In Stock WCI 5303307980 $9.06

*

5303323129 Frigidaire Oven Screw Backorder WCI 5303323129 $9.06

*

Box & wires assy WCI 318078515 Contact Us For Availability

*

Cleaner,cooktop WCI 316112100 Contact Us For Availability

*

Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability

1

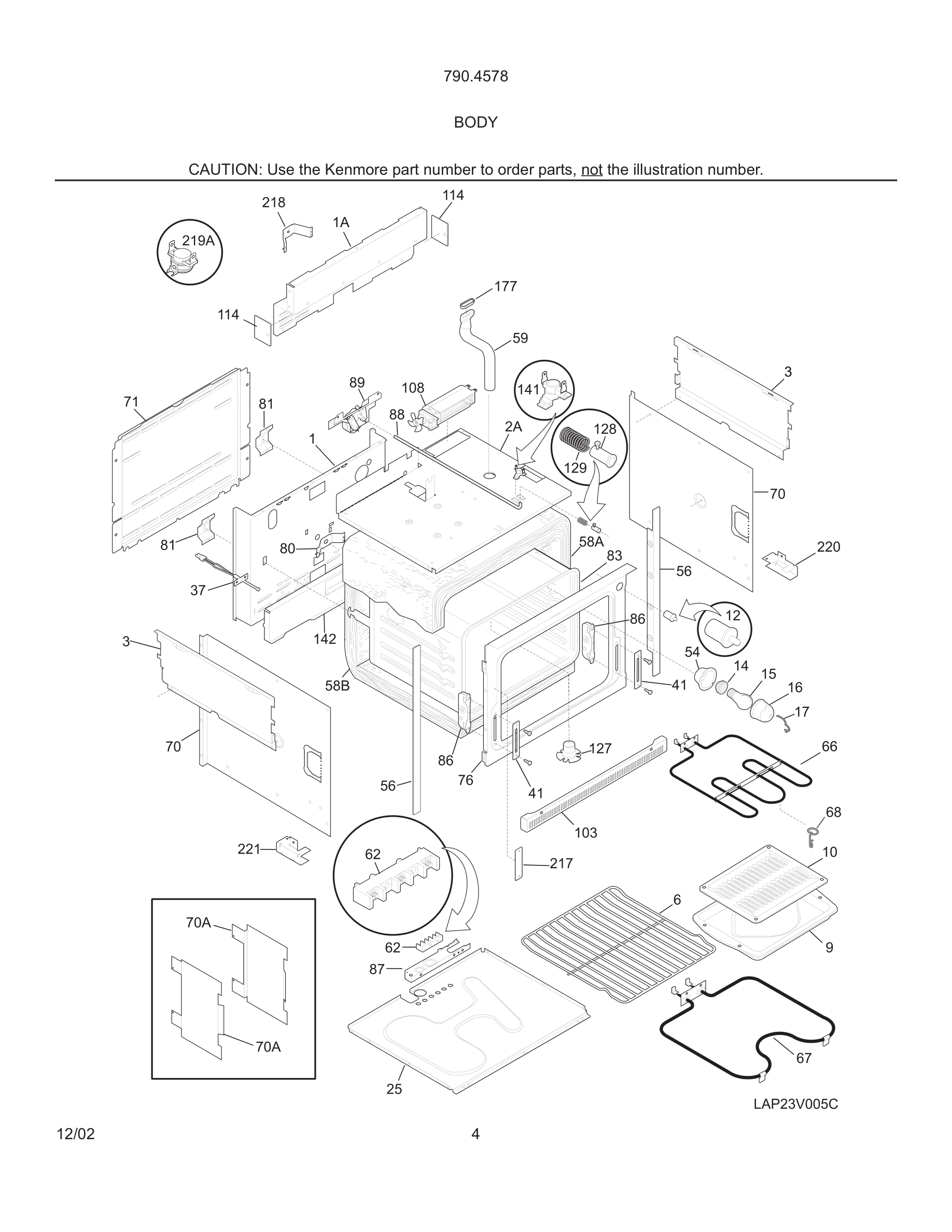

Panel,main back WCI 318066402 Contact Us For Availability

1

Bracket,trim mtg WCI 318180310 Contact Us For Availability

1A

Panel,main back ,upper WCI 318070910 Contact Us For Availability

2

Bracket,upper trim mtg WCI 318180312 Contact Us For Availability

2A

Shield,oven top WCI 318108600 Contact Us For Availability

3

Panel,body side ,upper WCI 318159800 Contact Us For Availability

3

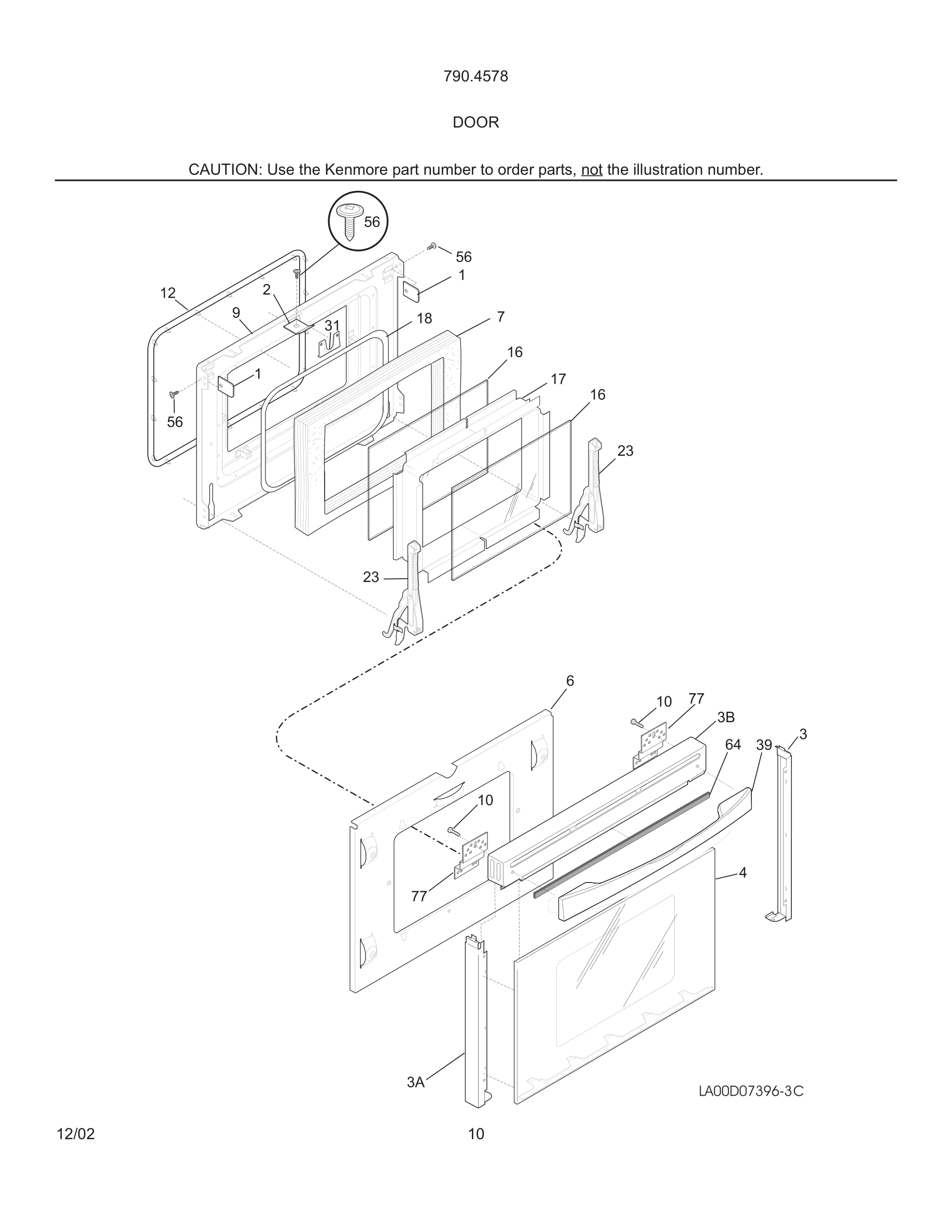

Trim,door ,white ,RH side WCI 318187810 Contact Us For Availability

3

Trim,door ,bisque ,RH side WCI 318187812 Contact Us For Availability

3

Trim,door ,black ,RH side WCI 318187814 Contact Us For Availability

3A

Trim,door ,white ,LH side WCI 318187811 Contact Us For Availability

3A

Trim,door ,bisque ,LH side WCI 318187813 Contact Us For Availability

3A

Trim,door ,black ,LH side WCI 318187815 Contact Us For Availability

3B

Trim,door ,white ,top WCI 318176646 Contact Us For Availability

3B

Trim,door ,bisque ,top WCI 318176648 Contact Us For Availability

3B

Trim,door ,black ,top WCI 318176647 Contact Us For Availability

4

Panel,door front assy ,glass ,white ,with low WCI 318187715 Contact Us For Availability

4

Panel,door front assy ,glass ,bisque ,with lo WCI 318187716 Contact Us For Availability

4

Panel,door front assy ,glass ,black ,with low WCI 318187714 Contact Us For Availability

6

318025314 Frigidaire Oven Rack In Stock WCI 318025314 $97.01

6

Support,element ,(2) WCI 318194800 Contact Us For Availability

6

Shield,insulation WCI 318056802 Contact Us For Availability

7

Insulation,oven door WCI 318133754 Contact Us For Availability

9

Pan,broiler WCI 5303317977 Contact Us For Availability

9

Liner,door WCI 318157011 Contact Us For Availability

10

5303311174 Frigidaire Oven Screw Backorder WCI 5303311174 $9.50

10

Insert,broiler pan WCI 5303317976 Contact Us For Availability

12

318053103 Frigidaire Oven Door Seal Gasket Backorder WCI 318053103 $83.75

12#

318394803 Frigidaire Oven Switch Backorder WCI 318394803 $27.62

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15#

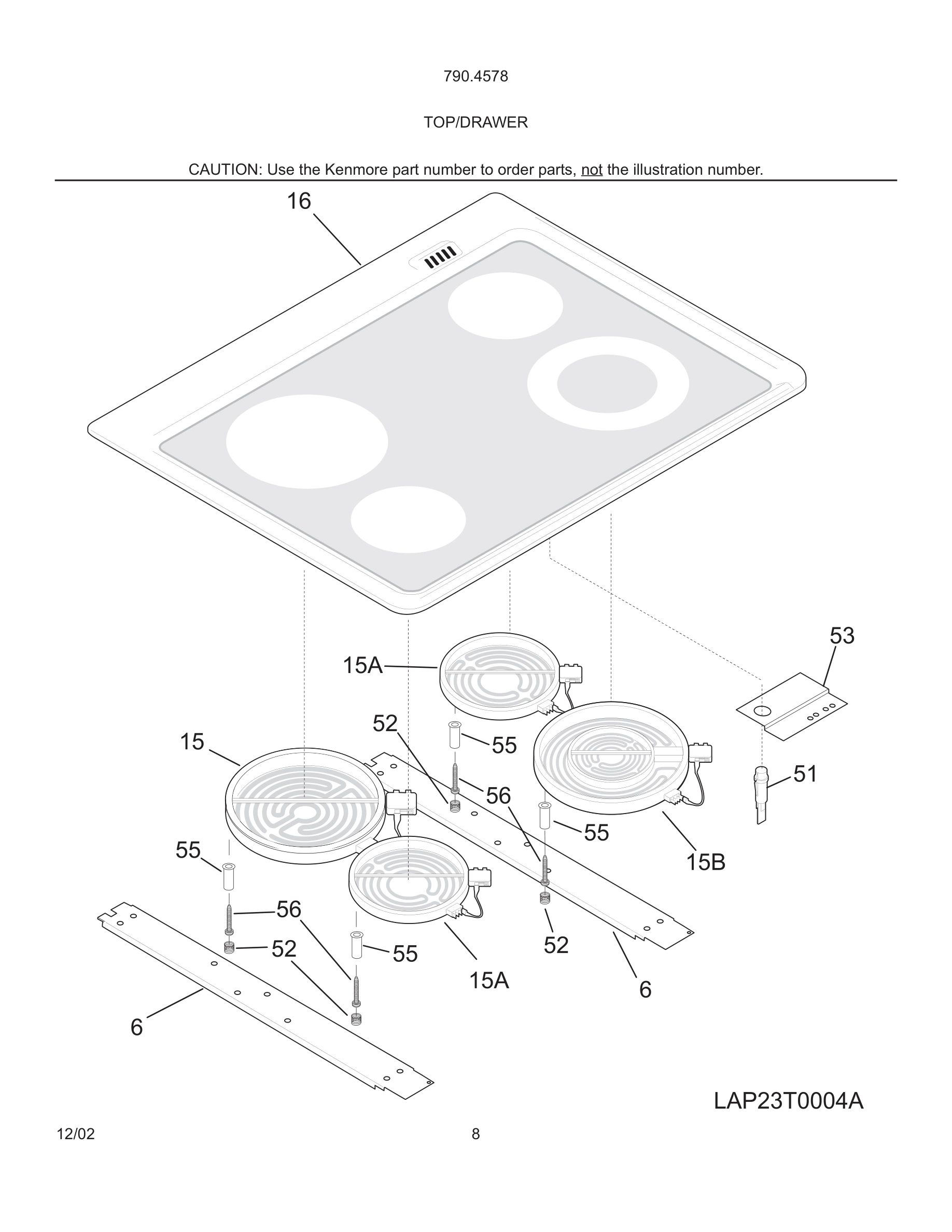

903118-9010 Frigidaire Large Surface Element In Stock WCI 903118-9010 $145.63

15A#

318198817 Frigidaire Oven Element Backorder WCI 318198817 $115.27

15B#

Element,surface ,6/9 ,1000/2100w ,dual radian WCI 318198911 Contact Us For Availability

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.87

Panel,glass ,inner oven door WCI 318041603 Contact Us For Availability

Main Top,glass ,white/black WCI 318154700 Contact Us For Availability

Main Top,glass ,white WCI 318154702 Contact Us For Availability

Main Top,glass ,bisque WCI 318154703 Contact Us For Availability

Main Top,glass ,black WCI 318154701 Contact Us For Availability

17

Retainer,light cover WCI 5304400195 Contact Us For Availability

17

Spacer,glass WCI 318042102 Contact Us For Availability

18

Seal,window WCI 318053001 Contact Us For Availability

23

Hinge,oven door WCI 318024700 Contact Us For Availability

25

Panel,heat shield ,sm oven bottom WCI 318179107 Contact Us For Availability

31

Latch,oven door WCI 5303310536 Contact Us For Availability

36

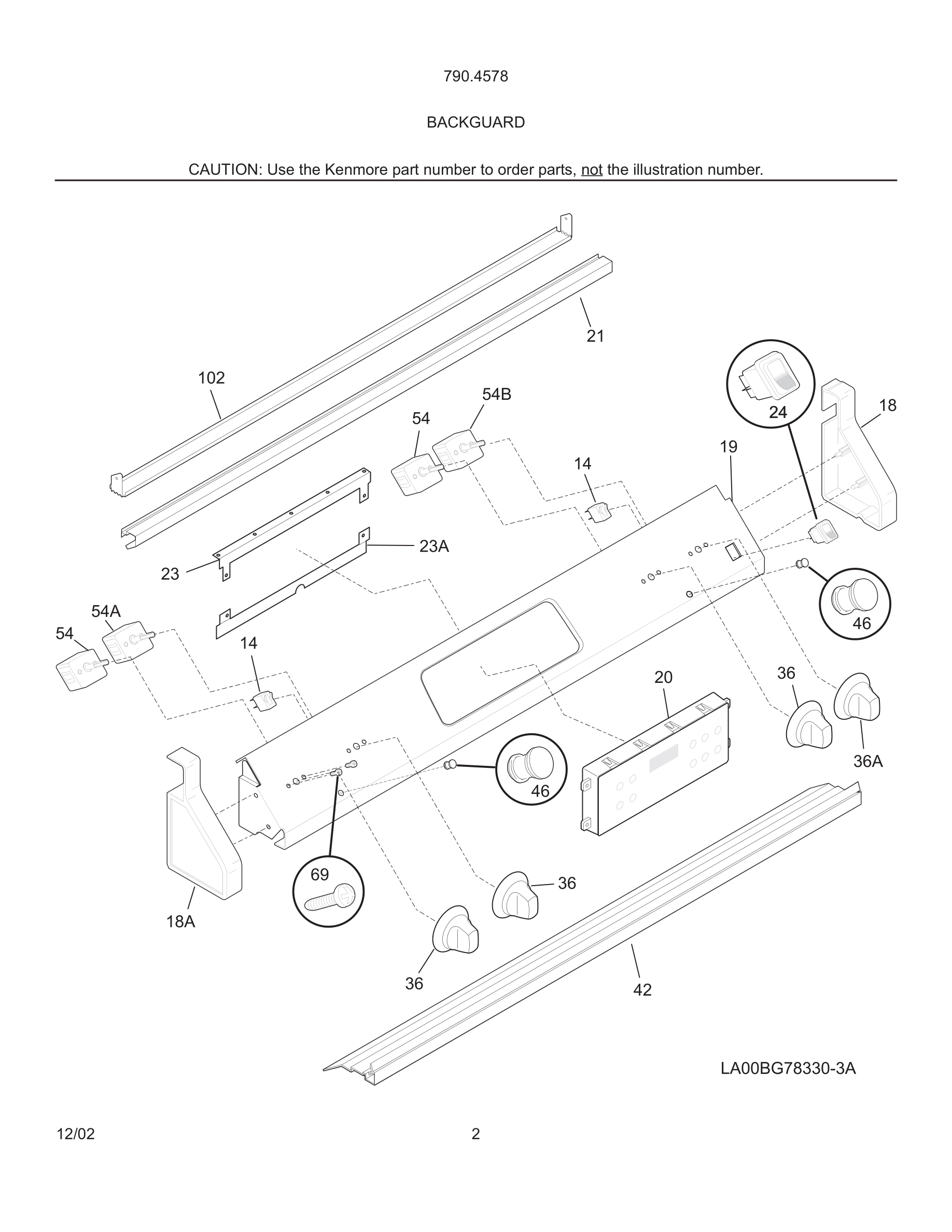

Knob,control ,bisque WCI 318196301 Contact Us For Availability

36

Knob,control ,black WCI 318196302 Contact Us For Availability

36A

Knob,dual control ,bisque WCI 318196311 Contact Us For Availability

36A

Knob,dual control ,white WCI 318196310 Contact Us For Availability

36A

Knob,dual control ,black WCI 318196312 Contact Us For Availability

37#

316217002 Frigidaire Oven Temperature Probe In Stock WCI 316217002 $43.36

39

316270201 Frigidaire Range Oven White Door Ha In Stock WCI 316270201 $81.12

39

Handle,door ,bisque WCI 316235503 Contact Us For Availability

39

Handle,door ,black WCI 316235500 Contact Us For Availability

41

Cover,hinge cutout WCI 5303310526 Contact Us For Availability

42

Trim,backguard ,white ,bottom WCI 318106924 Contact Us For Availability

42

Trim,backguard ,bisque ,bottom WCI 318106925 Contact Us For Availability

42

Trim,backguard ,black ,bottom WCI 318106927 Contact Us For Availability

46

5304462665 Frigidaire Range Lens Kit In Stock WCI 5304462665 $28.57

51#

318044827 Frigidaire Oven Light Backorder WCI 318044827 $38.09

52

5303317177 Frigidaire Mounting Element Spring Backorder WCI 5303317177 $7.62

53

Bracket,indicator light ,hot surface WCI 318125932 Contact Us For Availability

54

Housing,oven light WCI 5303310514 Contact Us For Availability

54#

318293820 Frigidaire Surface Heating Switch Backorder WCI 318293820 $49.43

54A#

318293827 Frigidaire Oven Surface Element Swi In Stock WCI 318293827 $57.37

54B#

318191002 Frigidaire Oven Switch Backorder WCI 318191002 $50.64

55

Spacer,element WCI 5303317178 Contact Us For Availability

5303300265 Frigidaire Oven Screw Backorder WCI 5303300265 $9.04

Screw,element ,6 x ¾ WCI 5303317179 Contact Us For Availability

Trim,oven front ,white WCI 318002712 Contact Us For Availability

Trim,oven front ,bisque WCI 318002714 Contact Us For Availability

Trim,oven front ,black WCI 318002711 Contact Us For Availability

58A

Insulation,oven wrapper WCI 318133744 Contact Us For Availability

58B

Insulation,oven back WCI 318133769 Contact Us For Availability

59

Tube,oven vent WCI 318072502 Contact Us For Availability

62#

5304409888 Frigidaire Oven Terminal Block Ass In Stock WCI 5304409888 $16.27

62*

316205500 Frigidaire Oven Nut In Stock WCI 316205500 $7.25

64

Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability

66#

318255605 Frigidaire Oven Broil Element Range In Stock WCI 318255605 $115.29

67#

318255006 Frigidaire Oven Range Bake Element In Stock WCI 318255006 $134.35

68

5304403015 Frigidaire Oven Support Backorder WCI 5304403015 $20.91

69

5303288565 Frigidaire Screw Backorder WCI 5303288565 $1.87

70

Shield,insulation WCI 318194400 Contact Us For Availability

70A

Deflector WCI 318199802 Contact Us For Availability

71

Panel,wiring cover ,rear WCI 5303310515 Contact Us For Availability

76

Front,oven WCI 318124100 Contact Us For Availability

77

Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability

80

318054701 Frigidaire Plate Backorder WCI 318054701 $13.57

81

Spring,oven WCI 318192400 Contact Us For Availability

83

Liner,oven WCI 318089613 Contact Us For Availability

86

Receptacle,hinge WCI 5303310524 Contact Us For Availability

87

Plate,cord set mtg WCI 318111800 Contact Us For Availability

88

Rod,latch WCI 318118904 Contact Us For Availability

89#

318095957 Frigidaire Oven Motor Backorder WCI 318095957 $85.37

89*

Switch WCI 318120711 Contact Us For Availability

102

Bracket,mounting WCI 318055601 Contact Us For Availability

103

Trim,base ,white WCI 5303300213 Contact Us For Availability

103

Trim,base ,bisque WCI 318169302 Contact Us For Availability

103

Trim,base ,black WCI 5303300217 Contact Us For Availability

108#

Motor,blower WCI 318073012 Contact Us For Availability

114

Plate,filler WCI 318175100 Contact Us For Availability

127

318317100 Frigidaire Adapter Assembly Backorder WCI 318317100 $47.51

128

Bushing WCI 5303311163 Contact Us For Availability

129

5303311164 Frigidaire Oven Spring Backorder WCI 5303311164 $11.32

141#

Switch,thermal cutout WCI 318005201 Contact Us For Availability

142

Deflector WCI 318123901 Contact Us For Availability

177

Gasket,vent WCI 5303324040 Contact Us For Availability

217

Plate,warning WCI 318112101 Contact Us For Availability

218

Plate,anti-tip WCI 318054700 Contact Us For Availability

219#

Thermostat,safety WCI 318003606 Contact Us For Availability

220

Bracket WCI 5304401475 Contact Us For Availability

221

Bracket WCI 5304401476 Contact Us For Availability
