Model Electrolux 790.45712102 Gas Range (Kenmore 79045712102) – Common Parts & Diagrams

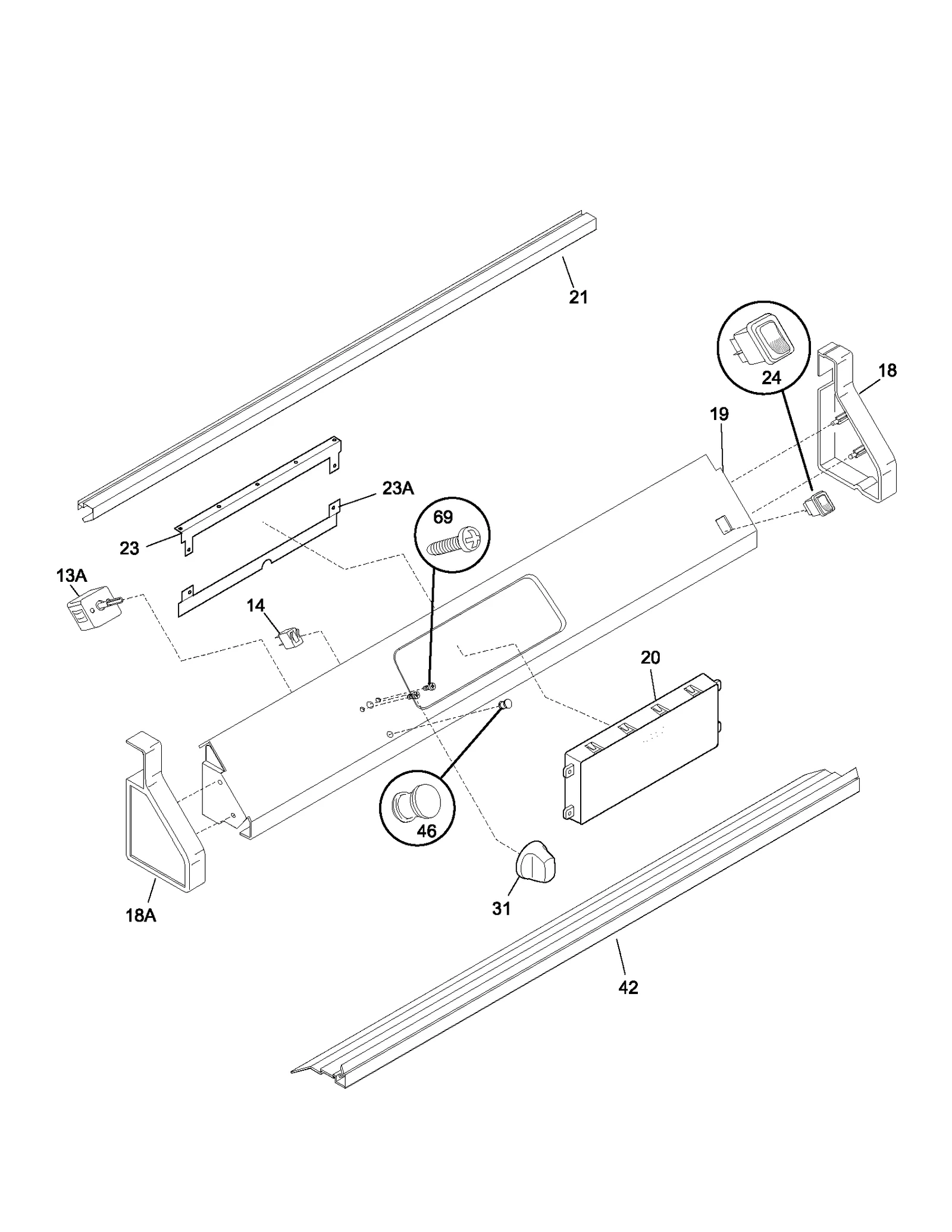

BACKGUARD

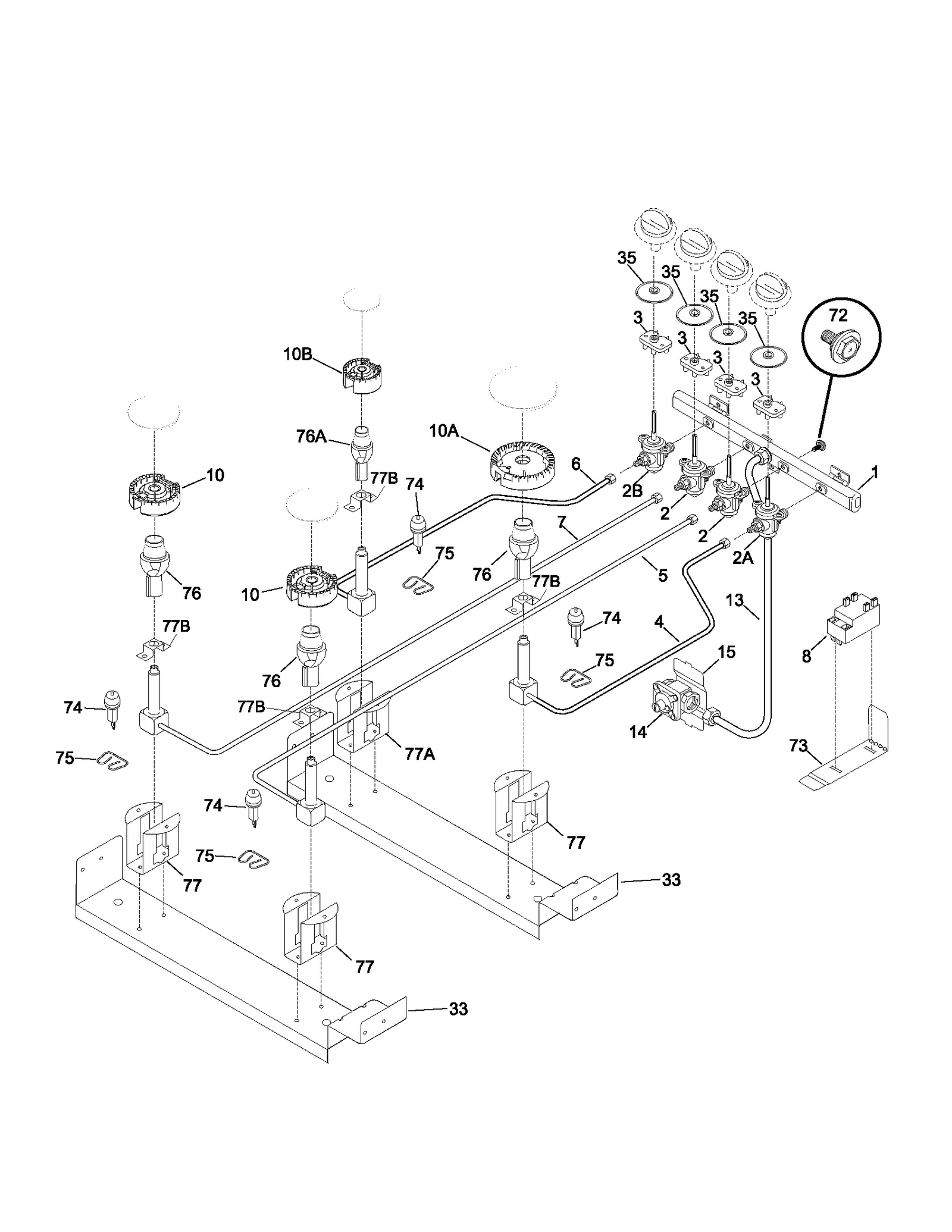

BURNER
BODY
DOOR
TOP/DRAWER
Common parts from model Electrolux 790.45712102 Gas Range (Kenmore 79045712102)
1
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
1
Drawer WCI 318142500 Contact Us For Availability
1A
Deflector WCI 318143335 Contact Us For Availability
1B
Deflector WCI 318143334 Contact Us For Availability
1C
Deflector Wrap WCI 318143203 Contact Us For Availability
2
Range Surface Burner Valve WCI 318087314 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
2
**drawer I WCI 318108021 Contact Us For Availability
2A
Range Surface Burner Valve WCI 318087315 Contact Us For Availability
2B
Range Surface Burner Valve WCI 318087313 Contact Us For Availability
3
Oven Trim WCI 318187810 Contact Us For Availability
3
Trim WCI 318187812 Contact Us For Availability
3
Range Trim WCI 318187814 Contact Us For Availability
3A
Oven Trim WCI 318187811 Contact Us For Availability
3A
Lh Door Trim WCI 318187813 Contact Us For Availability
3A
Trim, Left WCI 318187815 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176647 Contact Us For Availability
3B
Trim WCI 318176648 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318187715 Contact Us For Availability
4
Oven Trim WCI 318187714 Contact Us For Availability
4
Trim WCI 318187716 Contact Us For Availability
4
Panel WCI 318134008 Contact Us For Availability
4
Drawer Panel WCI 5303300149 Contact Us For Availability
4
Drawer Panel WCI 5303300151 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Cooktop Burner Tube and Orifice, Right Rear WCI 318167702 Contact Us For Availability
6
Shield WCI 318056802 Contact Us For Availability
7
Insulation WCI 318133754 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
10
Cooktop Burner WCI 318148001 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
10A
Cooktop Burner Head WCI 318148002 Contact Us For Availability
10B
Cooktop Burner WCI 318148000 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
16
Wh Glass Top WCI 318079220 Contact Us For Availability
16
Main WCI 318079221 Contact Us For Availability
16
Main Top/blk WCI 318079222 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254698 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254697 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
19
Range Drip Pan WCI 318168116 Contact Us For Availability
19
Pan-burner M WCI 318168117 Contact Us For Availability
19A
Range Drip Pan WCI 318168124 Contact Us For Availability
19A
Range Drip Pan WCI 318168126 Contact Us For Availability
19A
Lge Drip Pan WCI 318168127 Contact Us For Availability
19B
Range Drip Pan WCI 318168104 Contact Us For Availability
19B
Range Burner Drip Pan WCI 318168106 Contact Us For Availability
19B
Drip Pan Small WCI 318168107 Contact Us For Availability
20
Grate WCI 318120103 Contact Us For Availability
20
Grate WCI 318120104 Contact Us For Availability
20
Grate WCI 318120108 Contact Us For Availability
22
Burner Cap WCI 318076411 Contact Us For Availability
22
Burner Cap WCI 318076414 Contact Us For Availability
22A
Lge Brnr Cap WCI 318076420 Contact Us For Availability
22A
Lge Brnr Cap WCI 318076421 Contact Us For Availability
22A
Lg Bnr Cap WCI 318076424 Contact Us For Availability
22B
Sim Brnr Cap WCI 318076400 Contact Us For Availability
22B
Sim Brnr Cap WCI 318076401 Contact Us For Availability
22B
Pan Burner WCI 318076404 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
25
Shield WCI 318179108 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
36
Knob Vlv Wht WCI 318196200 Contact Us For Availability
36
Knob WCI 318196201 Contact Us For Availability
39
Door Handle WCI 316235500 Contact Us For Availability
39
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
39
Drawer Handle WCI 316026103 Contact Us For Availability
39
Drawer Handle WCI 318198200 Contact Us For Availability
39
Door Handle (Black) WCI 5303300154 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
45
Bushing WCI 318146210 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
56
Oven Trim WCI 318002611 Contact Us For Availability
56
Wht Ov Trim WCI 318002612 Contact Us For Availability
56
Ov Frnt Trim WCI 318002614 Contact Us For Availability
56
Valve Knob WCI 318196202 Contact Us For Availability
58A
Insulation WCI 318133744 Contact Us For Availability
58B
Insulation WCI 318133769 Contact Us For Availability
59
Tube WCI 318072519 Contact Us For Availability
59A
Tube WCI 318072520 Contact Us For Availability
63
Ground Plate WCI 5303310517 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199801 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
72
BRACKET, SLIDE (2) / SUPPORT-GLISSIERE WCI 318113402 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
76A
Cooktop Burner Air Mixing Tube WCI 318167800 Contact Us For Availability
77
Cooktop Burner Mounting Bracket, Medium and L WCI 318112010 Contact Us For Availability
80
Warmer Gasket WCI 318054300 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
84
Range Safety Thermostat WCI 318005103 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
87
Mounting Plate WCI 318111803 Contact Us For Availability
87
Warmer Base WCI 318121503 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
95
Wire Cover WCI 318143702 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Thermostat Switch WCI 5303284446 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
170
Range Anti-Tip Bracket WCI 5304405244 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
193
Cap WCI 5303325173 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
219
Thermostat Oven Griddle WCI 318005000 Contact Us For Availability
223
Cover WCI 318038400 Contact Us For Availability
264
Wire Cover WCI 318077602 Contact Us For Availability
283
REINFORCEMENT BRACKET WCI 318179400 Contact Us For Availability
NI
Range LP Conversion Kit WCI 318127414 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Bracket WCI 318180310 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
× ![]()
