Model Electrolux 790.45712100 Dual-Fuel Slide-In Range (Kenmore 79045712100) – Common Parts & Diagrams
All Parts
BURNER

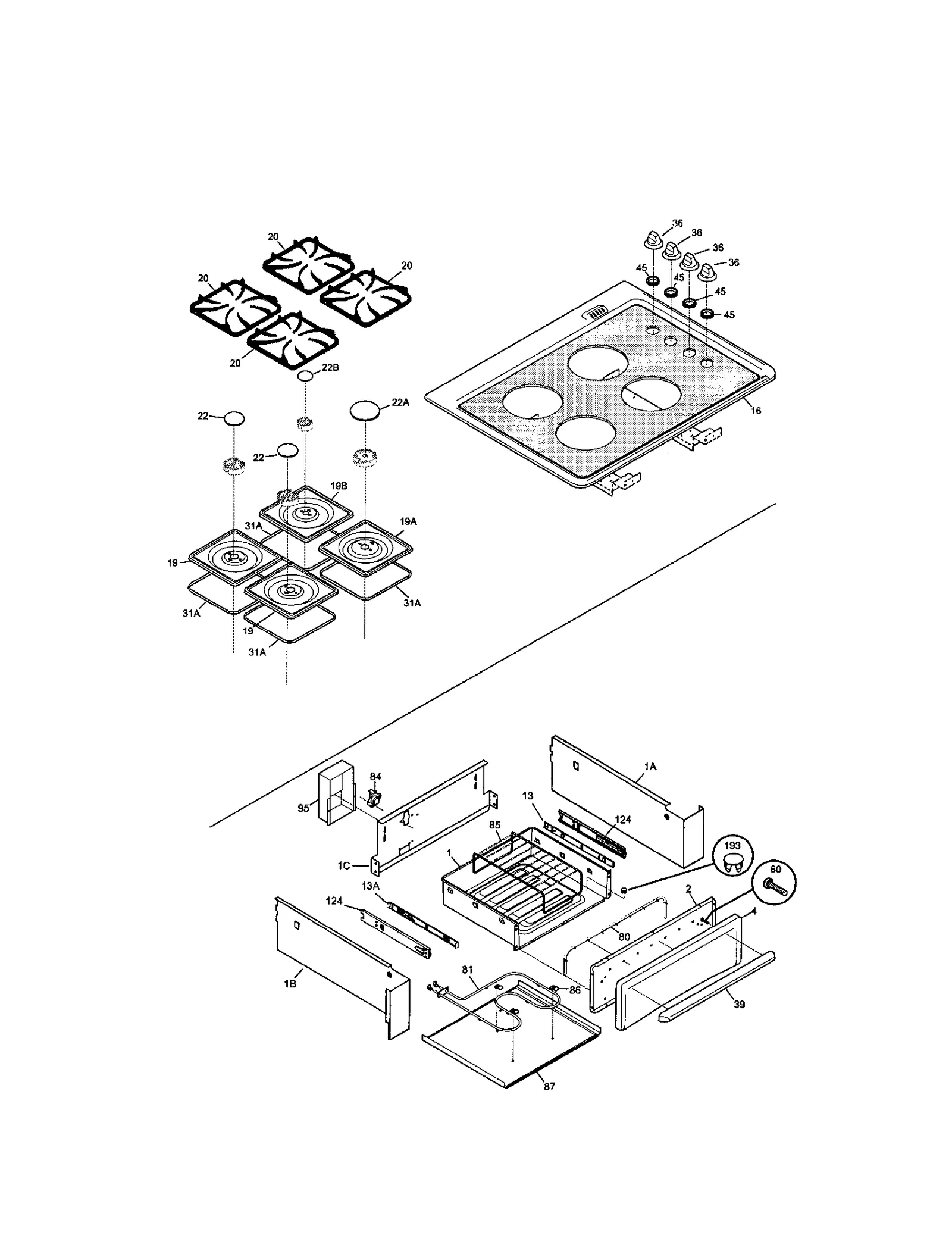

TOP/DRAWER

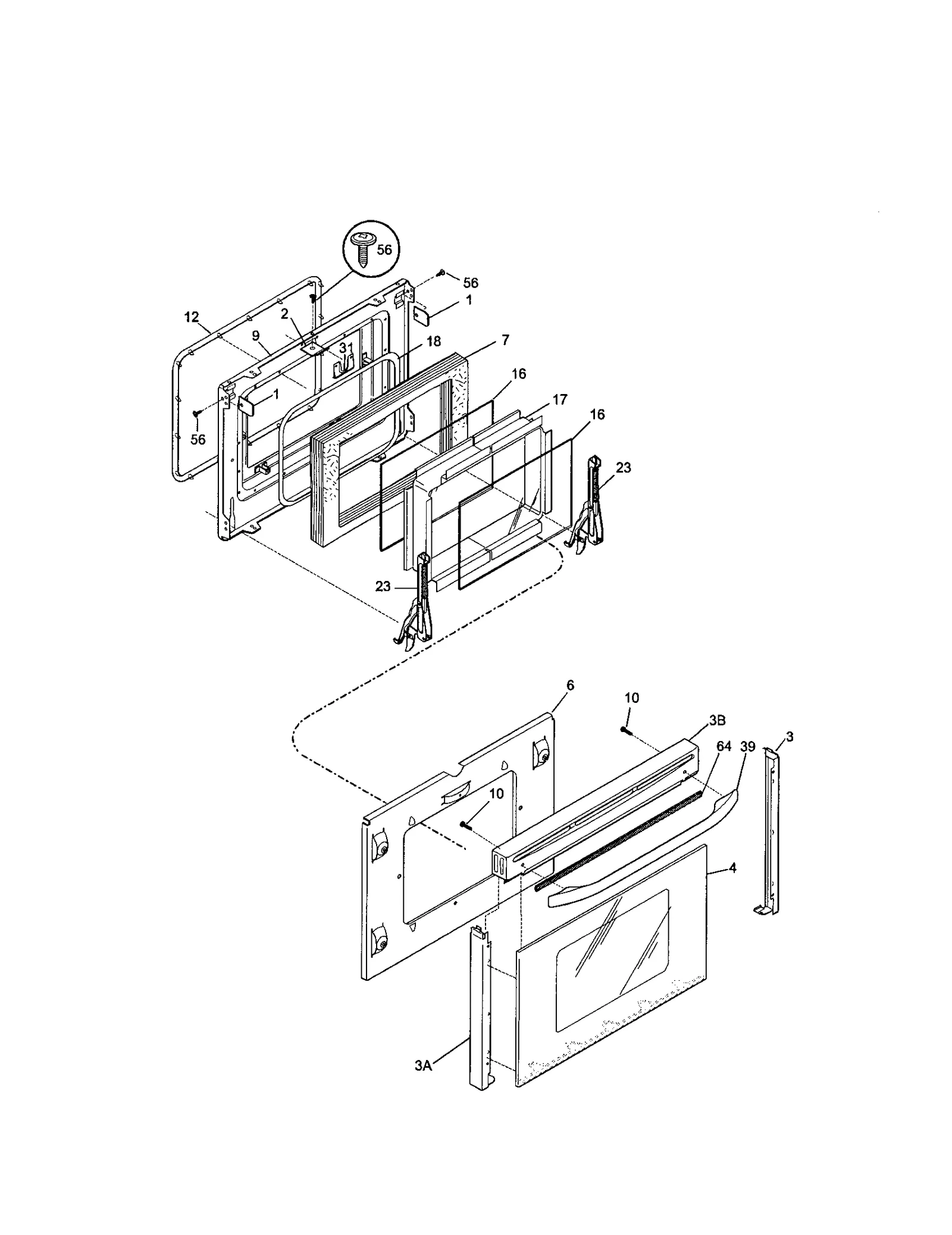

DOOR

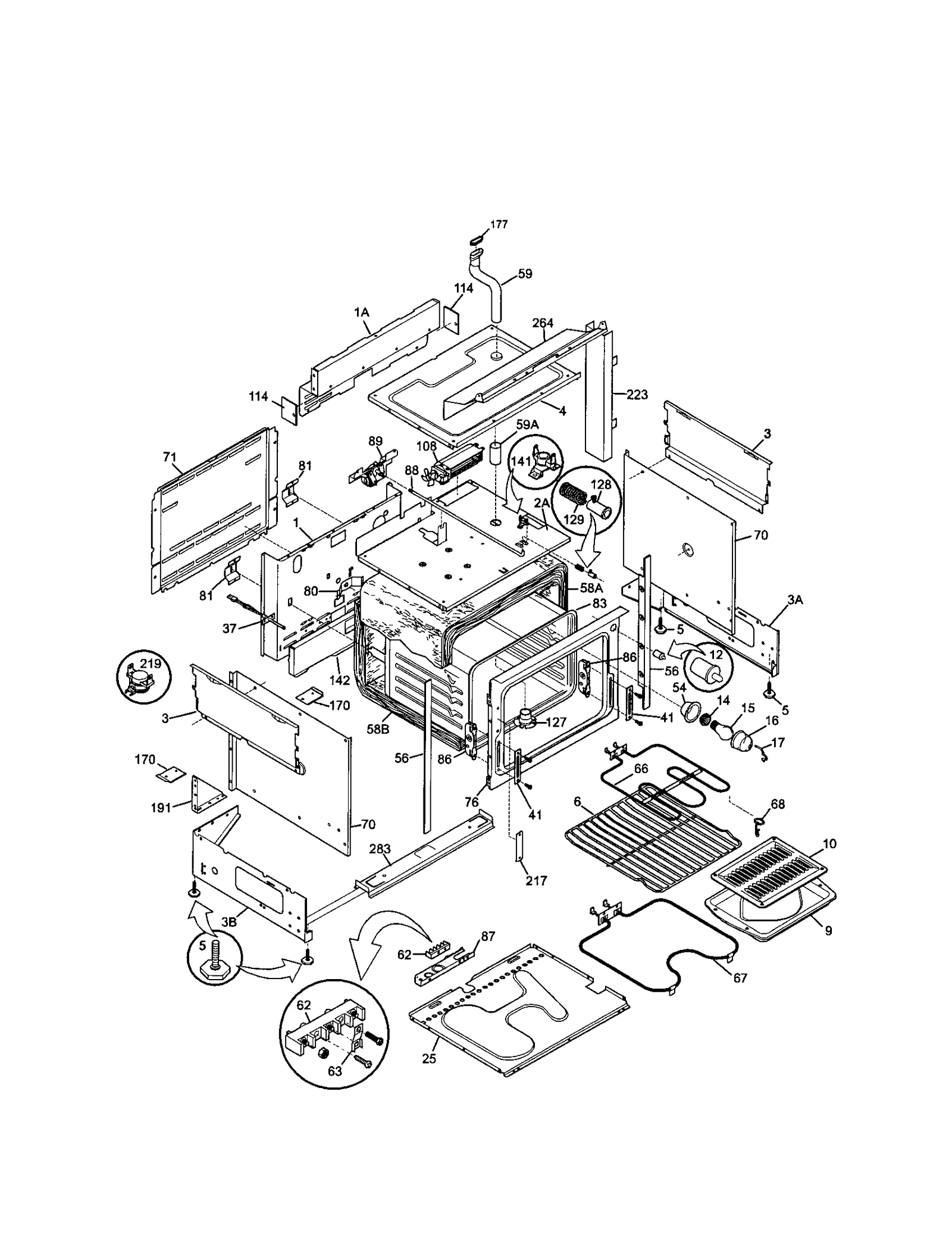

BODY

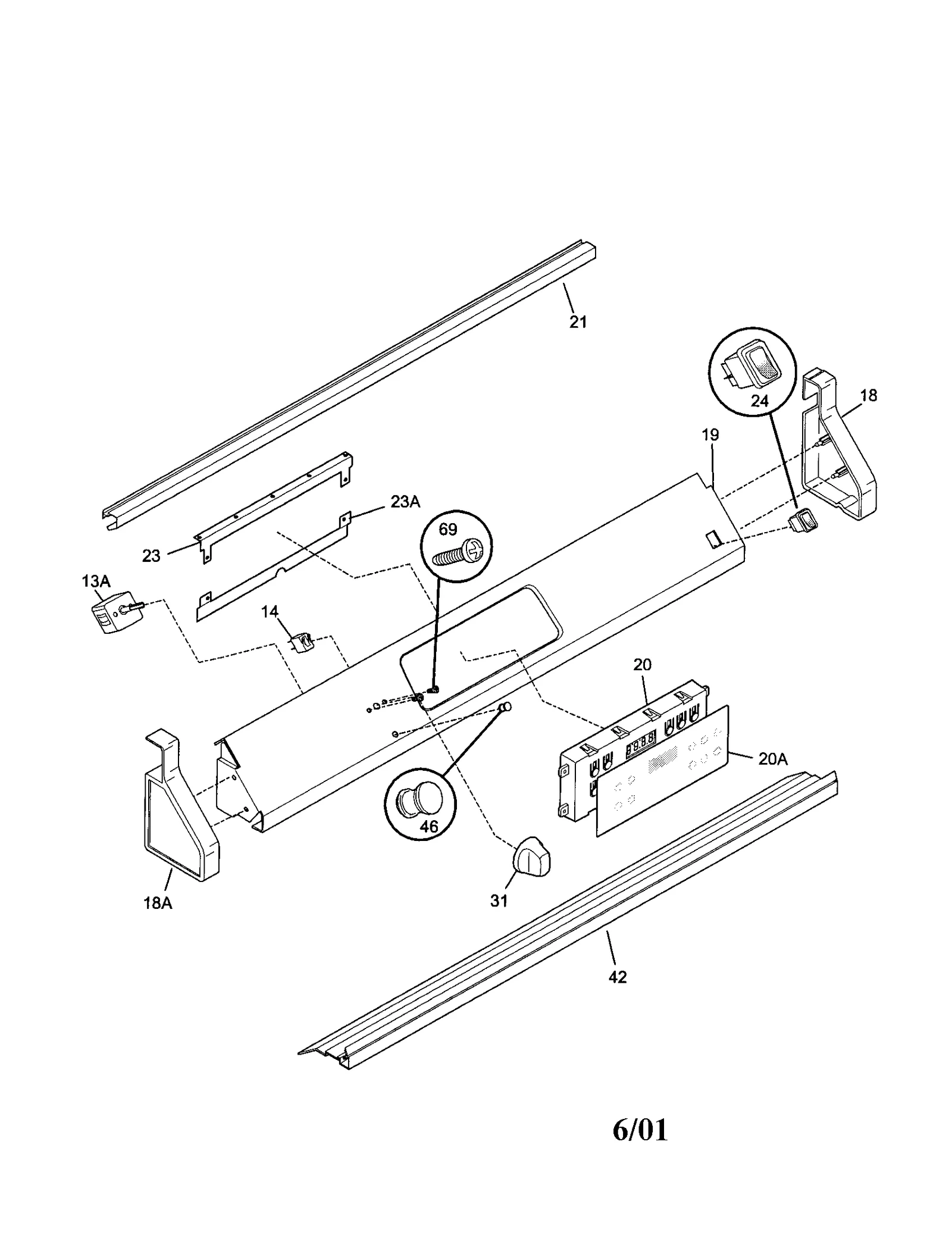

BACKGUARD
Common parts from model Electrolux 790.45712100 Dual-Fuel Slide-In Range (Kenmore 79045712100)
1
Bracket WCI 318180310 Contact Us For Availability
1
Main WCI 318066402 Contact Us For Availability
1A
Main WCI 318070910 Contact Us For Availability
2
Range Surface Burner Valve WCI 318087314 Contact Us For Availability
2
Bracket WCI 318180311 Contact Us For Availability
2A
Range Surface Burner Valve WCI 318087315 Contact Us For Availability
2A
Oven Shield WCI 318108600 Contact Us For Availability
2B
Range Surface Burner Valve WCI 318087313 Contact Us For Availability
3
Trim,door,wh WCI 318187800 Contact Us For Availability
3
Panel WCI 318159800 Contact Us For Availability
3A
Oven Door Trim WCI 318187801 Contact Us For Availability
3A
Rh Panel WCI 318160010 Contact Us For Availability
3AA
Door Trim WCI 318187805 Contact Us For Availability
3AB
Oven Drive Retainer WCI 318187803 Contact Us For Availability
3B
Door Trim WCI 318176624 Contact Us For Availability
3B
Lh Lo Panel WCI 318160011 Contact Us For Availability
3BA
TRIM, DOOR, BLACK, TOP WCI 318176625 Contact Us For Availability
3BB
Up Dr Trim WCI 318176626 Contact Us For Availability
3C
Door Trim WCI 318187804 Contact Us For Availability
3D
Bisq Dr Trim WCI 318187802 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318187715 Contact Us For Availability
4
Panel WCI 318073900 Contact Us For Availability
4A
Oven Trim WCI 318187714 Contact Us For Availability
4B
Trim WCI 318187716 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Cooktop Burner Tube and Orifice, Right Rear WCI 318167702 Contact Us For Availability
6
Shield WCI 318056802 Contact Us For Availability
6
Oven Rack WCI 5303310522 Contact Us For Availability
7
Insulation WCI 318106001 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Cooktop Burner WCI 318148001 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
10A
Cooktop Burner Head WCI 318148002 Contact Us For Availability
10B
Cooktop Burner WCI 318148000 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
14
Light Lamp WCI 318076700 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Range Control Panel End Cap Set WCI 318254698 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
18B
End Cap-rh WCI 5303300160 Contact Us For Availability
18C
Range Control Panel End Cap Set WCI 318254697 Contact Us For Availability
19
Range Drip Pan WCI 318168116 Contact Us For Availability
19
Mounting Panel WCI 318182985 Contact Us For Availability
19A
Range Drip Pan WCI 318168126 Contact Us For Availability
19A
Control Panel WCI 318182986 Contact Us For Availability
19AA
Range Drip Pan WCI 318168124 Contact Us For Availability
19B
Control Panel WCI 318182987 Contact Us For Availability
19BA
Range Drip Pan WCI 318168104 Contact Us For Availability
20
Clock WCI 318184401 Contact Us For Availability
20AB
Clock Overlay WCI 316220819 Contact Us For Availability
21
Trim Backguard WCI 318027804 Contact Us For Availability
21A
Trim Backguard WCI 318027803 Contact Us For Availability
21B
Trim Backguard WCI 318027807 Contact Us For Availability
22AA
Lge Brnr Cap WCI 318076420 Contact Us For Availability
22AB
Lg Bnr Cap WCI 318076424 Contact Us For Availability
22B
Sim Brnr Cap WCI 318076401 Contact Us For Availability
22BA
Sim Brnr Cap WCI 318076400 Contact Us For Availability
22BB
Pan Burner WCI 318076404 Contact Us For Availability
22D
Burner Cap WCI 318076414 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
23
Range Oven Control Board Bracket, Upper WCI 318015040 Contact Us For Availability
23A
Range Lower Bracket WCI 318015041 Contact Us For Availability
24B
Oven Switch WCI 318037520 Contact Us For Availability
25
Shield WCI 318179108 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
31B
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
36
Knob Vlv Wht WCI 318196200 Contact Us For Availability
36A
Knob WCI 318196201 Contact Us For Availability
36B
Valve Knob WCI 318196202 Contact Us For Availability
39
Drawer Handle WCI 316026103 Contact Us For Availability
39A
Door Handle (Black) WCI 5303300154 Contact Us For Availability
39A
Door Handle WCI 316235500 Contact Us For Availability
39B
Drawer Handle WCI 318198200 Contact Us For Availability
39B
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim-vent Wh WCI 318106924 Contact Us For Availability
42A
Trim-vent Bl WCI 318106927 Contact Us For Availability
42B
Console Plate WCI 318106925 Contact Us For Availability
45
Bushing WCI 318146210 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
56
Wht Ov Trim WCI 318002612 Contact Us For Availability
56A
Oven Trim WCI 318002611 Contact Us For Availability
56B
Ov Frnt Trim WCI 318002614 Contact Us For Availability
58A
Insulation WCI 5303310539 Contact Us For Availability
58B
Oven Insulation WCI 318132609 Contact Us For Availability
59
Tube WCI 318072519 Contact Us For Availability
59A
Tube WCI 318072520 Contact Us For Availability
63
Ground Plate WCI 5303310517 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
70
Retainer Insert WCI 5303300142 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
76A
Cooktop Burner Air Mixing Tube WCI 318167800 Contact Us For Availability
77
Cooktop Burner Mounting Bracket, Medium and L WCI 318112010 Contact Us For Availability
80
Warmer Gasket WCI 318054300 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
84
Range Safety Thermostat WCI 318005103 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Warmer Base WCI 318121503 Contact Us For Availability
87
Mounting Plate WCI 318111803 Contact Us For Availability
88
Range Oven Door Lock Latch Rod WCI 5303311160 Contact Us For Availability
89A
Latch Switch WCI 318120710 Contact Us For Availability
95
Wire Cover WCI 318143702 Contact Us For Availability
108
Fan Motor WCI 318073001 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Thermostat Switch WCI 5303284446 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
170
Range Anti-Tip Bracket WCI 5304405244 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
193
Plug WCI 5304400796 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
223
Cover WCI 318038400 Contact Us For Availability
264
Wire Cover WCI 318077602 Contact Us For Availability
283
REINFORCEMENT BRACKET WCI 318179400 Contact Us For Availability
NI
Range LP Conversion Kit WCI 318127414 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
× ![]()
