Model Electrolux 790.45704300 Gas Range (Kenmore 79045704300) – Common Parts & Diagrams

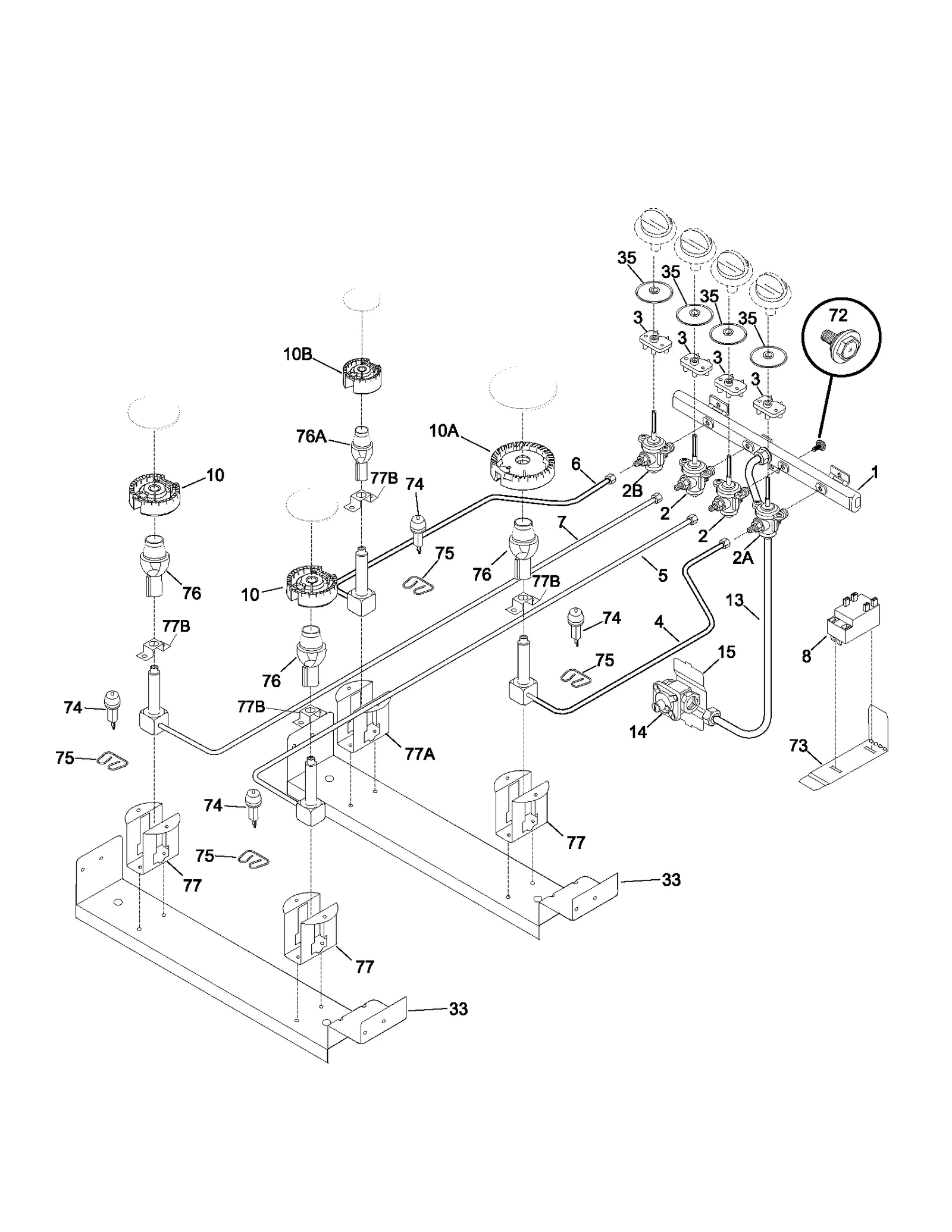

BURNER

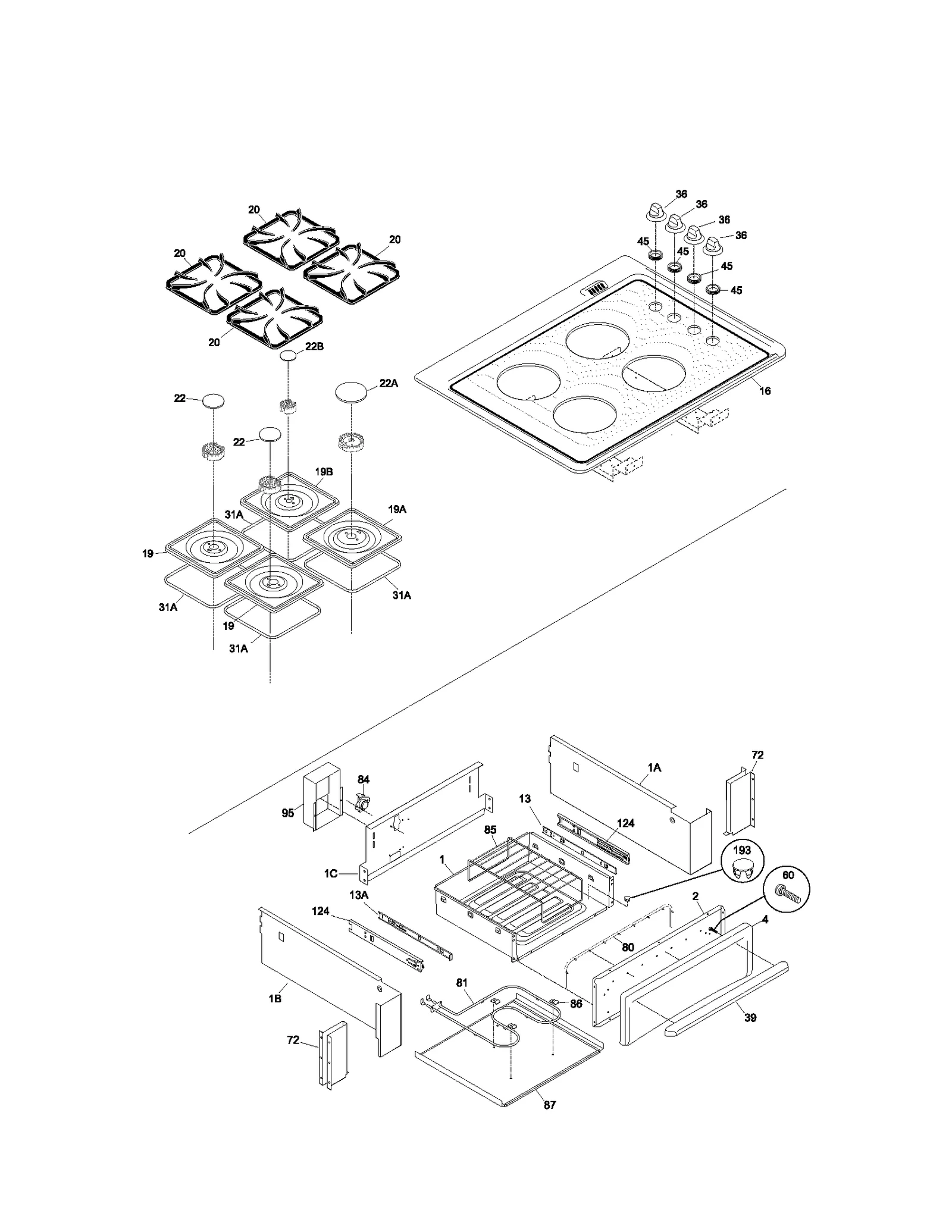

TOP/DRAWER
BODY
DOOR
BACKGUARD
Common parts from model Electrolux 790.45704300 Gas Range (Kenmore 79045704300)
1
Main WCI 318066402 Contact Us For Availability
1
Bracket WCI 318180310 Contact Us For Availability
1A
Main WCI 318070910 Contact Us For Availability
2
Range Surface Burner Valve WCI 318087315 Contact Us For Availability
2
Bracket WCI 318180312 Contact Us For Availability
2A
Range Surface Burner Valve WCI 318087314 Contact Us For Availability
2A
Oven Shield WCI 318108600 Contact Us For Availability
2B
Range Surface Burner Valve WCI 318087313 Contact Us For Availability
3
Panel WCI 318159800 Contact Us For Availability
3
Oven Trim WCI 318187810 Contact Us For Availability
3
Trim WCI 318187812 Contact Us For Availability
3
Range Trim WCI 318187814 Contact Us For Availability
3A
Body Panel WCI 318160004 Contact Us For Availability
3A
Oven Trim WCI 318187811 Contact Us For Availability
3A
Lh Door Trim WCI 318187813 Contact Us For Availability
3A
Trim, Left WCI 318187815 Contact Us For Availability
3B
Body Panel WCI 318160005 Contact Us For Availability
3B
Door Trim To WCI 318176646 Contact Us For Availability
3B
Trim WCI 318176647 Contact Us For Availability
3B
Trim WCI 318176648 Contact Us For Availability
4
Range Oven Door Outer Panel Assembly (White) WCI 318187715 Contact Us For Availability
4
Panel WCI 318073900 Contact Us For Availability
4
Oven Trim WCI 318187714 Contact Us For Availability
4
Trim WCI 318187716 Contact Us For Availability
5
Range Leveling Leg WCI 318175503 Contact Us For Availability
6
Cooktop Burner Tube and Orifice, Right Rear WCI 318167702 Contact Us For Availability
6
Rack WCI 318025308 Contact Us For Availability
6
Shield WCI 318056802 Contact Us For Availability
7
Insulation WCI 318133754 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
9
Panel WCI 318157011 Contact Us For Availability
10
Cooktop Burner WCI 318148001 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
10A
Cooktop Burner Head WCI 318148002 Contact Us For Availability
10B
Cooktop Burner WCI 318148000 Contact Us For Availability
14
Range Pressure Regulator WCI 318122700 No Longer Available
14
Light Lamp WCI 318076700 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 318041603 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Spacer WCI 318042102 Contact Us For Availability
18
Oven Seal WCI 318053001 Contact Us For Availability
18
End Cap WCI 318039310 Contact Us For Availability
18
End Cap WCI 318039312 Contact Us For Availability
18
End Cap WCI 318039316 Contact Us For Availability
18A
End Cap WCI 318039311 Contact Us For Availability
18A
End Cap WCI 318039313 Contact Us For Availability
18A
End Cap WCI 318039317 Contact Us For Availability
19
Range Drip Pan WCI 318168116 Contact Us For Availability
19
Mounting Panel WCI 318182985 Contact Us For Availability
19
Control Panel WCI 318182986 Contact Us For Availability
19
Control Panel WCI 318182987 Contact Us For Availability
19A
Range Drip Pan WCI 318168124 Contact Us For Availability
19A
Range Drip Pan WCI 318168126 Contact Us For Availability
19B
Range Drip Pan WCI 318168104 Contact Us For Availability
20
Range Oven Control Board and Overlay (White) WCI 318185420 Contact Us For Availability
20
Range Oven Control Board WCI 318185421 Contact Us For Availability
20
Clock Timer WCI 318185422 Contact Us For Availability
21
Trim Backguard WCI 318027803 Contact Us For Availability
21
Trim Backguard WCI 318027804 Contact Us For Availability
21
Trim Backguard WCI 318027807 Contact Us For Availability
23
Hinge Assembly WCI 318024700 Contact Us For Availability
23
BRACKET,CLOC WCI 318015042 Contact Us For Availability
23A
BRACKET,CLOC WCI 318015043 Contact Us For Availability
24
Oven Switch WCI 318037520 Contact Us For Availability
25
Shield WCI 318179108 Contact Us For Availability
31
Range Surface Burner Knob (White) WCI 316240800 Contact Us For Availability
31
Range Oven Door Latch WCI 5303310536 Contact Us For Availability
31
Range Surface Burner Knob WCI 316240803 Contact Us For Availability
39
Drawer Handle WCI 318198200 Contact Us For Availability
39
Door Handle (Black) WCI 5303300154 Contact Us For Availability
39
Door Handle WCI 316235500 Contact Us For Availability
39
Range Oven Door Handle (Bisque) WCI 316235503 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim-vent Bl WCI 318106927 Contact Us For Availability
42
Trim-vent Wh WCI 318106924 Contact Us For Availability
42
Console Plate WCI 318106925 Contact Us For Availability
45
Bushing WCI 318146210 Contact Us For Availability
54
Oven Housing WCI 5303310514 Contact Us For Availability
56
Oven Trim WCI 318002611 Contact Us For Availability
56
Wht Ov Trim WCI 318002612 Contact Us For Availability
56
Ov Frnt Trim WCI 318002614 Contact Us For Availability
58A
Insulation WCI 318133744 Contact Us For Availability
58B
Insulation WCI 318133769 Contact Us For Availability
59
Tube WCI 318072519 Contact Us For Availability
59A
Tube WCI 318072520 Contact Us For Availability
63
Plate WCI 316208500 Contact Us For Availability
64
Tape WCI 5304417120 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199802 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
72
BRACKET, SLIDE (2) / SUPPORT-GLISSIERE WCI 318113402 Contact Us For Availability
76
Oven WCI 318124100 Contact Us For Availability
76A
Cooktop Burner Air Mixing Tube WCI 318167800 Contact Us For Availability
77
Cooktop Burner Mounting Bracket, Medium and L WCI 318112010 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
80
Warmer Gasket WCI 318054300 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
84
Range Safety Thermostat WCI 318005103 Contact Us For Availability
86
Range Warming Drawer Element Bracket WCI 316095800 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Warmer Base WCI 318121503 Contact Us For Availability
87
Mounting Plate WCI 318111803 Contact Us For Availability
88
Latch Rod WCI 318118904 Contact Us For Availability
95
Wire Cover WCI 318143702 Contact Us For Availability
108
Oven Blower WCI 318073012 Contact Us For Availability
114
Filler Plate WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
141
Range Thermal Cut-Off WCI 318005201 Contact Us For Availability
142
Air Deflector WCI 318123901 Contact Us For Availability
170
Range Anti-Tip Bracket WCI 5304405244 Contact Us For Availability
177
Gasket WCI 5303324040 Contact Us For Availability
191
Bracket WCI 5303304030 Contact Us For Availability
217
Warming Plate WCI 318112101 Contact Us For Availability
219
Wall Oven Safety Thermostat WCI 318003606 Contact Us For Availability
223
Cover WCI 318038402 Contact Us For Availability
264
Wire Cover WCI 318077602 Contact Us For Availability
283
REINFORCEMENT BRACKET WCI 318179400 Contact Us For Availability
NI
Range LP Conversion Kit WCI 318127414 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Cap WCI 5303325173 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Cleaner-cook WCI 316112100 Contact Us For Availability
NI
Range Surface Burner Grate Cleaner WCI 316119700 Contact Us For Availability
NI
Cover WCI 318037811 Contact Us For Availability
NI
Cover,end cap ,black WCI 318037812 Contact Us For Availability
NI
Cover WCI 318037813 Contact Us For Availability
NI
Wiring Diagram WCI 318045070 Contact Us For Availability
NI
Service Data Sheet WCI 318127005 Contact Us For Availability
NI
Range Owner's Manual WCI 318200860 Contact Us For Availability
NI
Instructions WCI 318201660 Contact Us For Availability
NI
Parts List WCI 5995382800 Contact Us For Availability
× ![]()
