Model Kenmore 790.45662103 RANGE – Common Parts & Diagrams
01 - COVER

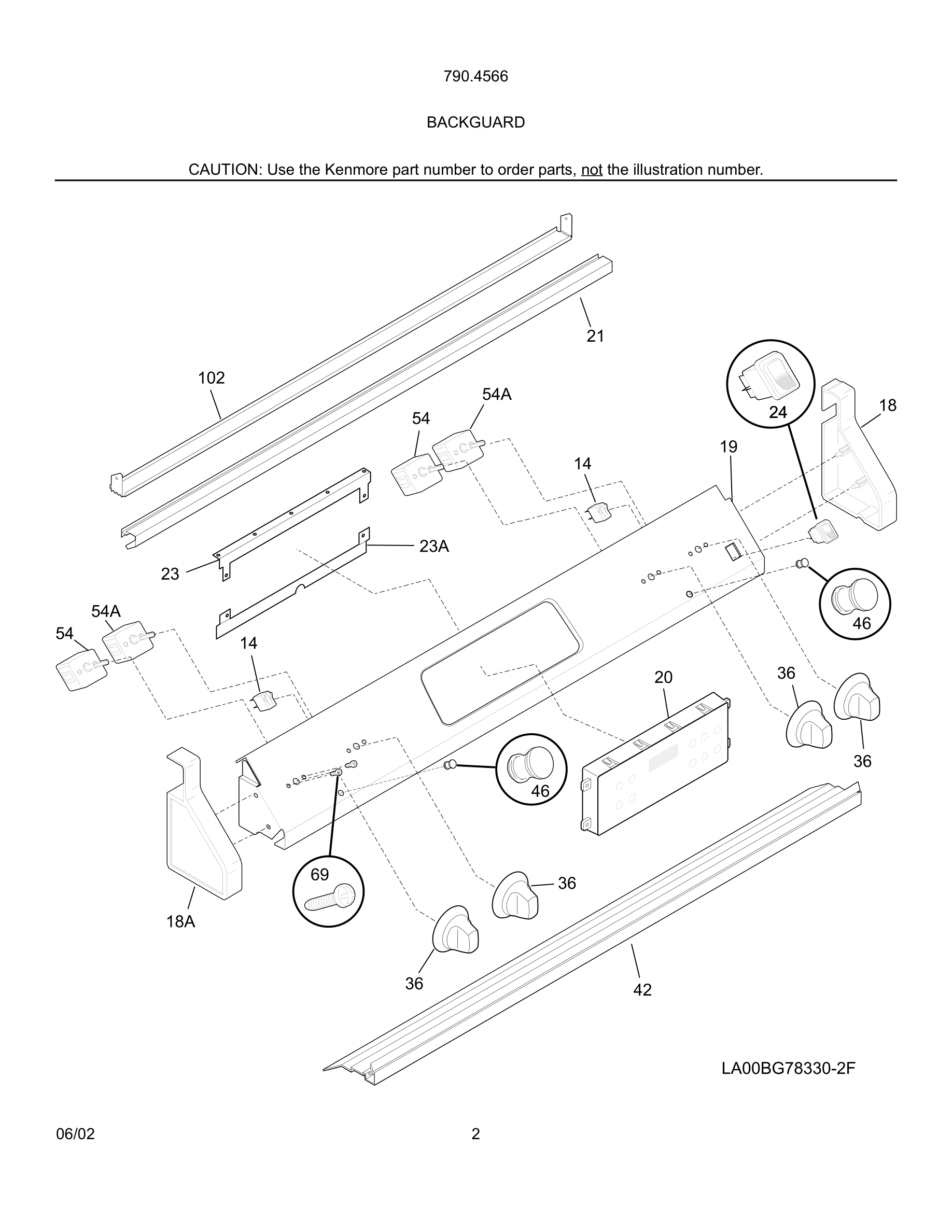

03 - BACKGUARD

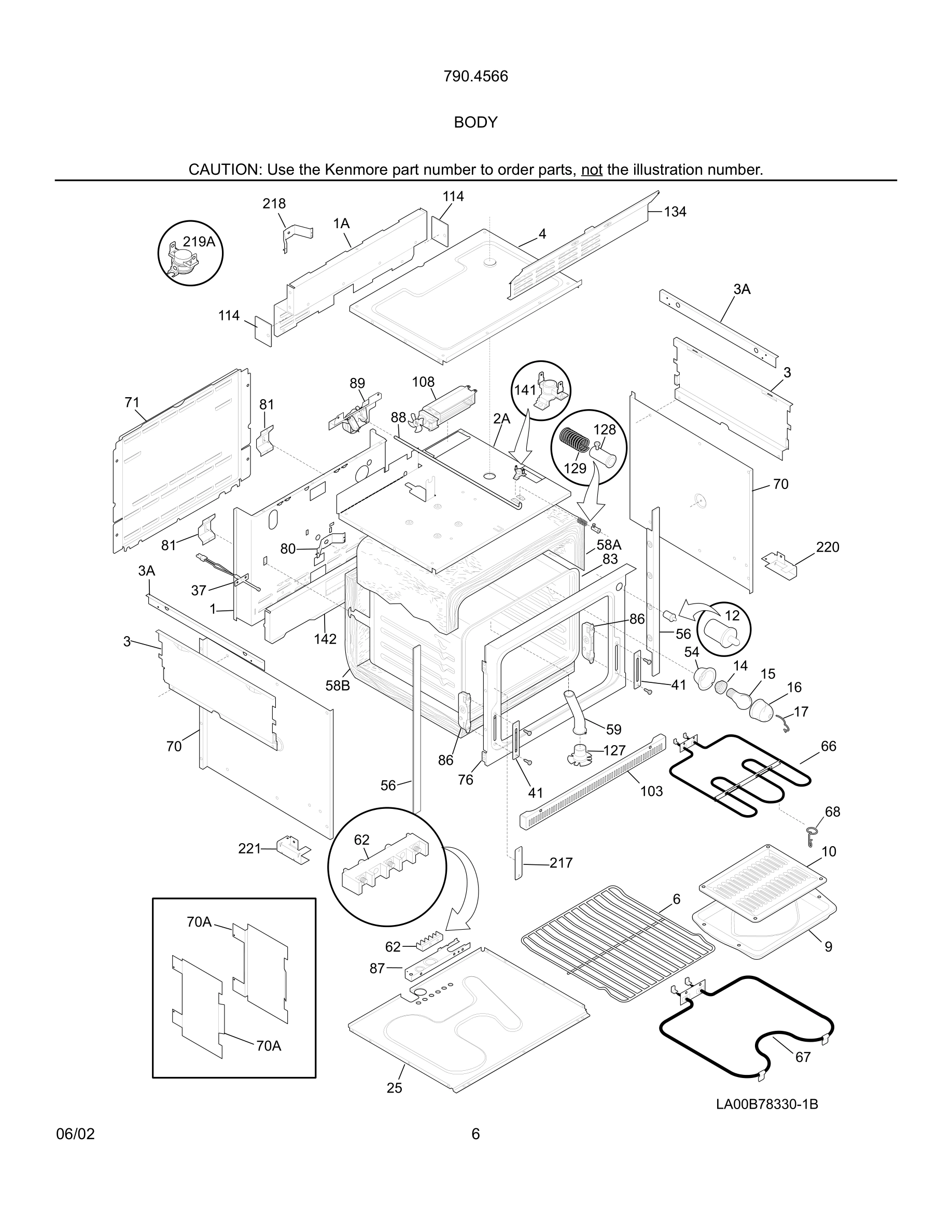

05 - BODY
07 - BODY
09 - MAINTOP

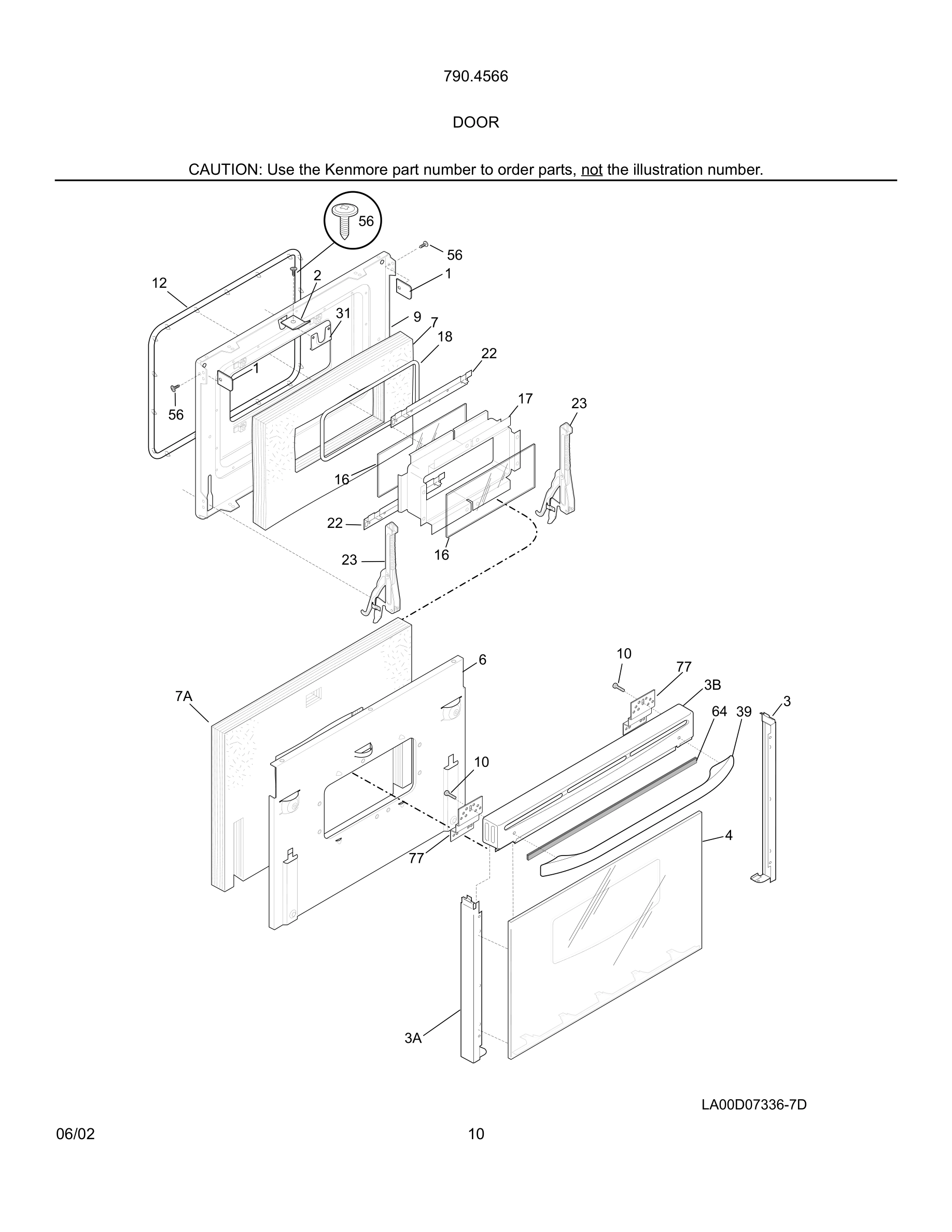

11 - DOOR

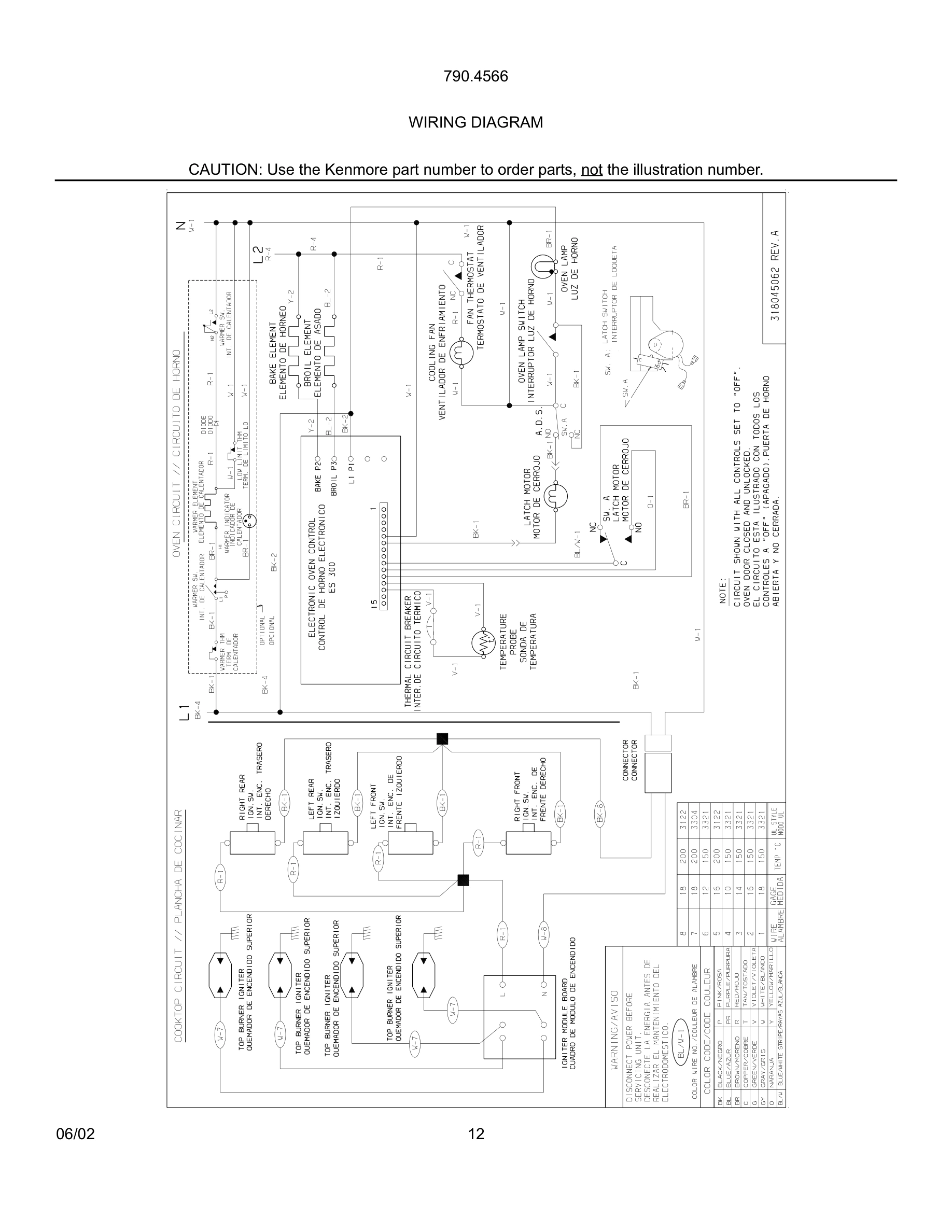

12 - WIRING DIAGRAM
Common parts from model Kenmore 790.45662103 RANGE
*
Screw,truss head ,8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Box & wires assy WCI 318078515 Contact Us For Availability
1
Panel,main back WCI 318066402 Contact Us For Availability
1
Bracket,trim mtg WCI 318180310 Contact Us For Availability
1A
Panel,main back ,upper WCI 318070910 Contact Us For Availability
2
Bracket,upper trim mtg WCI 318180312 Contact Us For Availability
2A
Shield,oven top WCI 318108600 Contact Us For Availability
3
Panel,body side ,upper WCI 318159800 Contact Us For Availability
3
Trim,door ,white ,RH side WCI 318178322 Contact Us For Availability
3
Trim,door ,black ,RH side WCI 318178324 Contact Us For Availability
3A
Bracket,support WCI 318195100 Contact Us For Availability
3A
Trim,door ,white ,LH side WCI 318178323 Contact Us For Availability
3A
Trim,door ,black ,LH side WCI 318178325 Contact Us For Availability
3B
Trim,door ,white ,top WCI 318176646 Contact Us For Availability
3B
Trim,door ,black ,top WCI 318176647 Contact Us For Availability
4
Burner Box WCI 318133400 Contact Us For Availability
4
Panel,door front assy ,glass ,white ,with low WCI 318187717 Contact Us For Availability
4
Panel,door front assy ,glass ,black ,with low WCI 318187718 Contact Us For Availability
6
Rack,oven WCI 318025303 Contact Us For Availability
6
Shield,insullation ,black ,door WCI 318057031 Contact Us For Availability
7
Insulation,oven door WCI 318133706 Contact Us For Availability
7A
Insulation,oven door ,cavity WCI 318133707 Contact Us For Availability
9
Pan,broiler WCI 5303317977 Contact Us For Availability
9
Liner,door WCI 318157013 Contact Us For Availability
10
Insert,broiler pan WCI 5303317976 Contact Us For Availability
16
Glass,oven door ,6.50 x 15.50 ,inner ,heat ba WCI 5303310533 Contact Us For Availability
16
Main Top,white WCI 5303300166 Contact Us For Availability
16
Main Top,black WCI 5303307287 Contact Us For Availability
17
Retainer,light cover WCI 5304400195 Contact Us For Availability
17
Rod,support ,main top panel WCI 3051554 Contact Us For Availability
17
Spacer,oven door glass ,inner frame WCI 318139000 Contact Us For Availability
18
Bracket,hinge ,main top ,(2) WCI 5303305530 Contact Us For Availability
18
Gasket,door glass seal ,inner WCI 5303310531 Contact Us For Availability
22
Bar,glass retainer WCI 5303310511 Contact Us For Availability
23
Hinge,oven door WCI 318024700 Contact Us For Availability
25
Panel,heat shield ,sm oven bottom WCI 318179107 Contact Us For Availability
27#
Terminal Block,surface element WCI 5303323704 Contact Us For Availability
28
Medallion,surface element WCI 5303301461 Contact Us For Availability
31
Latch,oven door WCI 5303310536 Contact Us For Availability
39
Handle,door ,black WCI 316235500 Contact Us For Availability
41
Cover,hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing,oven light WCI 5303310514 Contact Us For Availability
56
Trim,oven front ,white WCI 318002712 Contact Us For Availability
56
Trim,oven front ,black WCI 318002711 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133744 Contact Us For Availability
58B
Insulation,oven back WCI 318133769 Contact Us For Availability
59
Tube,oven vent WCI 318072524 Contact Us For Availability
64
Tape,0.762 m ,Neoprene WCI 5304417120 Contact Us For Availability
70
Shield,insulation WCI 318194400 Contact Us For Availability
70A
Deflector WCI 318199801 Contact Us For Availability
71
Panel,wiring cover ,rear WCI 5303310515 Contact Us For Availability
76
Front,oven WCI 318124100 Contact Us For Availability
77
Bracket,trim ,handle ,(2) WCI 318043100 Contact Us For Availability
81
Spring,oven WCI 318192400 Contact Us For Availability
83
Liner,oven WCI 318089613 Contact Us For Availability
86
Receptacle,hinge WCI 5303310524 Contact Us For Availability
87
Plate,cord set mtg WCI 318111800 Contact Us For Availability
88
Rod,latch WCI 318118904 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
93
Support,terminal block ,(4) WCI 318122500 Contact Us For Availability
102
Bracket,mounting WCI 318055601 Contact Us For Availability
103
Trim,base ,white WCI 5303300213 Contact Us For Availability
103
Trim,base ,black WCI 5303300217 Contact Us For Availability
108#
Motor,blower WCI 318073012 Contact Us For Availability
114
Plate,filler WCI 318175100 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
134
Cover,wire WCI 318077610 Contact Us For Availability
141#
Switch,thermal cutout WCI 318005201 Contact Us For Availability
142
Deflector WCI 318123901 Contact Us For Availability
143
Bracket,hinge support WCI 5303300148 Contact Us For Availability
217
Plate,warning WCI 318112101 Contact Us For Availability
219A
Thermostat,safety ,for fan WCI 318003606 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
× ![]()
