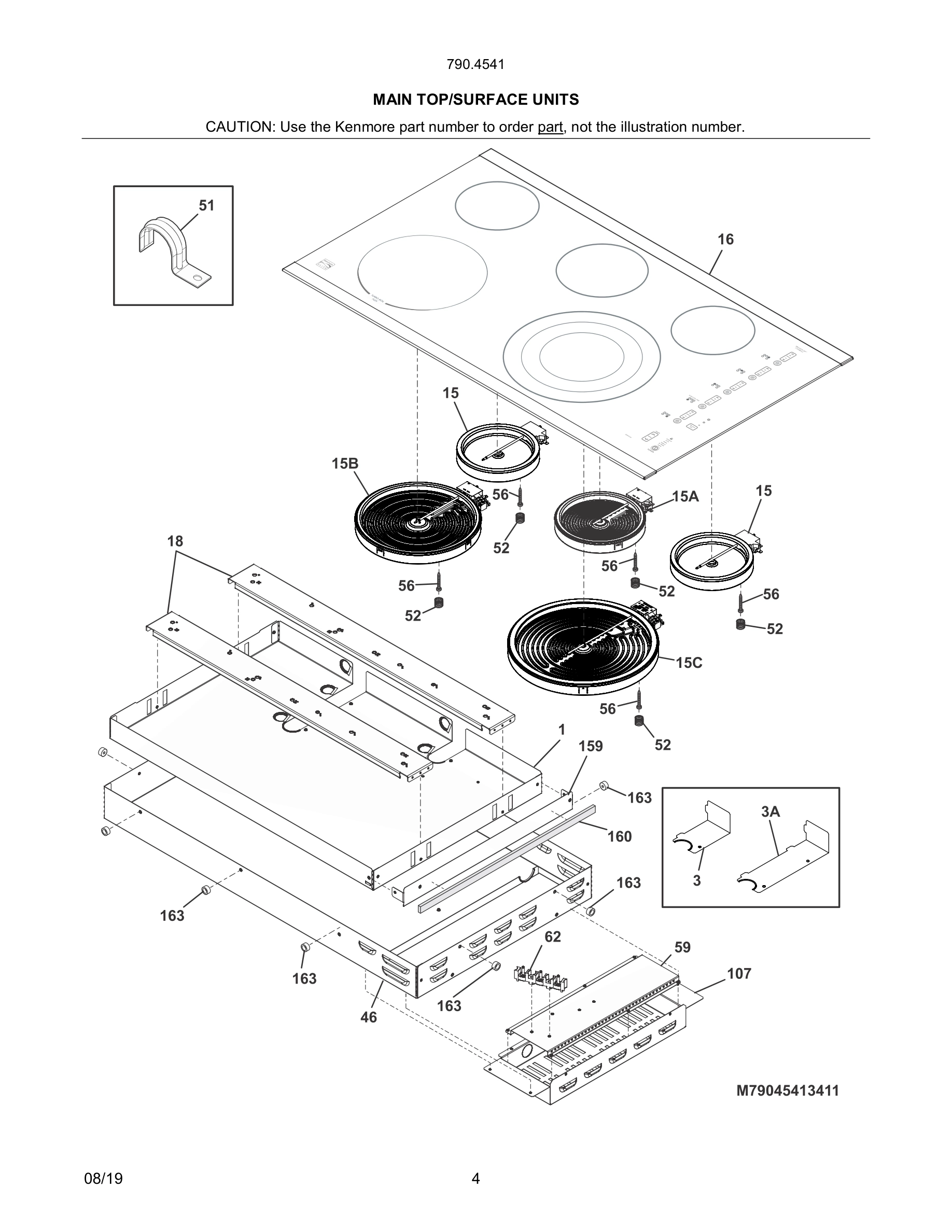

Model Kenmore 790.45413412 COOKTOP – Common Parts & Diagrams

*
Screw, (4)
Screw, (4) WCI 305376102 Contact Us For Availability
View on Model
*
Insulation, front, 19.362 x 5.242, .5" thick
Insulation, front, 19.362 x 5.242, .5" thick WCI 318346021 Contact Us For Availability
View on Model
1
Shield, heat, inner
Shield, heat, inner WCI 5304507320 Contact Us For Availability
View on Model
3A
Cover, deflector
Cover, deflector WCI 318371421 Contact Us For Availability
View on Model
16#
Main Top Assembly, glass/steel, black/stainle
Main Top Assembly, glass/steel, black/stainle WCI 5304507322 Contact Us For Availability
View on Model
16*
Trim, 36", stainless, (2), w/adhesive tape
Trim, 36", stainless, (2), w/adhesive tape WCI 318330260 Contact Us For Availability
View on Model
16*
Trim, 36", black, (2), w/adhesive tape
Trim, 36", black, (2), w/adhesive tape WCI 318330263 Contact Us For Availability
View on Model
18
Bracket, element mtg., (2)
Bracket, element mtg., (2) WCI 807086601 Contact Us For Availability
View on Model
46
Box, burner, 36"
Box, burner, 36" WCI 5304507319 Contact Us For Availability
View on Model
51
Bracket, conduit mtg.
Bracket, conduit mtg. WCI 318389610 Contact Us For Availability
View on Model
59
Shield, support
Shield, support WCI 5304507191 Contact Us For Availability
View on Model
77
Spacer, control
Spacer, control WCI 318293702 Contact Us For Availability
View on Model
107
Box, service
Box, service WCI 5304507186 Contact Us For Availability
View on Model
159
Deflector, heat
Deflector, heat WCI 5304507196 Contact Us For Availability
View on Model
160
Seal, foam tape
Seal, foam tape WCI 5304507195 Contact Us For Availability
View on Model
163*
Screw, 8 x 5/8
Screw, 8 x 5/8 WCI 3131048 Contact Us For Availability
View on Model
