Model Electrolux 790.45254400 Electric Range (Kenmore 79045254400) – Common Parts & Diagrams

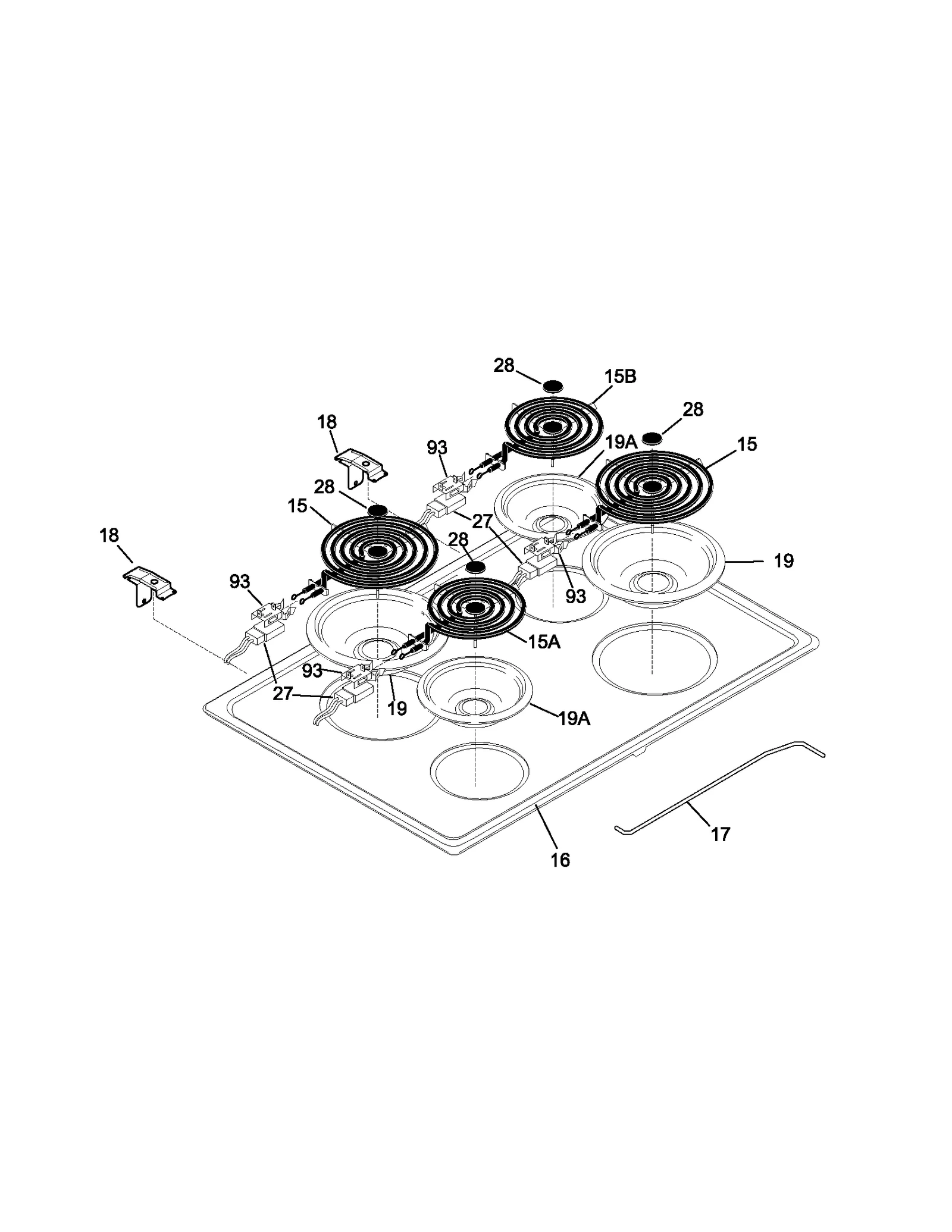

MAINTOP

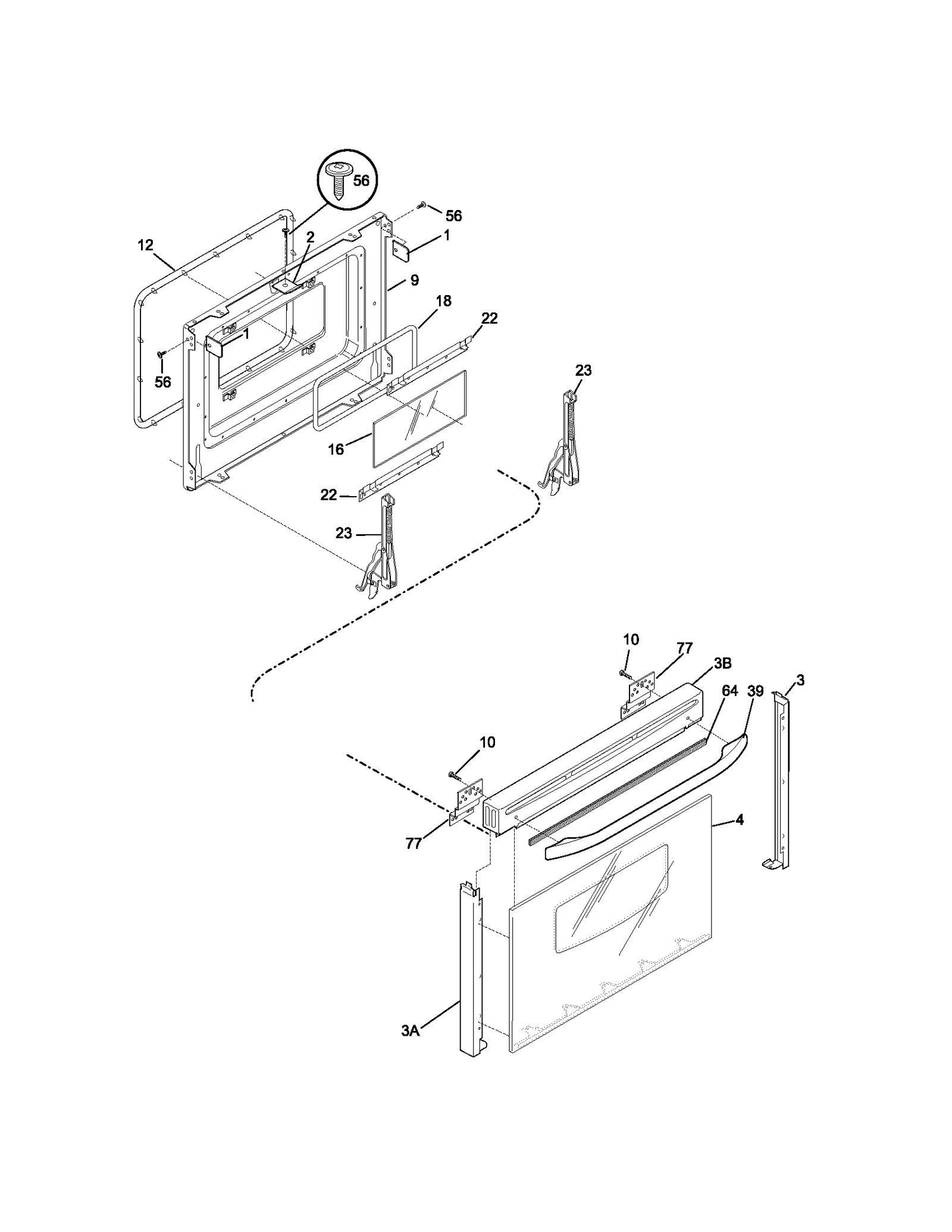

DOOR

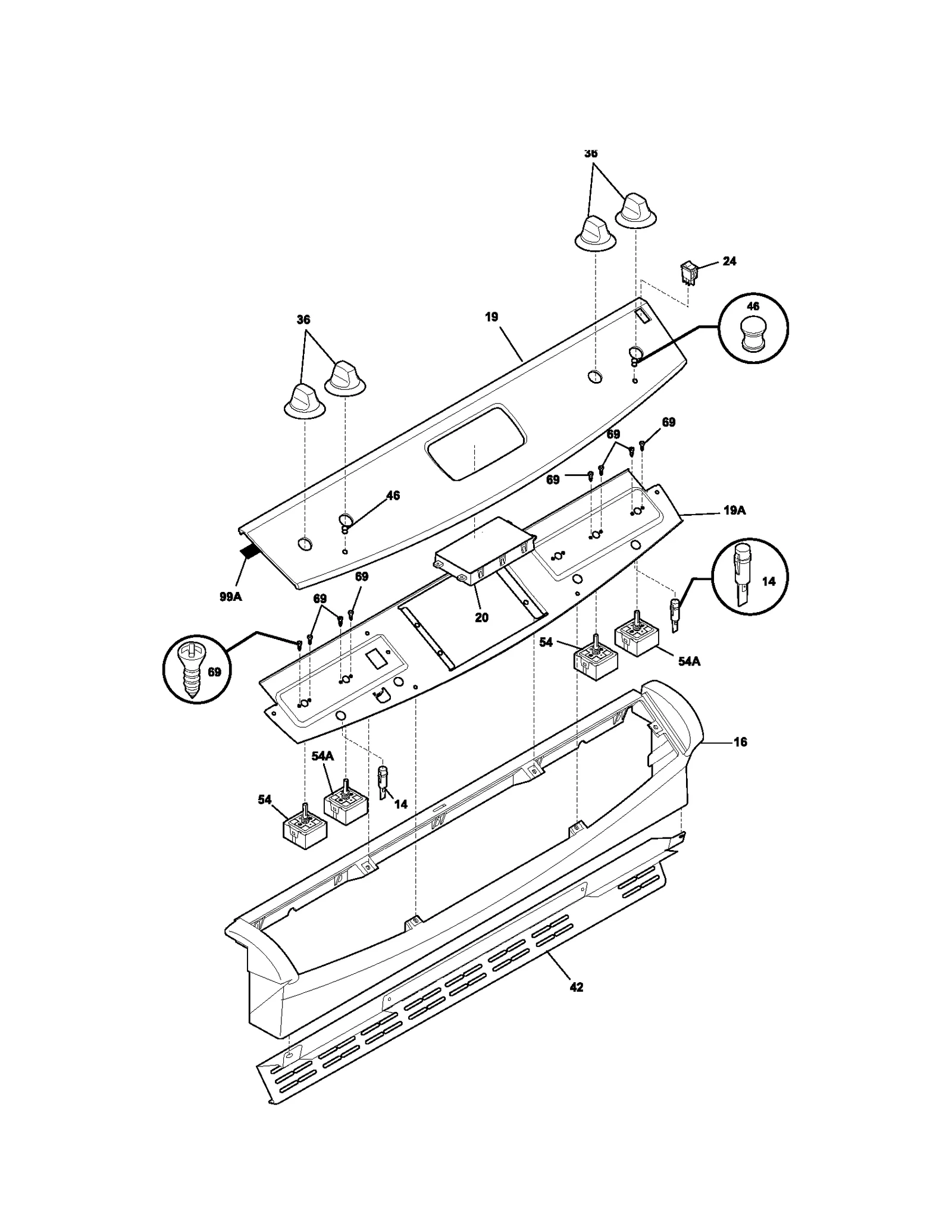

BACKGUARD

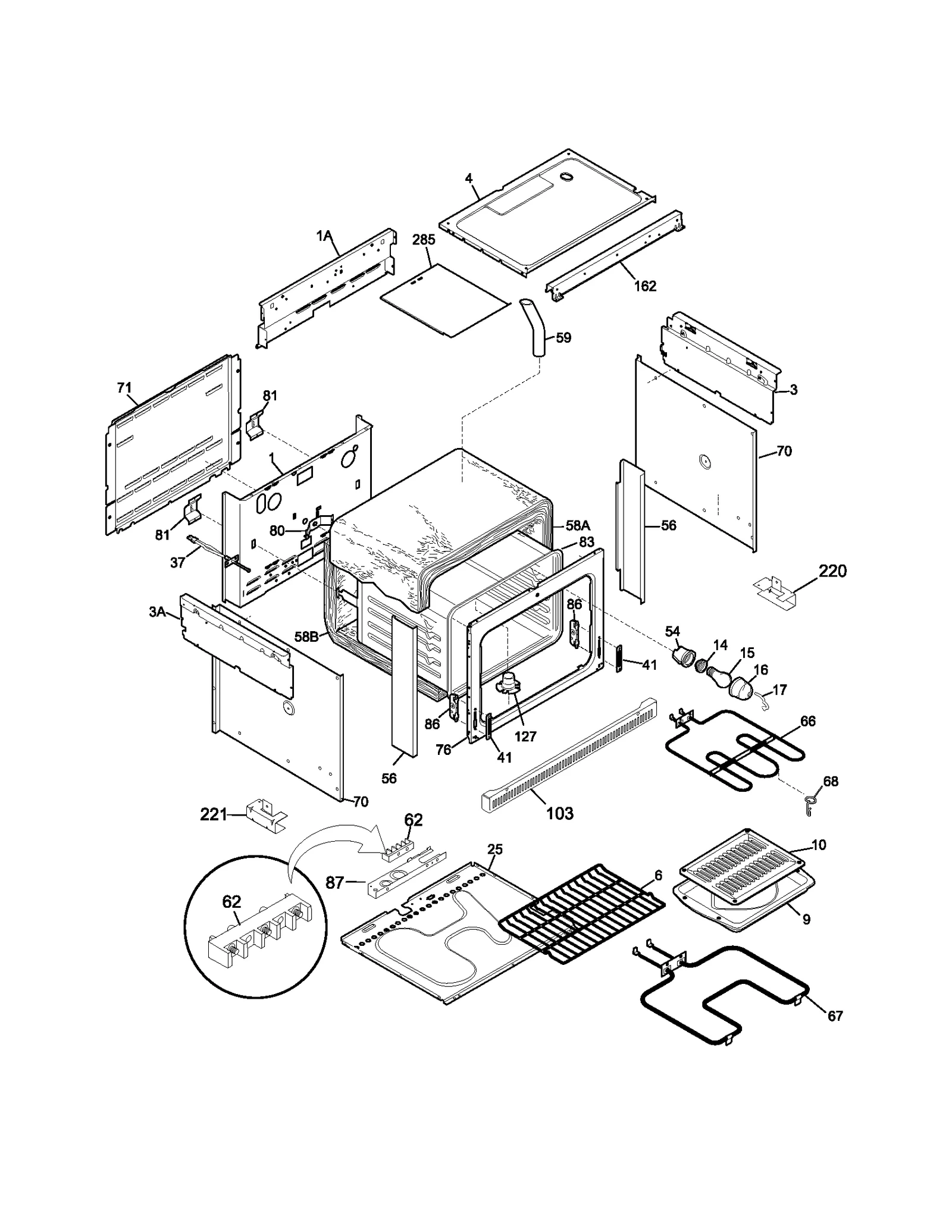

BODY
Common parts from model Electrolux 790.45254400 Electric Range (Kenmore 79045254400)
1
Main WCI 318066402 Contact Us For Availability
1A
Panel WCI 318225100 Contact Us For Availability
3
Panel WCI 318225200 Contact Us For Availability
3A
Panel WCI 318225201 Contact Us For Availability
4
Range Oven Door Outer Panel (White) WCI 318187724 Contact Us For Availability
4
Panel WCI 318073902 Contact Us For Availability
6
Rack WCI 318025308 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
16
Range Oven Door Inner Glass WCI 5303310533 Contact Us For Availability
16
Range Control Panel Housing with End Caps (Bi WCI 318235002 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
18
Range Oven Door Inner Glass Gasket WCI 318053203 Contact Us For Availability
19
Panel WCI 318235175 Contact Us For Availability
19
Panel WCI 318235176 Contact Us For Availability
19A
Panel WCI 318224400 Contact Us For Availability
20
Clock Timer WCI 318185323 Contact Us For Availability
20
Clock Timer WCI 318185324 Contact Us For Availability
24
Oven Switch WCI 318037520 Contact Us For Availability
25
PANEL, HEAT SHIELD, SM OVEN BOTTOM WCI 318179107 Contact Us For Availability
27
Terminal Block WCI 318223414 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208112 Contact Us For Availability
36
Range Surface Burner Knob WCI 316208114 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
42
Trim WCI 318224311 Contact Us For Availability
46
Lens WCI 318228300 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318225911 Contact Us For Availability
56
Trim WCI 318225913 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 318133700 Contact Us For Availability
58B
INSULATION, OVEN BACK WCI 318133747 Contact Us For Availability
59
Tube WCI 318072541 Contact Us For Availability
70
Shield WCI 318194400 Contact Us For Availability
71
Wiring Cover WCI 5303310515 Contact Us For Availability
76
Front WCI 318225301 Contact Us For Availability
77
Range Oven Door Handle Mounting Bracket WCI 318043100 Contact Us For Availability
81
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
83
Oven Liner WCI 318089613 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
87
Mounting Plate WCI 318111800 Contact Us For Availability
103
Trim WCI 318169302 Contact Us For Availability
103
Trim (White) WCI 5303300213 Contact Us For Availability
127
Adapter WCI 318230000 Contact Us For Availability
162
Box,extension WCI 318225800 Contact Us For Availability
188
Spacer WCI 318014110 Contact Us For Availability
220
Bracket WCI 5304401475 Contact Us For Availability
221
Bracket WCI 5304401476 Contact Us For Availability
285
Shield WCI 318236200 Contact Us For Availability
NI
Range Surface Burner Knob Support WCI 318183101 Contact Us For Availability
NI
Cooking Appliance Screw, #6-32 x 3/8-in WCI 5303131766 Contact Us For Availability
NI
Range Surface Burner Knob Support (Bisque) WCI 318183102 Contact Us For Availability
NI
Wiring Diagram WCI 318045099 Contact Us For Availability
NI
Service Data Sheet WCI 318127016 Contact Us For Availability
NI
Use and Care Guide WCI 318200846 Contact Us For Availability
NI
Instructions WCI 318201608 Contact Us For Availability
NI
Parts List WCI 5995406492 Contact Us For Availability
NI
Screw WCI 08016432 Contact Us For Availability
NI
Box Wire WCI 318078526 Contact Us For Availability
NI
Kit WCI 5303325856 Contact Us For Availability
× ![]()
