Model Kenmore 790.43043401 COOKTOP – Common Parts & Diagrams

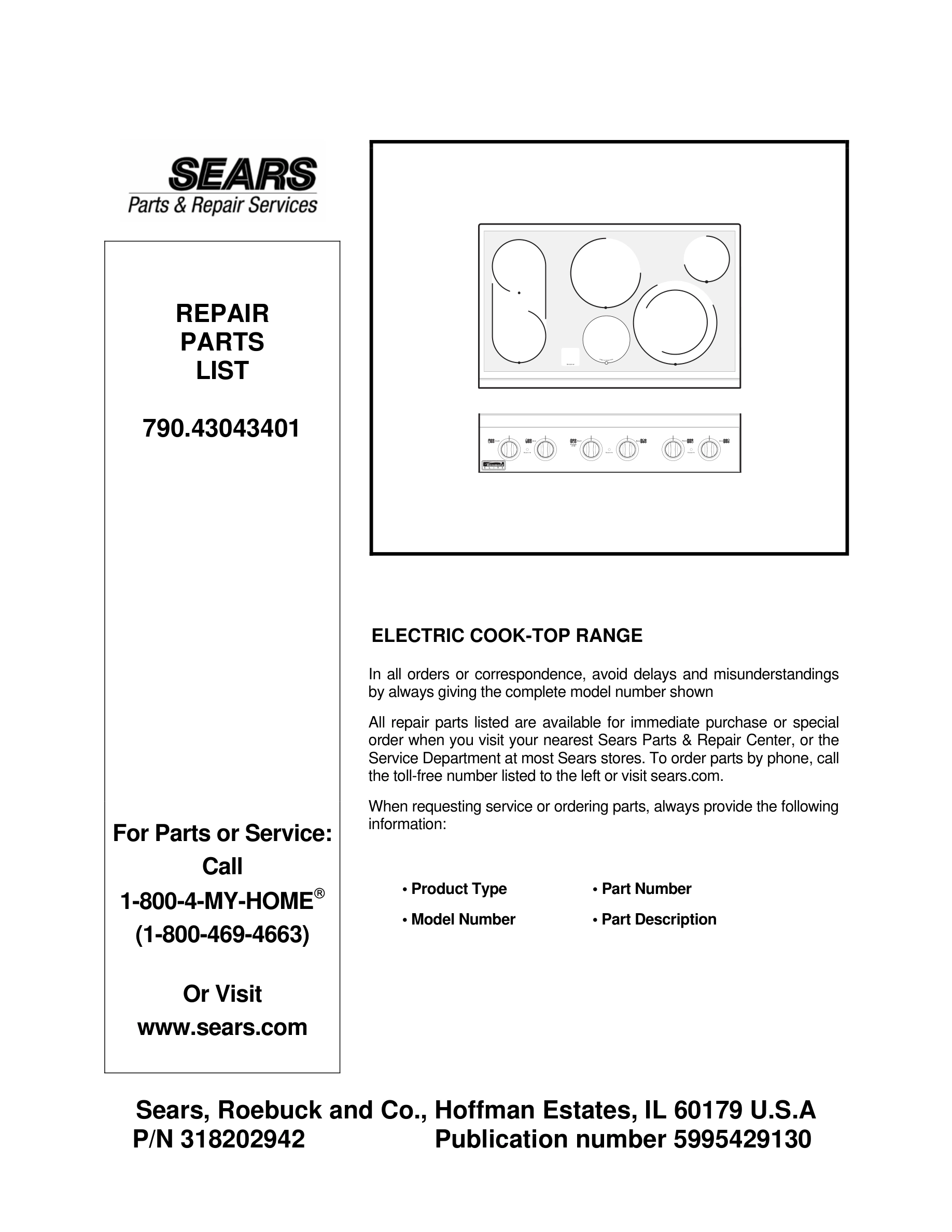

01 - COVER

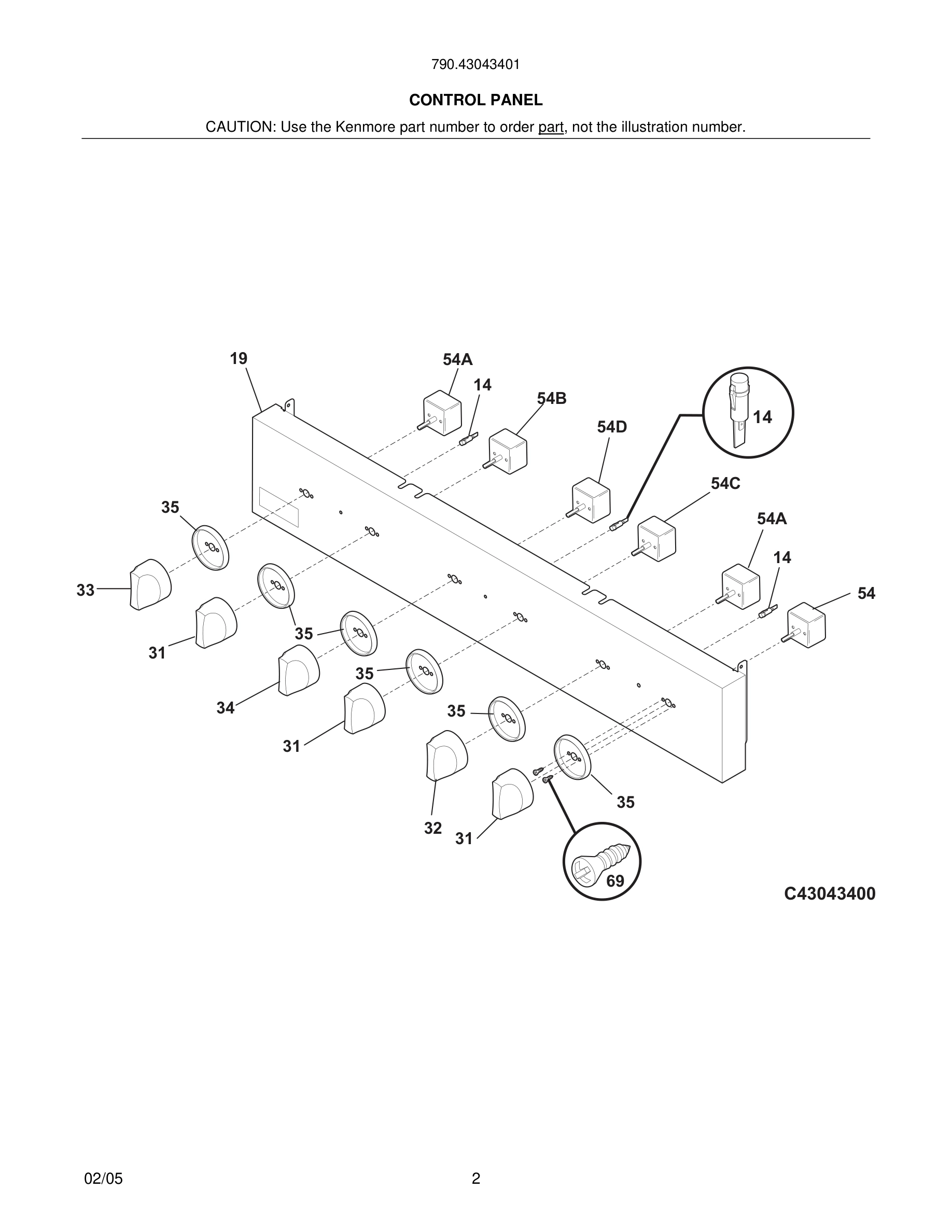

03 - CONTROL PANEL

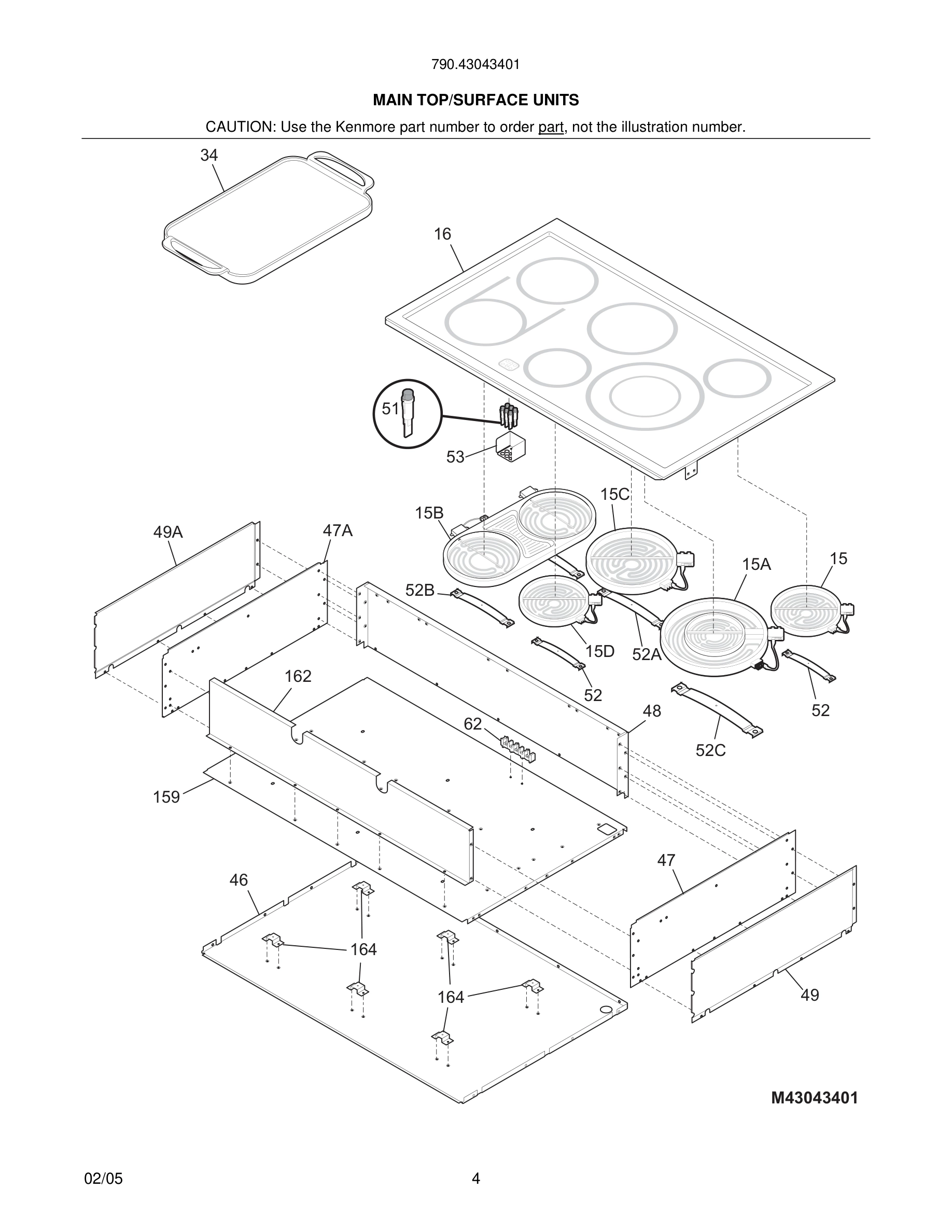

05 - MAIN TOP/SURFACE UNITS

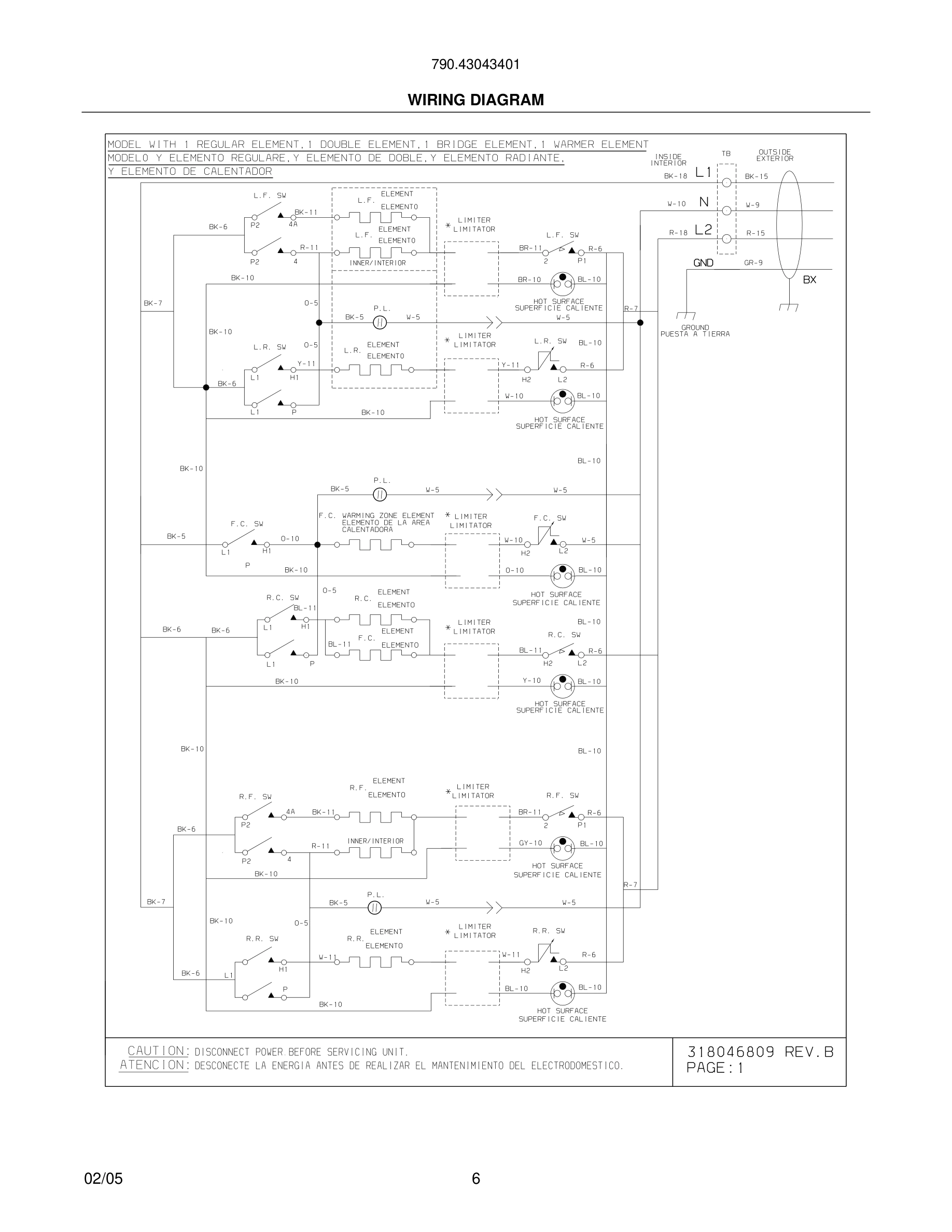

06 - WIRING DIAGRAM

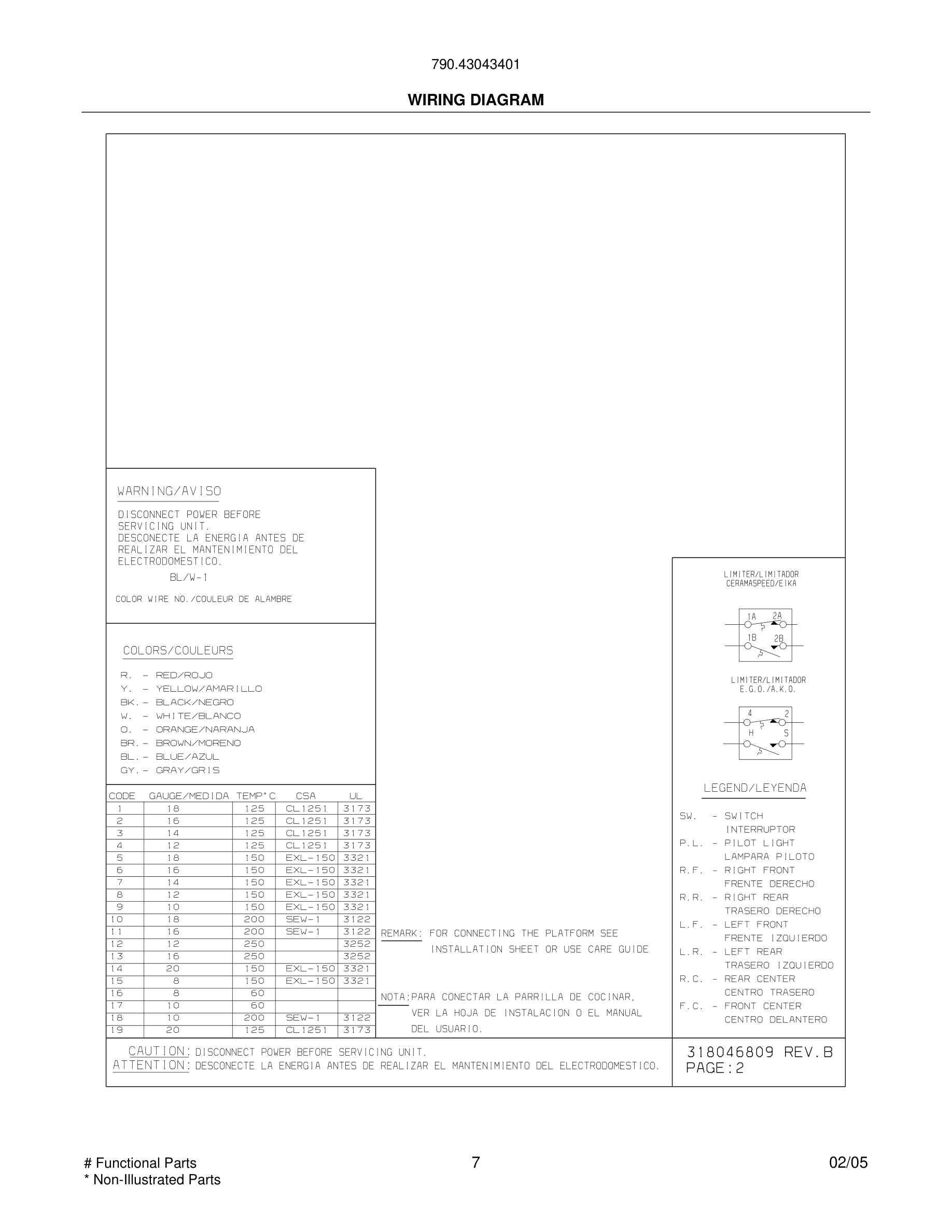

07 - WIRING DIAGRAM
Common parts from model Kenmore 790.43043401 COOKTOP
*
Harness, wiring, main WCI 318052575 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Box & wires assy WCI 318078541 Contact Us For Availability
15C#
Element, surface, 9", 3000W, radiant WCI 316277700 Contact Us For Availability
15D#
Element, surface, warmer, 100 W WCI 318198816 Contact Us For Availability
16
Main Top Assy, glass, black WCI 318185201 Contact Us For Availability
32
Knob, dual control, stainless WCI 318282301 Contact Us For Availability
33
Knob, dual control, stainless WCI 318282302 Contact Us For Availability
34
Knob, warmer, stainless WCI 318282303 Contact Us For Availability
35
Skirt, (6) WCI 318285600 Contact Us For Availability
46
Panel, base WCI 318242801 Contact Us For Availability
47
Panel, side, RH WCI 318241702 Contact Us For Availability
47A
Panel, side, LH WCI 318241703 Contact Us For Availability
48
Panel, rear WCI 318241801 Contact Us For Availability
49
Panel, interior side, RH WCI 318241900 Contact Us For Availability
49A
Panel, interior side, LH WCI 318241901 Contact Us For Availability
53
Bracket, pilot light WCI 318125960 Contact Us For Availability
54C#
Switch, surface element WCI 318293816 Contact Us For Availability
54D#
Switch, element, warmer WCI 318078804 No Longer Available
159
Panel, bottom WCI 318242901 Contact Us For Availability
162
Shield, heat WCI 318245500 Contact Us For Availability
164
Support, box, (6) WCI 318252901 Contact Us For Availability
× ![]()
