Model Kenmore 790.43000700 COOKTOP – Common Parts & Diagrams
Common parts from model Kenmore 790.43000700 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Cleaner, cooktop WCI 316112100 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Box & wires assy WCI 318394413 Contact Us For Availability
*#
Harness, wiring WCI 318532104 Contact Us For Availability
1
Panel, CARRIER WCI 318329034 Contact Us For Availability
2
Insulation, Elements WCI 318344551 Contact Us For Availability
3
Insulation, carrier panel WCI 318330504 Contact Us For Availability
5#
Cooling Fan Assembly, large WCI 318346900 Contact Us For Availability
6
Ring, gasket, (4) WCI 318392200 Contact Us For Availability
6#
Communication Cable, generator, 18", to filte WCI 318348001 Contact Us For Availability
7
Ring, gasket WCI 318392201 Contact Us For Availability
7#
Communication Cable, generator, 6", to filter WCI 318348000 Contact Us For Availability
8#
Power Cable Set, generator, 18", black, to fi WCI 318052581 Contact Us For Availability
9#
Power Cable Set, generator, 6", blue, to filt WCI 318052580 Contact Us For Availability
10#
Power Cable Set, generator, 18", blue, to fil WCI 318052582 Contact Us For Availability
11#
Power Cable Set, generator, 6", black, to fil WCI 318052579 Contact Us For Availability
12
Nameplate, kenmore pro WCI 241705601 Contact Us For Availability
12#
Ground wire, w/terminal, X17/6-housing WCI 318052593 Contact Us For Availability
15#
Element, induction coil, 145MM, rear WCI 318329200 Contact Us For Availability
15B#
Element, induction coil, 210MM, front WCI 318329202 Contact Us For Availability
15C#
Element, induction coil, 260MM, center WCI 318329203 Contact Us For Availability

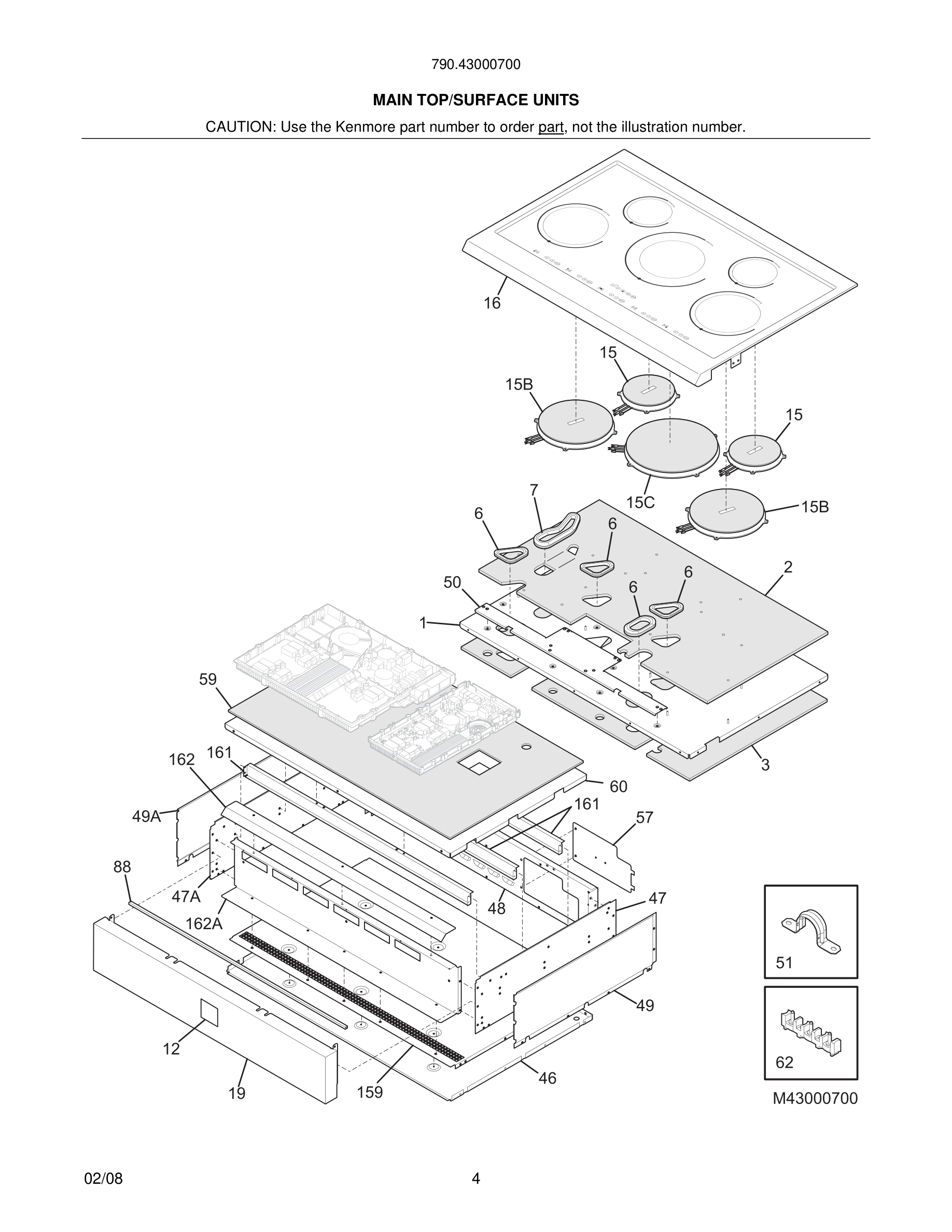

16
Main Top Assy, frame/glass, stainless/black WCI 318185222 Contact Us For Availability
19
Panel, control assy., stainless, w/nameplate WCI 318357106 Contact Us For Availability
20#
Touch Control, electronic, center WCI 318330833 Contact Us For Availability
21#
Interface Cable, side control, to center WCI 318083044 Contact Us For Availability
22#
Communication Cable, center control, to filte WCI 318083062 Contact Us For Availability
23#
Communication Cable, filter, to filter, X20/X WCI 318083048 Contact Us For Availability
24#
Thermal Cut-Out, short WCI 318349900 Contact Us For Availability
46
Panel, base WCI 318242806 Contact Us For Availability
47
Panel, side, RH WCI 318241713 Contact Us For Availability
47A
Panel, side, LH WCI 318241714 Contact Us For Availability
48
Panel, rear WCI 318241851 Contact Us For Availability
49
Panel, interior side, RH WCI 318241902 Contact Us For Availability
49A
Panel, interior side, LH WCI 318241903 Contact Us For Availability
50
Housing Assembly, induction, small, w/electro WCI 318329620 No Longer Available
50
Panel, spacer WCI 318356824 Contact Us For Availability
52#
Filter, circuit board, small WCI 318347010 Contact Us For Availability
53#
Communication Cable, generator, 8", to filter WCI 318348002 Contact Us For Availability
54#
Groung Wire, X54/6 WCI 318052578 Contact Us For Availability
55#
Thermal Cut-Out, long WCI 318349910 Contact Us For Availability
56#
Cooling Fan Assembly, small WCI 318346910 Contact Us For Availability
57
Panel, service WCI 318286401 Contact Us For Availability
57#
Fuse, fast blow, 20A WCI 318373300 Contact Us For Availability
59
Insualtion, housing, lower WCI 318346211 Contact Us For Availability
60
Shield, heat, base WCI 318381721 Contact Us For Availability
62*
Screw, 10-24 x 0.906 WCI 5303326253 Contact Us For Availability
88
Gasket, cooktop, 34" WCI 318280103 Contact Us For Availability
159
Panel, bottom WCI 318242951 Contact Us For Availability
161
Bracket, lateral, (3) WCI 318245602 Contact Us For Availability
162
Shield, heat WCI 318245502 Contact Us For Availability
162A
Shield, heat WCI 318245505 Contact Us For Availability
× ![]()
