Model Kenmore 790.42003605 OVEN – Common Parts & Diagrams
01 - COVER

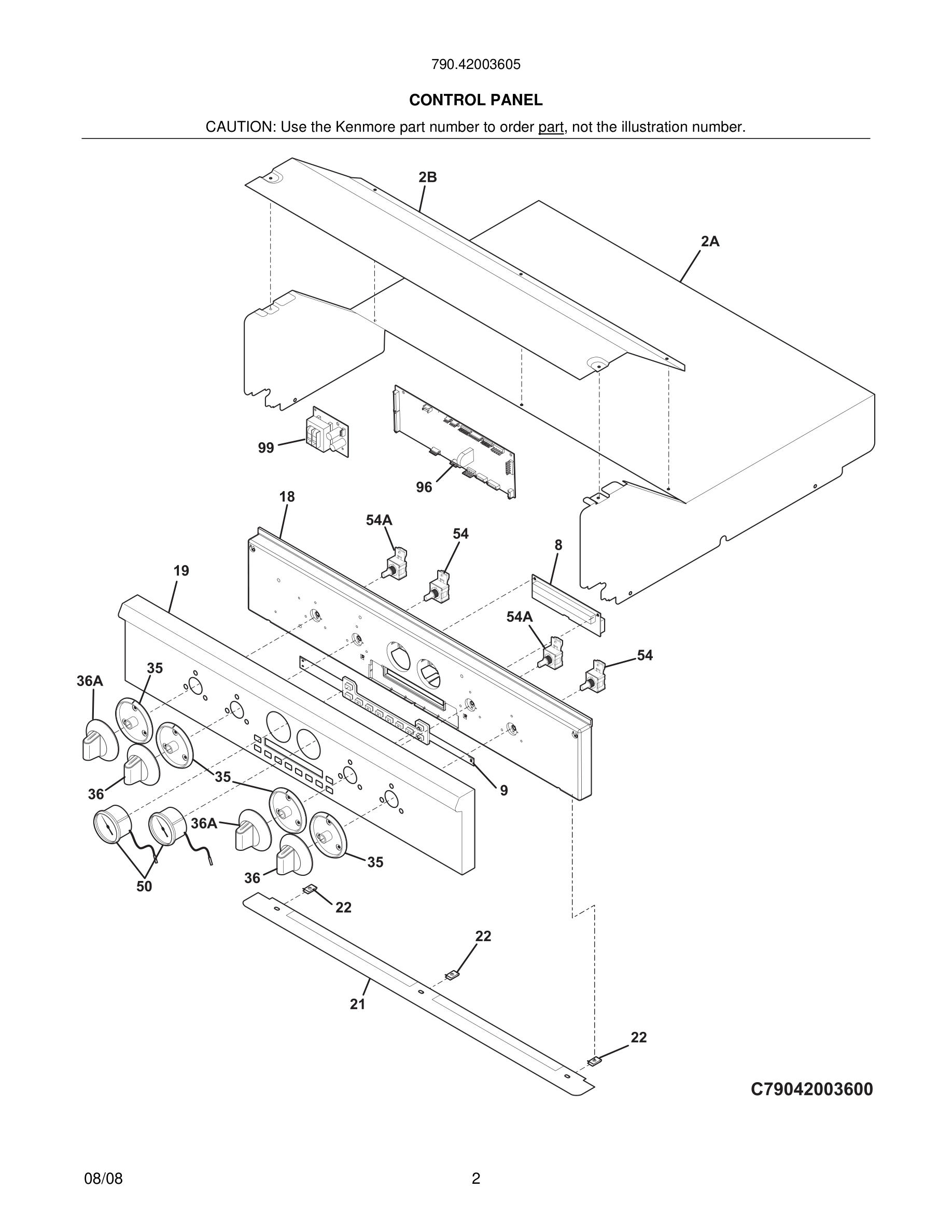

03 - CONTROL PANEL
05 - UPPER OVEN
07 - UPPER OVEN
09 - LOWER OVEN
11 - LOWER OVEN
13 - DOORS
14 - WIRING DIAGRAM
15 - WIRING DIAGRAM
Common parts from model Kenmore 790.42003605 OVEN
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*#
Harness, wiring, main WCI 318402201 Contact Us For Availability
2B
Cover, box WCI 318260100 Contact Us For Availability
3A
Trim, oven door, side, (2) WCI 318260401 Contact Us For Availability
6
Baffle, door WCI 318260522 Contact Us For Availability
6A
Rack, broiler pan WCI 318365800 Contact Us For Availability
9
Liner, oven door WCI 318259631 Contact Us For Availability
9#
Keypad, switch WCI 318600800 Contact Us For Availability
11
Ladder, oven rack, (2) WCI 318603801 Contact Us For Availability
13
Door Assy, w/glass, stainless, upper oven, w/ WCI 318344003 Contact Us For Availability
13
Door Assy, w/glass, stainless, lower oven WCI 318344004 Contact Us For Availability
13*
Rivet, ladder bracket, (8) WCI 5304456367 Contact Us For Availability
16
Glass, oven door, heat barrier WCI 318212210 Contact Us For Availability
18
Panel, control assy, black WCI 318603702 Contact Us For Availability
23
Hinge Assy, (2) WCI 318244306 Contact Us For Availability
23*
Screw, 10-32 x 1/4, black, (4) WCI 5304437044 Contact Us For Availability
36
Knob, temperature, control WCI 318602403 Contact Us For Availability
37*
Bracket, receptacle, temp probe WCI 318373001 Contact Us For Availability
39
Handle, door WCI 318382200 Contact Us For Availability
50#
Gauge, analog display WCI 318602800 No Longer Available
54A#
Switch, selector, potentiometer WCI 318601700 Contact Us For Availability
56A
Trim, side filler, black, LH WCI 318903605 Contact Us For Availability
57
Panel, service WCI 318361610 Contact Us For Availability
58
Insulation, service panel, 12.47 x 14.77 WCI 318330501 Contact Us For Availability
58A
Insulation, oven wrapper WCI 318285055 Contact Us For Availability
58B
Insulation, rear & bottom, oven wrapper WCI 318362100 Contact Us For Availability
58D
Insulation, 1/2" thick, 43 x 9.5 WCI 318372006 Contact Us For Availability
59A
Bracket, vent tube WCI 318261600 Contact Us For Availability
70
Shield, insulation, sides, (2) WCI 318259100 Contact Us For Availability
71
Panel, rear box WCI 318260007 Contact Us For Availability
71*
Bracket, insul. panel WCI 318340201 Contact Us For Availability
76
Front, oven WCI 318056231 Contact Us For Availability
80
Plate, oven mtg WCI 5303320846 Contact Us For Availability
81
Spring, oven WCI 318192400 Contact Us For Availability
82
Shield, insulation, lower WCI 318258730 Contact Us For Availability
83
Liner, oven assy WCI 318261418 Contact Us For Availability
87
Bracket, cable mtg. WCI 318260600 Contact Us For Availability
90
Trim, bottom, stainless WCI 318601401 Contact Us For Availability
99#
Board, power supply WCI 316435701 Contact Us For Availability
107
Cover, fan WCI 318219407 Contact Us For Availability
108A
Bracket, fan support WCI 318251300 Contact Us For Availability
125*
Insulation, 3.81 x 3.13 WCI 5303316994 Contact Us For Availability
142
Deflector WCI 318123910 Contact Us For Availability
143
Support, wire WCI 318172904 Contact Us For Availability
163
Spacer, (2) WCI 318531703 Contact Us For Availability
264
Trim, oven, black, front WCI 318257801 Contact Us For Availability
272
Tube, protector WCI 318249403 Contact Us For Availability
310
Cabinet Mounting Kit WCI 5304440067 Contact Us For Availability
311
Bracket, cabinet mtg, (2) WCI 318246010 Contact Us For Availability
× ![]()
