Model Electrolux 790.41394400 Electric Oven (Kenmore 79041394400) – Common Parts & Diagrams
CONTROL PANEL
DOORS

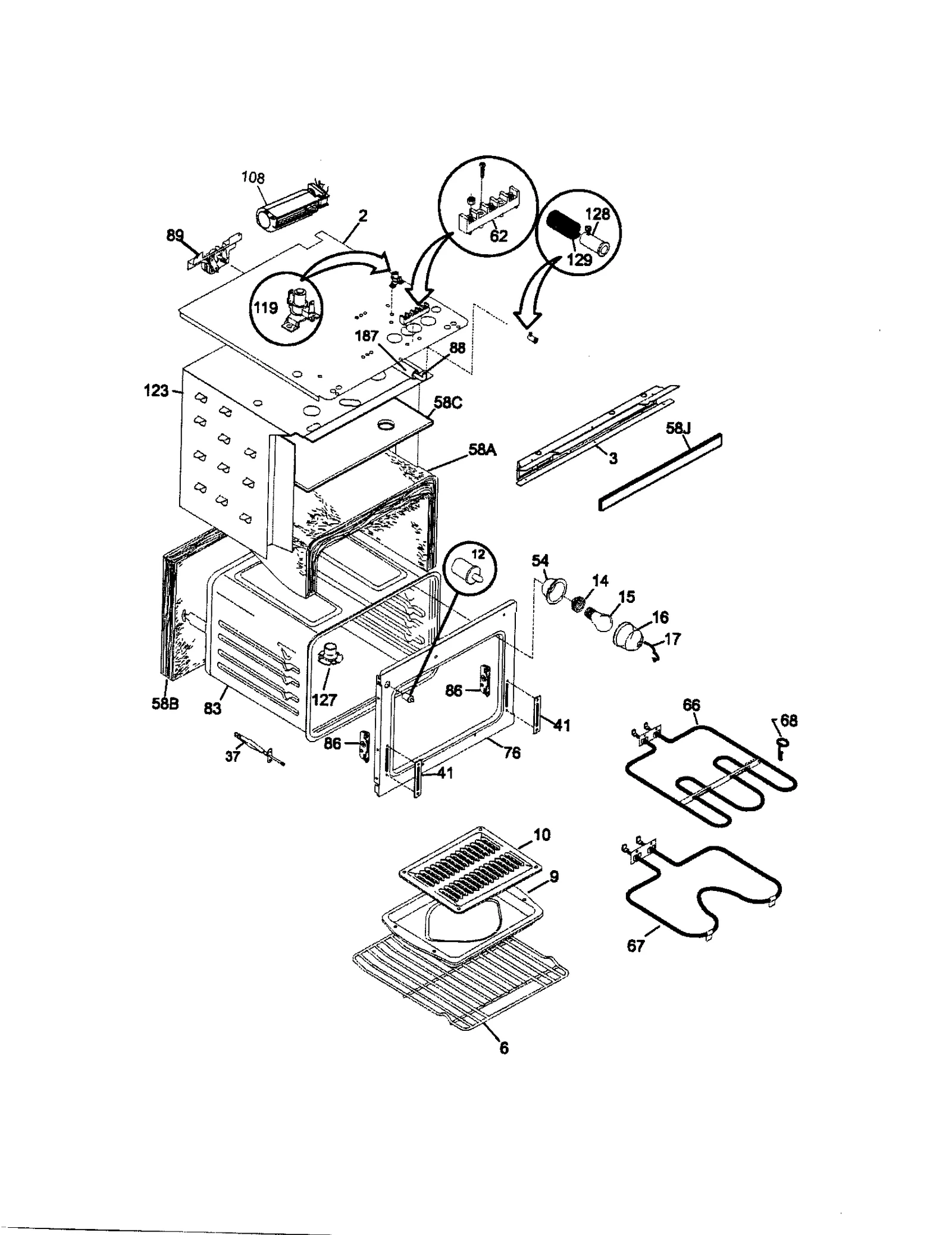

UPPER BODY

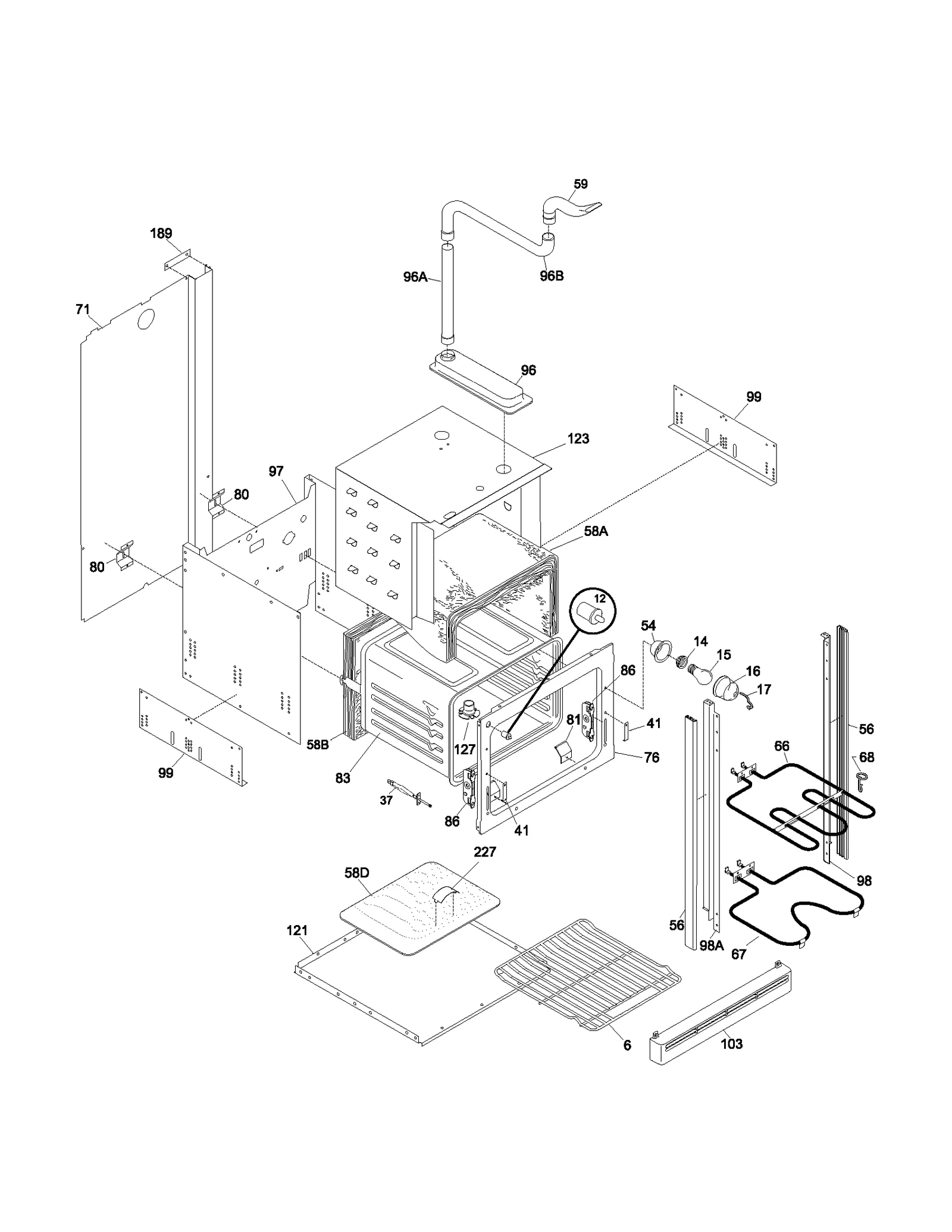

LOWER BODY
Common parts from model Electrolux 790.41394400 Electric Oven (Kenmore 79041394400)
2
Wrapper WCI 318195901 Contact Us For Availability
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
3
Bracket WCI 318293601 Contact Us For Availability
4
Frigidaire Wall Oven Door Outer Panel (Black) WCI 318051525 Contact Us For Availability
5
Range Oven Door Inner Glass WCI 318212410 Contact Us For Availability
6
Rack WCI 318262701 Contact Us For Availability
6
Rack WCI 318262700 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
11
Wall Oven Door Catch WCI 318065102 Contact Us For Availability
12
Range Oven Door Seal WCI 5303316768 Contact Us For Availability
12
Wall Oven Door Inner Heat Seal WCI 318178801 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318176907 Contact Us For Availability
56
Trim WCI 318176908 Contact Us For Availability
56
Trim WCI 318176909 Contact Us For Availability
58A
Insulation WCI 318133758 Contact Us For Availability
58B
Insulation WCI 318133737 Contact Us For Availability
58D
Insulation WCI 318133789 Contact Us For Availability
59
Tube WCI 318072569 Contact Us For Availability
71
Shield WCI 318071140 Contact Us For Availability
76
Oven WCI 318056139 Contact Us For Availability
76
Panel WCI 318056124 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81
Bracket WCI 5303323710 Contact Us For Availability
83
Oven Liner WCI 318089521 Contact Us For Availability
83
Liner WCI 318089520 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
88
Latch Rod WCI 318118903 Contact Us For Availability
96
Duct WCI 318294600 Contact Us For Availability
96A
Duct WCI 318072571 Contact Us For Availability
96B
Duct WCI 318072570 Contact Us For Availability
97
Frigidaire Wall Oven Relay Control Board WCI 316429800 Contact Us For Availability
97
Wrapper WCI 318066605 Contact Us For Availability
98
Trim WCI 318029367 Contact Us For Availability
98A
Trim WCI 318029368 Contact Us For Availability
99
Panel WCI 318284200 Contact Us For Availability
103
Base Trim WCI 318283201 Contact Us For Availability
103
Wall Oven Vent, Lower (Black) WCI 318283200 Contact Us For Availability
103
Oven Trim WCI 318283202 Contact Us For Availability
108
Motor WCI 318073027 Contact Us For Availability
121
Wrapper WCI 318145004 Contact Us For Availability
123
Shield WCI 318071444 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
187
Tube WCI 318013501 Contact Us For Availability
189
Retainer Plate WCI 318042500 Contact Us For Availability
227
Clip WCI 5303323955 Contact Us For Availability
NI
Range Oven Door Lock Switch WCI 318120711 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Range Oven Door Trim Double-Sided Tape WCI 5303316982 Contact Us For Availability
NI
Screw WCI 5303325981 Contact Us For Availability
NI
Box Wire WCI 318078533 Contact Us For Availability
NI
Screw WCI 5303302745 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 0.625-in WCI 5303311528 Contact Us For Availability
NI
Clip WCI 3015722 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 5/16-in WCI 5303320422 Contact Us For Availability
× ![]()
