Model Kenmore 790.40563801 COOKTOP – Common Parts & Diagrams

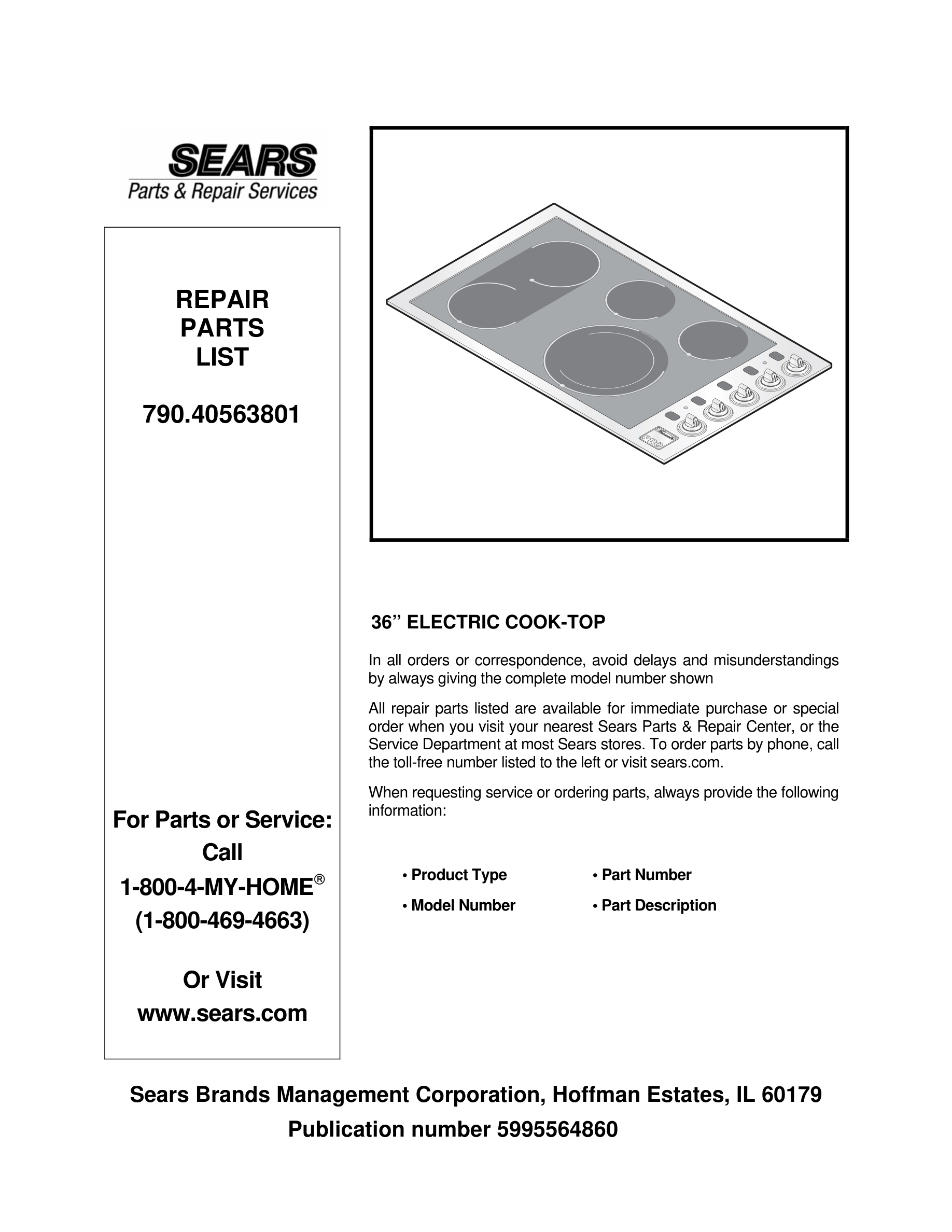

01 - COVER

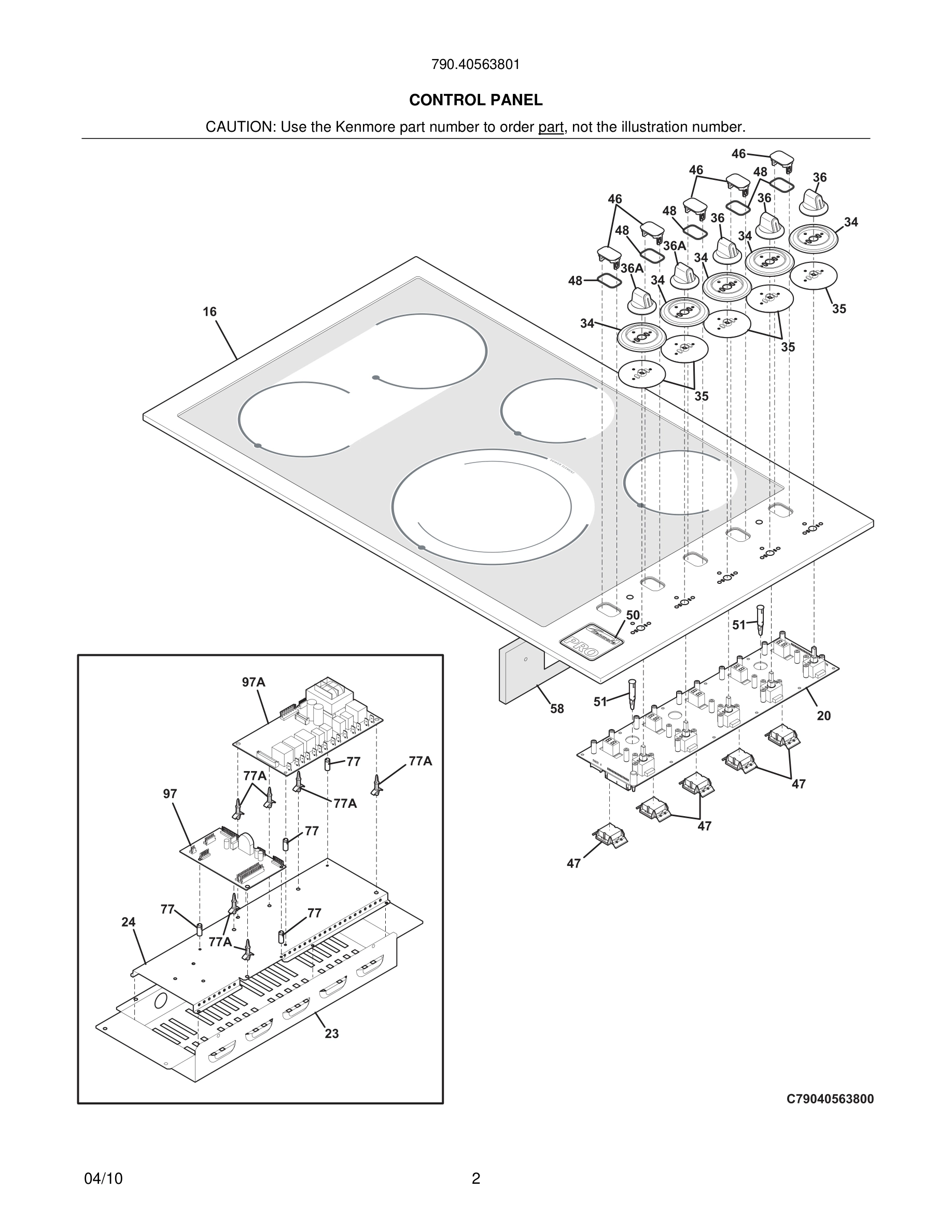

03 - CONTROL PANEL

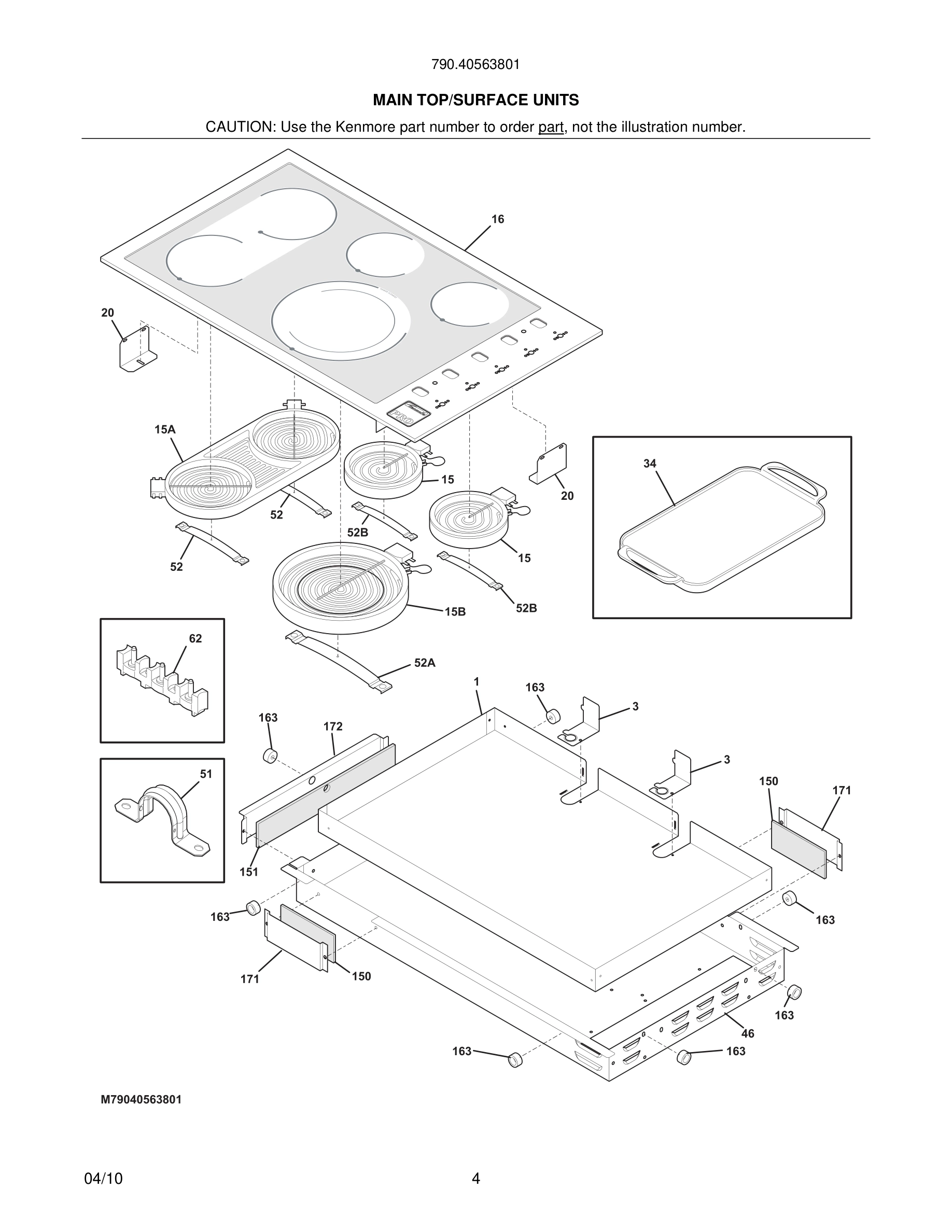

05 - MAIN TOP/SURFACE UNITS

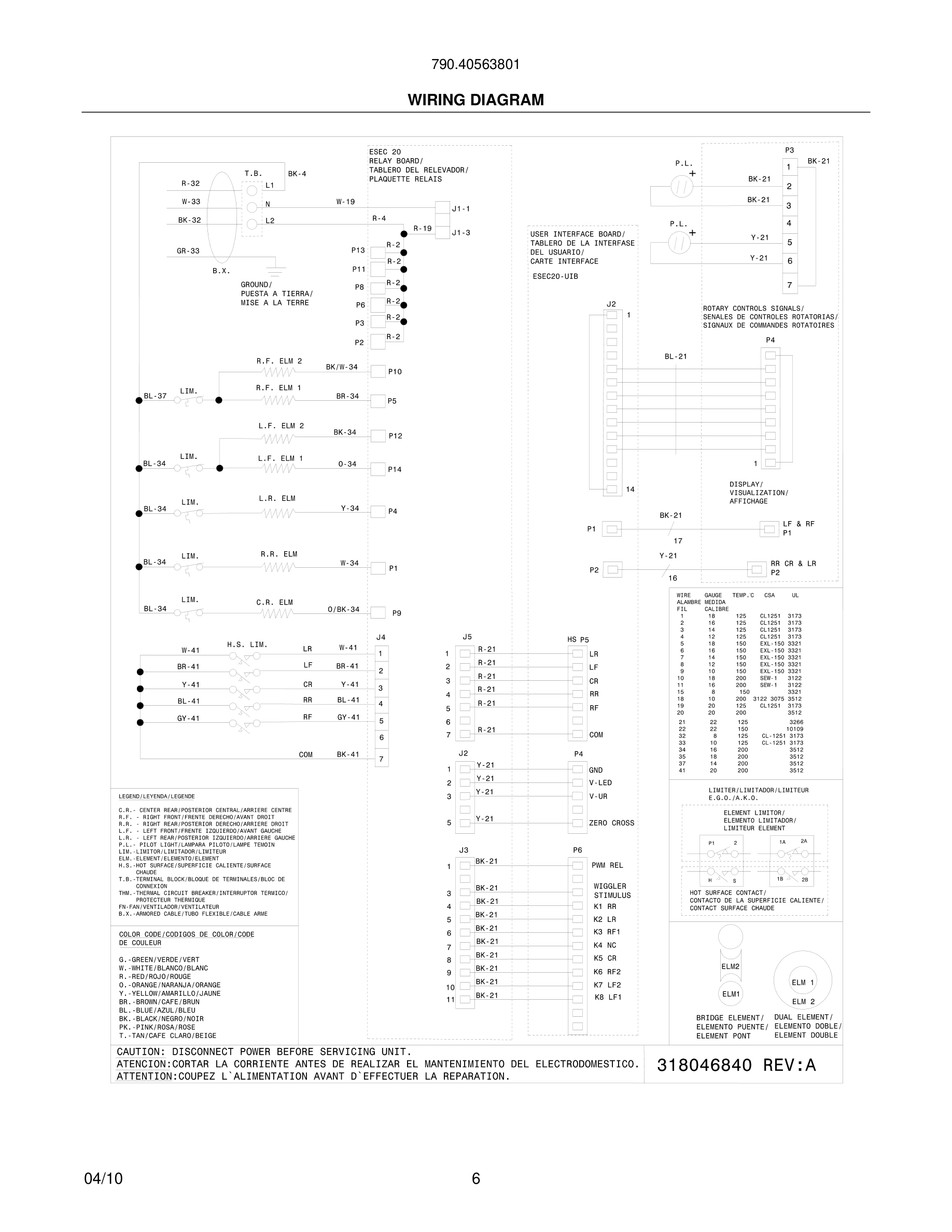

06 - WIRING DIAGRAM
Common parts from model Kenmore 790.40563801 COOKTOP
*
Pad, cleaning WCI 316459400 Contact Us For Availability
*
Cleaner, glass WCI 316112100 Contact Us For Availability
*
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Harness, wiring, interface, to relay board WCI 318402334 Contact Us For Availability
*#
Harness, wiring, main WCI 318402403 Contact Us For Availability
1
Shield, heat WCI 318354142 Contact Us For Availability
3
Cover, deflector, (2) WCI 318371401 Contact Us For Availability
16
Main Top Assembly, complete, glass/frame WCI 318566310 Contact Us For Availability
36A
Knob, control, double WCI 318392905 Contact Us For Availability
46
Lens, indicator light, (6) WCI 318319020 Contact Us For Availability
46
Box, burner WCI 318354048 Contact Us For Availability
47
Clamp, lens, (6) WCI 318367101 Contact Us For Availability
48
Gasket, O'ring, (4) WCI 318337101 Contact Us For Availability
50
Nameplate, kenmore pro WCI 241705601 Contact Us For Availability
51#
Light, indicator, red, (2) WCI 318337201 Contact Us For Availability
51*
Nut, speed WCI 5304474185 Contact Us For Availability
58
Insulation WCI 318346008 Contact Us For Availability
77
Spacer, control, (2) WCI 318293702 Contact Us For Availability
97#
Board, power, UIB WCI 316442055 Contact Us For Availability
150
Insulation, 2 x 5.75, (2) WCI 318106051 Contact Us For Availability
151
Insulation, 15 x 2.37, w/aluminum foil WCI 318106066 Contact Us For Availability
163*
Screw, 8 x 5/8, (2) WCI 3131048 Contact Us For Availability
171
Screen, thermal WCI 318124912 Contact Us For Availability
172
Screen, thermal WCI 318124915 Contact Us For Availability
× ![]()
