Model Kenmore 790.40522402 OVEN – Common Parts & Diagrams

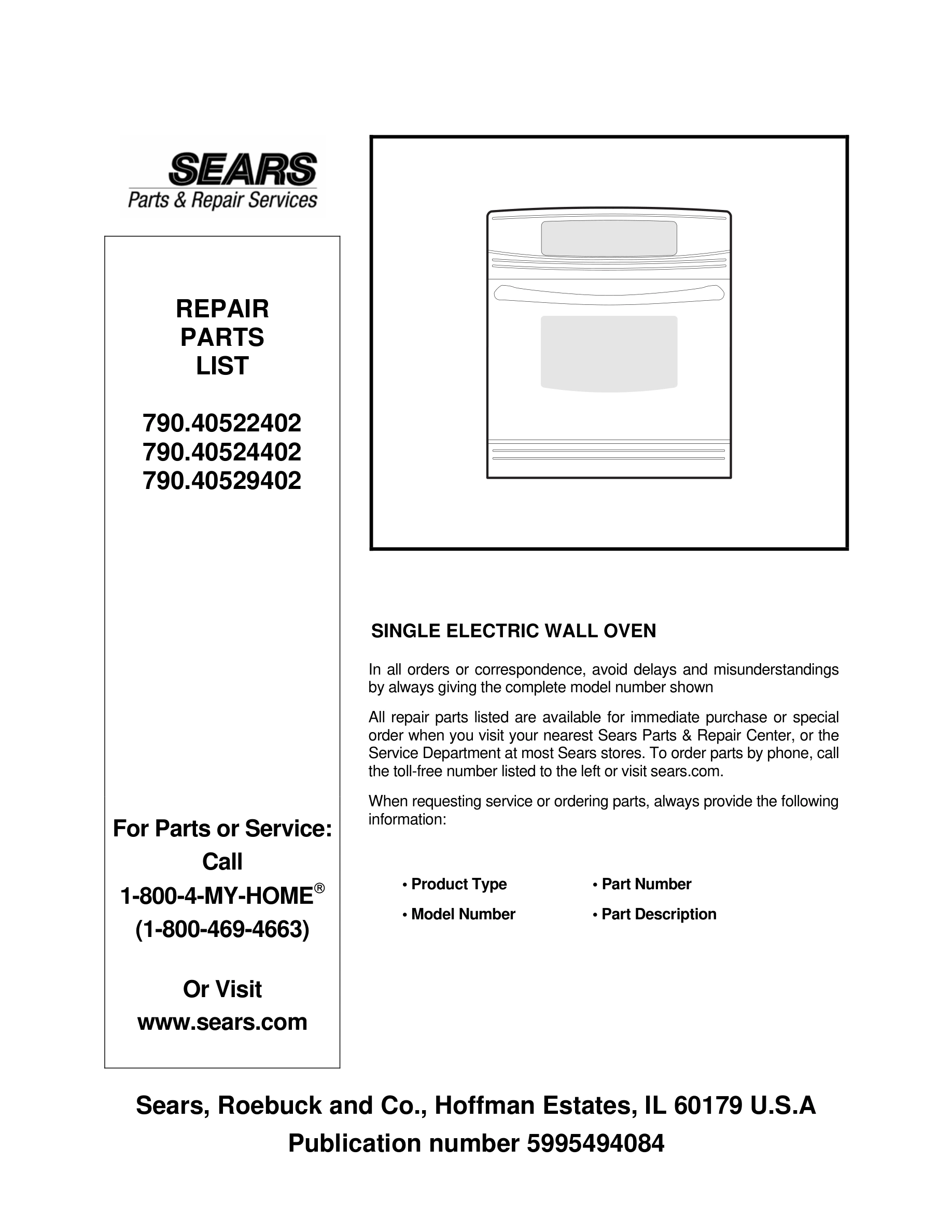

01 - COVER

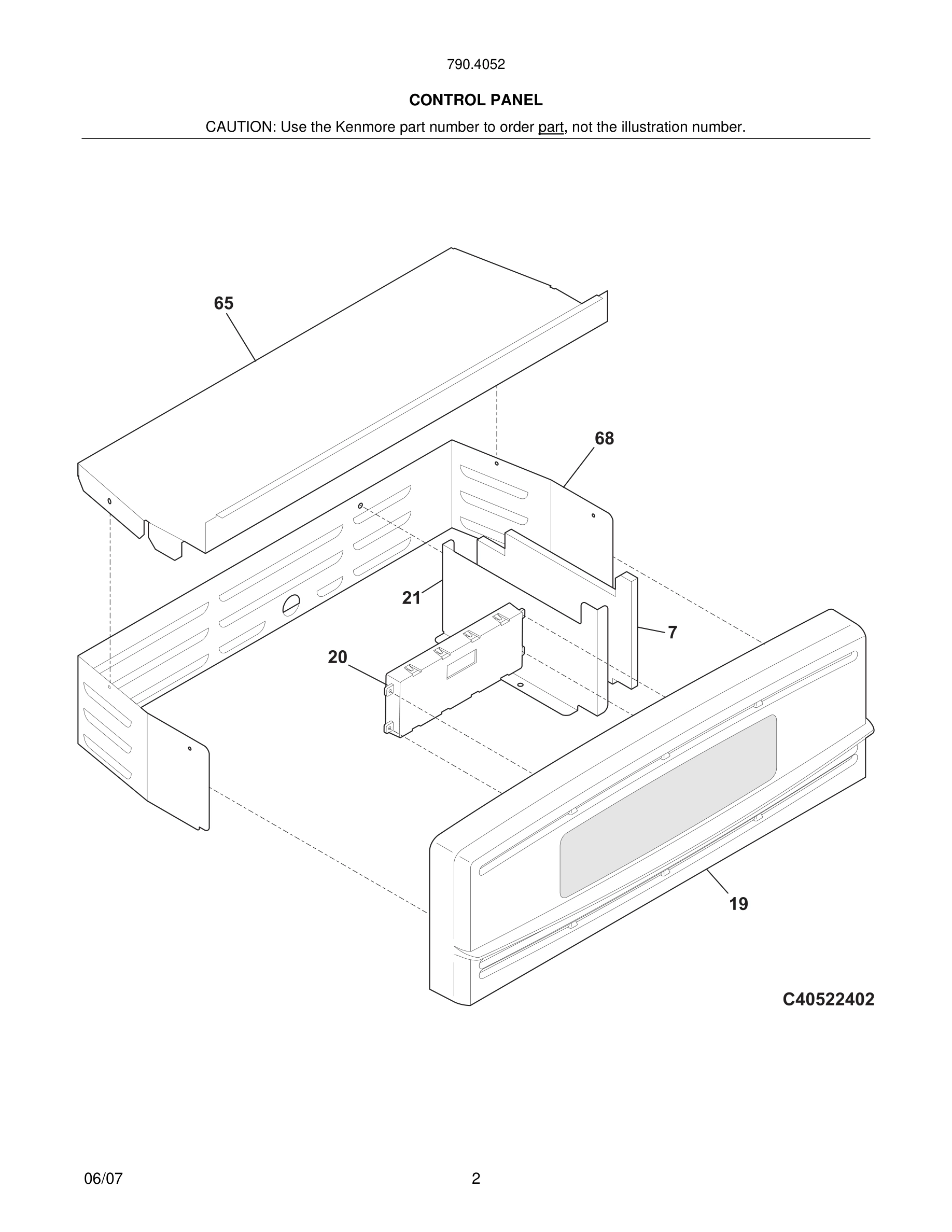

03 - CONTROL PANEL

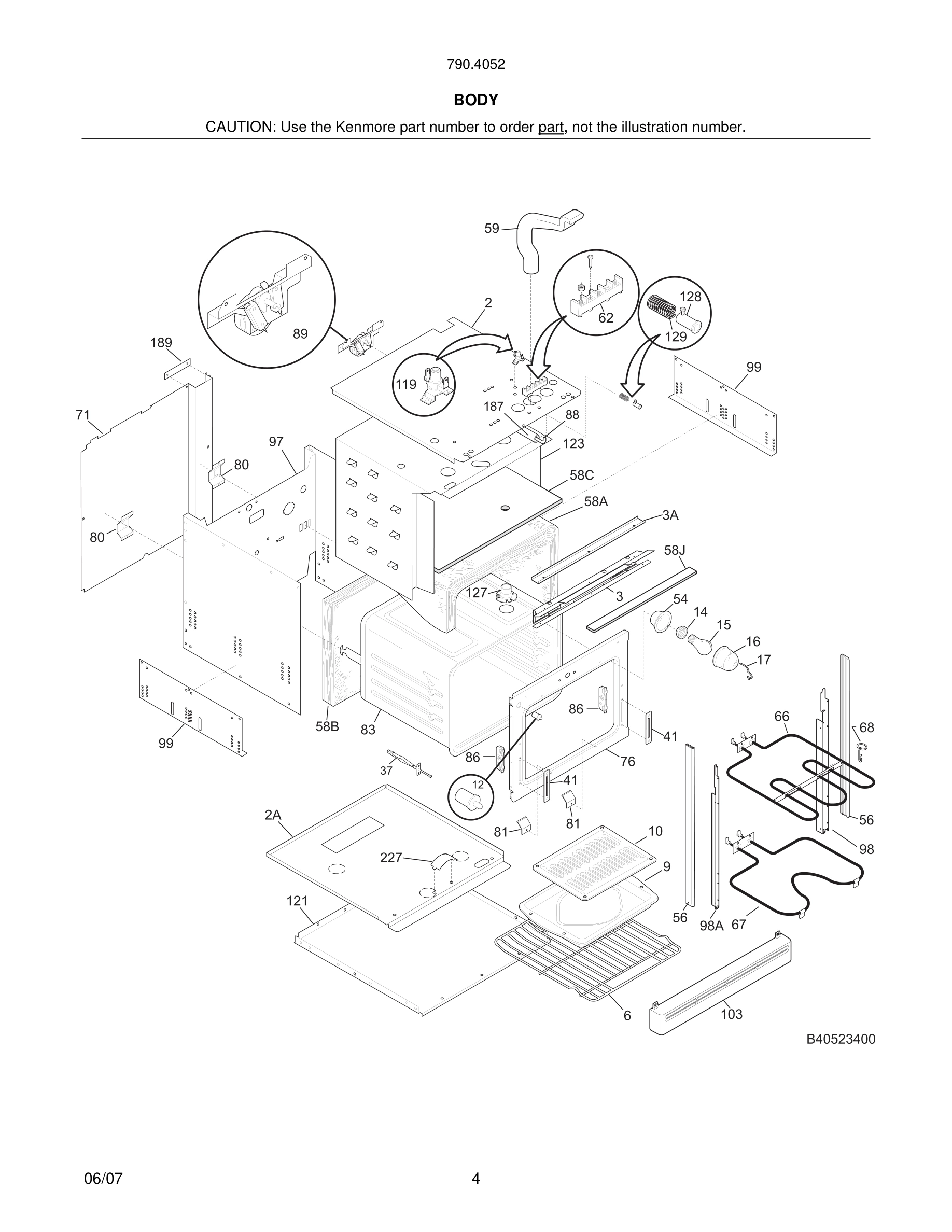

05 - BODY

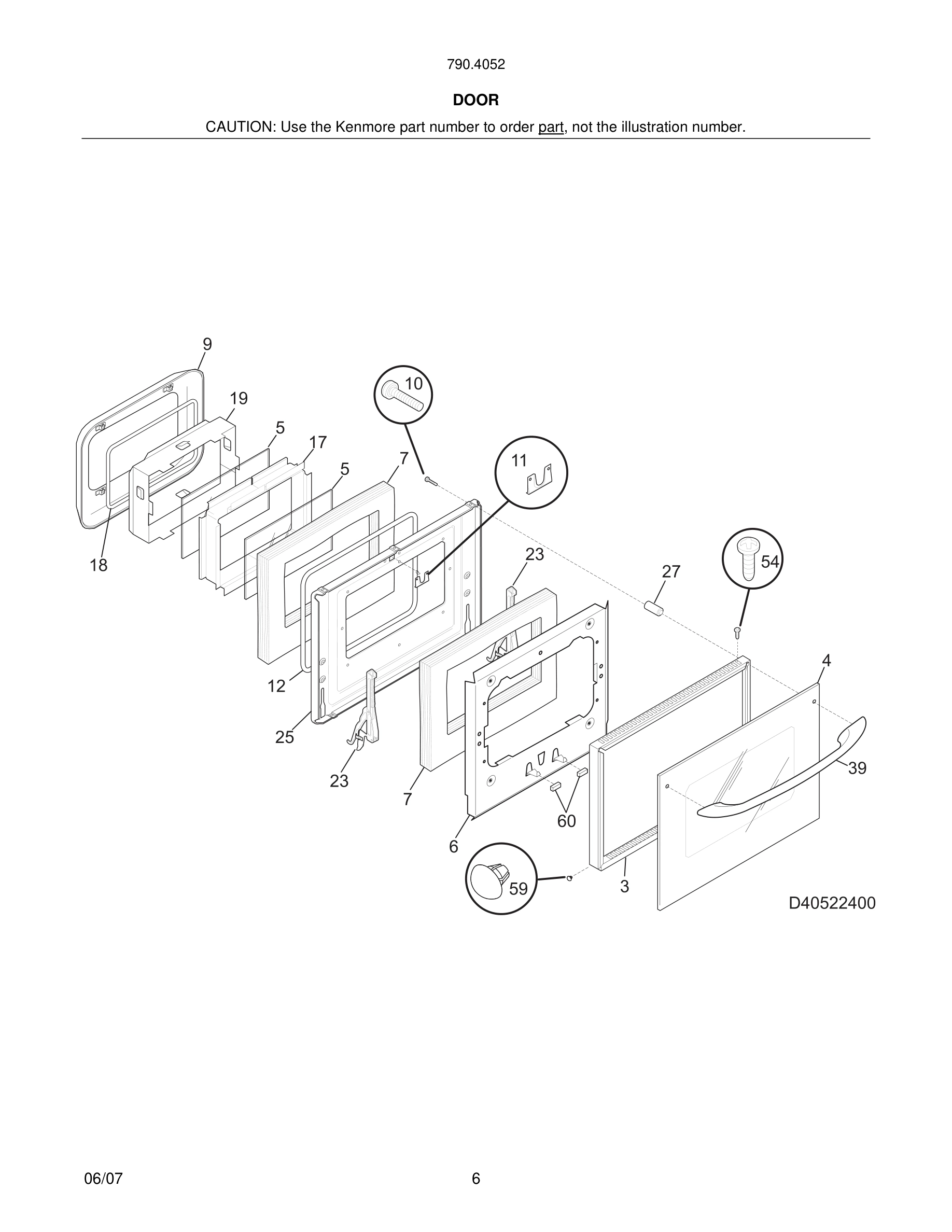

07 - DOOR

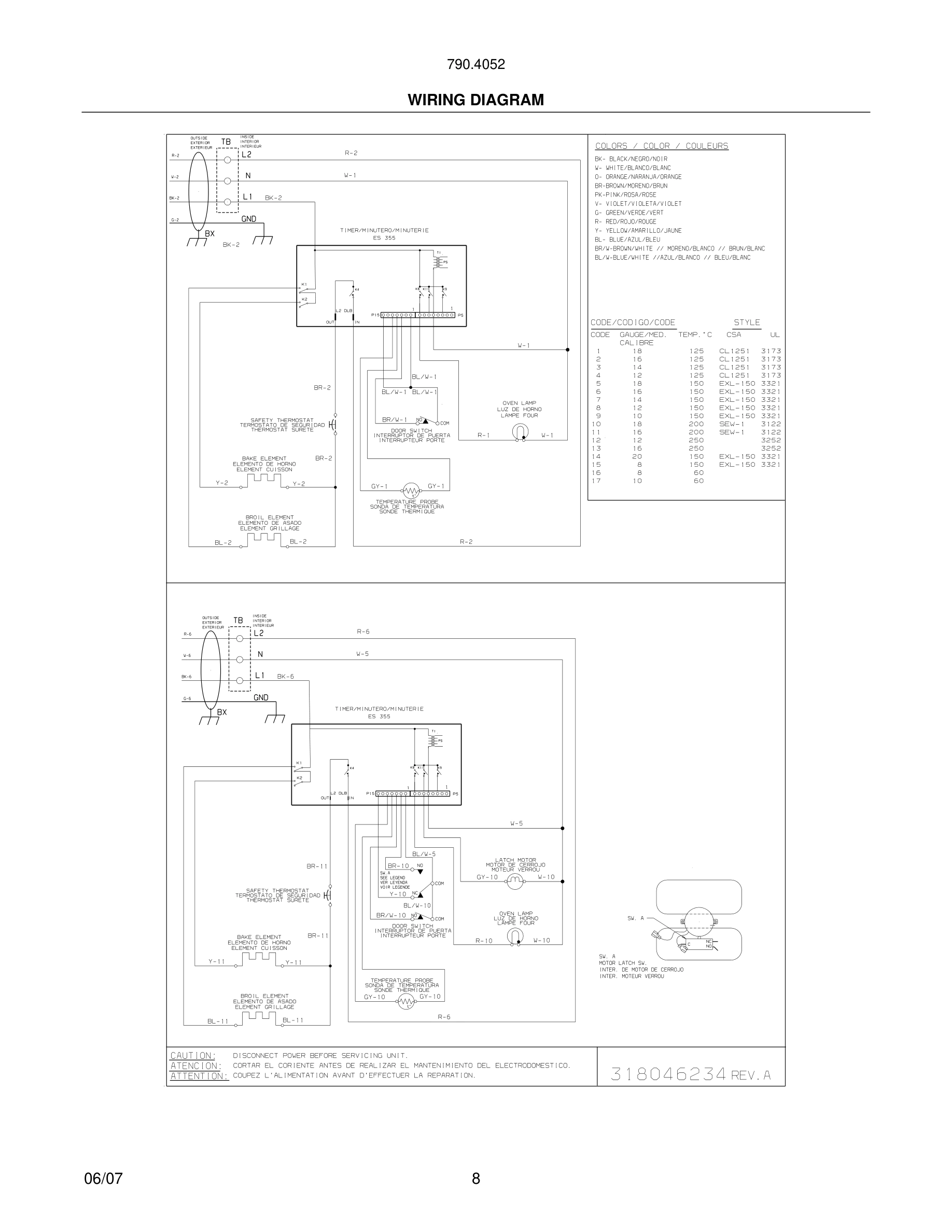

08 - WIRING DIAGRAM
Common parts from model Kenmore 790.40522402 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
3
Trim, frame, black WCI 318287400 Contact Us For Availability
3
Trim, frame, white WCI 318287300 Contact Us For Availability
3
Trim, frame, bisque WCI 318287301 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051525 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051524 Contact Us For Availability
4
Glass, oven door, bisque, outer WCI 318051526 Contact Us For Availability
5
Glass, door, inner, (2) WCI 318212410 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318285086 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
9
Deflector, upper oven WCI 318160503 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10
Screw, handle, door WCI 5303311217 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
18
Seal, window, upper oven WCI 318293400 Contact Us For Availability
19
Collar, glass mtg WCI 318139203 Contact Us For Availability
20#
Clock/Timer, electronic, ES355W2 WCI 316418550 Contact Us For Availability
23
Hinge, oven door, upper oven WCI 5303310506 Contact Us For Availability
25
Liner, oven door WCI 318048311 Contact Us For Availability
27
Spacer, door WCI 318014403 Contact Us For Availability
39
Handle, door, white, oven WCI 318264411 Contact Us For Availability
39
Handle, door, bisque, oven WCI 318264412 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
41
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
58B
Insulation, oven back WCI 318285036 Contact Us For Availability
58C
Insullation WCI 318294906 Contact Us For Availability
58J
Insulation WCI 318106055 Contact Us For Availability
59
Tube, vent, oven WCI 318072568 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
60
Foam seal, (2) WCI 5303316982 Contact Us For Availability
71
Shield, rear wall WCI 318071111 Contact Us For Availability
76
Front, oven WCI 318056139 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
83
Liner, oven WCI 318089521 Contact Us For Availability
86
Receptacle, hinge WCI 5303310524 Contact Us For Availability
88
Rod, latch WCI 318118903 Contact Us For Availability
89*
Switch WCI 318120711 Contact Us For Availability
97
Wrapper, back & sides WCI 318066602 Contact Us For Availability
98
Trim, side, black, inner, RH WCI 318029357 Contact Us For Availability
98A
Trim, side, black, inner, LH WCI 318029358 Contact Us For Availability
103
Trim, base, white WCI 318283201 Contact Us For Availability
103
Trim, base, bisque WCI 318283202 Contact Us For Availability
103
Trim, base, black WCI 318283200 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071444 Contact Us For Availability
128
Bushing WCI 5303311163 Contact Us For Availability
187
Tube, latch rod WCI 318013503 Contact Us For Availability
189
Plate, retainer WCI 318042500 Contact Us For Availability
227
Clip, retainer WCI 318370900 Contact Us For Availability
× ![]()
