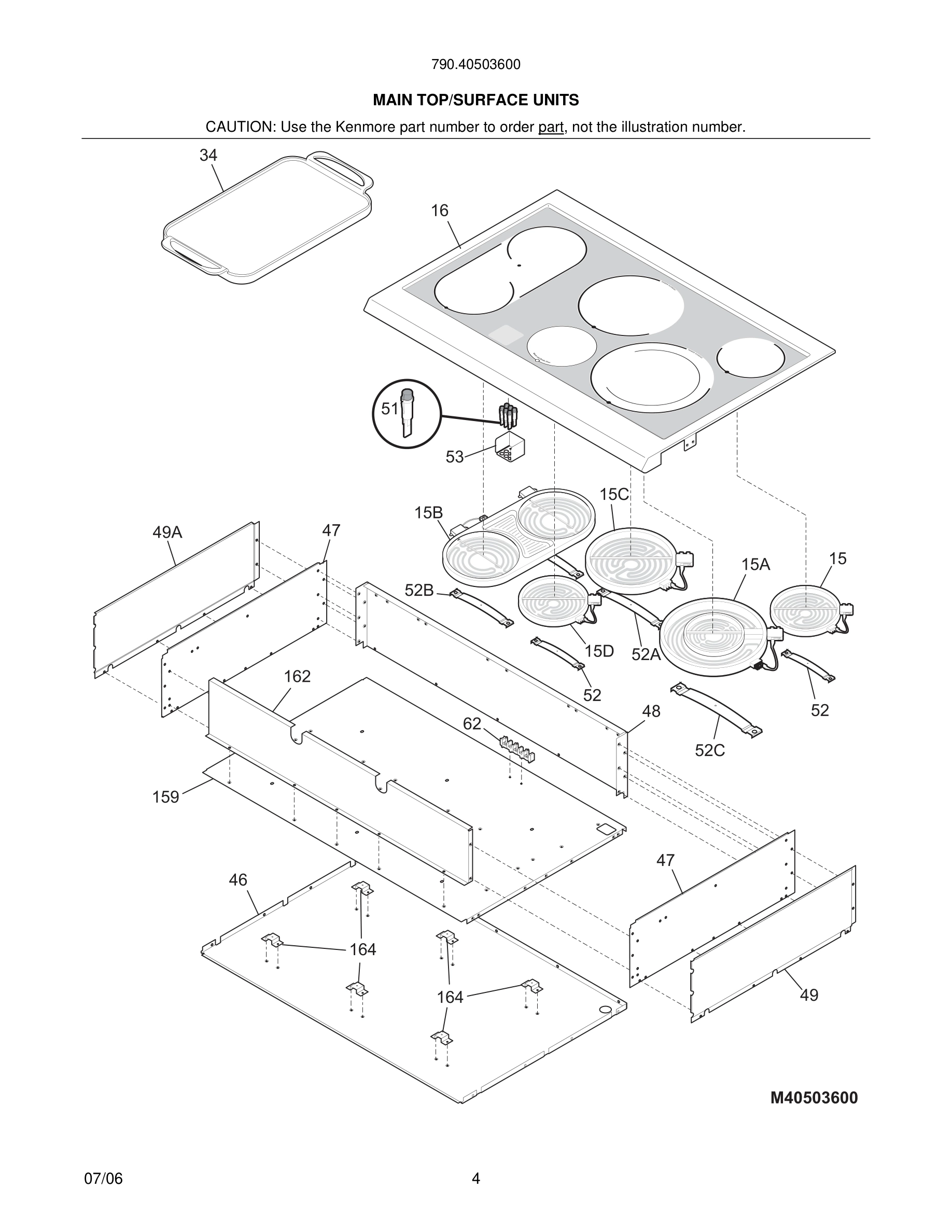

Model Kenmore 790.40503600 COOKTOP – Common Parts & Diagrams

*
Pad, cleaning
Pad, cleaning WCI 316459400 Contact Us For Availability
View on Model
*
Screw, truss head, 8-18 x 0.375
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
View on Model
*
Cleaner, cooktop
Cleaner, cooktop WCI 316112100 Contact Us For Availability
View on Model
*
Cleaner, stainless steel
Cleaner, stainless steel WCI 316136900 Contact Us For Availability
View on Model
*#
Box & wires assy
Box & wires assy WCI 318078541 Contact Us For Availability
View on Model
*#
Harness, wiring, main
Harness, wiring, main WCI 318052590 Contact Us For Availability
View on Model
*#
Harness, wiring, right side
Harness, wiring, right side WCI 318243204 Contact Us For Availability
View on Model
*#
Harness, wiring, left side
Harness, wiring, left side WCI 318243304 Contact Us For Availability
View on Model
15A#
Element, surface, 6/9, 1200/1800W, dual radia
Element, surface, 6/9, 1200/1800W, dual radia WCI 318198927 Contact Us For Availability
View on Model
15C#
Element-surface, 9", 3000W, radiant
Element-surface, 9", 3000W, radiant WCI 316465000 Contact Us For Availability
View on Model
15D#
Element, surface, warmer, 100 W
Element, surface, warmer, 100 W WCI 318198825 Contact Us For Availability
View on Model
16
Main Top Assy, frame/glass, stainless/black
Main Top Assy, frame/glass, stainless/black WCI 318185205 Contact Us For Availability
View on Model
46
Panel, base
Panel, base WCI 318242801 Contact Us For Availability
View on Model
47
Panel, side, (2)
Panel, side, (2) WCI 318241704 Contact Us For Availability
View on Model
48
Panel, rear
Panel, rear WCI 318241801 Contact Us For Availability
View on Model
49
Panel, interior side, RH
Panel, interior side, RH WCI 318241900 Contact Us For Availability
View on Model
49A
Panel, interior side, LH
Panel, interior side, LH WCI 318241901 Contact Us For Availability
View on Model
53
Bracket, pilot light
Bracket, pilot light WCI 318125960 Contact Us For Availability
View on Model
54C#
Switch, surface element
Switch, surface element WCI 318293816 Contact Us For Availability
View on Model
54D#
Switch, element, warmer
Switch, element, warmer WCI 318078804 No Longer Available
View on Model
159
Panel, bottom
Panel, bottom WCI 318242901 Contact Us For Availability
View on Model
162
Shield, heat
Shield, heat WCI 318245500 Contact Us For Availability
View on Model
164
Support, box, (6)
Support, box, (6) WCI 318252901 Contact Us For Availability
View on Model
