Model Kenmore 790.40452801 OVEN – Common Parts & Diagrams
01 - COVER
03 - CONTROL PANEL
05 - BODY

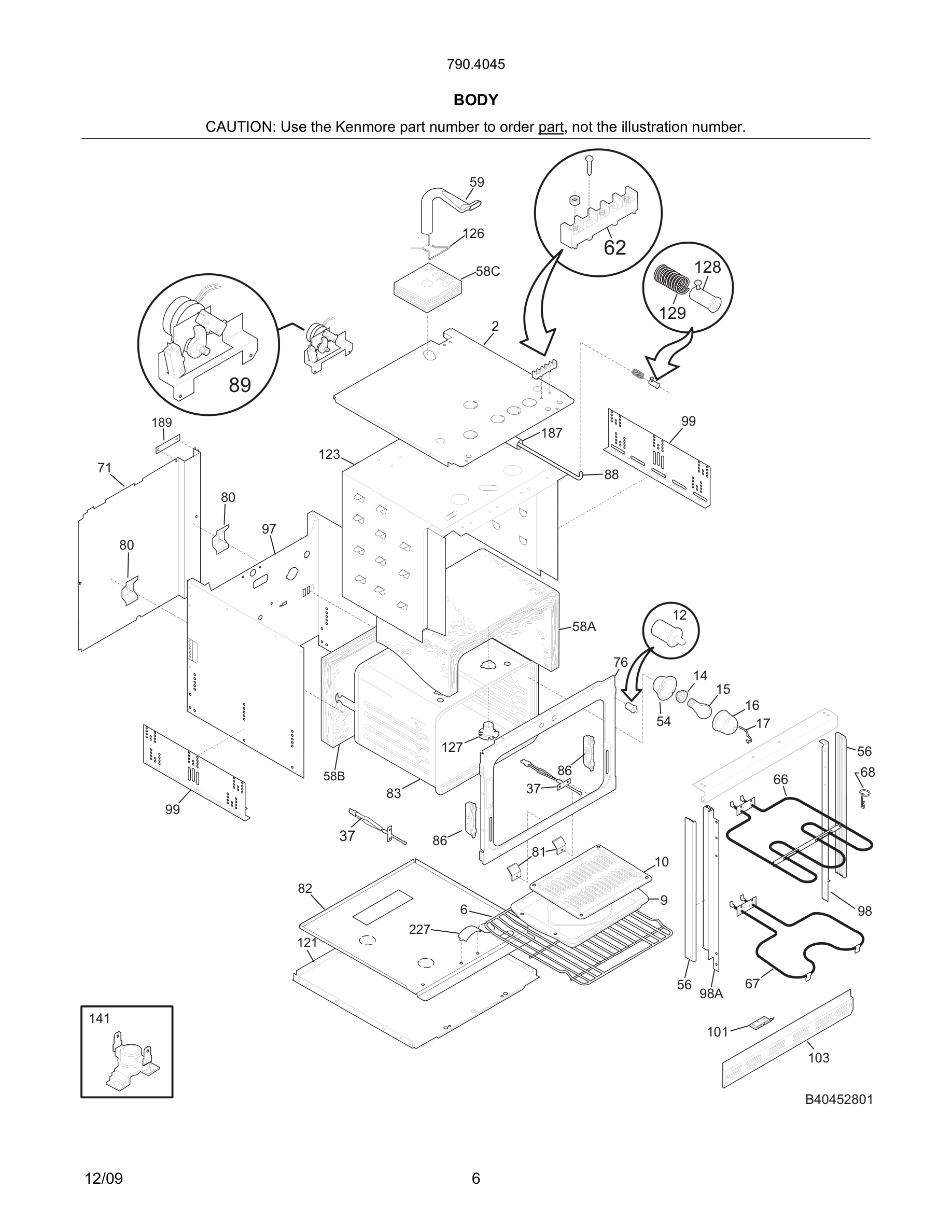

07 - BODY

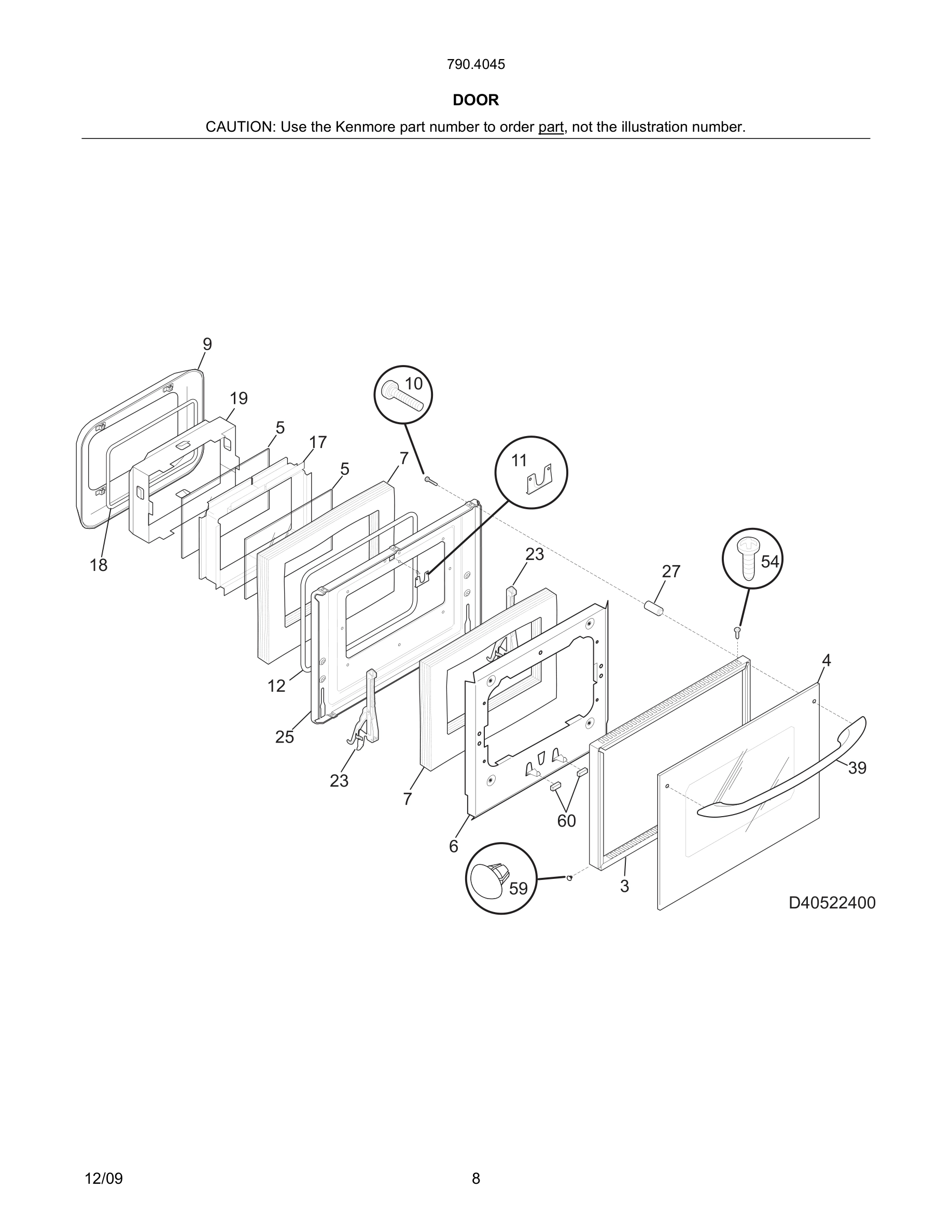

09 - DOOR

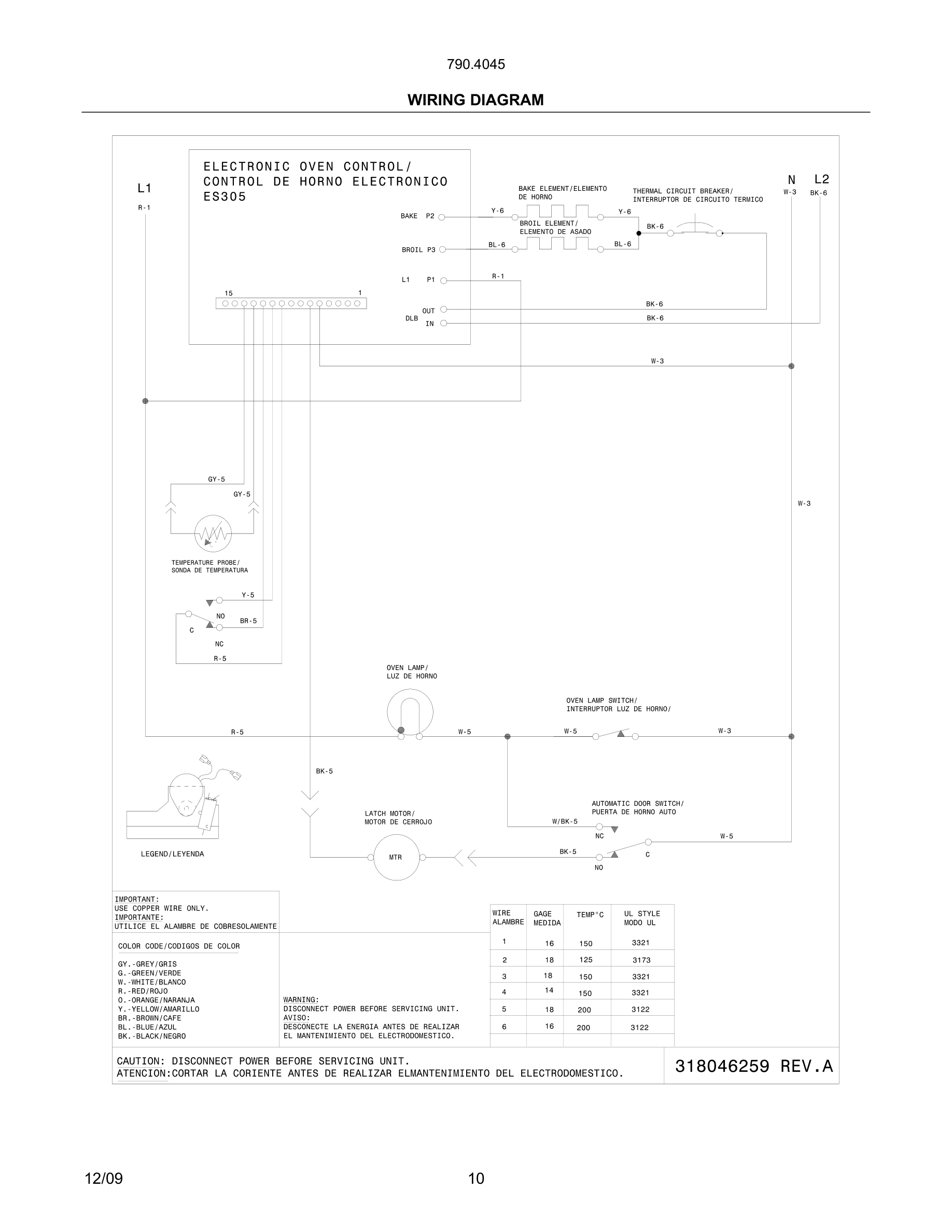

10 - WIRING DIAGRAM
Common parts from model Kenmore 790.40452801 OVEN
*
Screw, 10-24 x 0.500, probe, thrm brkt, shiel WCI 08002868 Contact Us For Availability
*
Clip, wire retainer WCI 3015722 Contact Us For Availability
*
Screw, truss head, 8-18 x 0.375 WCI 08016432 Contact Us For Availability
*#
Box & wires assy WCI 318078563 Contact Us For Availability
*#
Wiring Harness, main WCI 318199775 Contact Us For Availability
2
Wrapper, outer, top WCI 318195900 Contact Us For Availability
3
Trim, frame, black WCI 318287400 Contact Us For Availability
3
Trim, frame, white WCI 318287300 Contact Us For Availability
3
Trim, frame, bisque WCI 318287301 Contact Us For Availability
4
Glass, oven door, black, outer WCI 318051525 Contact Us For Availability
4
Glass, oven door, white, outer WCI 318051555 Contact Us For Availability
4
Glass, oven door, bisque, outer WCI 318051526 Contact Us For Availability
5
Glass, door, inner, (2) WCI 318212410 Contact Us For Availability
6
Rack, oven, (2) WCI 318345305 Contact Us For Availability
6
Shield, air wash WCI 318073610 Contact Us For Availability
7
Insulation, oven door WCI 318285086 Contact Us For Availability
9
Pan, broilerOPTIONAL ACCESS0RY WCI 5303317977 Contact Us For Availability
9
Deflector, upper oven WCI 318160503 Contact Us For Availability
10
Screw, 10-24 x 2 3/16 WCI 5303311217 Contact Us For Availability
10
Insert, broiler panOPTIONAL ACCESS0RY WCI 5303317976 Contact Us For Availability
11
Latch, door WCI 318065102 Contact Us For Availability
12
Seal, oven door, upper oven WCI 318178801 Contact Us For Availability
17
Retainer, light cover WCI 5304400195 Contact Us For Availability
17
Spacer, glass, upper oven WCI 318139102 Contact Us For Availability
18
Seal, window, upper oven WCI 318293400 Contact Us For Availability
19
Collar, glass mtg WCI 318139207 Contact Us For Availability
21
Trim, top, black WCI 5303300408 Contact Us For Availability
23
Hinge, door, lower oven, (2) WCI 318567102 Contact Us For Availability
25
Liner, oven door WCI 318048321 Contact Us For Availability
27
Spacer, door WCI 318014403 Contact Us For Availability
39
Handle, door, white, oven WCI 318264411 Contact Us For Availability
39
Handle, door, bisque, oven WCI 318264412 Contact Us For Availability
39
Handle, door, black, oven WCI 318264410 Contact Us For Availability
54
Housing, oven light WCI 318222400 Contact Us For Availability
54*
Insulation, oven light WCI 318268099 Contact Us For Availability
56
Trim, bodyside, white WCI 5303302711 Contact Us For Availability
56
Trim, bodyside, bisque WCI 318176900 Contact Us For Availability
56
Trim, bodyside, black WCI 5303298951 Contact Us For Availability
58A
Insulation, oven wrapper WCI 318386111 Contact Us For Availability
58B
Insulation, oven back WCI 318285036 Contact Us For Availability
58C
Insulation, oven vent WCI 5303311220 Contact Us For Availability
59
Tube, oven vent WCI 318549800 Contact Us For Availability
59
Plug, button WCI 3202113 Contact Us For Availability
60
Foam seal, (2) WCI 5303316982 Contact Us For Availability
71
Shield, rear wall WCI 318071111 Contact Us For Availability
76
Front, oven WCI 318056145 Contact Us For Availability
78
Cover, oven vent, white WCI 318037122 Contact Us For Availability
78
Cover, oven vent, black WCI 318037121 Contact Us For Availability
78
Cover, oven vent, bisque WCI 318037120 Contact Us For Availability
80
Spring, oven WCI 318192400 Contact Us For Availability
81
Bracket, oven WCI 5303323710 Contact Us For Availability
82
Shield, insulation WCI 5303305035 Contact Us For Availability
83
Liner, oven WCI 318089521 Contact Us For Availability
88
Rod, latch WCI 318118903 Contact Us For Availability
97
Wrapper, back & sides WCI 318066602 Contact Us For Availability
98
Trim, side, inner, RH WCI 318029384 Contact Us For Availability
98A
Trim, side, inner, LH WCI 318029385 Contact Us For Availability
100
Plate, mounting, rocker switch WCI 318112200 Contact Us For Availability
101
Bracket, trim, white WCI 318039512 Contact Us For Availability
101
Bracket, trim, bisque WCI 318039514 Contact Us For Availability
101
Bracket, trim, black WCI 318039511 Contact Us For Availability
103
Trim, base, white WCI 318028711 Contact Us For Availability
103
Trim, base, black WCI 318028710 Contact Us For Availability
103
Trim, base, bisque WCI 318028713 Contact Us For Availability
121
Wrapper, base WCI 318145005 Contact Us For Availability
123
Shield, insulation, top & sides WCI 318071444 Contact Us For Availability
126
Clip, insulator WCI 3016303 Contact Us For Availability
128
Bushing, latch rod WCI 318563000 Contact Us For Availability
187
Tube, latch rod WCI 318013503 Contact Us For Availability
189
Plate, retainer WCI 318042500 Contact Us For Availability
227
Clip, retainer WCI 318370900 Contact Us For Availability
× ![]()
