Model Electrolux 790.40199400 Electric Wall Oven (Kenmore 79040199400) – Common Parts & Diagrams
CONTROLS
CONTROLS

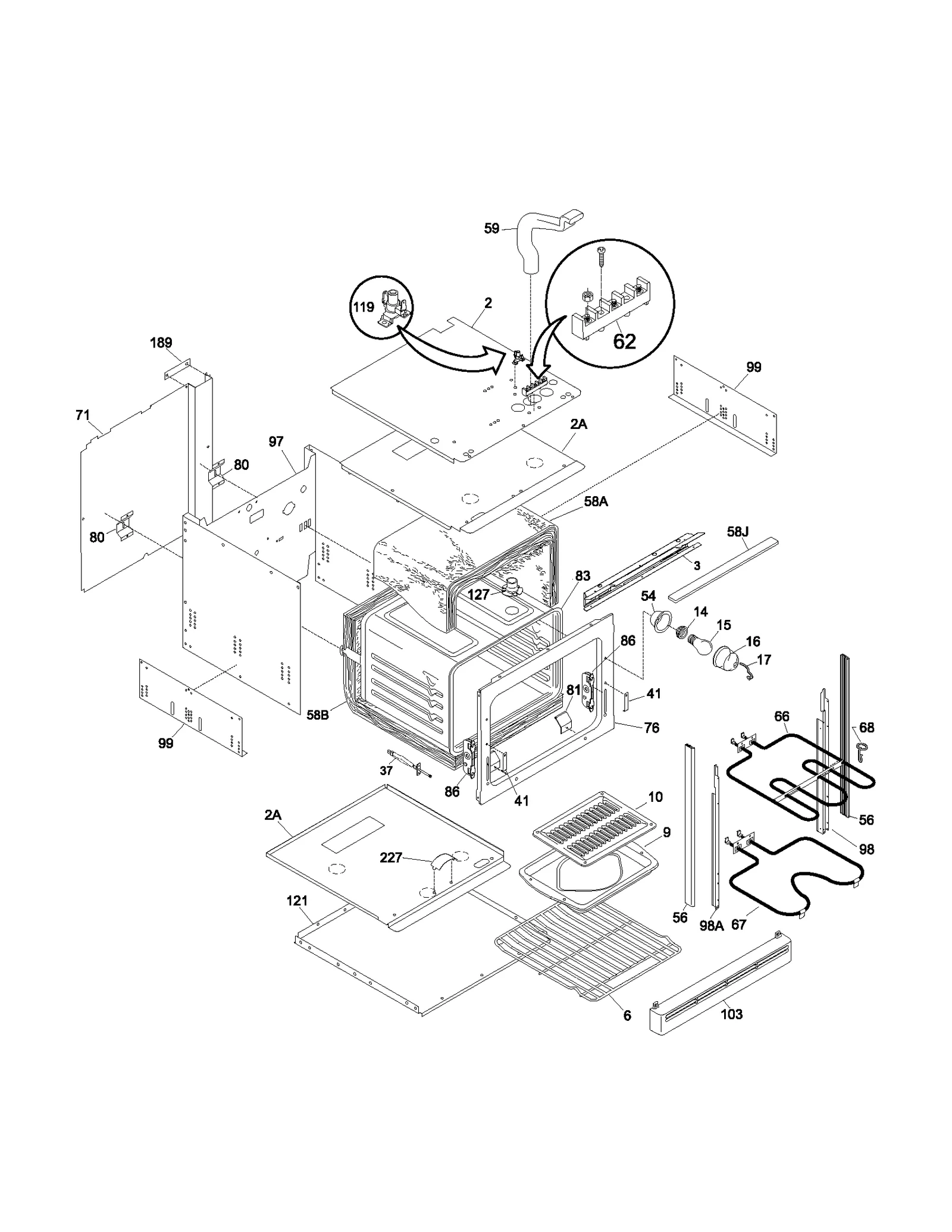

BODY
BODY

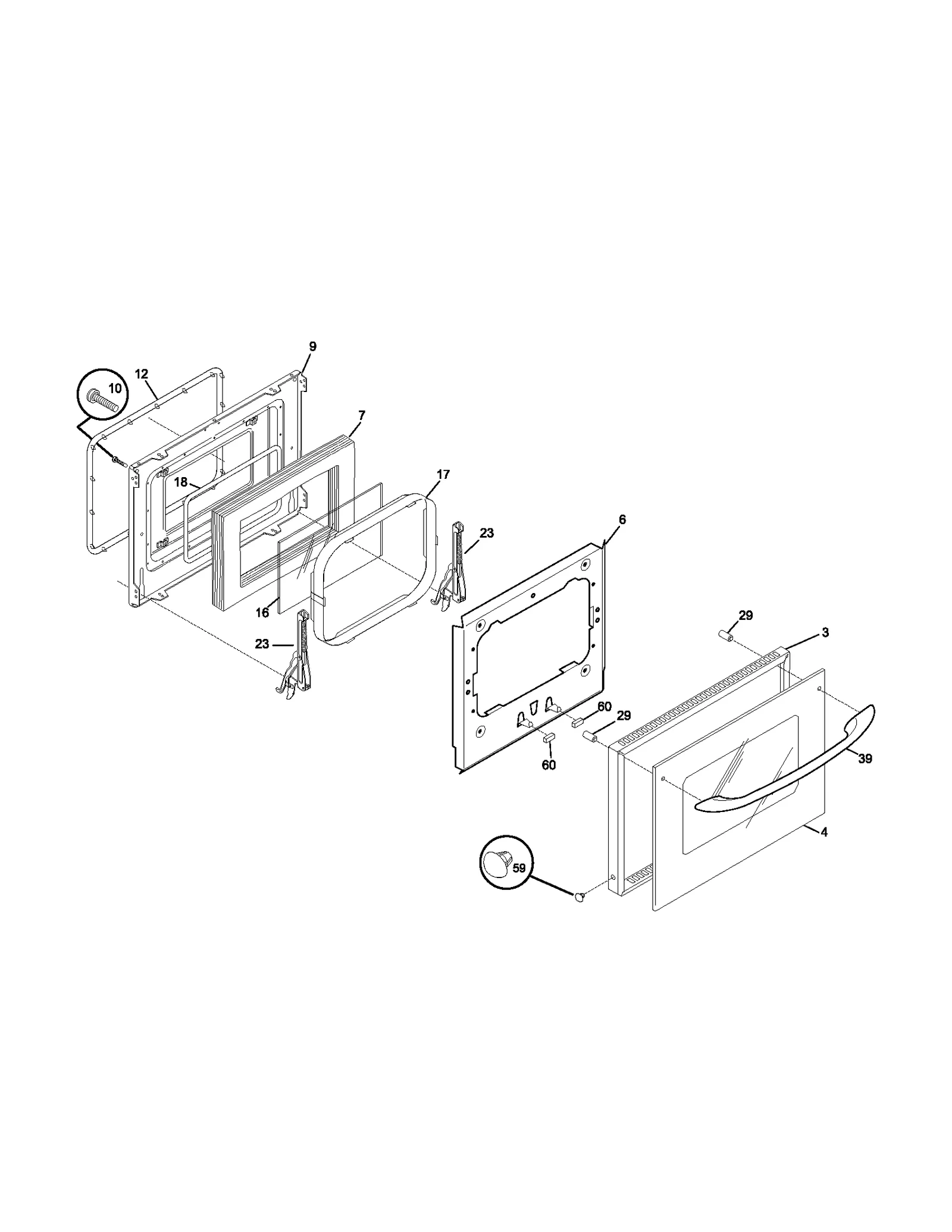

DOOR
Common parts from model Electrolux 790.40199400 Electric Wall Oven (Kenmore 79040199400)
2
Wrapper WCI 318195901 Contact Us For Availability
3
Wall Oven Door Frame Trim Assembly (Black) WCI 318287400 Contact Us For Availability
3
Wall Oven Door Frame Trim Assembly (White) WCI 318287300 Contact Us For Availability
4
Glass WCI 318051524 Contact Us For Availability
4
Wall Oven Door Outer Panel (Bisque) WCI 318051526 Contact Us For Availability
4A
Frigidaire Wall Oven Door Outer Panel (Black) WCI 318051525 Contact Us For Availability
6
Rack WCI 318262700 Contact Us For Availability
6
Shield WCI 318073610 Contact Us For Availability
7
Insulation WCI 318133799 Contact Us For Availability
9
Broiler Pan WCI 5303317977 Contact Us For Availability
9
Liner WCI 318156611 Contact Us For Availability
10
Insert Broil WCI 5303317976 Contact Us For Availability
12
Range Oven Door Seal WCI 5303316768 Contact Us For Availability
16
Oven Door Glass WCI 318212400 Contact Us For Availability
17
Wall Oven Light Lens Retainer WCI 5304400195 Contact Us For Availability
17
Support WCI 318162611 Contact Us For Availability
18
Wall Oven Door Inner Glass Gasket WCI 318053206 Contact Us For Availability
20
Wall Oven Control Board WCI 316418552 Contact Us For Availability
20
Range Handle Spacer (Black) WCI 318014300 Contact Us For Availability
20
Range Oven Door Handle Spacer (White) WCI 318014301 Contact Us For Availability
23
Hinge WCI 318024702 Contact Us For Availability
29
Wall Oven Door Handle Spacer WCI 318014400 Contact Us For Availability
39
Wall Oven Door Handle WCI 318264410 Contact Us For Availability
39
Wall Oven Door Handle (White) WCI 318264411 Contact Us For Availability
41
Range Oven Door Hinge Cut-Out Trim WCI 5303310526 Contact Us For Availability
54
Range Oven Light Housing WCI 318222400 Contact Us For Availability
56
Trim WCI 318176901 Contact Us For Availability
56
Trim WCI 318176902 Contact Us For Availability
58A
Insulation,oven wrapper WCI 318133710 Contact Us For Availability
58B
Range Oven Insulation, Rear WCI 318133704 Contact Us For Availability
59
Tube WCI 318072568 Contact Us For Availability
59
Oven Spacer WCI 3202113 Contact Us For Availability
60
Range Oven Door Trim Double-Sided Tape WCI 5303316982 Contact Us For Availability
71
Oven Panel WCI 318071111 Contact Us For Availability
76
Panel WCI 318056124 Contact Us For Availability
80
Wall Oven Rear Shield Spring Clip WCI 318192400 Contact Us For Availability
81
Bracket WCI 5303323710 Contact Us For Availability
83
Liner WCI 318089520 Contact Us For Availability
86
Hinge Channel WCI 5303310524 Contact Us For Availability
97
Wrapper WCI 318066605 Contact Us For Availability
98
Trim WCI 318029357 Contact Us For Availability
98A
Trim WCI 318029358 Contact Us For Availability
99
Panel WCI 318284200 Contact Us For Availability
103
Base Trim WCI 318283201 Contact Us For Availability
103
Wall Oven Vent, Lower (Black) WCI 318283200 Contact Us For Availability
121
Wrapper WCI 318145004 Contact Us For Availability
127
Adapter WCI 318230000 Contact Us For Availability
189
Retainer Plate WCI 318042500 Contact Us For Availability
227
Clip WCI 5303323955 Contact Us For Availability
NI
Range Screw, #10-24 x 1/2-in WCI 08002868 Contact Us For Availability
NI
Clip WCI 3015722 Contact Us For Availability
NI
Box Wire WCI 318078528 Contact Us For Availability
NI
Harness WCI 318231721 Contact Us For Availability
NI
Screw WCI 5303302745 Contact Us For Availability
NI
Wall Oven Screw, #6-20 x 5/16-in WCI 5303320422 Contact Us For Availability
NI
Screw WCI 5303935083 Contact Us For Availability
NI
Range Spacer WCI 5303300414 Contact Us For Availability
× ![]()
