Model Kenmore 790.40192400 OVEN – Common Parts & Diagrams

*
Spacer, cork & rubber
Spacer, cork & rubber WCI 5303300414 Contact Us For Availability
View on Model
3
Trim, frame, black
Trim, frame, black WCI 318287400 Contact Us For Availability
View on Model
3
Trim, frame, white
Trim, frame, white WCI 318287300 Contact Us For Availability
View on Model
4
Glass, oven door, white, outer
Glass, oven door, white, outer WCI 318051524 Contact Us For Availability
View on Model
4
Glass, oven door, black, outer
Glass, oven door, black, outer WCI 318051526 Contact Us For Availability
View on Model
6
Shield, air wash
Shield, air wash WCI 318073610 Contact Us For Availability
View on Model
7
Insulation, oven door
Insulation, oven door WCI 318133799 Contact Us For Availability
View on Model
9
Pan, broiler
Pan, broiler WCI 5303317977 Contact Us For Availability
View on Model
9
Liner, oven door, lower oven
Liner, oven door, lower oven WCI 318156611 Contact Us For Availability
View on Model
10
Insert, broiler pan
Insert, broiler pan WCI 5303317976 Contact Us For Availability
View on Model
12#
Seal, oven door, lower oven
Seal, oven door, lower oven WCI 5303316768 Contact Us For Availability
View on Model
16
Glass, door, inner
Glass, door, inner WCI 318212400 Contact Us For Availability
View on Model
17
Retainer, light cover
Retainer, light cover WCI 5304400195 Contact Us For Availability
View on Model
17
Support, glass, lower oven
Support, glass, lower oven WCI 318162611 Contact Us For Availability
View on Model
18
Gasket, door glass seal, inner, lower oven
Gasket, door glass seal, inner, lower oven WCI 318053206 Contact Us For Availability
View on Model

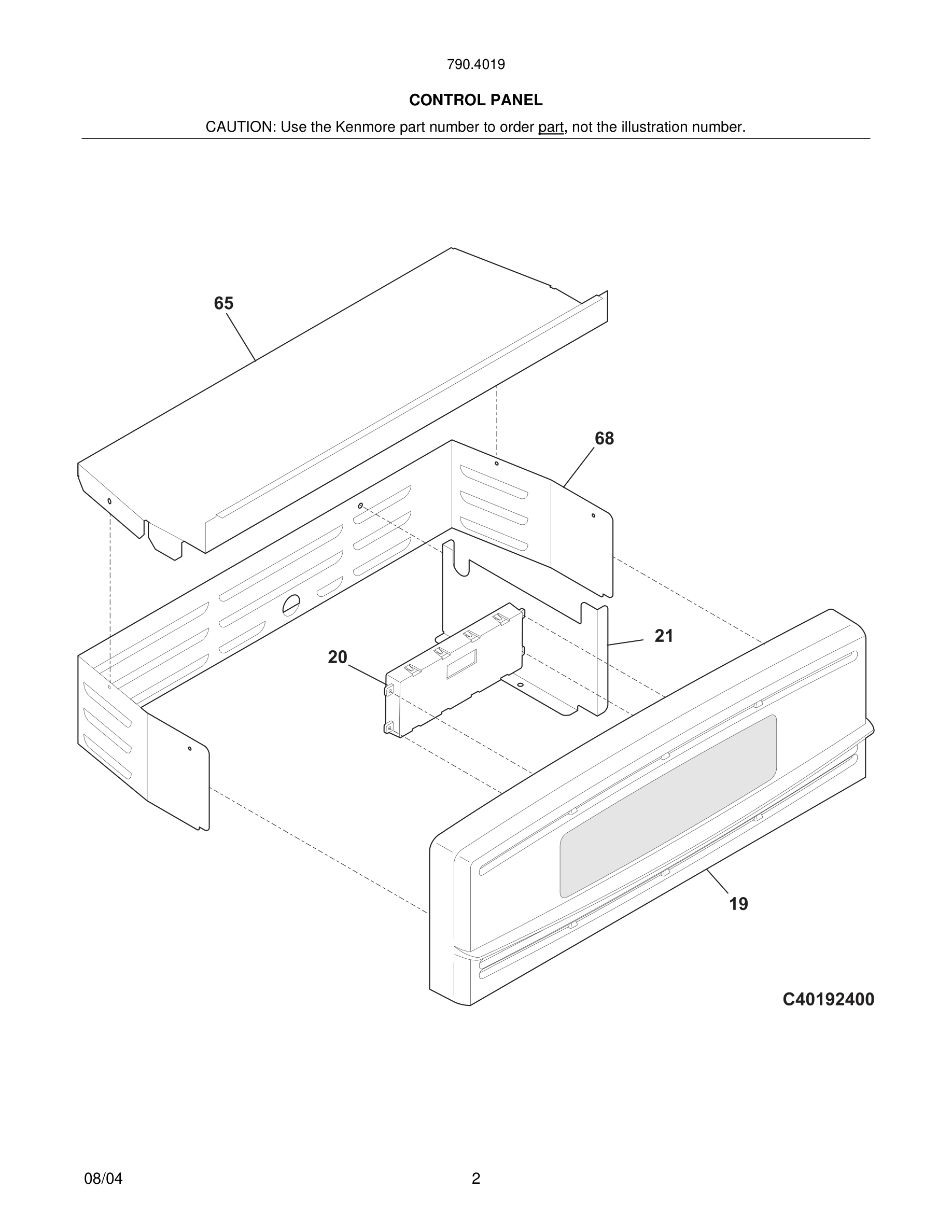

20#
Clock/Timer, electronic, ES355W1
Clock/Timer, electronic, ES355W1 WCI 316418552 Contact Us For Availability
View on Model
23
Hinge, oven door, lower oven
Hinge, oven door, lower oven WCI 318024702 Contact Us For Availability
View on Model
29
Spacer, door
Spacer, door WCI 318014400 Contact Us For Availability
View on Model
39
Handle, door, white, oven
Handle, door, white, oven WCI 318264411 Contact Us For Availability
View on Model
39
Handle, door, black, oven
Handle, door, black, oven WCI 318264410 Contact Us For Availability
View on Model
41
Cover, hinge cutout
Cover, hinge cutout WCI 5303310526 Contact Us For Availability
View on Model
54
Housing, oven light
Housing, oven light WCI 318222400 Contact Us For Availability
View on Model
56
Trim, bodyside, white
Trim, bodyside, white WCI 318176902 Contact Us For Availability
View on Model
56
Trim, bodyside, black
Trim, bodyside, black WCI 318176901 Contact Us For Availability
View on Model
58A
Insulation, oven wrapper
Insulation, oven wrapper WCI 318133710 Contact Us For Availability
View on Model
58B
Insulation, oven back
Insulation, oven back WCI 318133704 Contact Us For Availability
View on Model
58J
Insualtion
Insualtion WCI 318106037 Contact Us For Availability
View on Model
59
Tube, vent, oven
Tube, vent, oven WCI 318072568 Contact Us For Availability
View on Model
59
Plug, button
Plug, button WCI 3202113 Contact Us For Availability
View on Model
60
Foam seal, (2)
Foam seal, (2) WCI 5303316982 Contact Us For Availability
View on Model
71
Shield, rear wall
Shield, rear wall WCI 318071111 Contact Us For Availability
View on Model
76
Front, oven
Front, oven WCI 318056124 Contact Us For Availability
View on Model
80
Spring, oven
Spring, oven WCI 318192400 Contact Us For Availability
View on Model
81
Bracket, oven
Bracket, oven WCI 5303323710 Contact Us For Availability
View on Model
83
Liner, oven
Liner, oven WCI 318089520 Contact Us For Availability
View on Model
86
Receptacle, hinge
Receptacle, hinge WCI 5303310524 Contact Us For Availability
View on Model
97
Wrapper, back & sides
Wrapper, back & sides WCI 318066605 Contact Us For Availability
View on Model
98
Trim, side, black, inner, RH
Trim, side, black, inner, RH WCI 318029357 Contact Us For Availability
View on Model
98A
Trim, side, black, inner, LH
Trim, side, black, inner, LH WCI 318029358 Contact Us For Availability
View on Model
99
Panel, adjustable, side, (2)
Panel, adjustable, side, (2) WCI 318284200 Contact Us For Availability
View on Model
103
Trim, base, white
Trim, base, white WCI 318283201 Contact Us For Availability
View on Model
103
Trim, base, black
Trim, base, black WCI 318283200 Contact Us For Availability
View on Model
121
Wrapper, bottom
Wrapper, bottom WCI 318145004 Contact Us For Availability
View on Model
127
Adapter, vent tube
Adapter, vent tube WCI 318230000 Contact Us For Availability
View on Model
189
Plate, retainer
Plate, retainer WCI 318042500 Contact Us For Availability
View on Model
227
Clip, retainer
Clip, retainer WCI 5303323955 Contact Us For Availability
View on Model
